Mirror Retract Switch Circuit (TAIWAN Models Only)

Mirror Retract Switch Circuit (TAIWAN models only)

CIRCUIT DESCRIPTION
This circuit detects the conditions of the mirror retract switch.

The operating condition of the mirror retract is input by the body ECU No. 1 and the input signals are sent to the driver door ECU or the passenger door ECU.

Mirror retraction is controlled by the driver door ECU or the passenger door ECU.

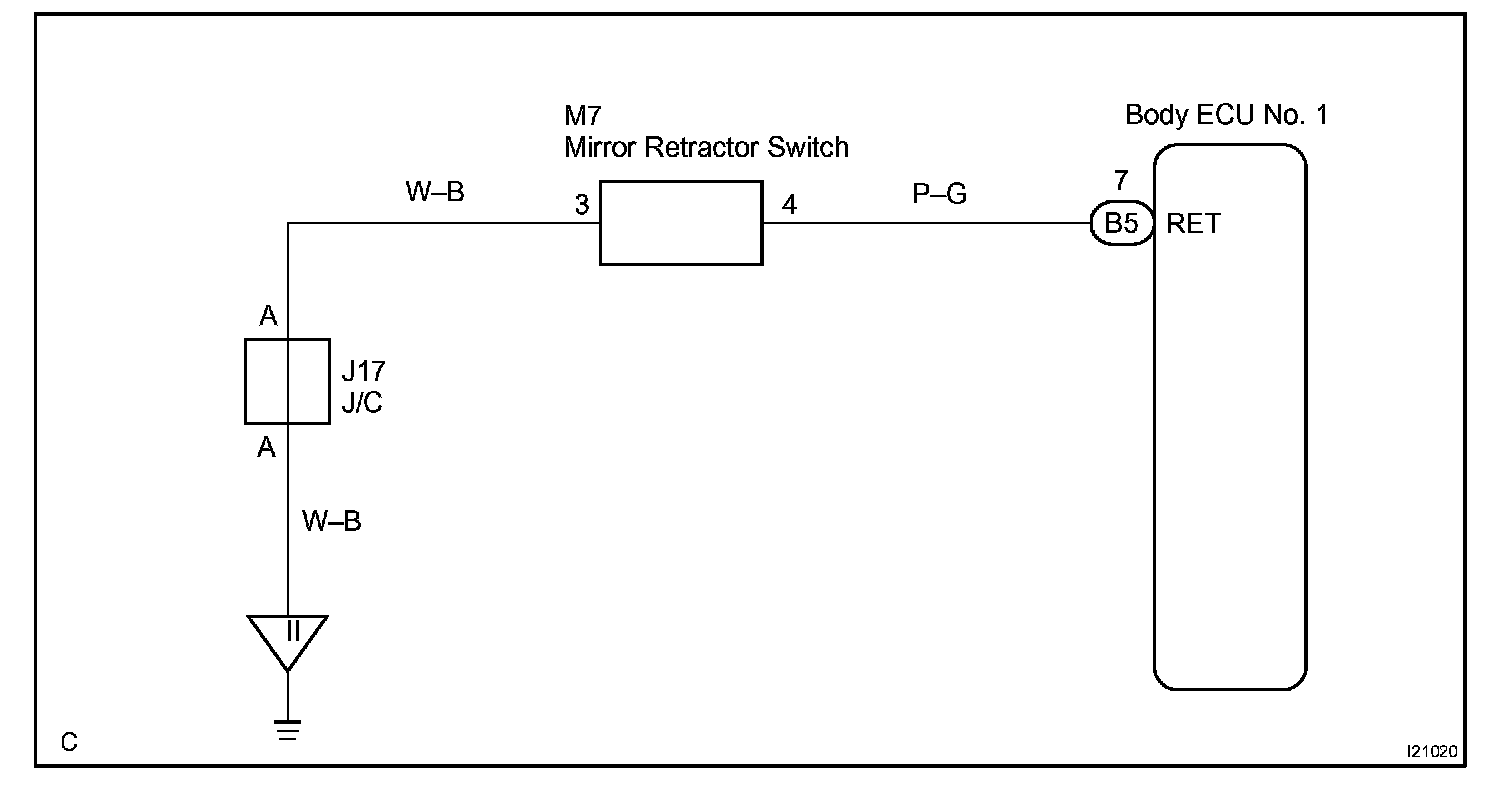

Wiring Diagram:

INSPECTION PROCEDURE

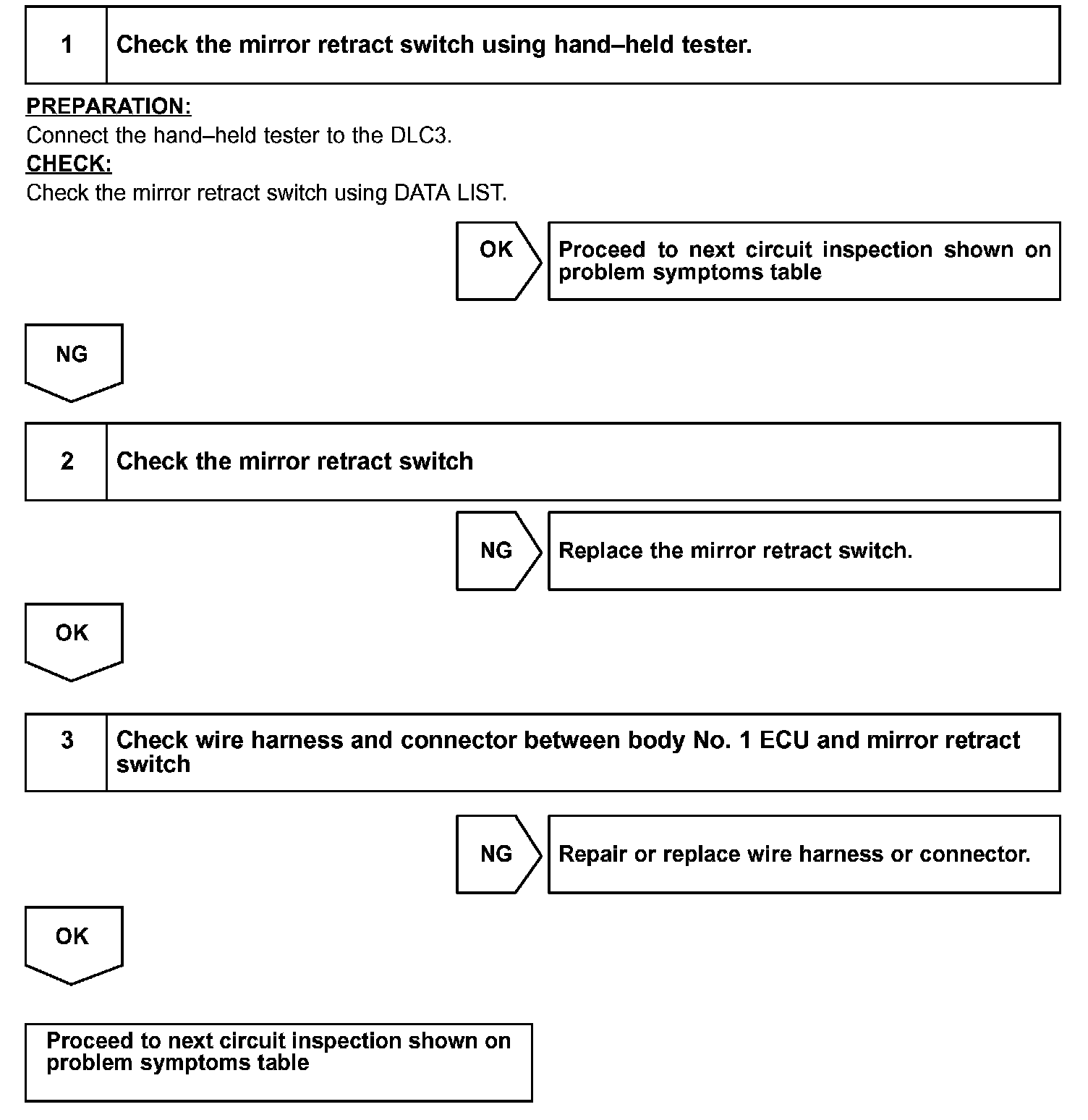

Step 1 - 3:

HINT: In case of using the hand-held tester, start the inspection from step 1 and in case of not using the hand-held tester, start from step 2.
