Luggage Courtesy Switch Circuit

Luggage courtesy switch circuit

CIRCUIT DESCRIPTION
The luggage courtesy switch goes on when luggage compartment door is opened and goes off when luggage compartment door is closed.

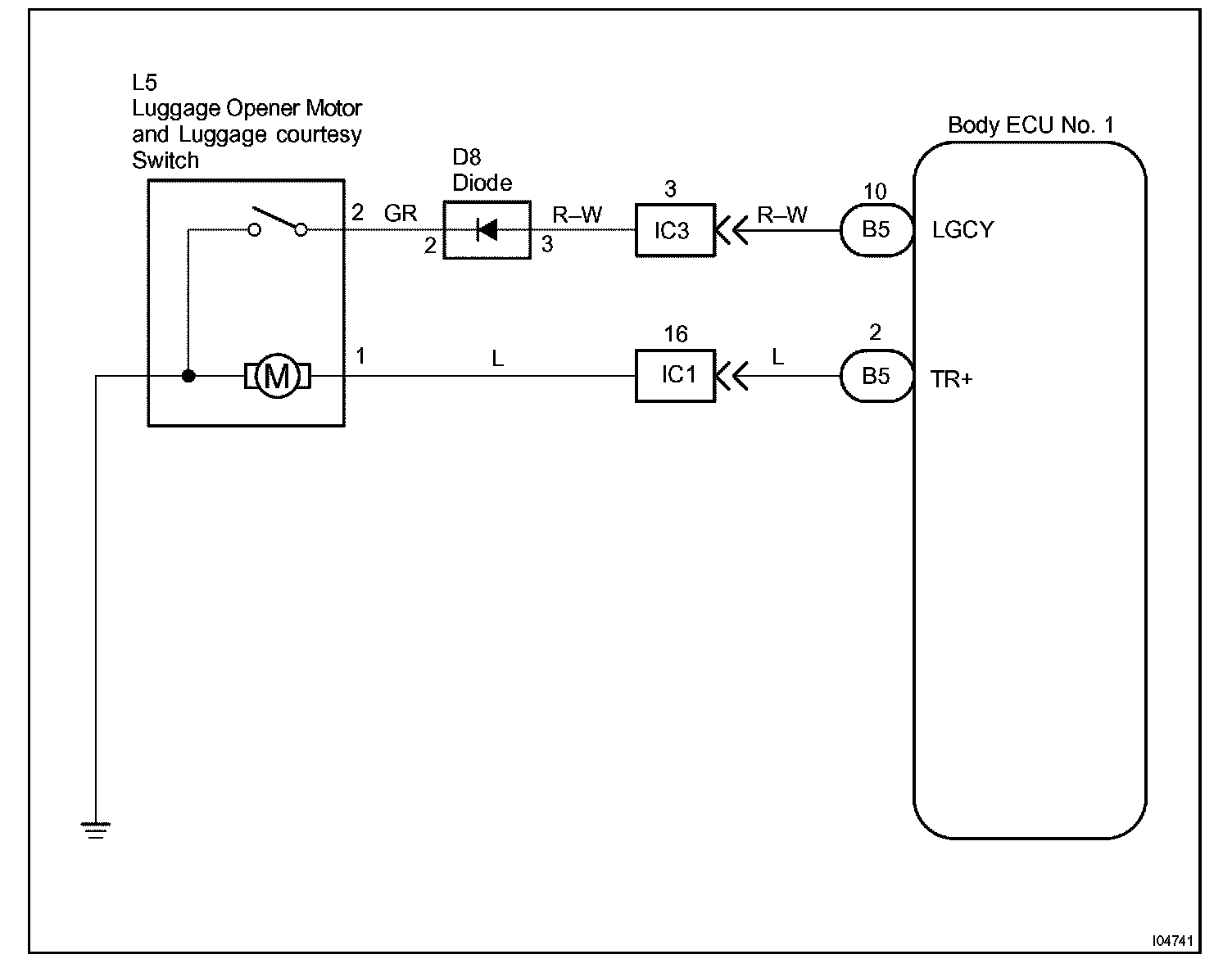

Wiring Diagram:

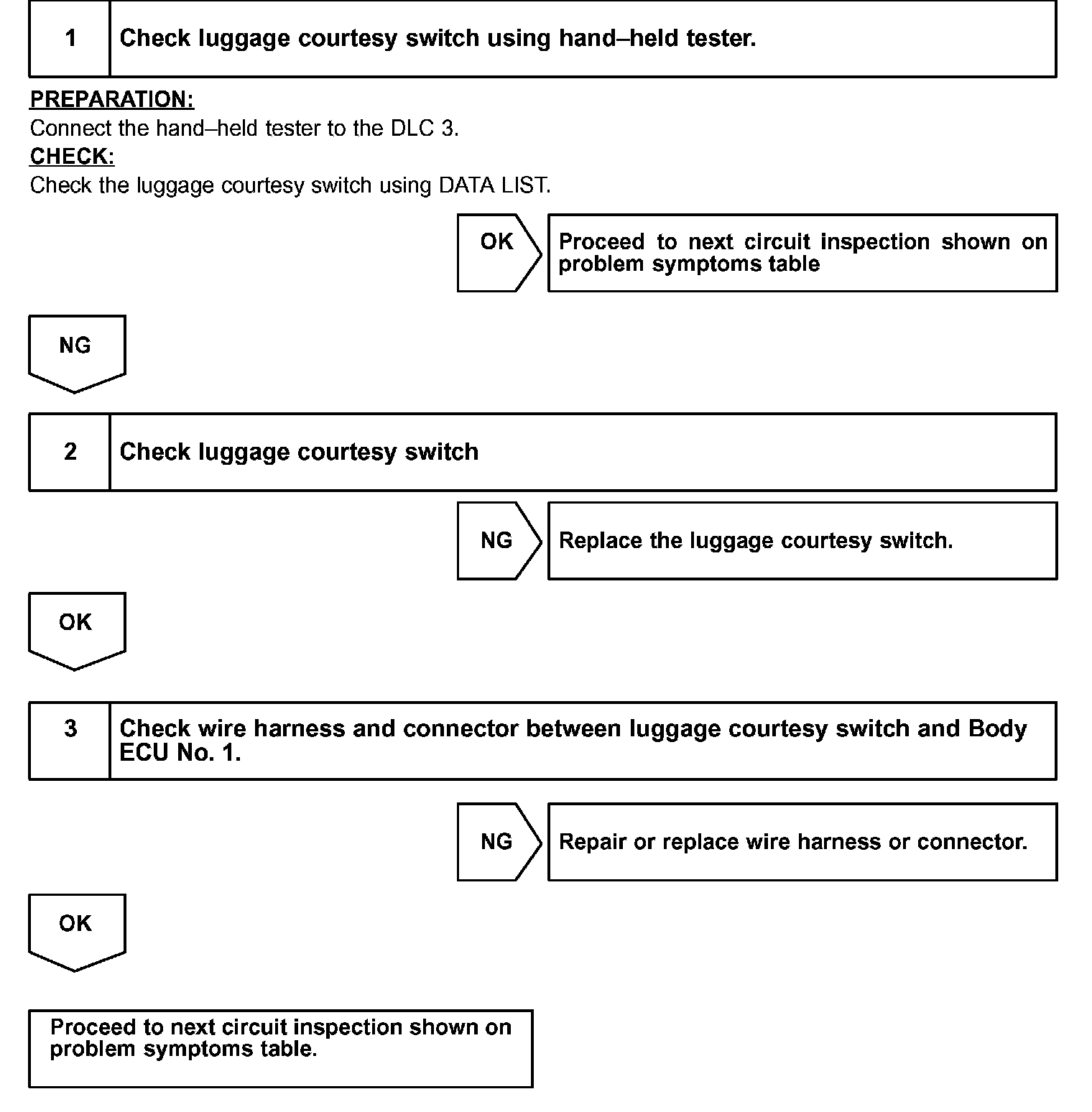

INSPECTION PROCEDURE

Step 1 - 3:

HINT: In case of using the hand-held tester, start the inspection from step 1 and in case of not using the hand-tester, start from step 2.
