Horn Circuit

Horn circuit

CIRCUIT DESCRIPTION
The horn is connected to the Body ECU No. 1 and activated by the Body ECU No. 1 during warning of the theft deterrent system.

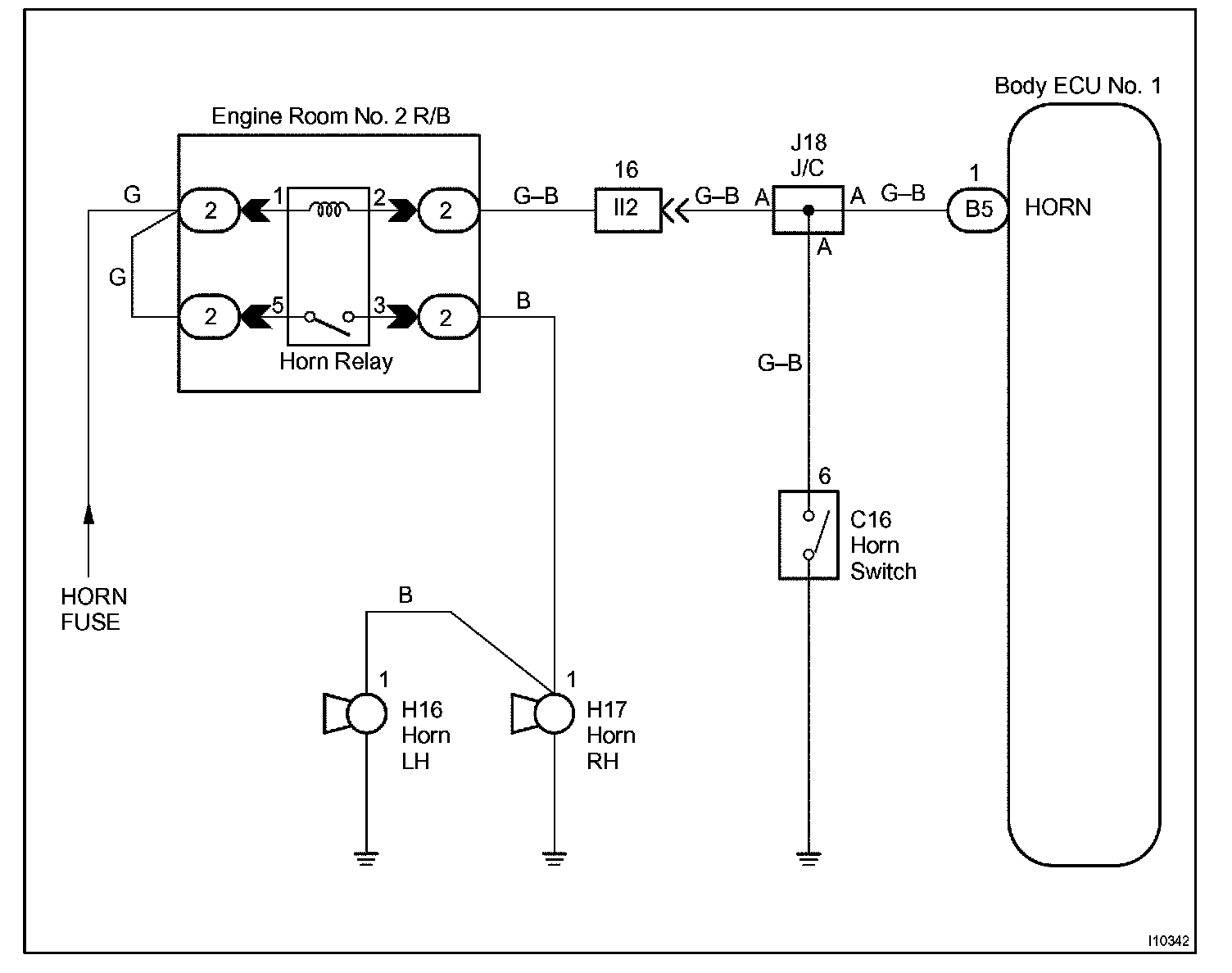

Wiring Diagram:

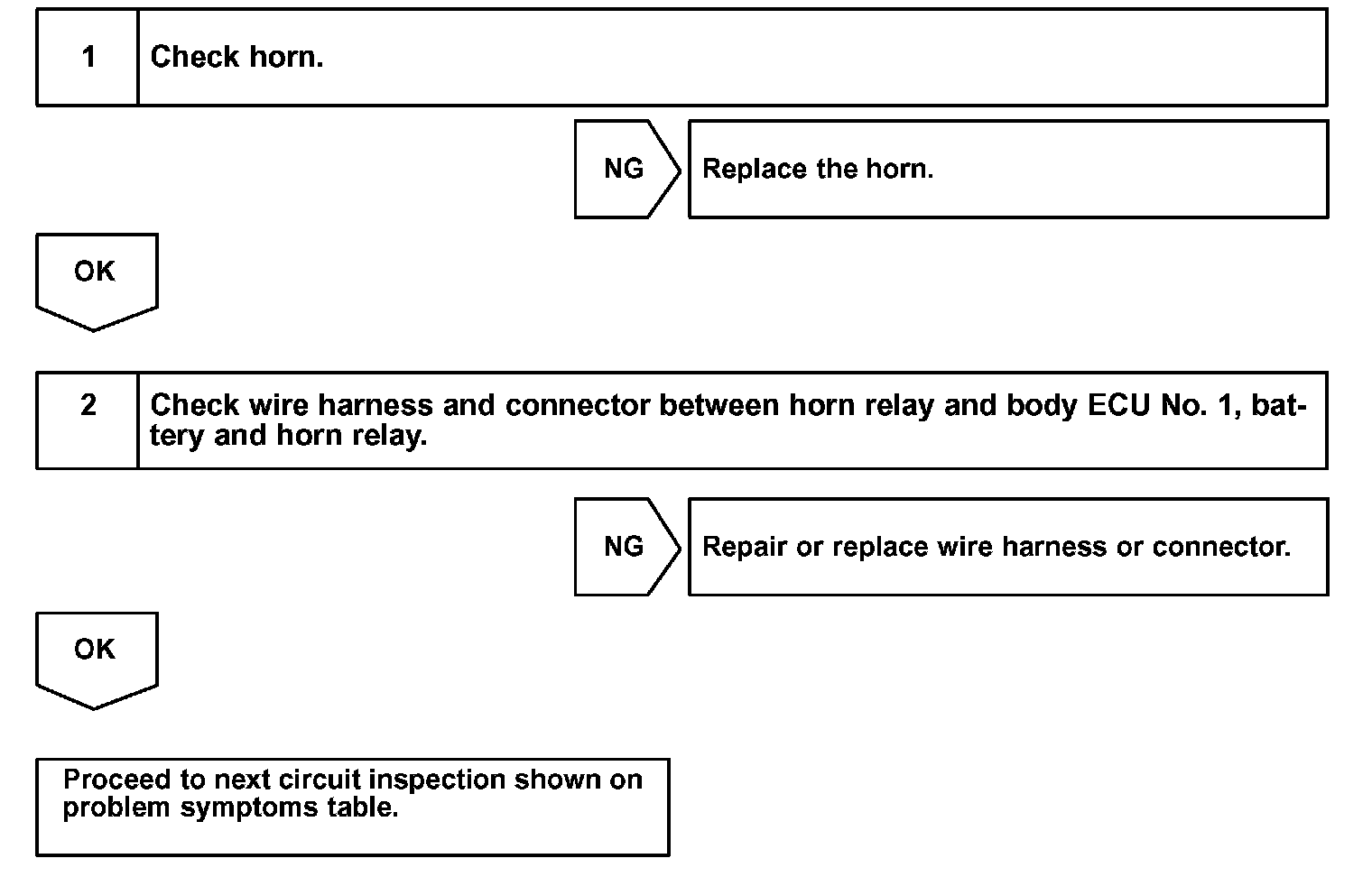

Step 1 - 2:




INSPECTION PROCEDURE
