Hood Courtesy Switch Circuit

Hood courtesy switch circuit

CIRCUIT DESCRIPTION
The hood courtesy switch is built into the engine hood lock assembly and goes on when the engine hood is opened and goes off when the engine hood is closed.

Wiring Diagram:

INSPECTION PROCEDURE

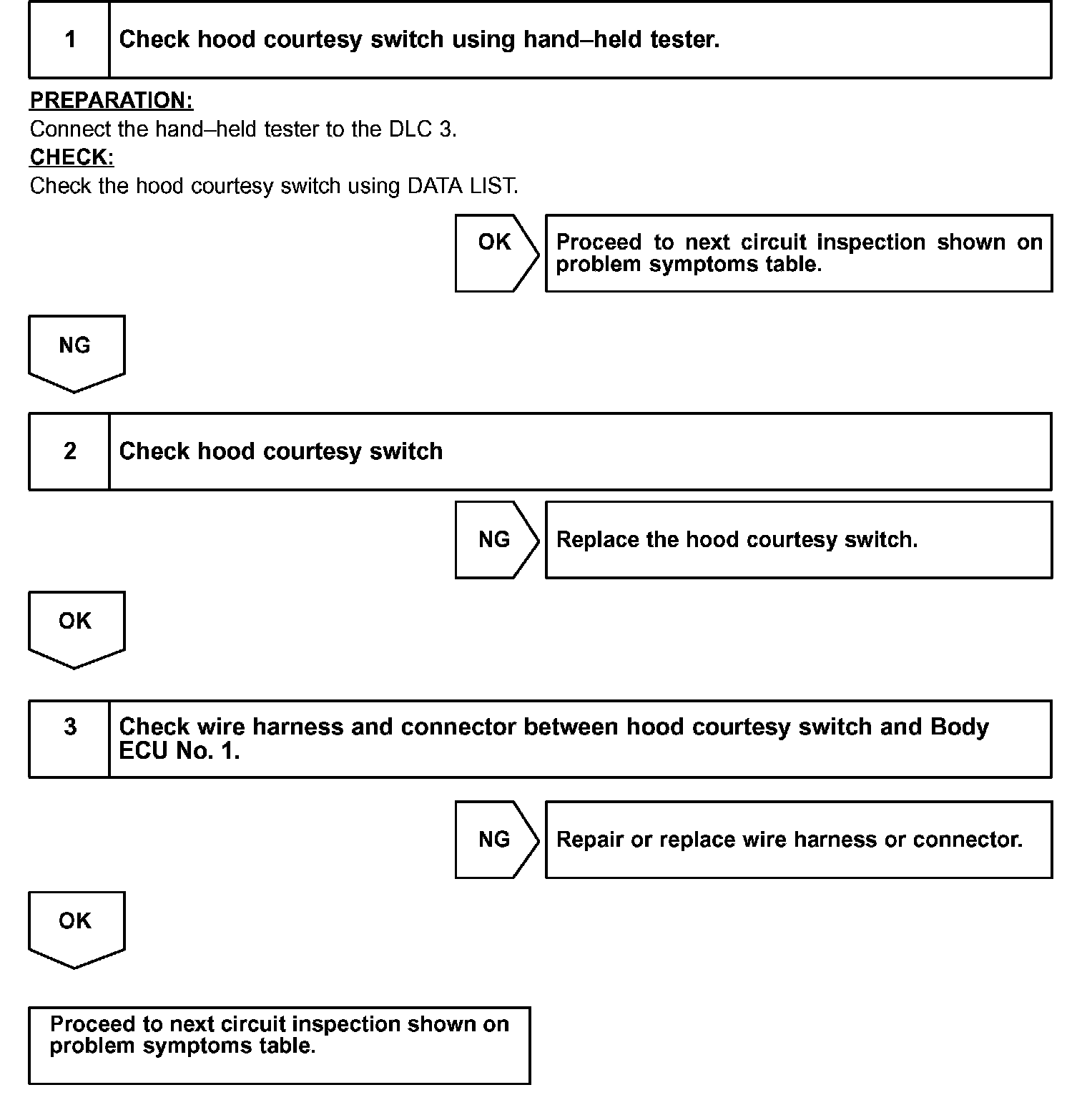

Step 1 - 3:

HINT: In case of using the hand-held tester, start the inspection from step 1 and in case of not using the hand-held tester, start from step 2.
