Rear Left Door Control System

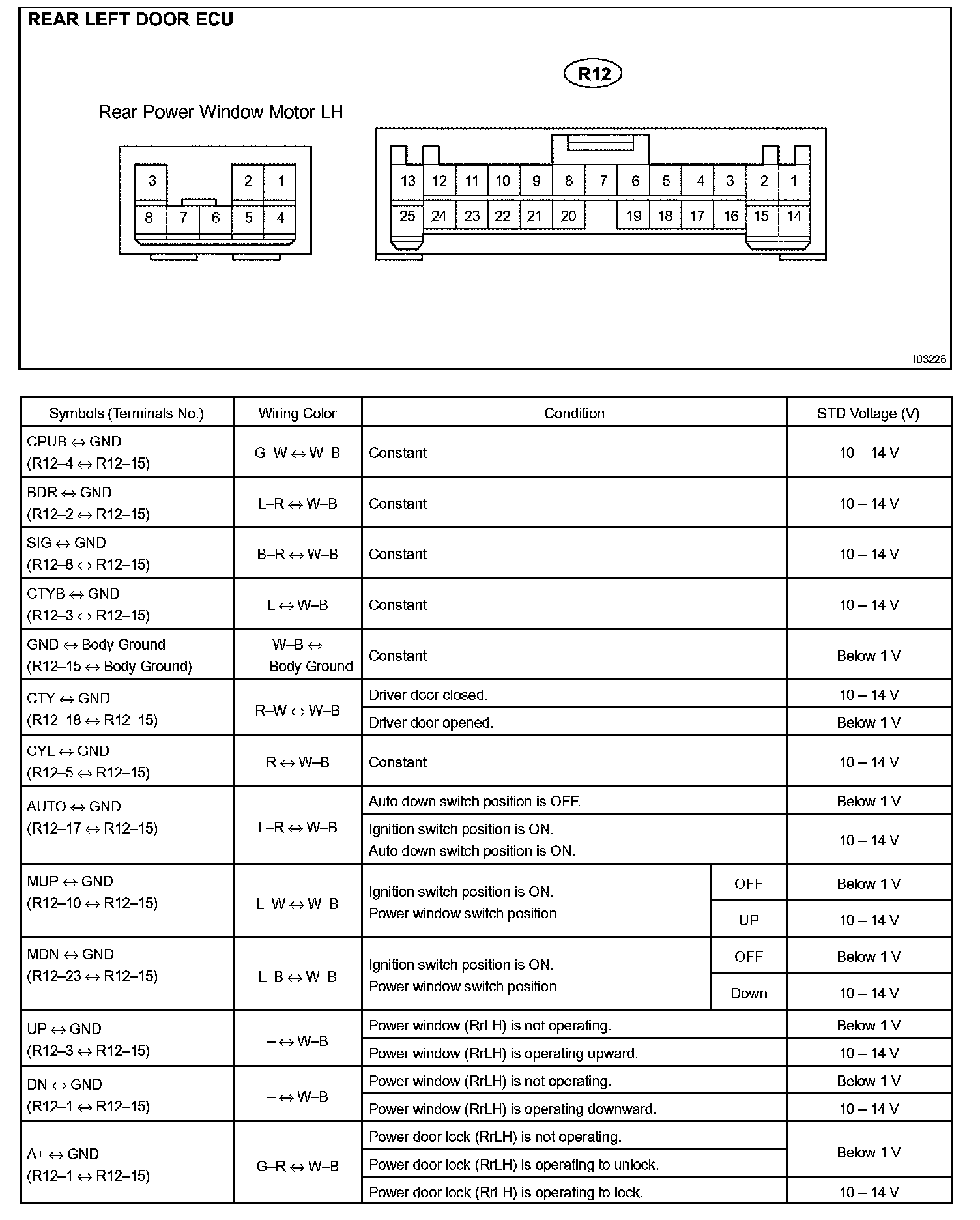

Terminals of Control Module/Pinouts Part 1:

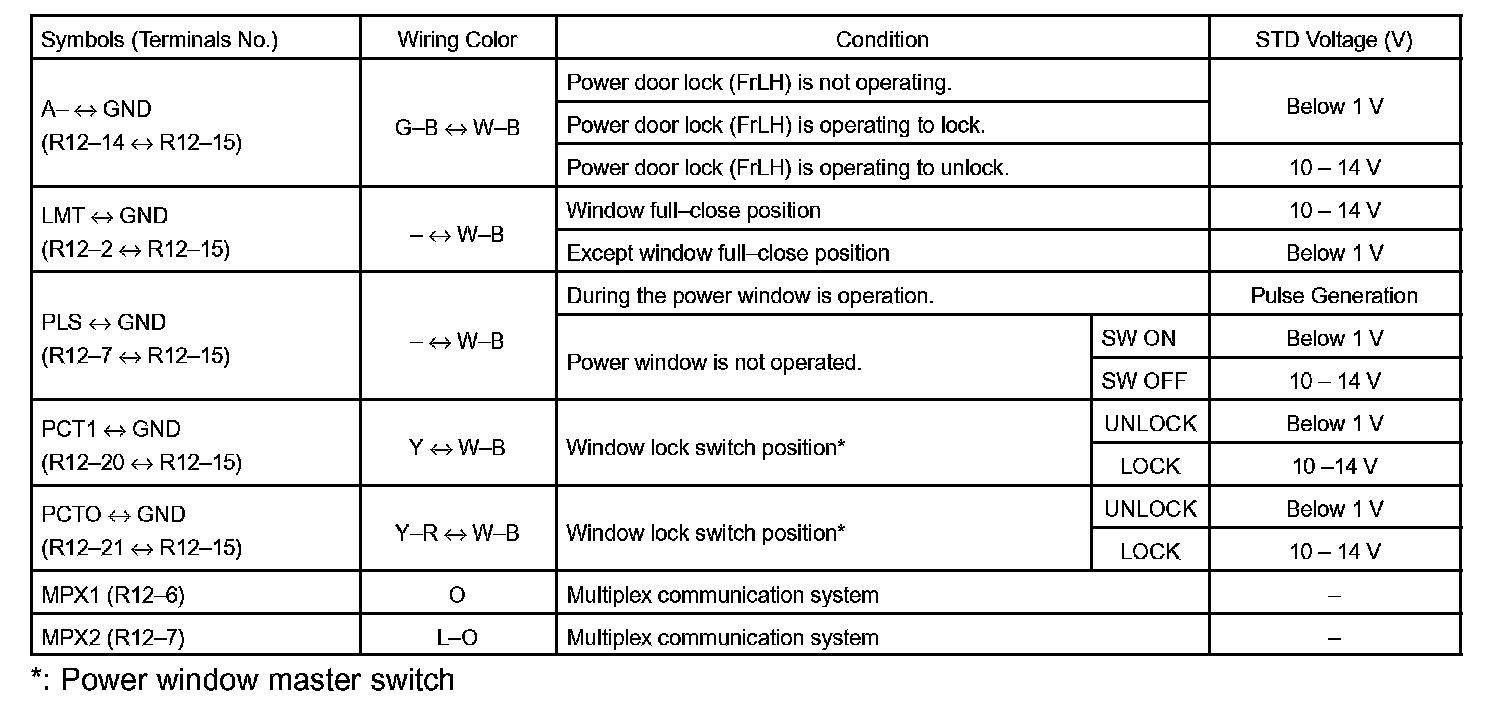

Terminals of Control Module/Pinouts Part 2:
