Driver Door Control System
Driver Door Control System

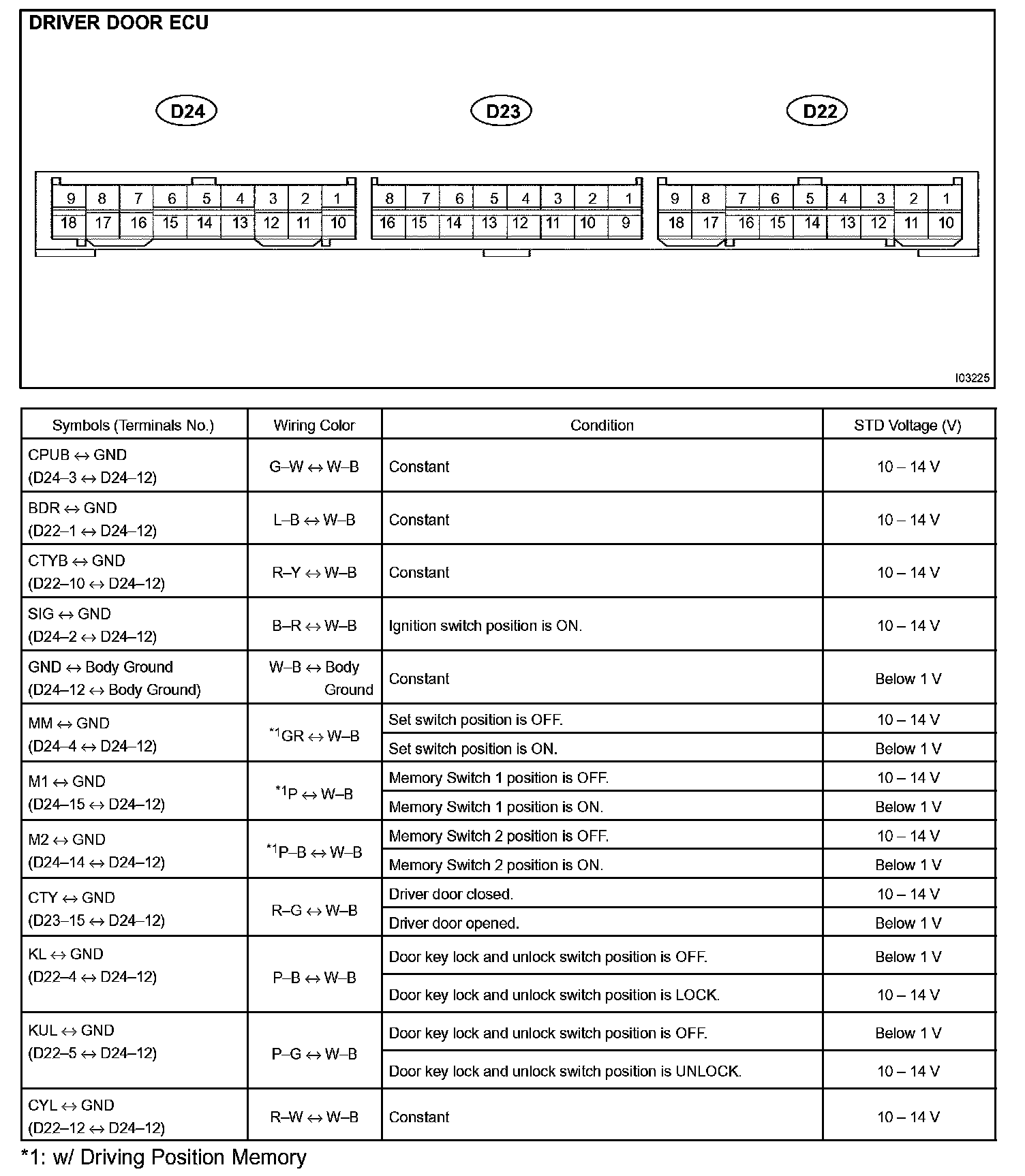

Terminals Of Control Module/Pinouts Part 1:

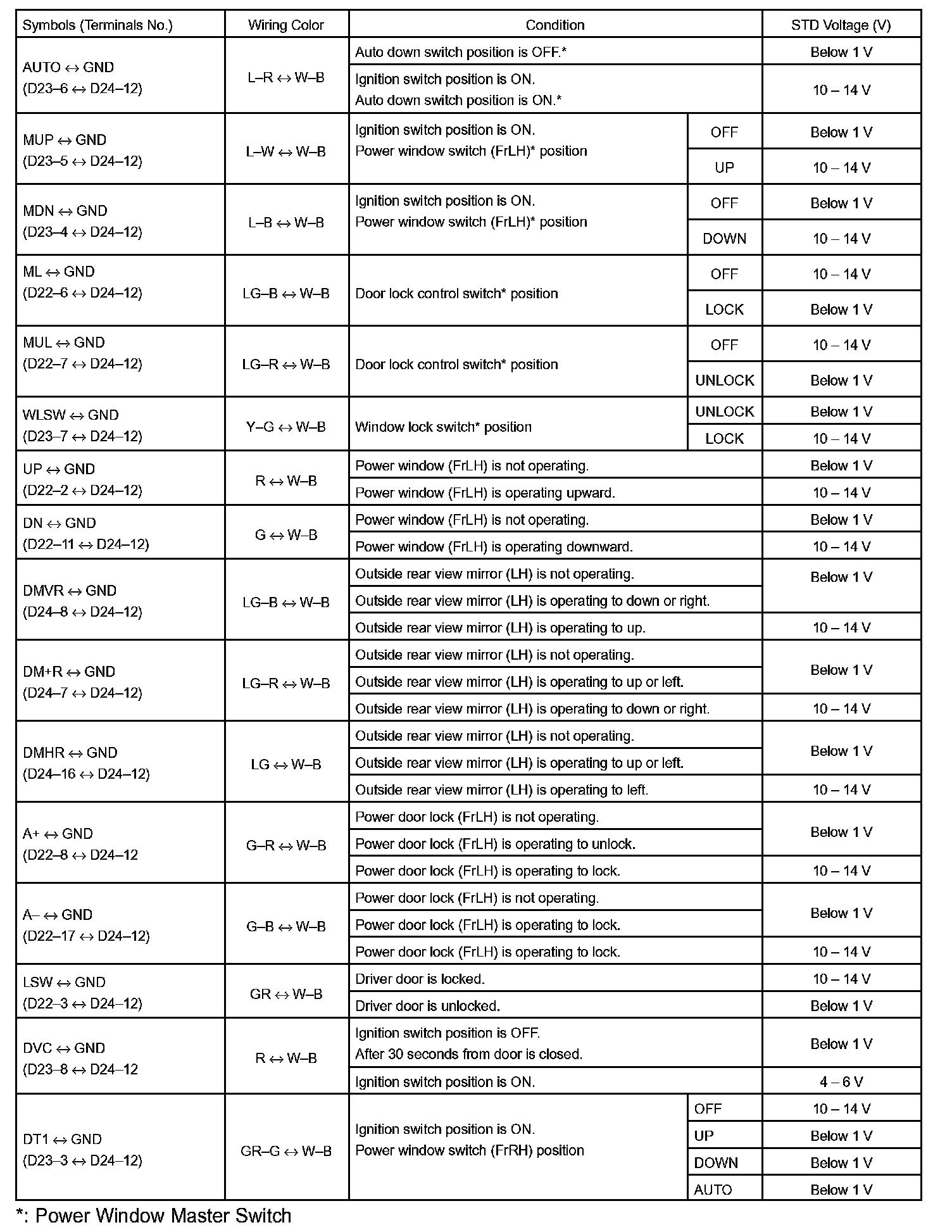

Terminals of Control Module/Pinouts Part 2:

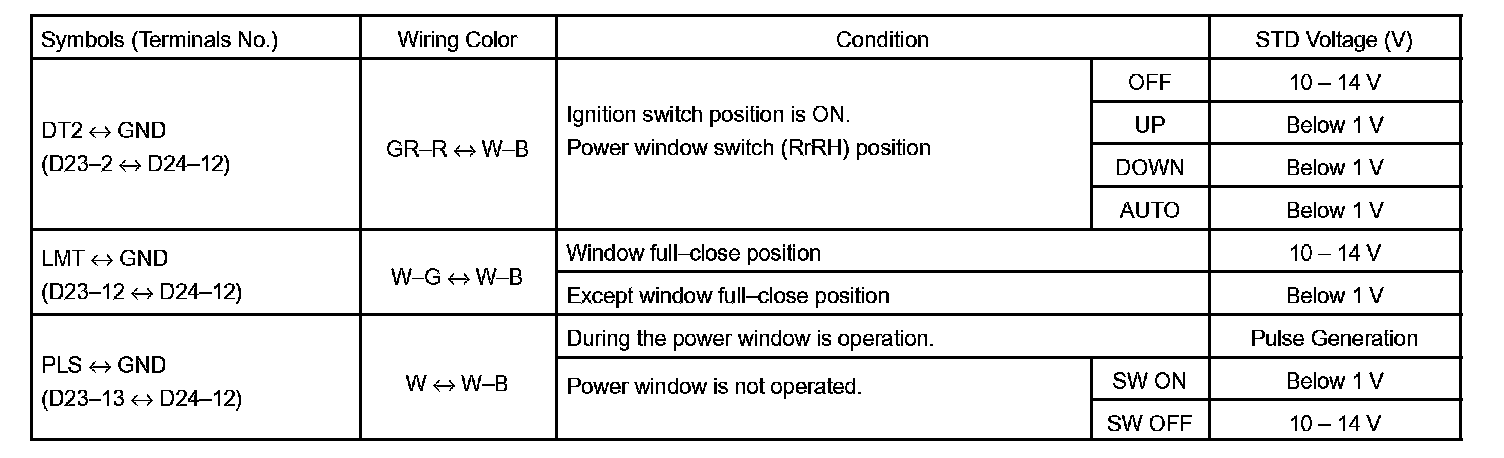

Terminals of Control Module/Pinouts Part 3:
