Gateway ECU (AVC-LAN Adapter) Circuit

Gateway ECU (AVC-LAN adapter) circuit

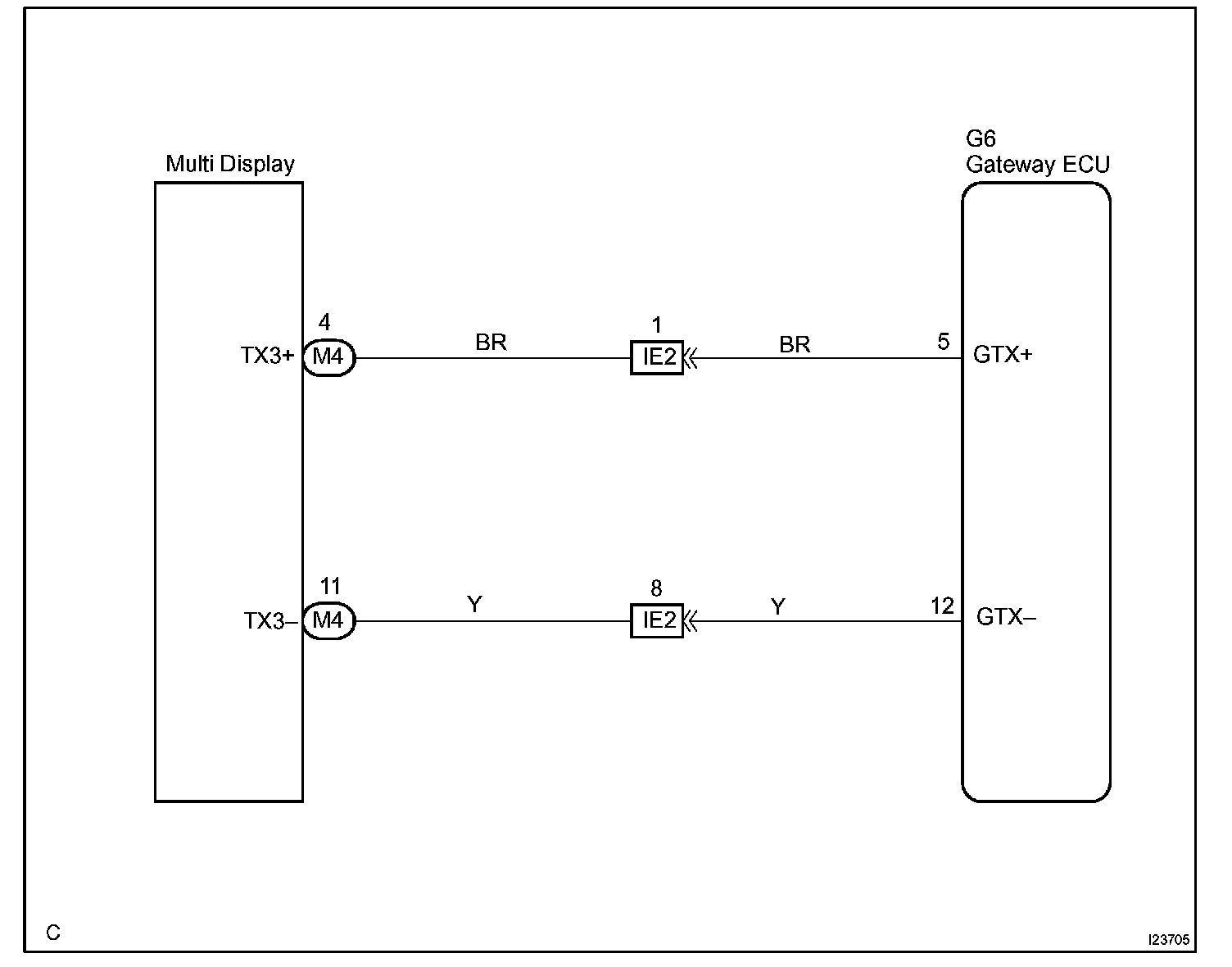

Wiring Diagram:

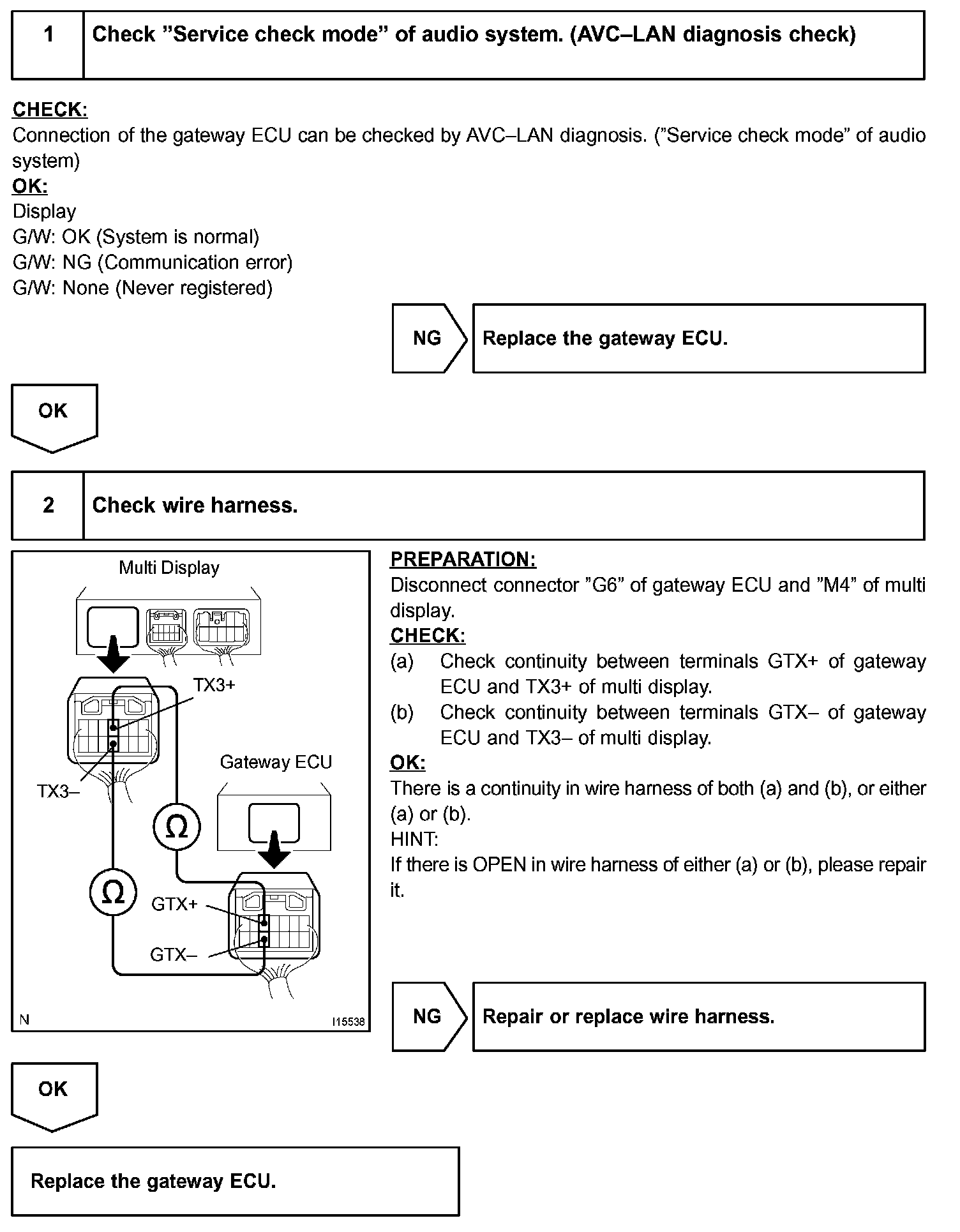

Step 1 - 2:




INSPECTION PROCEDURE
