7 - Navigation Screen Not Stabilized (Synchronous Error)
7 - Navigation Screen Not Stabilized (Synchronous Error)
Navigation screen not stabilized (Synchronous error).

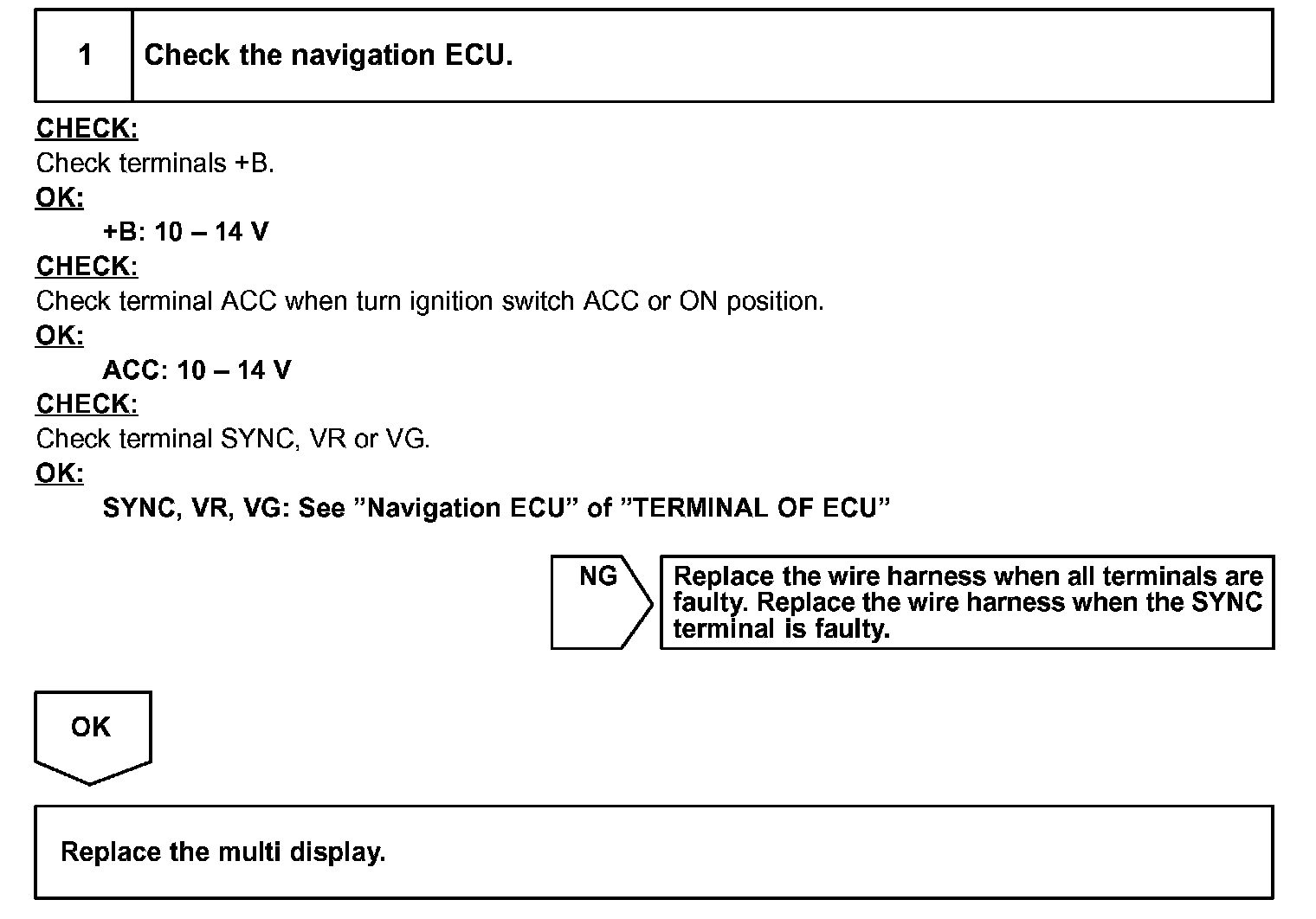

Step 1:
INSPECTION PROCEDURE
