5 - No Navigation Displayed, "Audio Off" on Audio Screen and No Audio Sound
5 - No Navigation Displayed, "Audio Off" on Audio Screen and No Audio Sound
No navigation displayed, "Audio OFF" on audio screen and no audio sound.

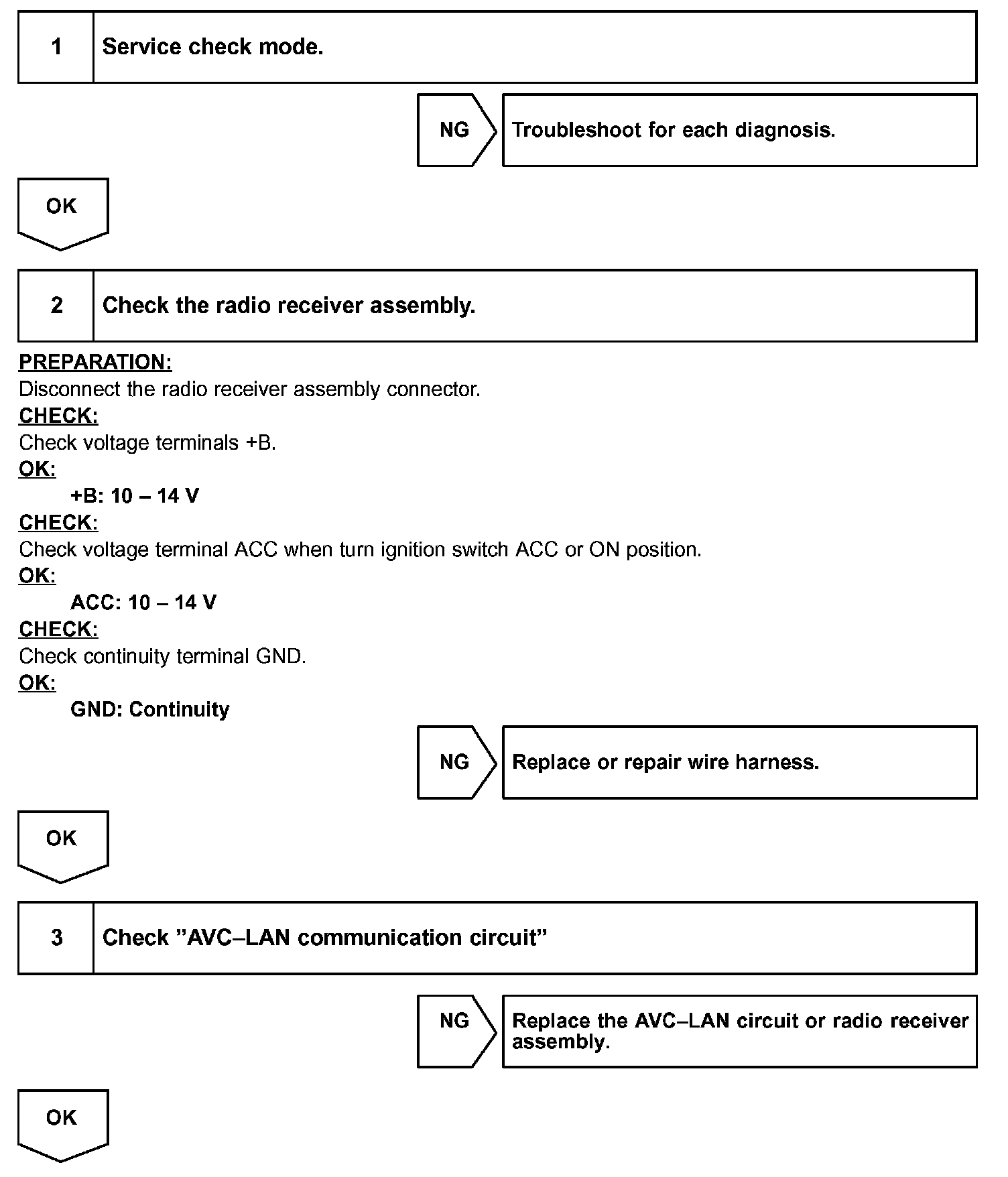

Step 1 - 3:
Step 3(contd):

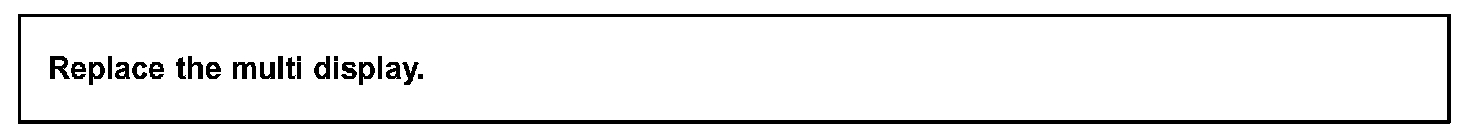

INSPECTION PROCEDURE
