Home >> Lexus >> 2005 >> GS 300 L6-3.0L (2JZ-GE) >> Repair and Diagnosis >> Accessories and Optional Equipment >> Navigation System >> Testing and Inspection >> Symptom Related Diagnostic Procedures >> Symptom Diagnostic Procedures >> 39 - Noise Occurs

39 - Noise Occurs

Noise occurs

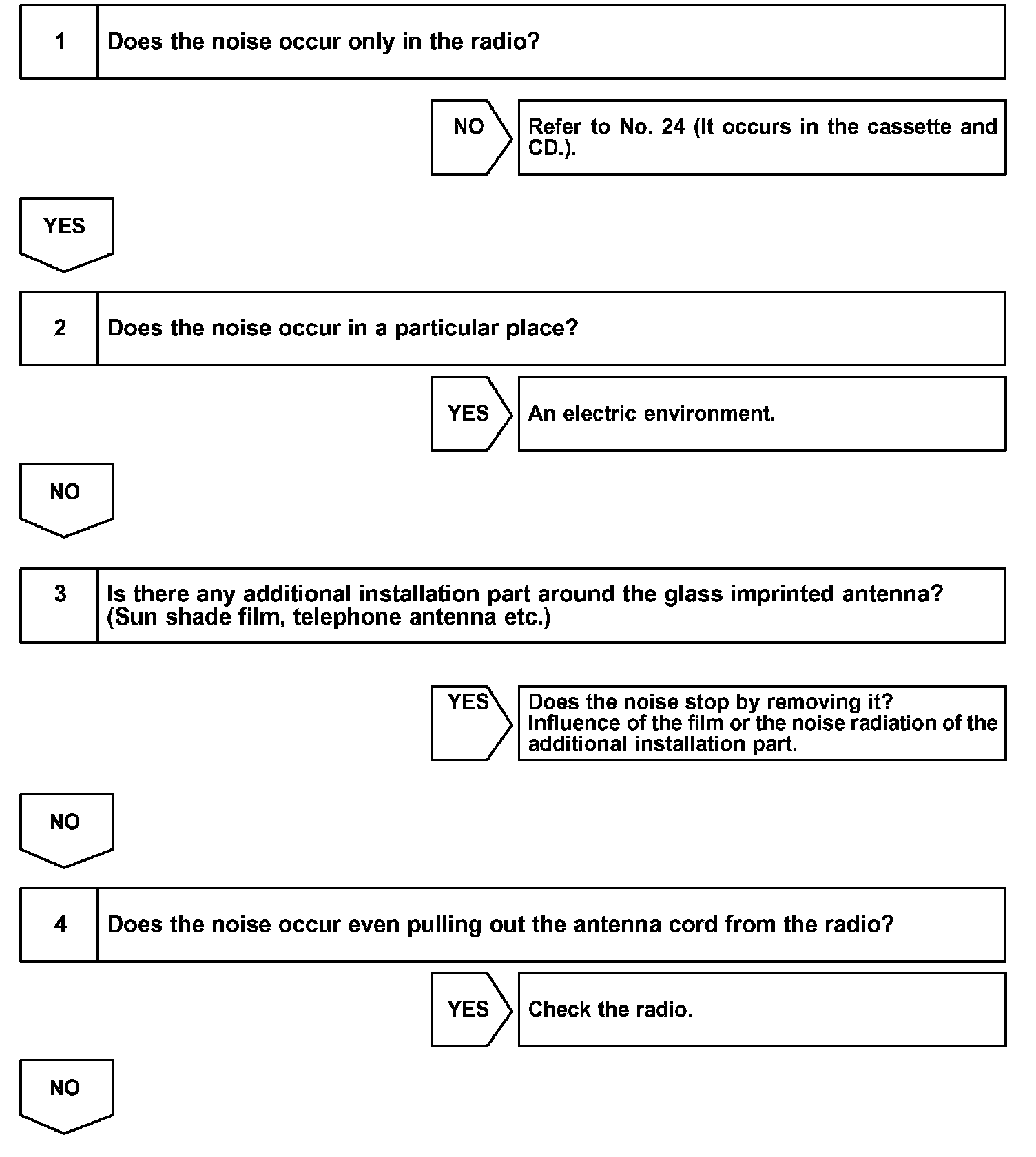

Step 1 - 4:




Step 5 - 8:

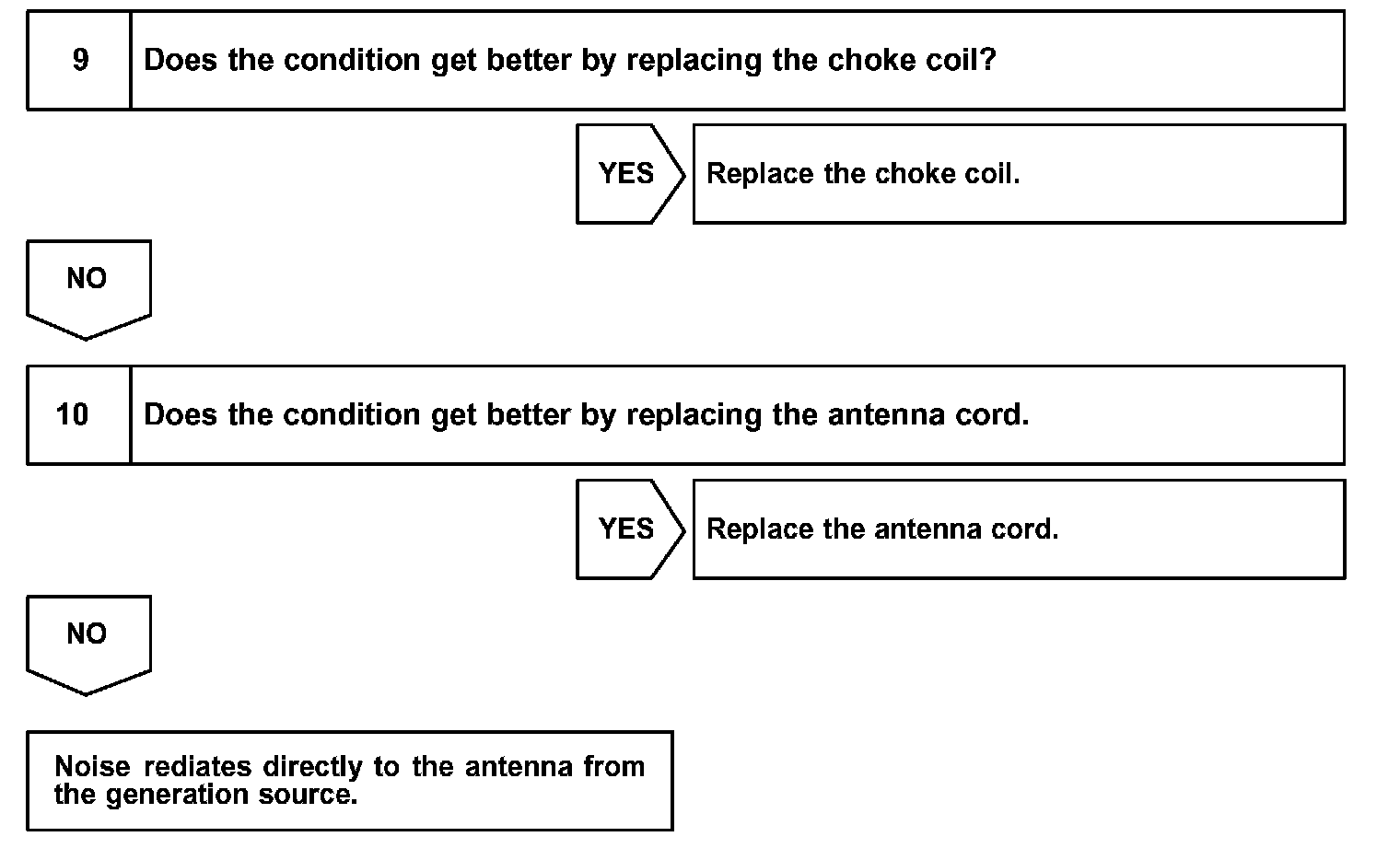

Step 9 - 10:




INSPECTION PROCEDURE
