Home >> Lexus >> 2005 >> GS 300 L6-3.0L (2JZ-GE) >> Repair and Diagnosis >> Accessories and Optional Equipment >> Navigation System >> Testing and Inspection >> Symptom Related Diagnostic Procedures >> Symptom Diagnostic Procedures >> 35 - Any Speaker Does Not Work

35 - Any Speaker Does Not Work

Any speaker does not work

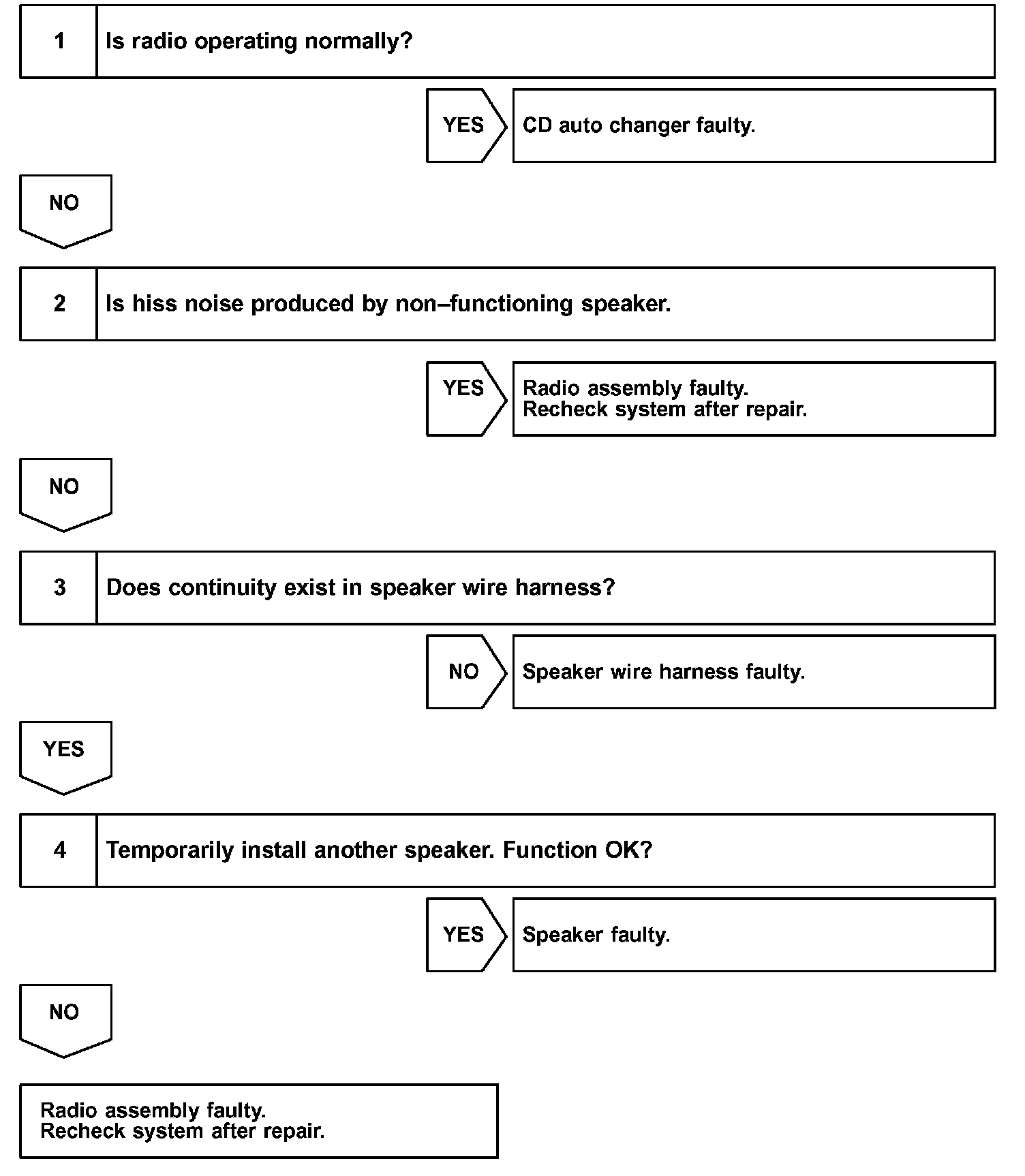

Step 1 - 4:




INSPECTION PROCEDURE
