3 - No Navigation Screen Displayed When "MAP", "Menu", or "Dest" Switch Pressed. (Screen Cannot Be Switched.)

No navigation screen displayed when "MAP", "Menu", or "DEST" switch pressed. (Screen cannot be switched.)

Step 1 - 2:

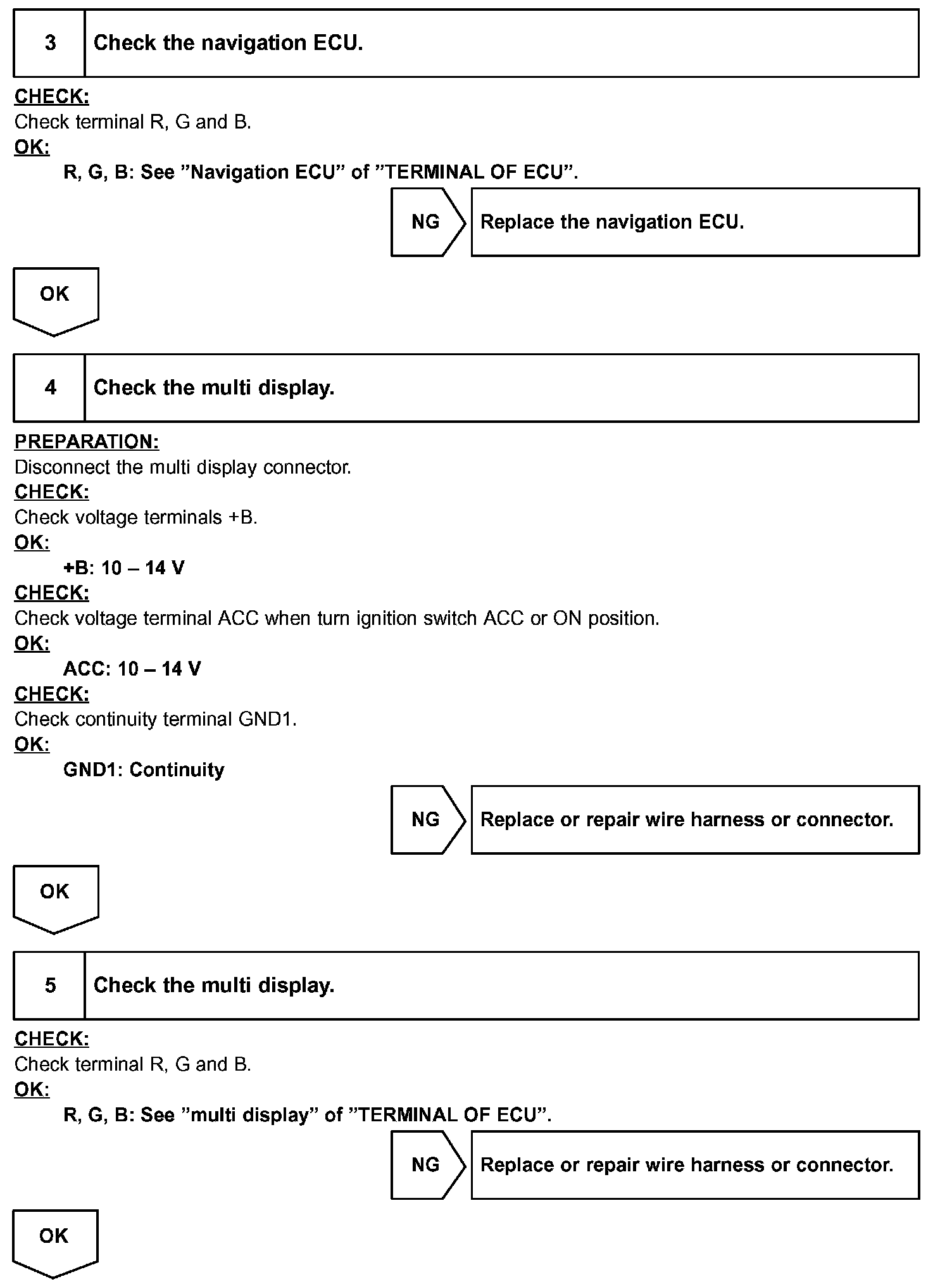

Step 3 - 5:

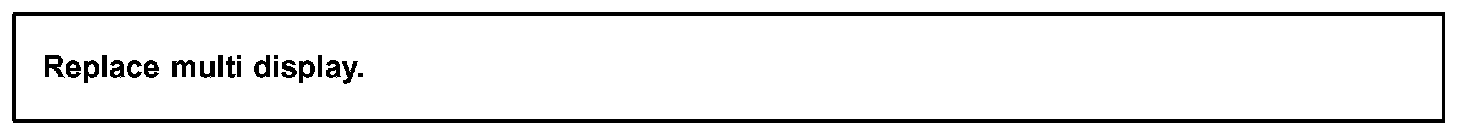

Step 5 (contd):




INSPECTION PROCEDURE
