GS 300 L6-3.0L (2JZ-GE)
>>
Repair and Diagnosis
>>
Accessories and Optional Equipment
>>
Navigation System
>>
Testing and Inspection
>>
Symptom Related Diagnostic Procedures
>>
Symptom Diagnostic Procedures
>>
17 - Panel Switch Does Not Function. (Navigation Screen Only)
17 - Panel Switch Does Not Function. (Navigation Screen Only)
Panel switch does not function. (Navigation screen only)

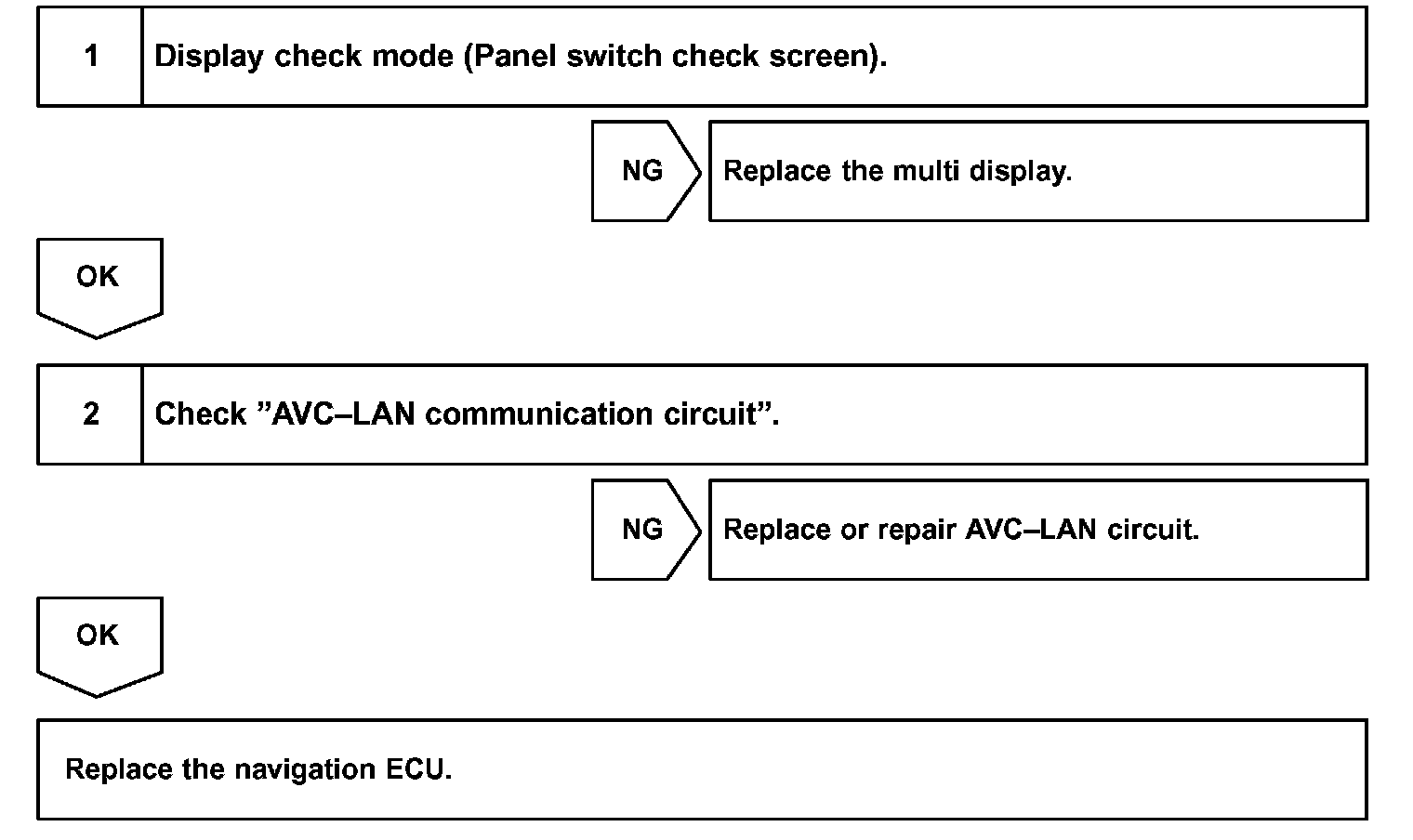

Step 1 - 2:
INSPECTION PROCEDURE
