13 - MAP Screen Display Does Not Appear. (Disc Caution Screen Does Not Change)

MAP screen display does not appear. (Disc Caution screen does not change)

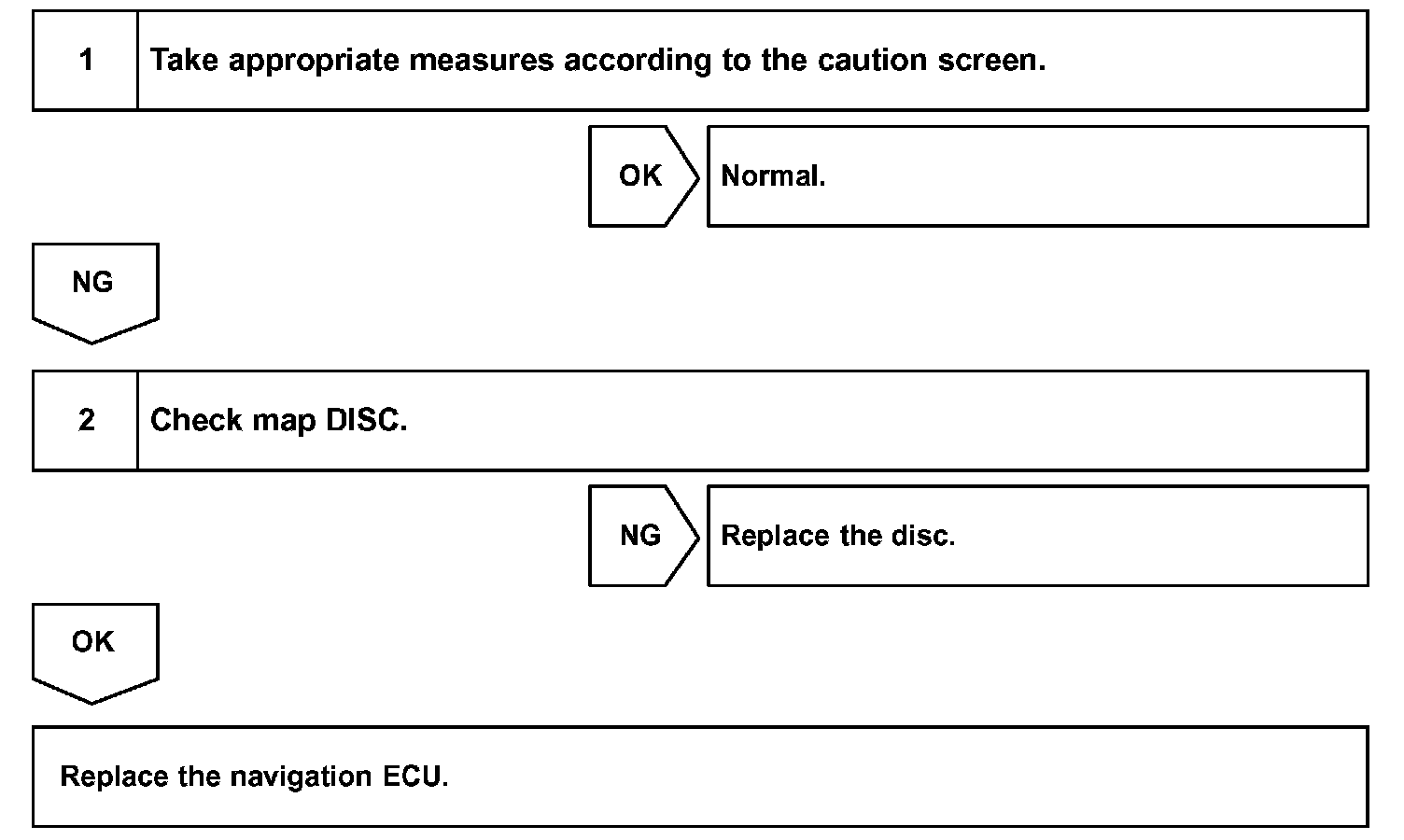

Step 1 - 2:




INSPECTION PROCEDURE

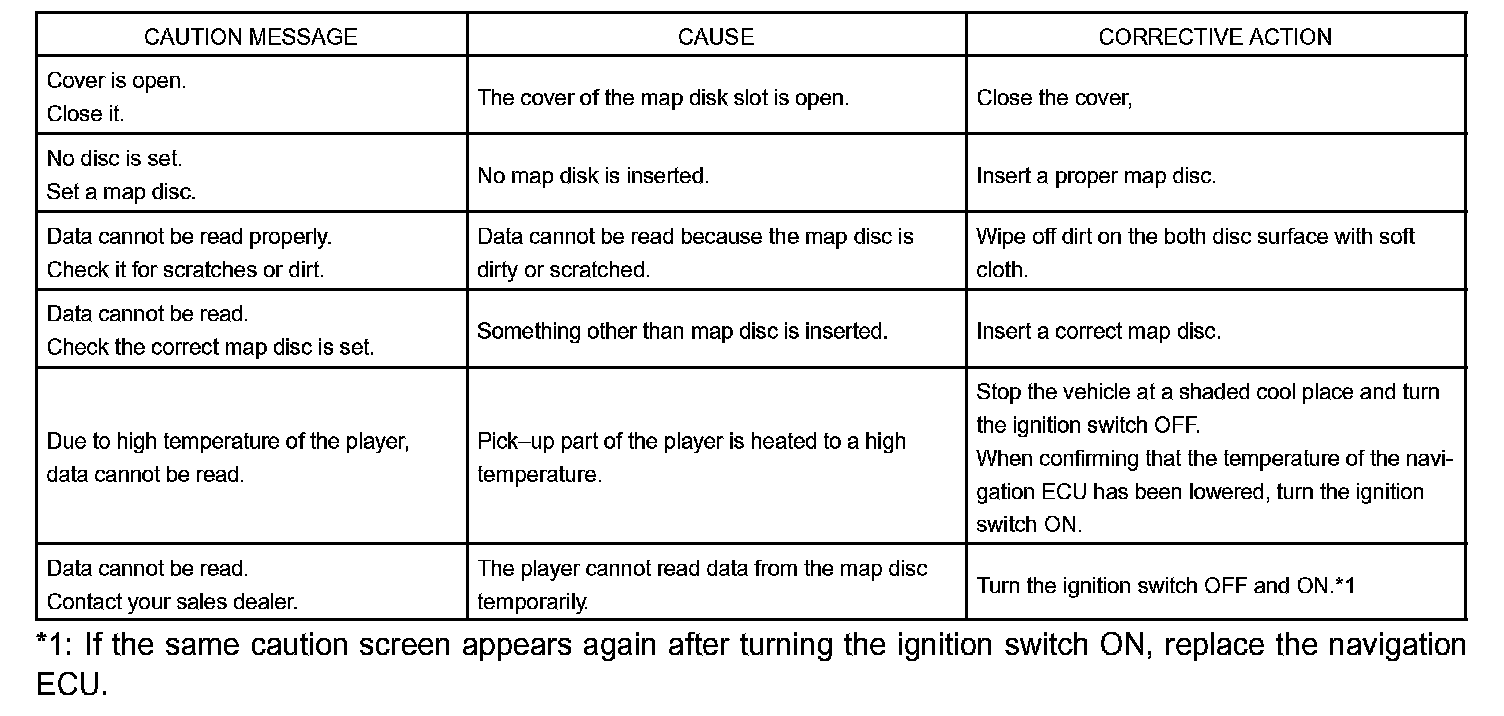

Caution Screen:




CAUTION SCREEN
