12 - MAP Disc Cannot Be Inserted

Map DISC cannot be inserted.

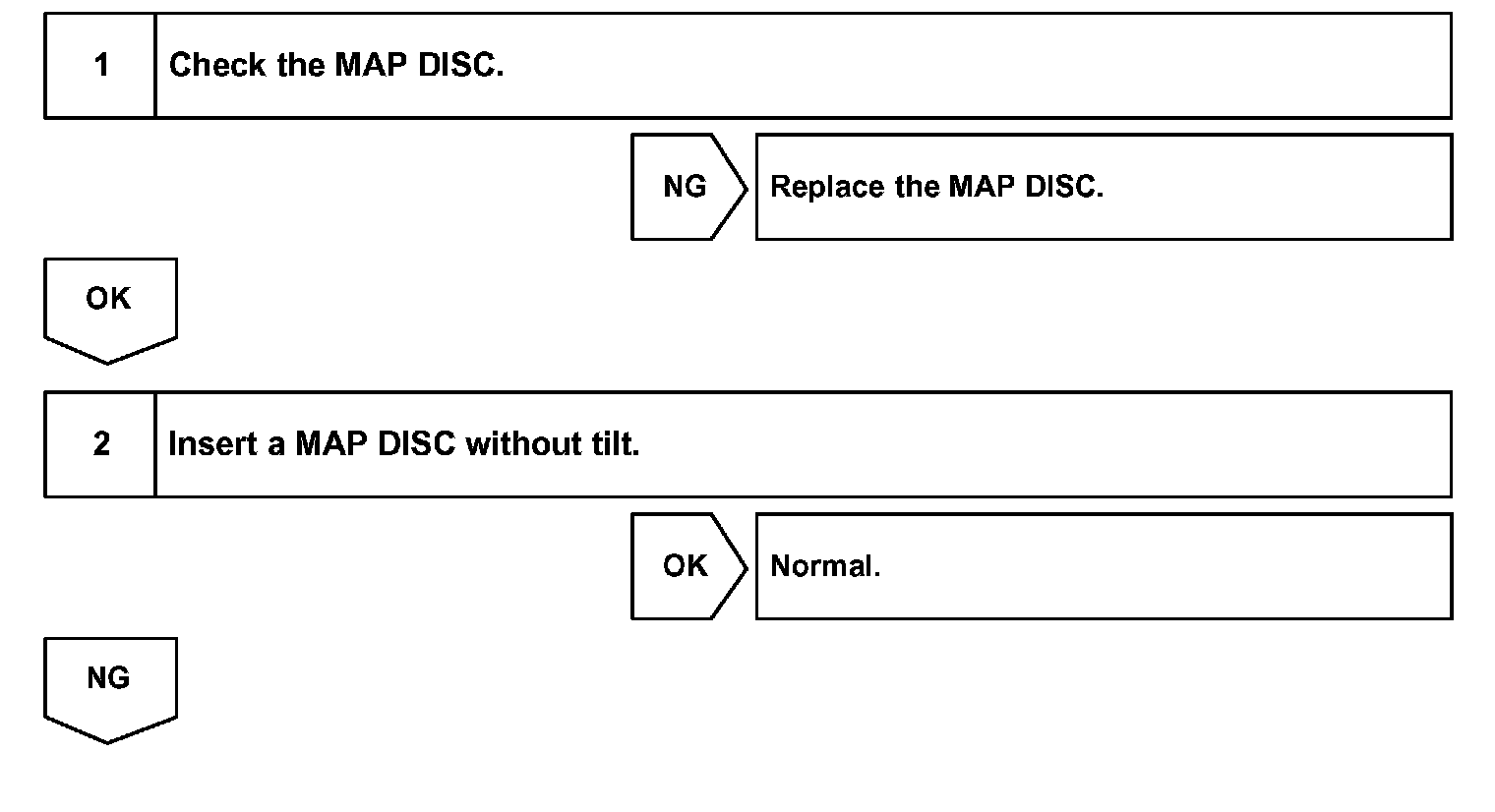

Step 1 - 2:

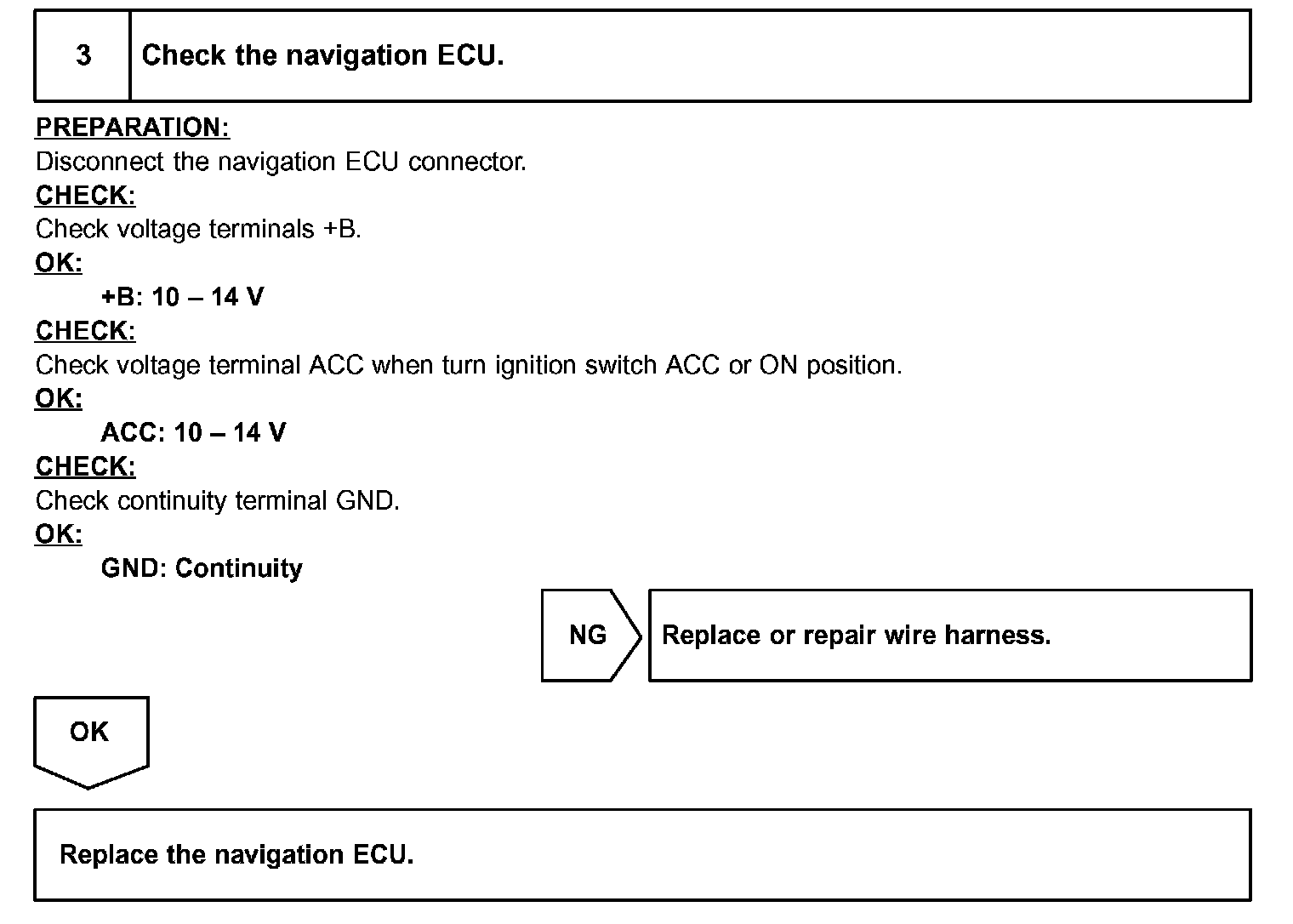

Step 3:




INSPECTION PROCEDURE
