11 - No Sound (Radio, Cassette Tape, CD) Can Be Heard From Driver Side Door Speaker Only
11 - No Sound (Radio, Cassette Tape, CD) Can Be Heard From Driver Side Door Speaker Only
No sound (radio, cassette tape, CD) can be heard from driver side door speaker only.

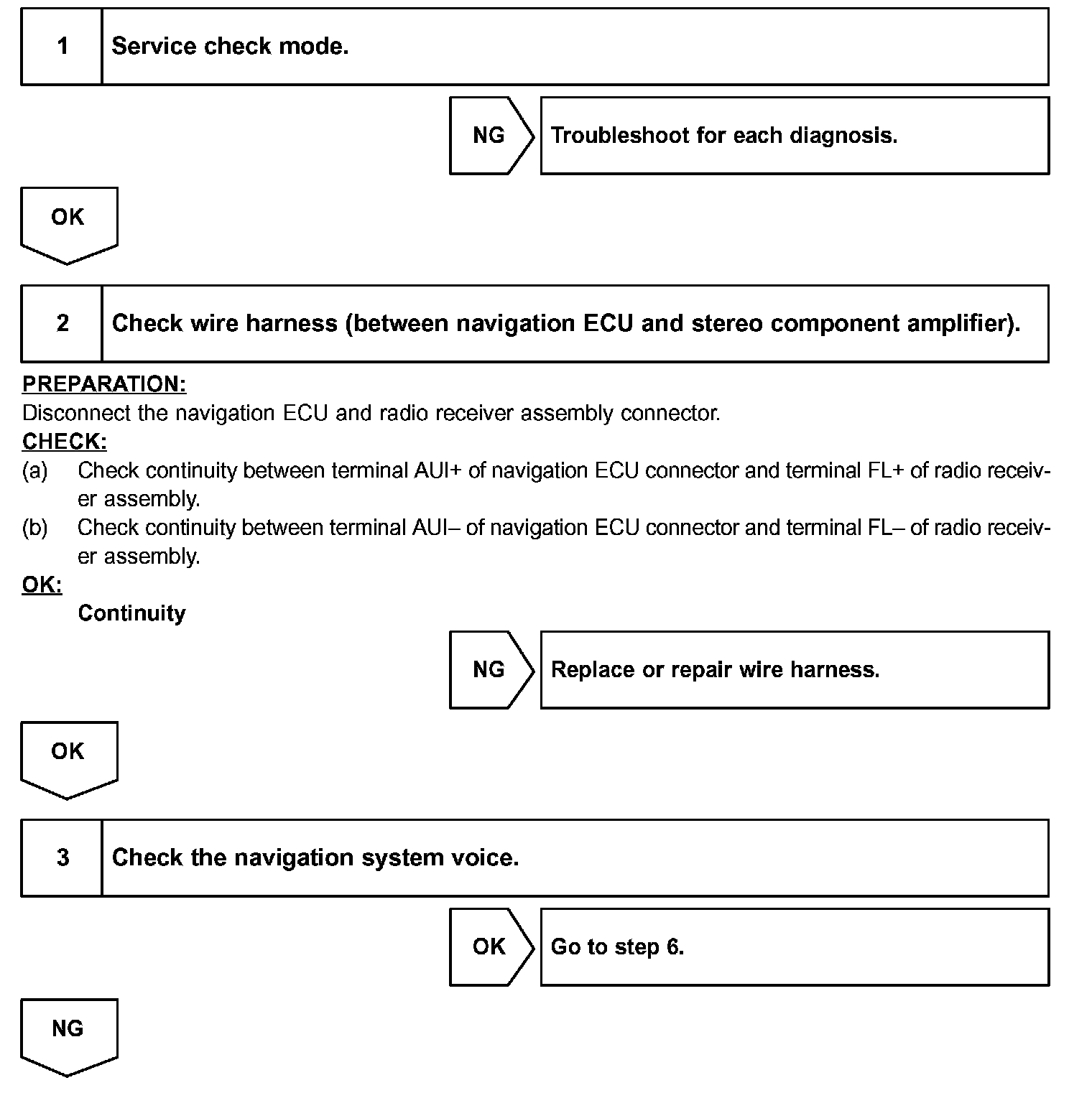

Step 1 - 3:

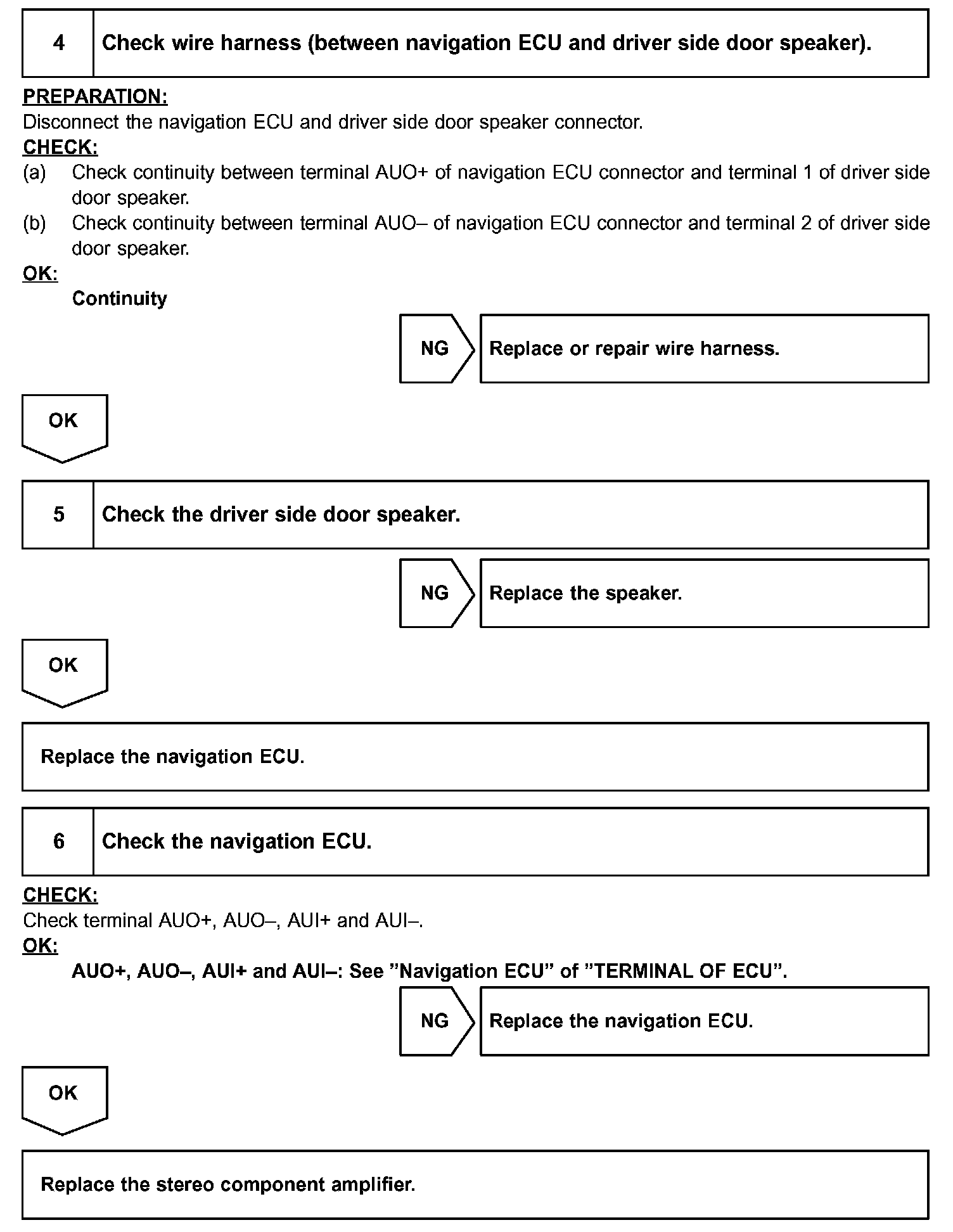

Step 4 - 6:
INSPECTION PROCEDURE
