Home >> Lexus >> 2005 >> GS 300 L6-3.0L (2JZ-GE) >> Repair and Diagnosis >> Accessories and Optional Equipment >> Navigation System >> Testing and Inspection >> Symptom Related Diagnostic Procedures >> Problem Symptoms Table

Problem Symptoms Table

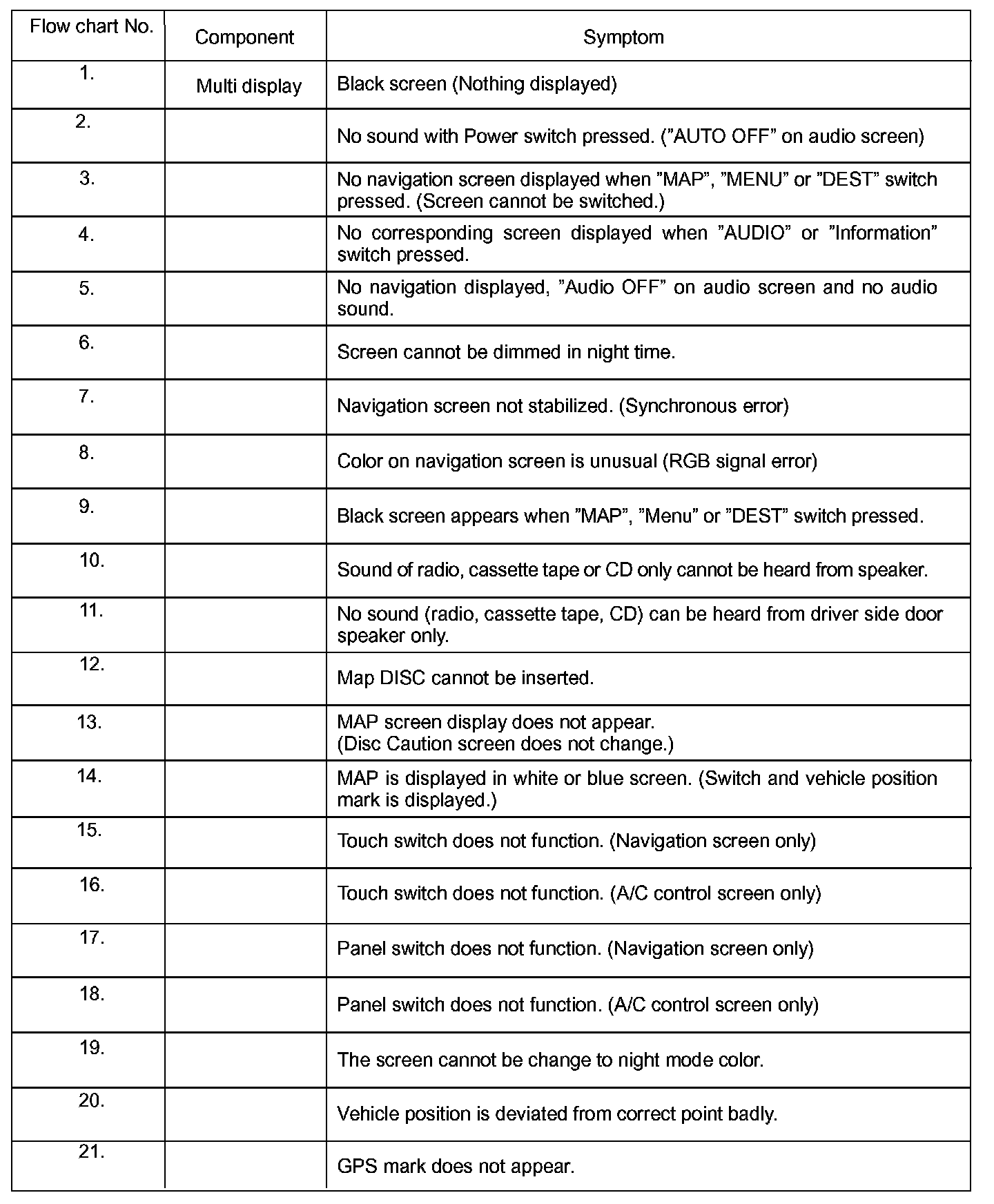

Problem Symptoms Table Part 1:

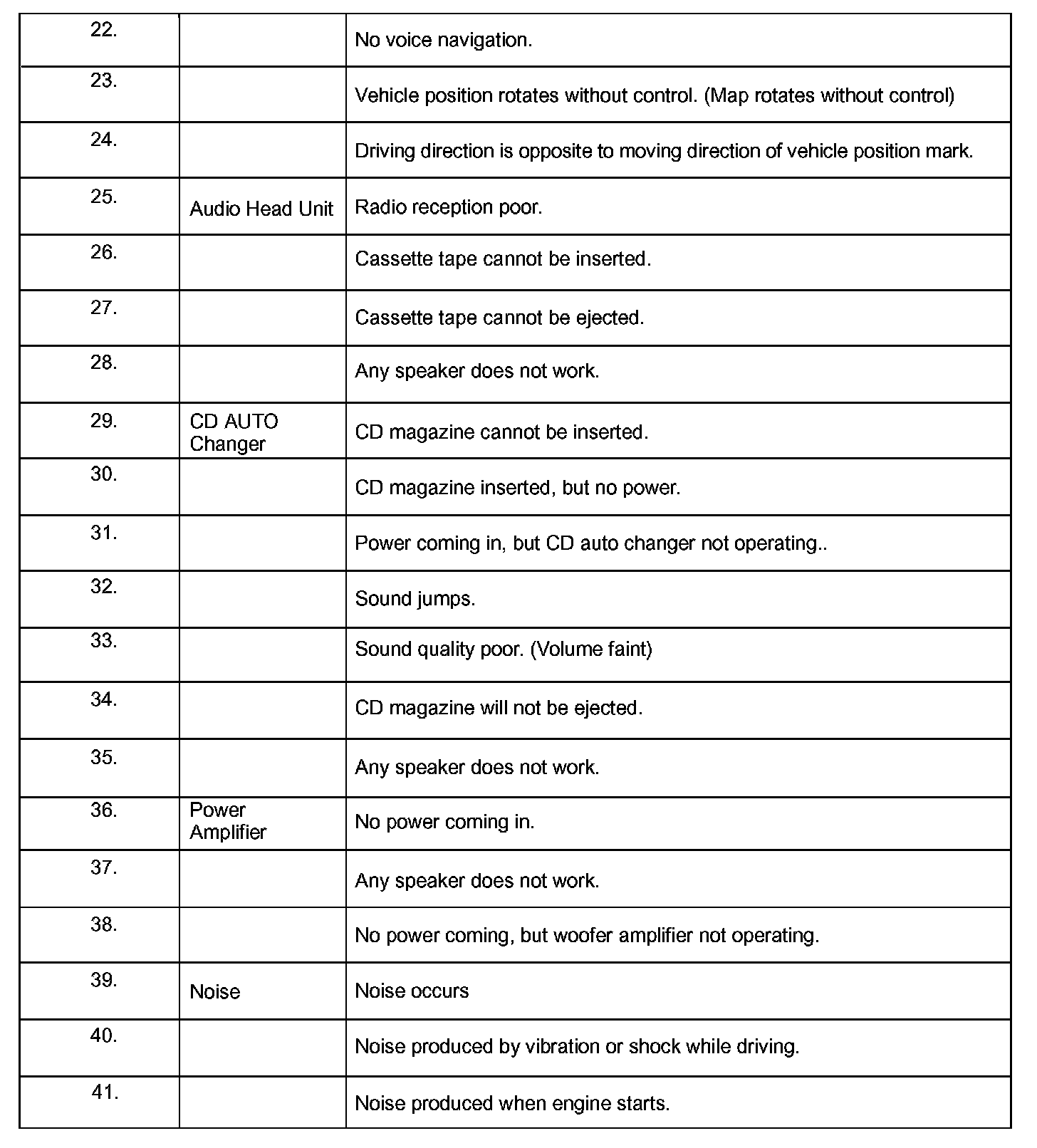

Problem Symptoms Table Part 2:
