Pinout Values and Diagnostic Parameters

TERMINALS OF ECU

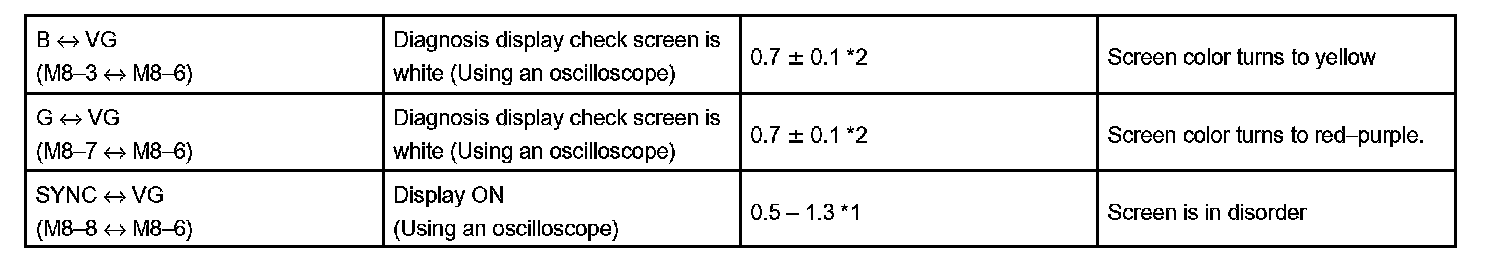

Terminals Of Control Module/Pinouts - Multi Display Part 1:

Terminals Of Control Module/Pinouts - Multi Display Part 2:

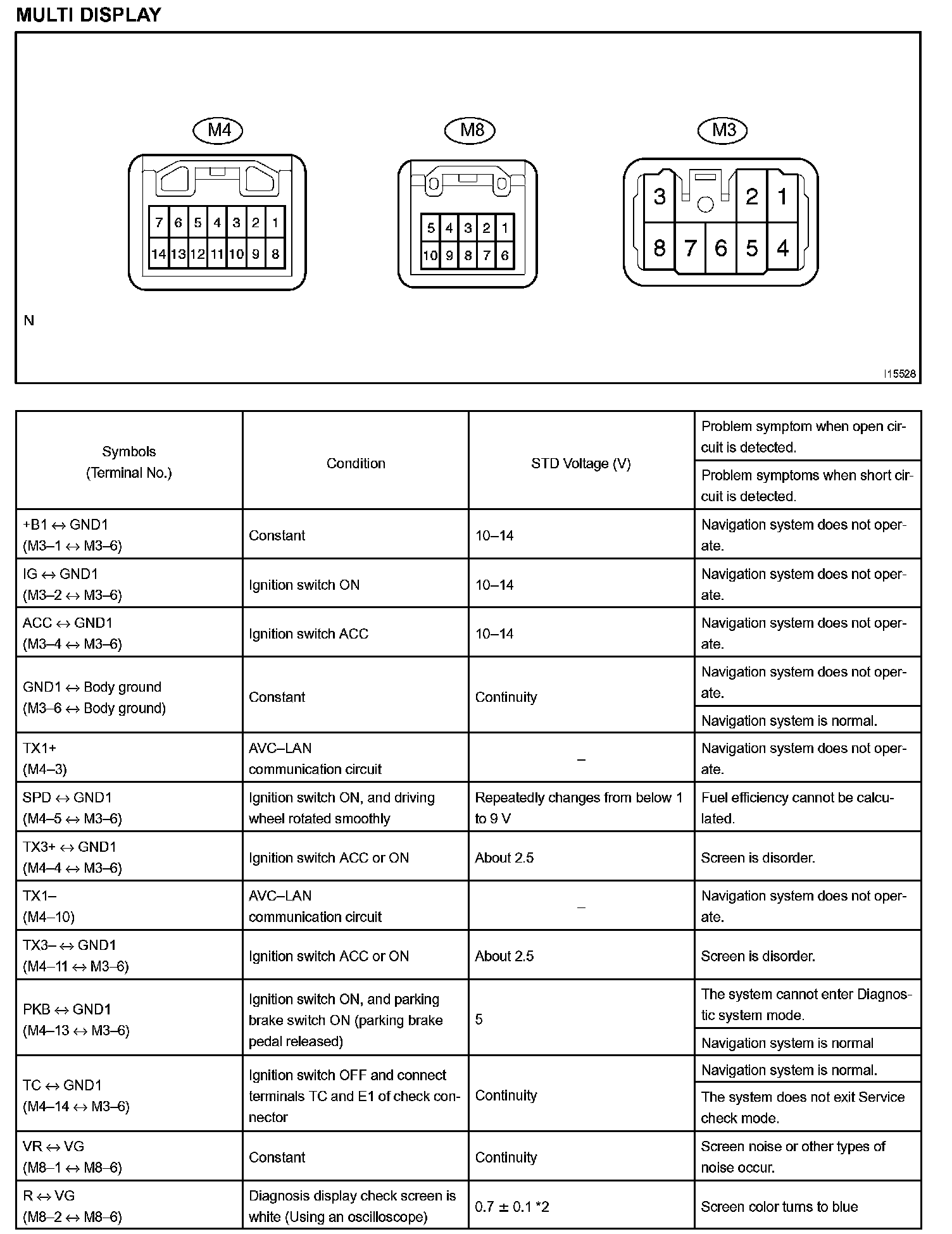

MULTI DISPLAY

Terminals Of Control Module/Pinouts - Navigation ECU Part 1:

Terminals Of Control Module/Pinouts - Navigation ECU Part 2:

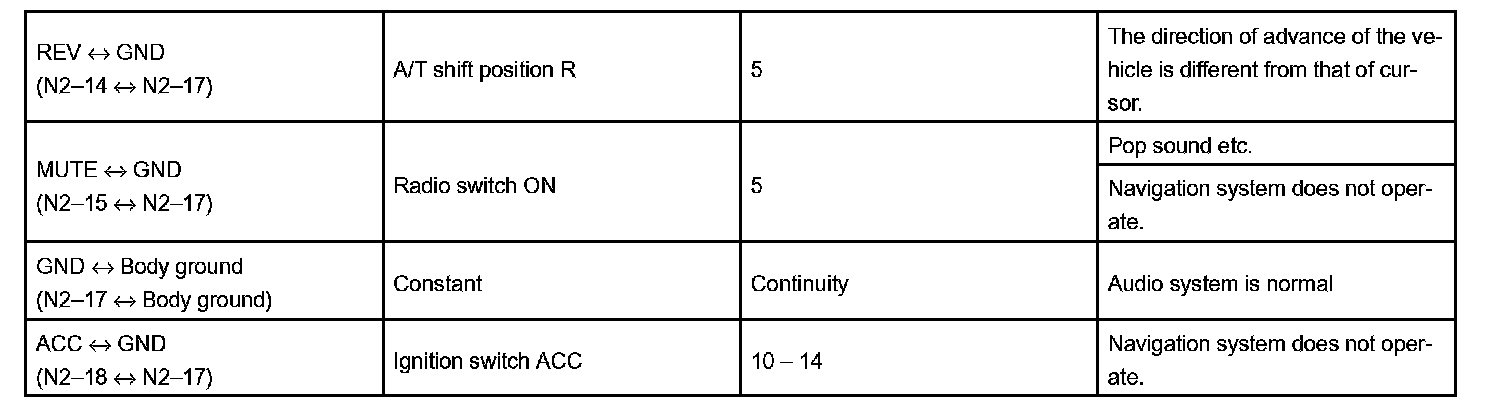

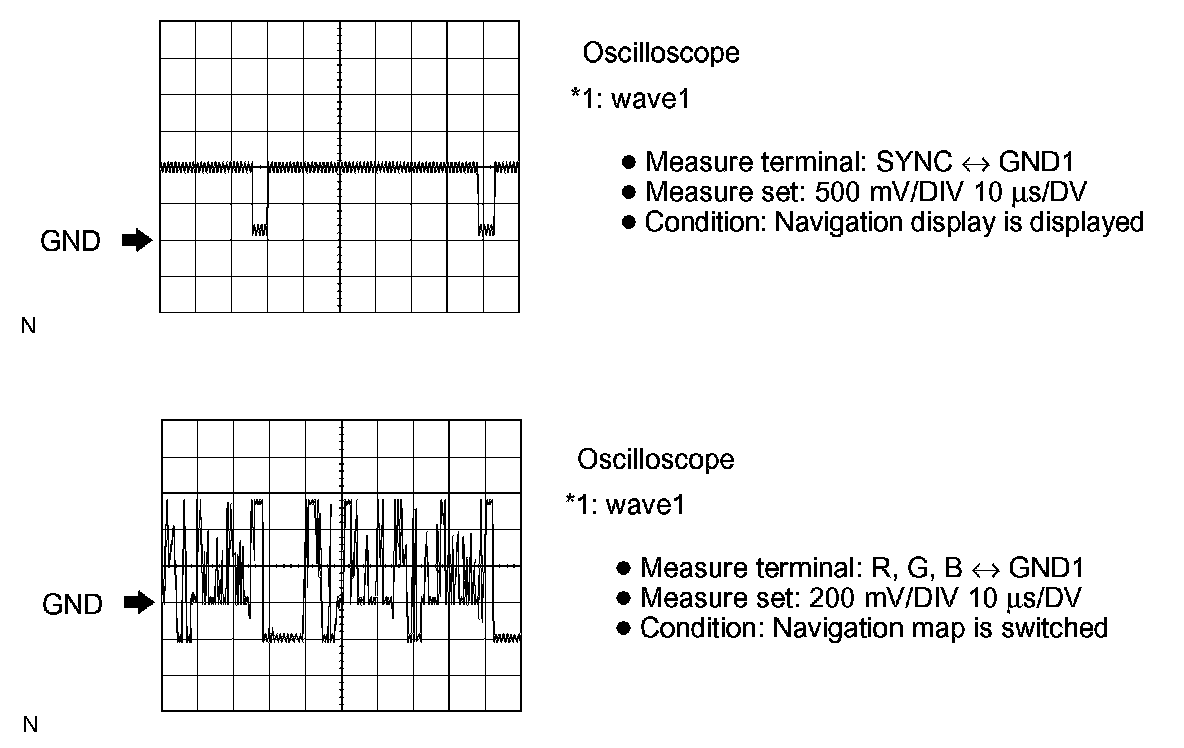

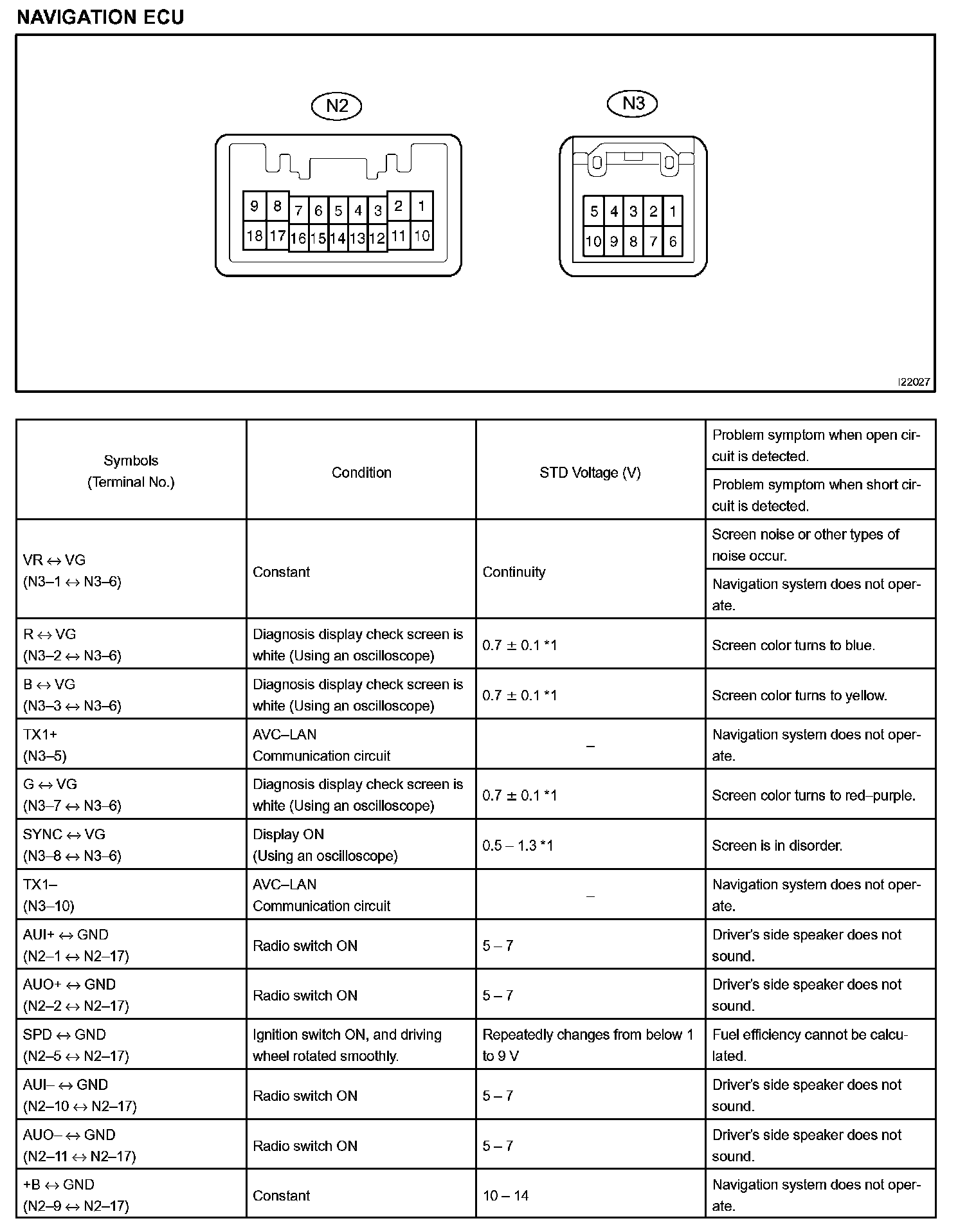

NAVIGATION ECU

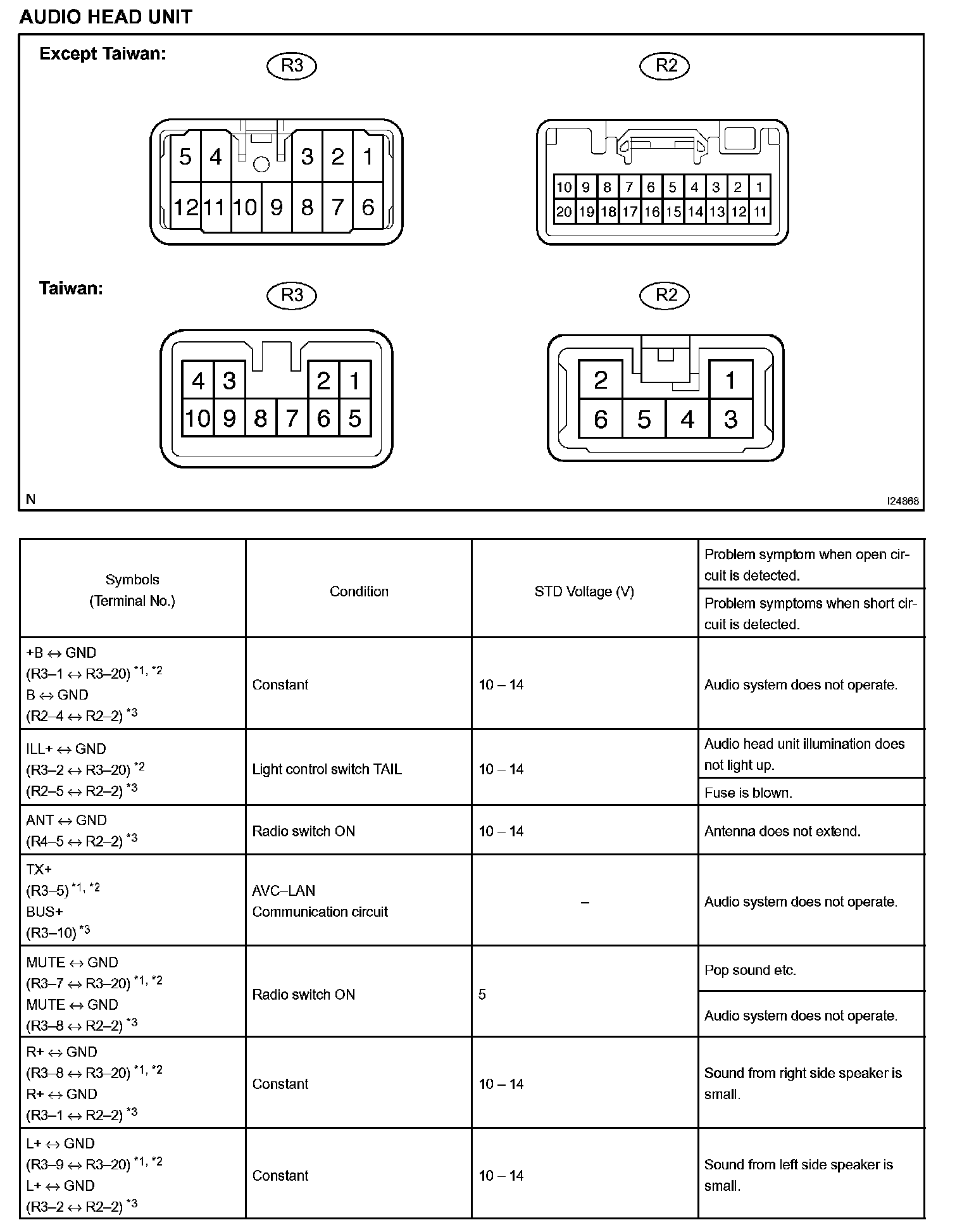

Terminals Of Control Module/Pinouts - Audio Head Unit Part 1:

Terminals Of Control Module/Pinouts - Audio Head Unit Part 2:

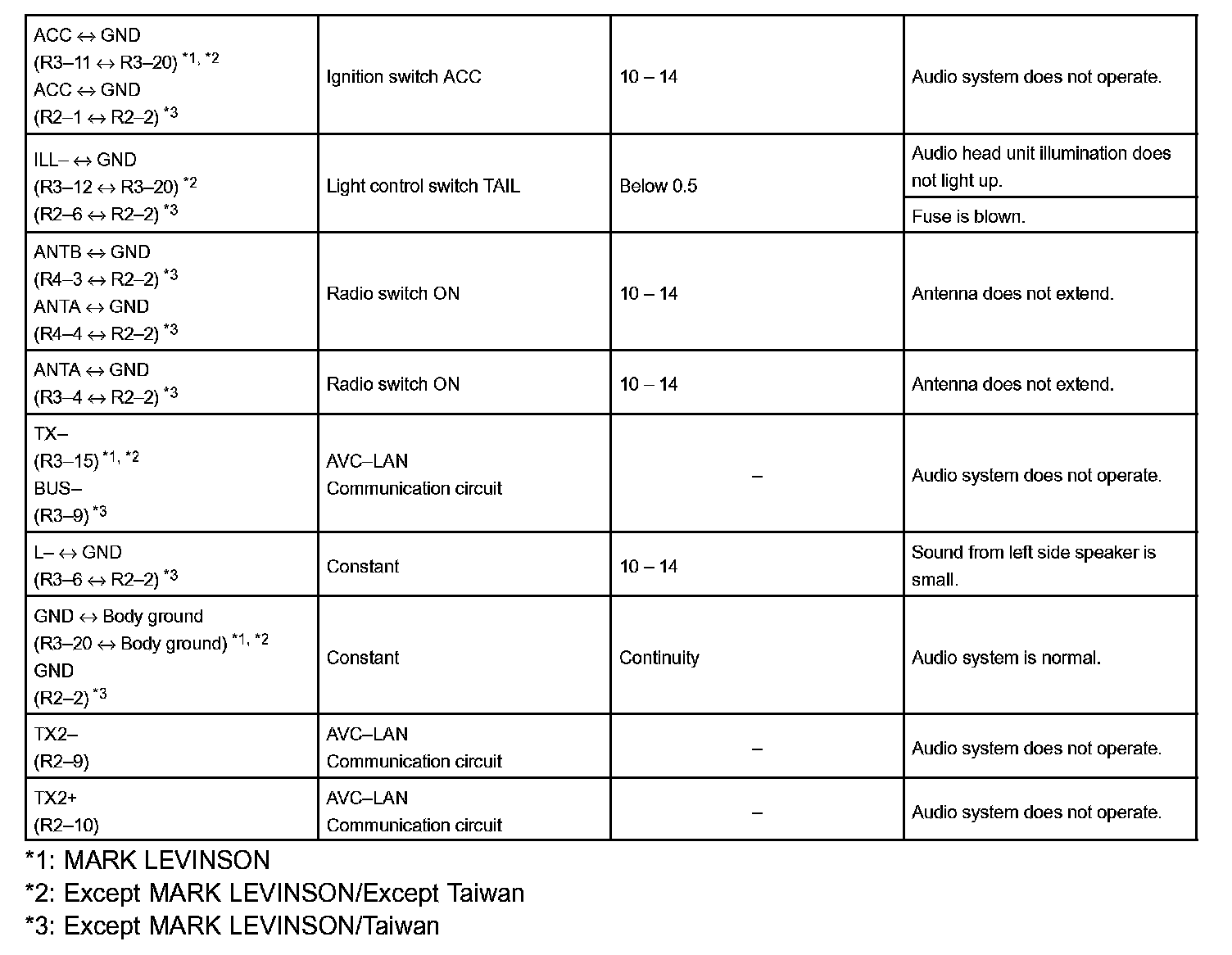

AUDIO HEAD UNIT

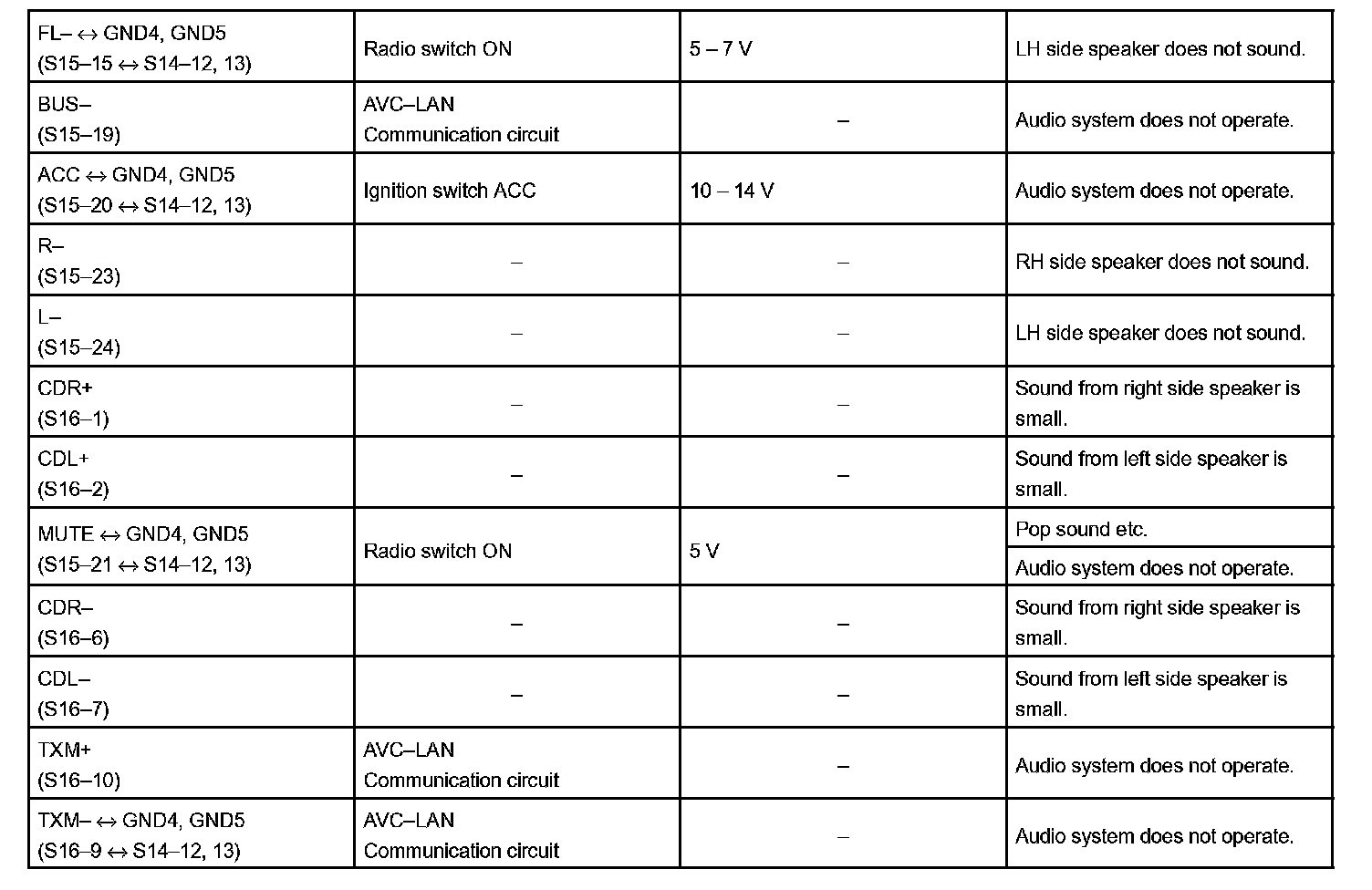

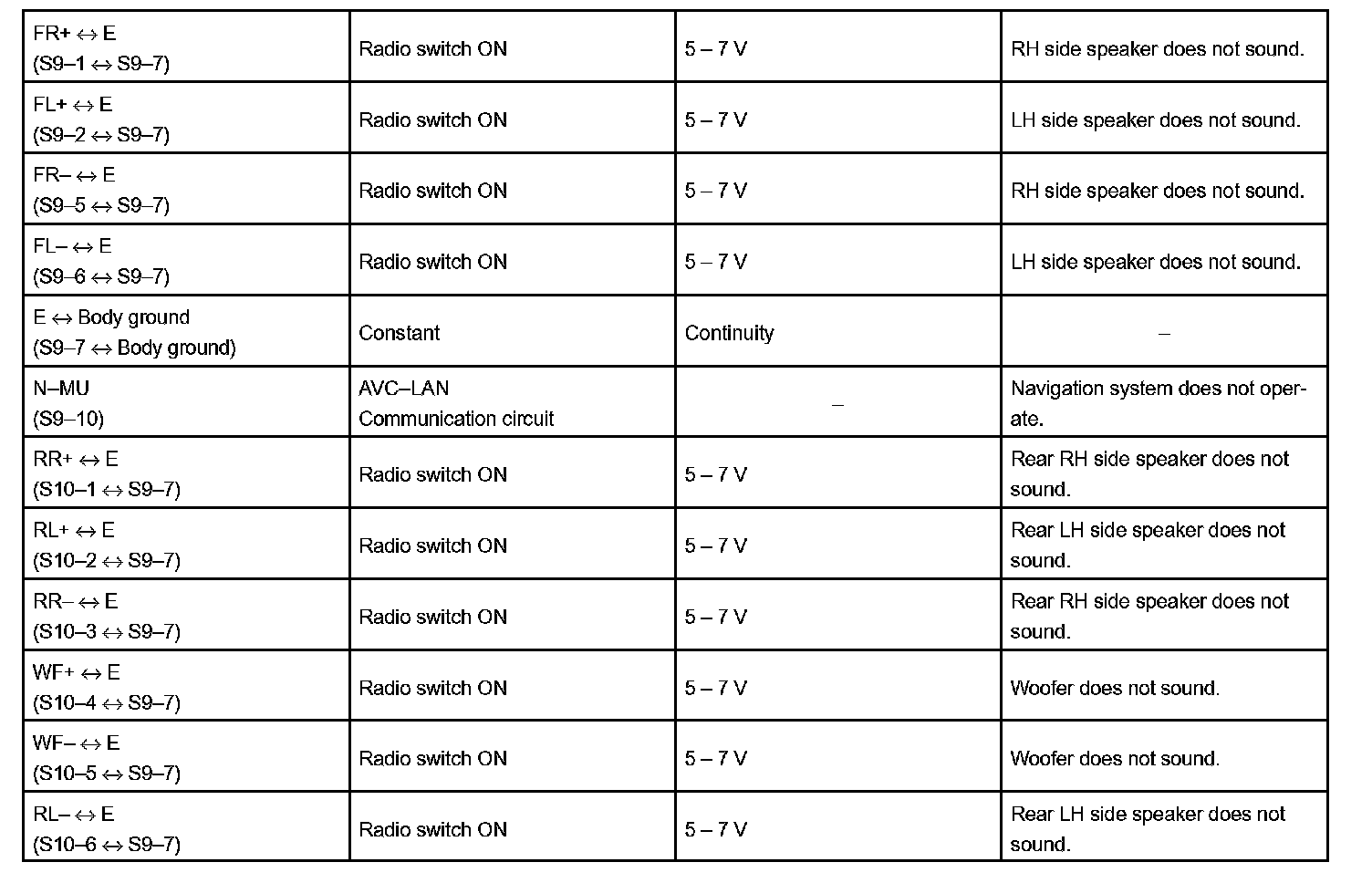

Terminals Of Control Module/Pinouts - Stereo Component Amplifier (Pioneer Made) Part 1:

Terminals Of Control Module/Pinouts - Stereo Component Amplifier (Pioneer Made) Part 2:

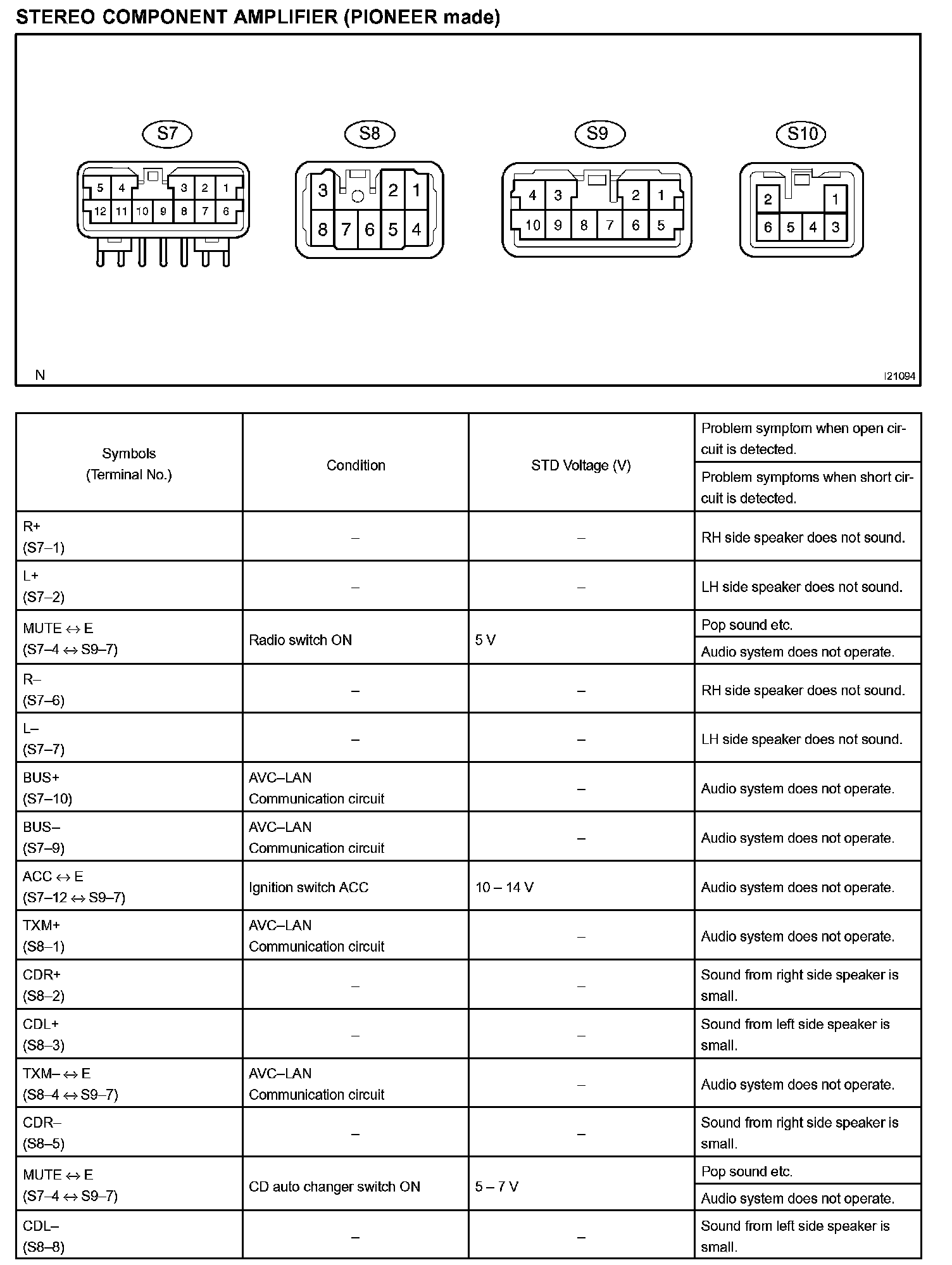

STEREO COMPONENT AMPLIFIER (PIONEER made)

Terminals Of Control Module/Pinouts - Stereo Component Amplifier (Mark Levinson Made) Part 1:

Terminals Of Control Module/Pinouts - Stereo Component Amplifier (Mark Levinson Made) Part 2:

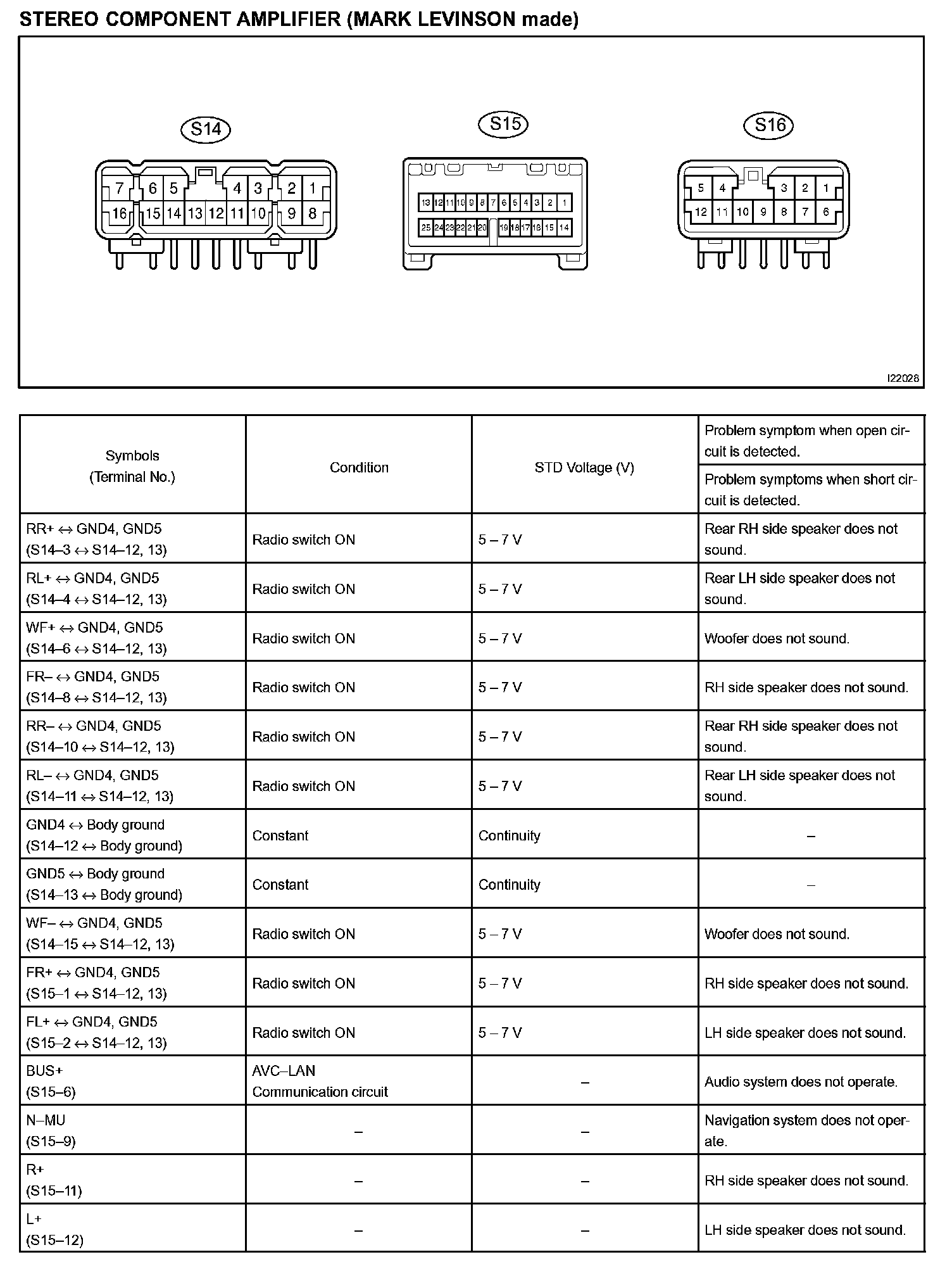

STEREO COMPONENT AMPLIFIER (MARK LEVINSON made)

Terminals Of Control Module/Pinouts - CD Auto Changer:

CD AUTO CHANGER

Terminals Of Control Module/Pinouts - Gateway ECU:

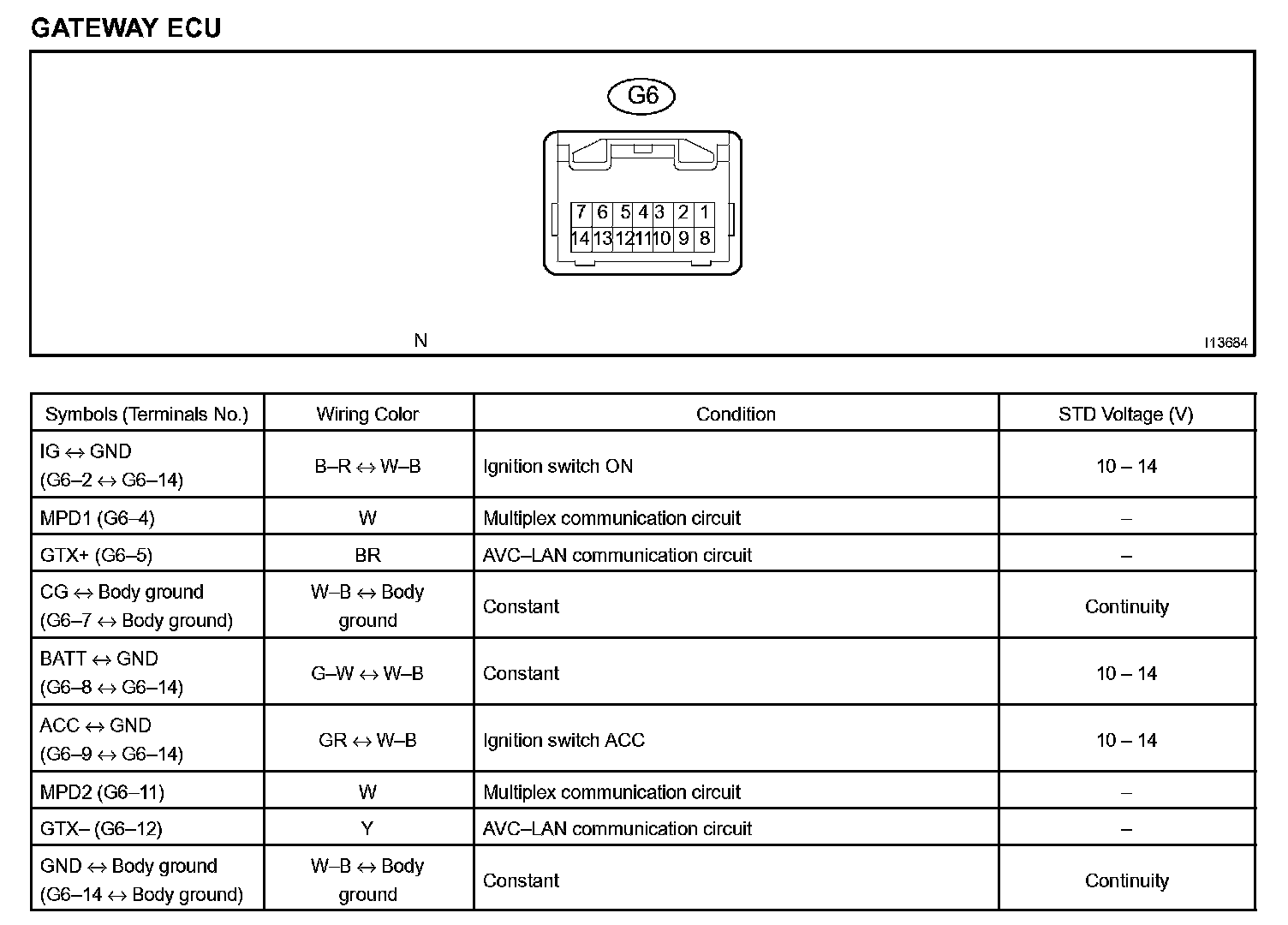

GATEWAY ECU
