Without Scan Tool

CHECK THE DTC (USING DIAGNOSIS CHECK WIRE)




1. Turn ignition switch ON.

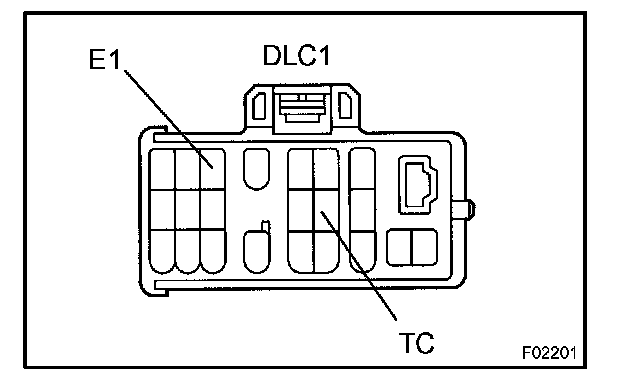

2. Using SST, connect between terminals 11 (TC) and 3 (E1) of DLC 1.
SST 09843-18020

3. Read the diagnostic trouble code from malfunction indicator lamp (MIL).

HINT:
- If a DTC is not output, check the TC terminal circuit.
- ECM controls the immobiliser function on this vehicle, DTC is out put with engine data.

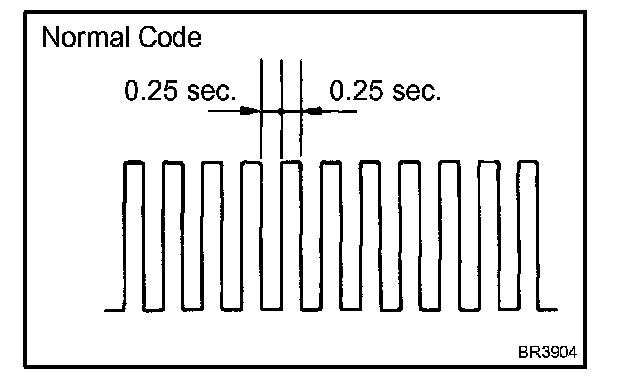

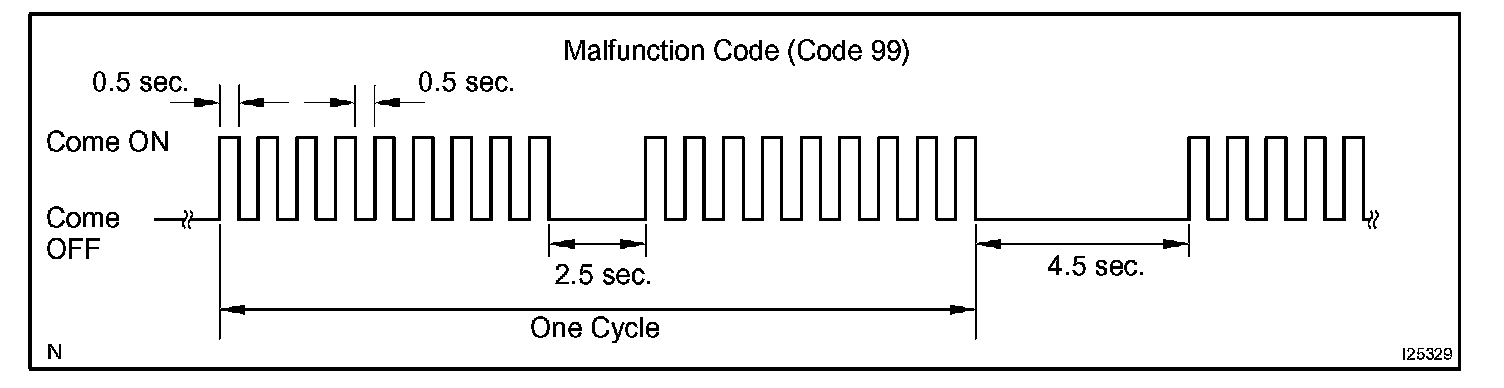

- As an example, the blinking patterns for codes; normal, 99 are shown in the charts.

4. When DTC "99" is output, there is a trouble of immobiliser. Start troubleshooting referring to PROBLEM SYMPTOMS TABLE.
5. After completing the check, disconnect the SST from the DLC3 and turn off the display.

HINT: In the event of 2 or more malfunction codes, indication will begin from the smaller numbered code and continue in order to the larger.
