With Manufacturer's Scan Tool

CHECK THE DTC (USING LEXUS HAND-HELD TESTER)




1. Prepare the LEXUS hand-held tester.

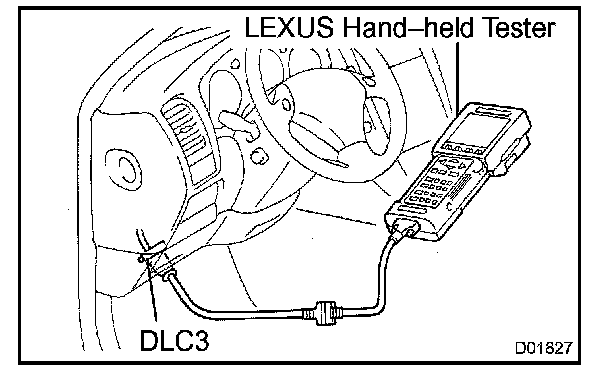

2. Connect the LEXUS hand-held tester to DLC3 under the instrument panel lower pad.
3. Turn the ignition switch ON and turn the LEXUS hand-held tester switch ON.
4. Use the LEXUS hand-held tester to check the DTCs and freeze frame data; note them down (For operating instructions, see the LEXUS hand-held tester instruction book.).
5. See Trouble Code Descriptions to confirm the details of the DTCs.
