DTC P0724 Brake Switch "B" Circuit High

CIRCUIT DESCRIPTION

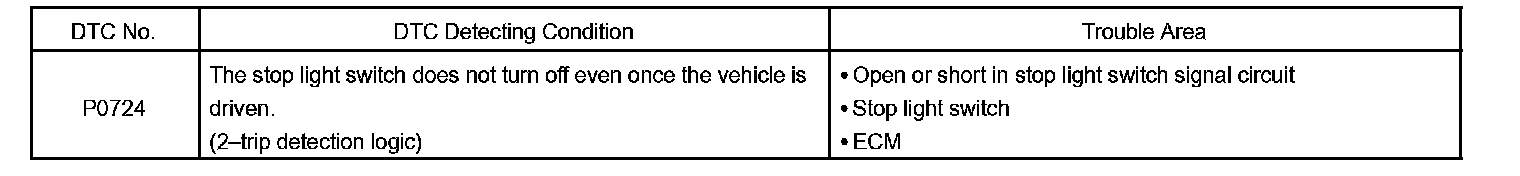

DTC Detecting Condition:

The purpose of this circuit is to prevent the engine from stalling, while driving in lock-up condition, when brakes are suddenly applied. When the brake pedal is depressed, this switch sends a signal to ECM. Then the ECM cancels operation of the lock-up clutch while braking is in progress.

MONITOR DESCRIPTION

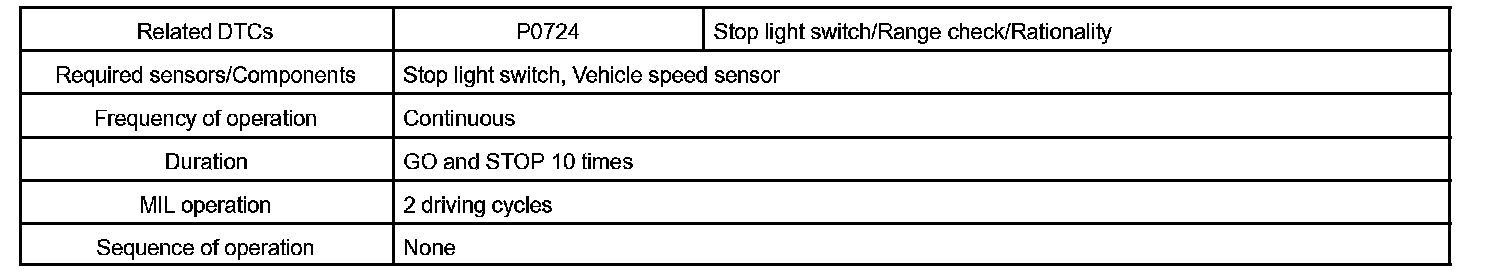

Monitor Strategy:

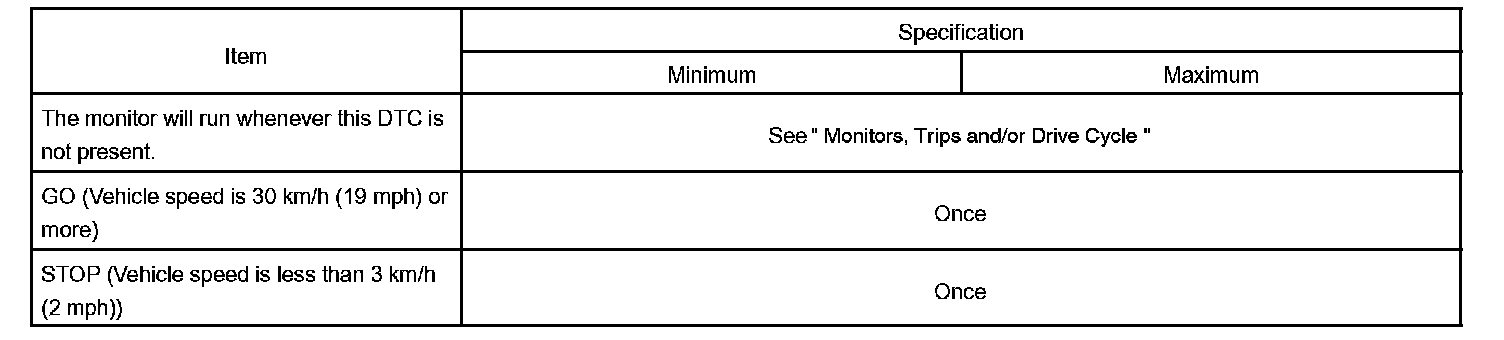

Typical Enabling Conditions:

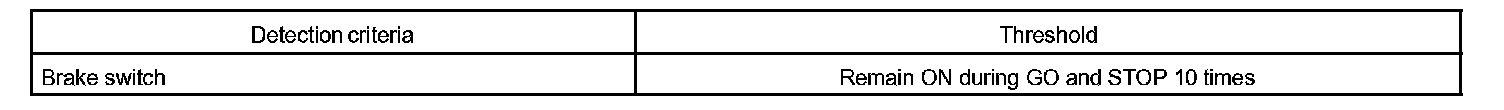

Typical Malfunction Thresholds:

When the stop light switch remains ON during "stop and go" driving, the ECM interprets this as a fault in the stop light switch and the MIL comes on and the ECM stores the DTC. The vehicle must stop and go (3 km/h (2 mph) to 30 km/h (19 mph)) ten times for two driving cycles in order to detect malfunction.

Wiring Diagram:

Step 1 - 2:

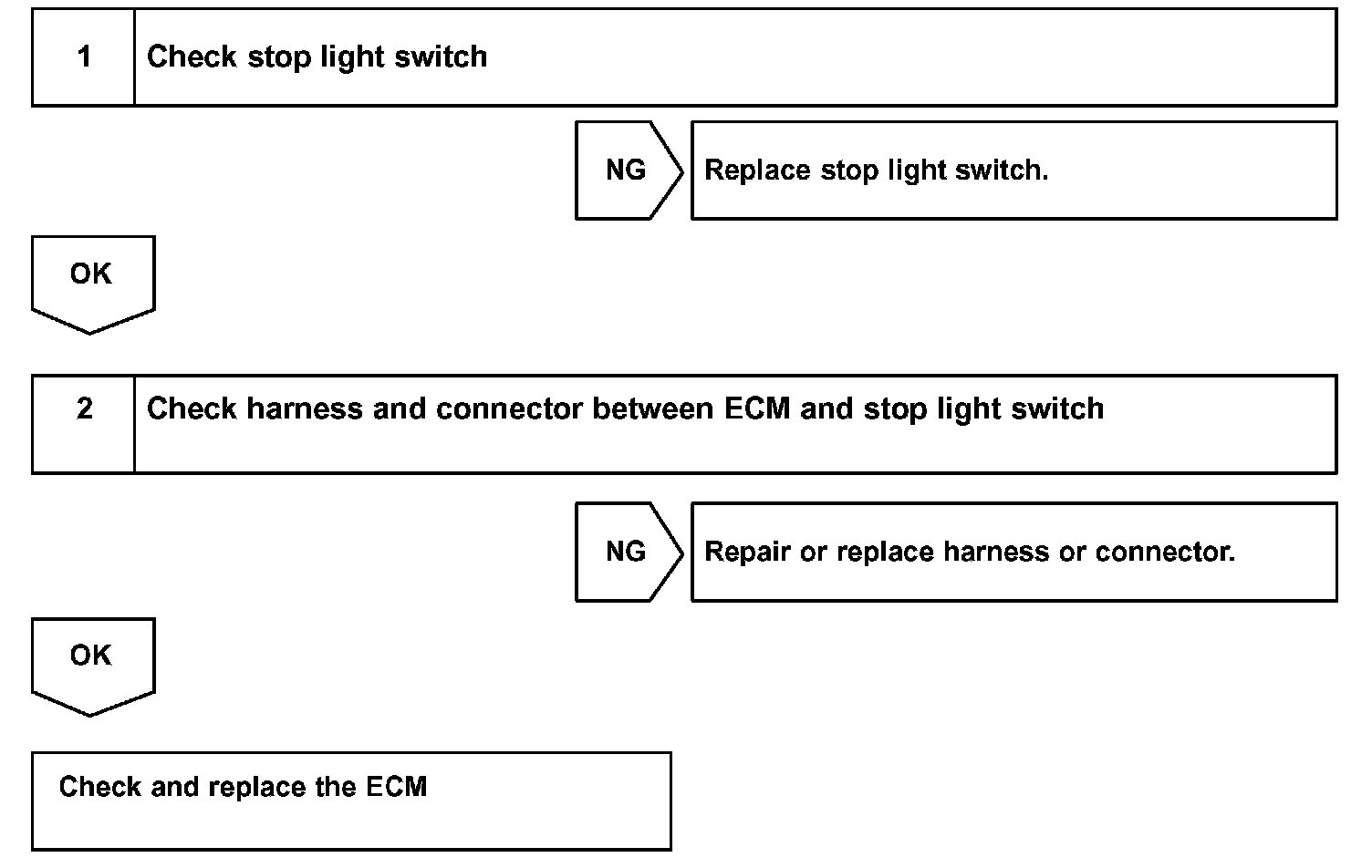

INSPECTION PROCEDURE
