P0446

DTC P0446 Evaporative Emission Control System Vent Control Circuit

CIRCUIT DESCRIPTION

DTC Detecting Condition:

The vapor pressure sensor, canister closed valve (CCV), pressure switching valve are used to detect abnormalities in the evaporative emission control system.

The ECM decides whether there is an abnormality in the evaporative emission control system based on the vapor pressure sensor signal.

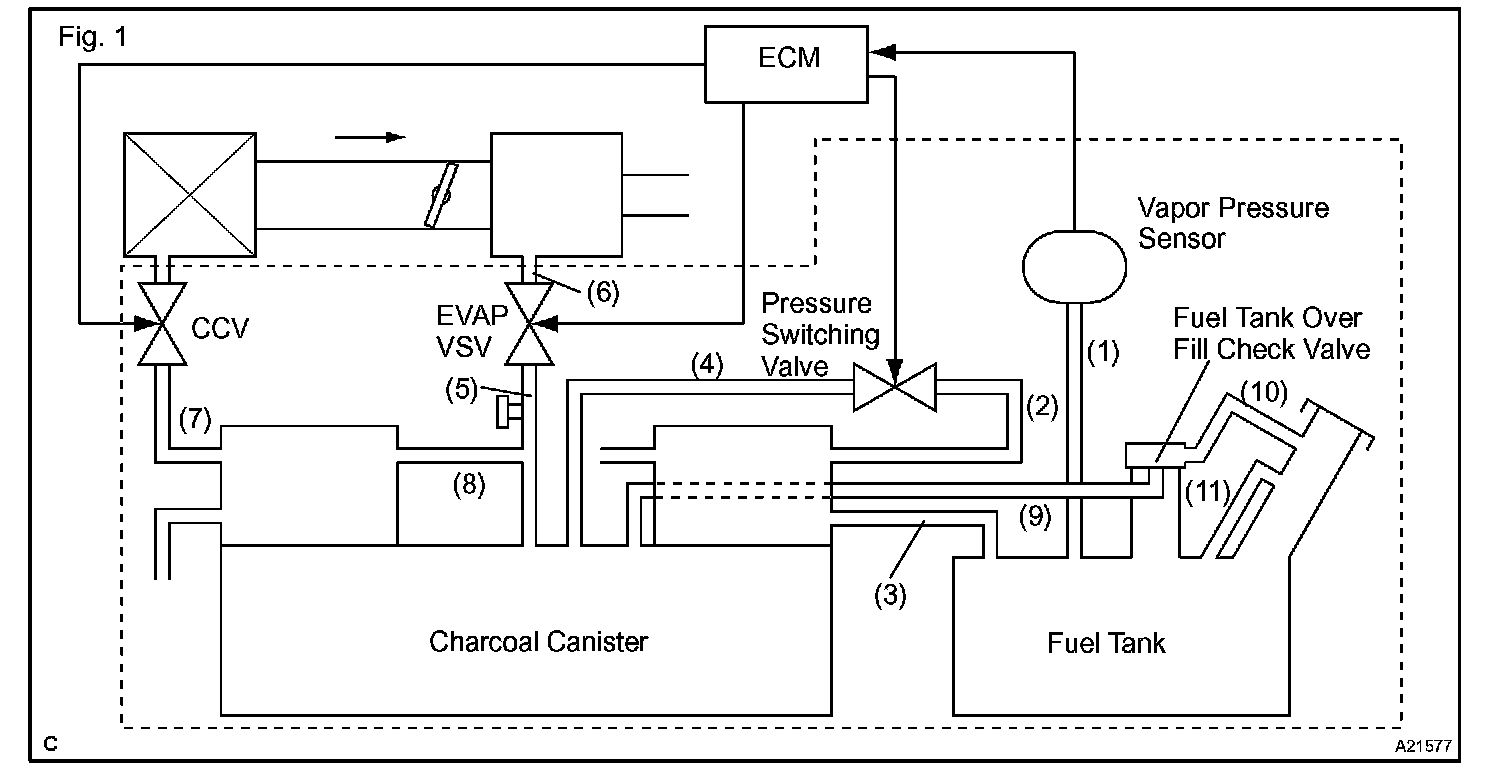

DTCs P0441 and P0446 are recorded by the ECM when evaporative emissions leak from the components within the dotted line in Fig. 1, or when there is a malfunction in either the EVAP VSV, the pressure switching valve, or in the vapor pressure sensor itself.

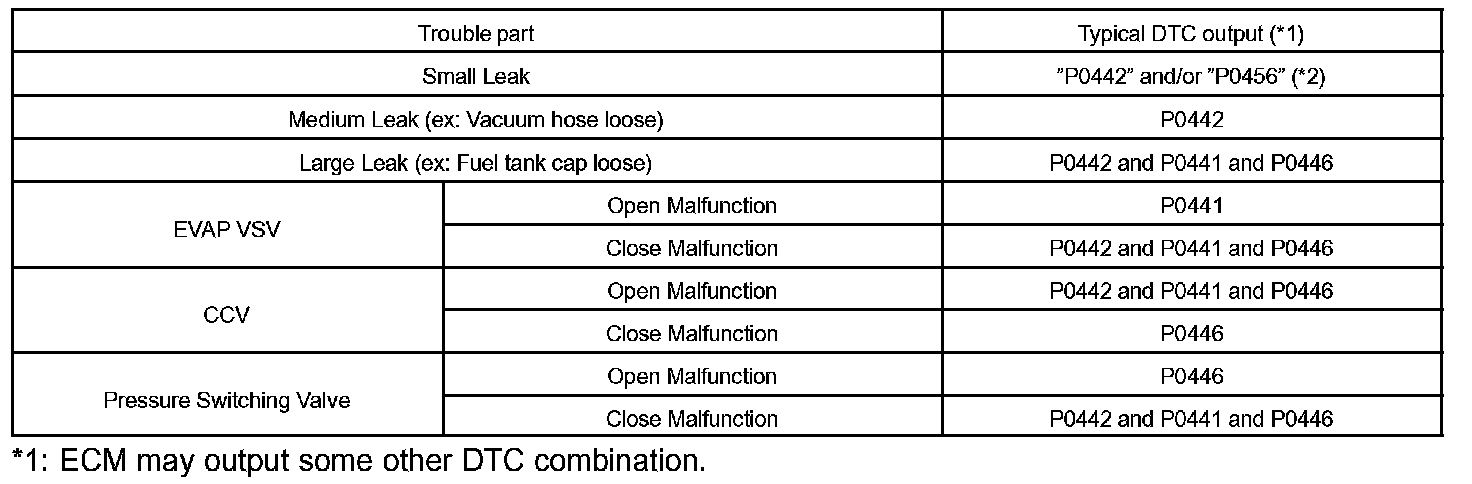

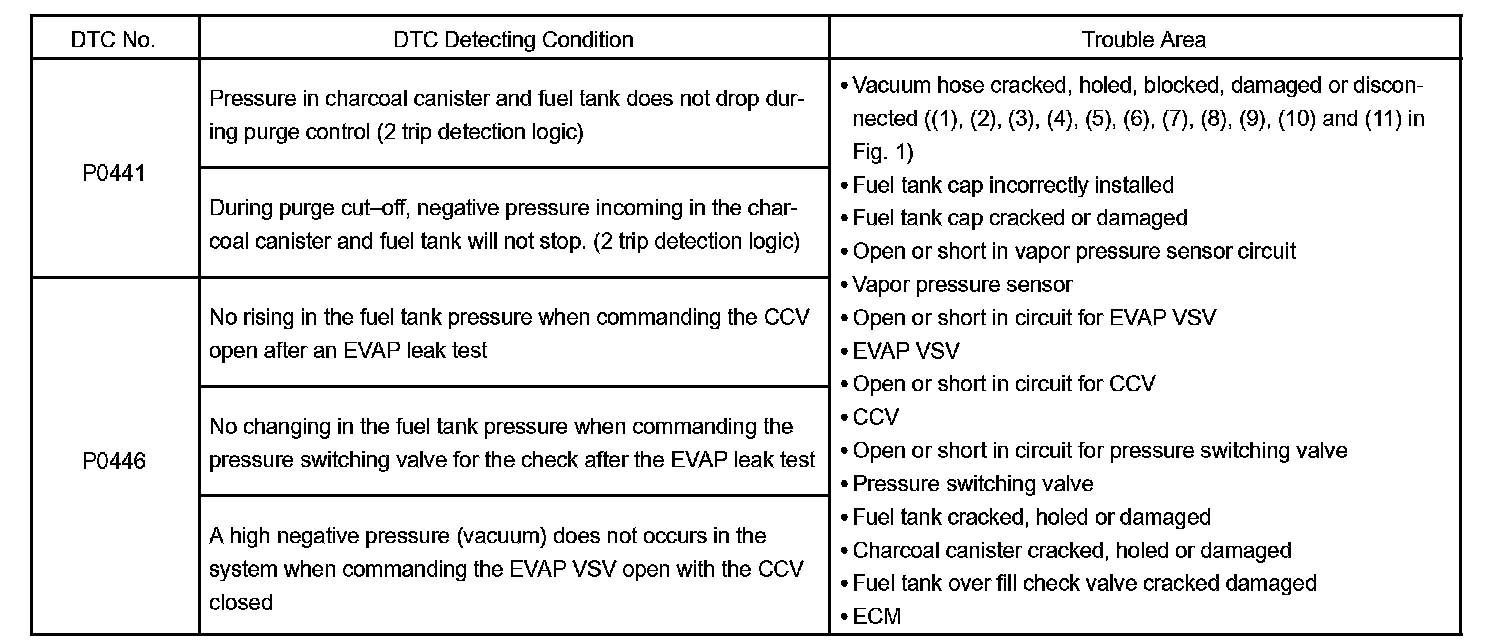

HINT: Typical DTC output of each trouble part

MONITOR DESCRIPTION

Monitor Strategy:

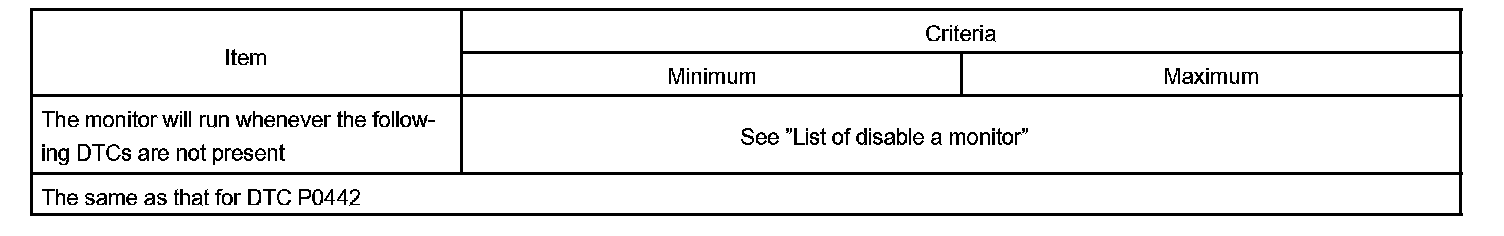

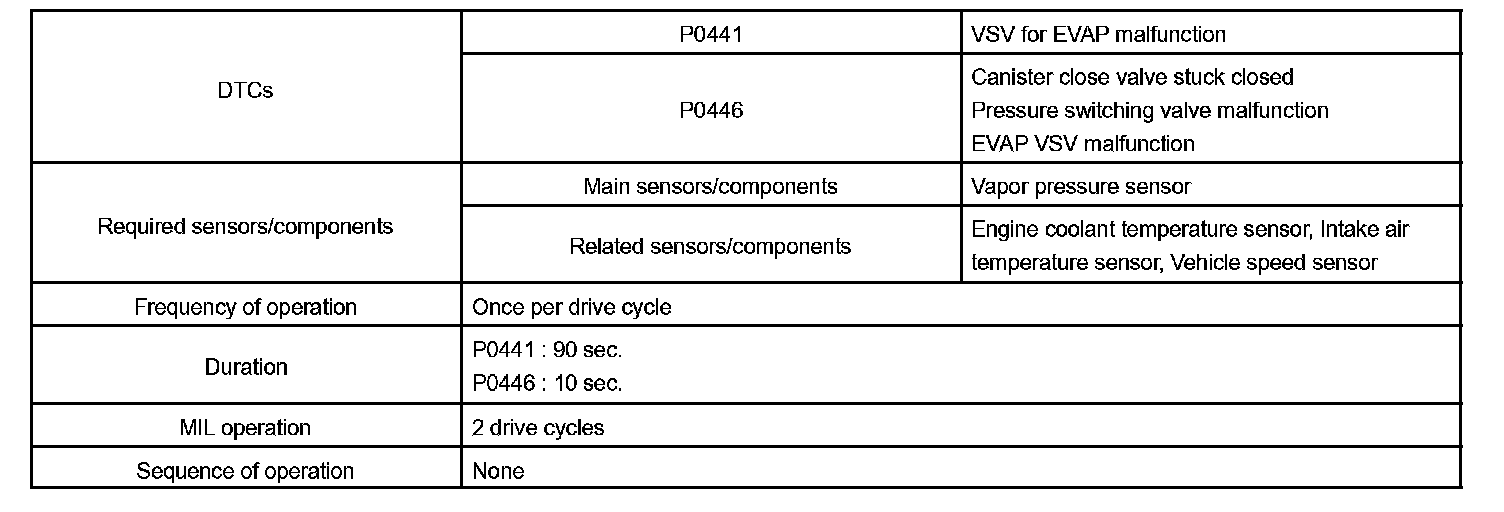

Typical Enabling Conditions:

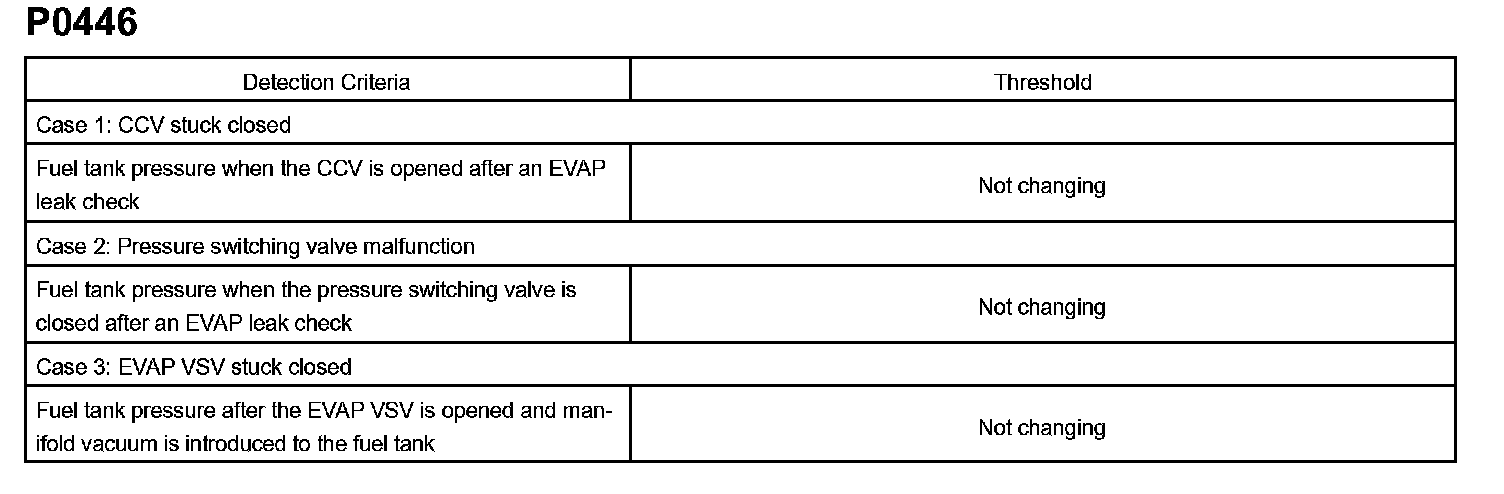

Typical Malfunction Thresholds:

P0446
If there is a malfunction detected in the evaporative emission (EVAP) VSV, the canister closed valve (CCV) and the VSV for bypass valve, the ECM will illuminate the MIL and set a DTC.

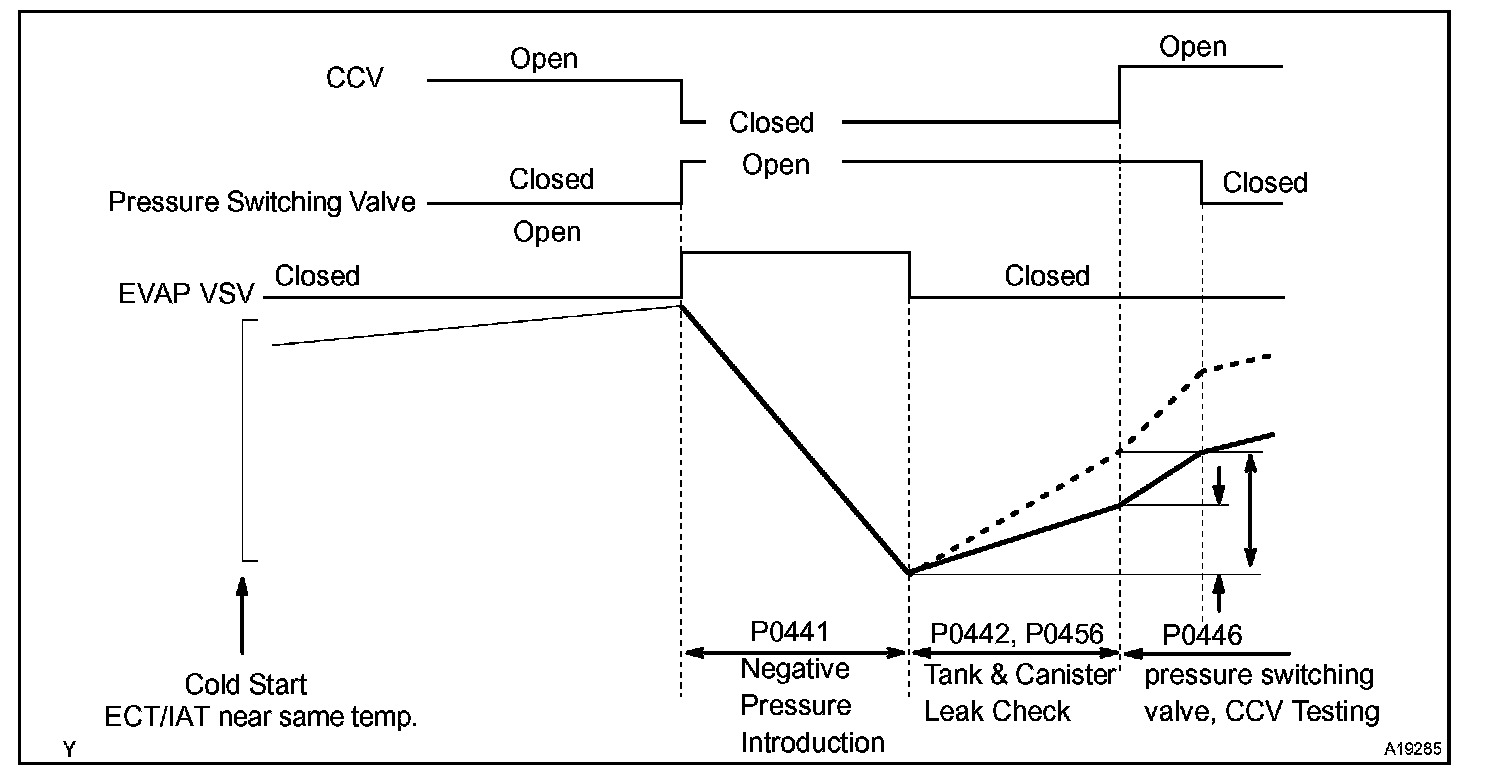

This portion of the EVAP diagnosis checks the following EVAP system functions:
a. CCV stuck closed.
The ECM checks for a CCV "stuck closed" malfunction by commanding the CCV to open after an EVAP leak test. If the fuel tank pressure does not rise (lose vacuum), the ECM determines that the CCV is stuck closed. The ECM will turn on the MIL and a DTC is set.

b. Pressure switching valve stuck closed.
The ECM checks for a pressure switching valve "stuck closed" malfunction by commanding the pressure switching valve to close after an EVAP leak test. If the fuel tank pressure does not change, the ECM determines that the pressure switching valve is malfunctioning. The ECM will turn on the MIL and a DTC is set.

c. EVAP VSV (Purge line to intake manifold) stuck closed.
The ECM checks for a stuck closed malfunction in the EVAP VSV by commanding it to open with the CCV closed. If a high negative pressure does not develop in the fuel tank, the ECM determines that the EVAP VSV remains closed. The ECM turns on the MIL and a DTC is set.

MONITOR RESULT (MODE 06 DATA)

Monitor Result (Mode 06 Data):

Refer to "Monitors, Trips and/or Drive Cycle" for detailed information.

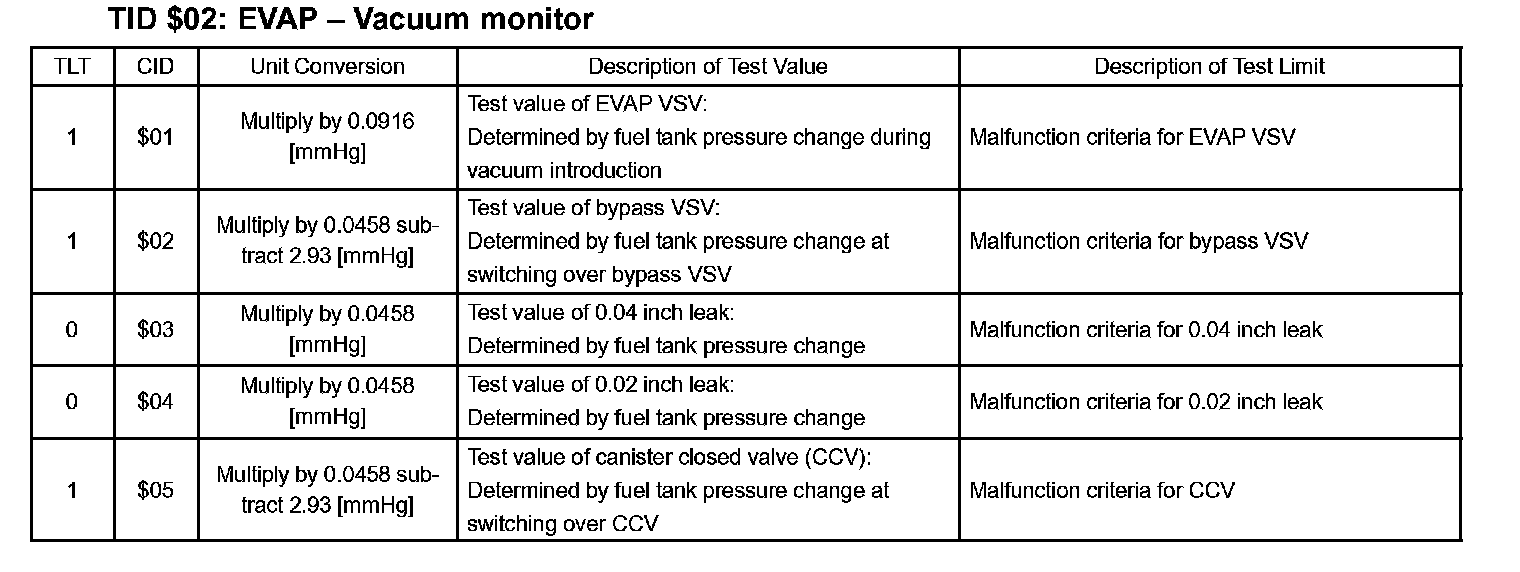

The test value and test limit information are described as shown in the table. Check the monitor result and test values after performing the monitor drive pattern.
- TID (Test Identification Data) is assigned to each emissions-related component.
- TID (Test Limit Type):
If TLT is 0, the component is malfunctioning when the test value is higher than the test limit.
If TLT is 1, the component is malfunctioning when the test value is lower than the test limit.

- CID (Component Identification Data) is assigned to each test value.
- Unit Conversion is used to calculate the test value indicated on generic OBD II scan tools.

Wiring Diagram:

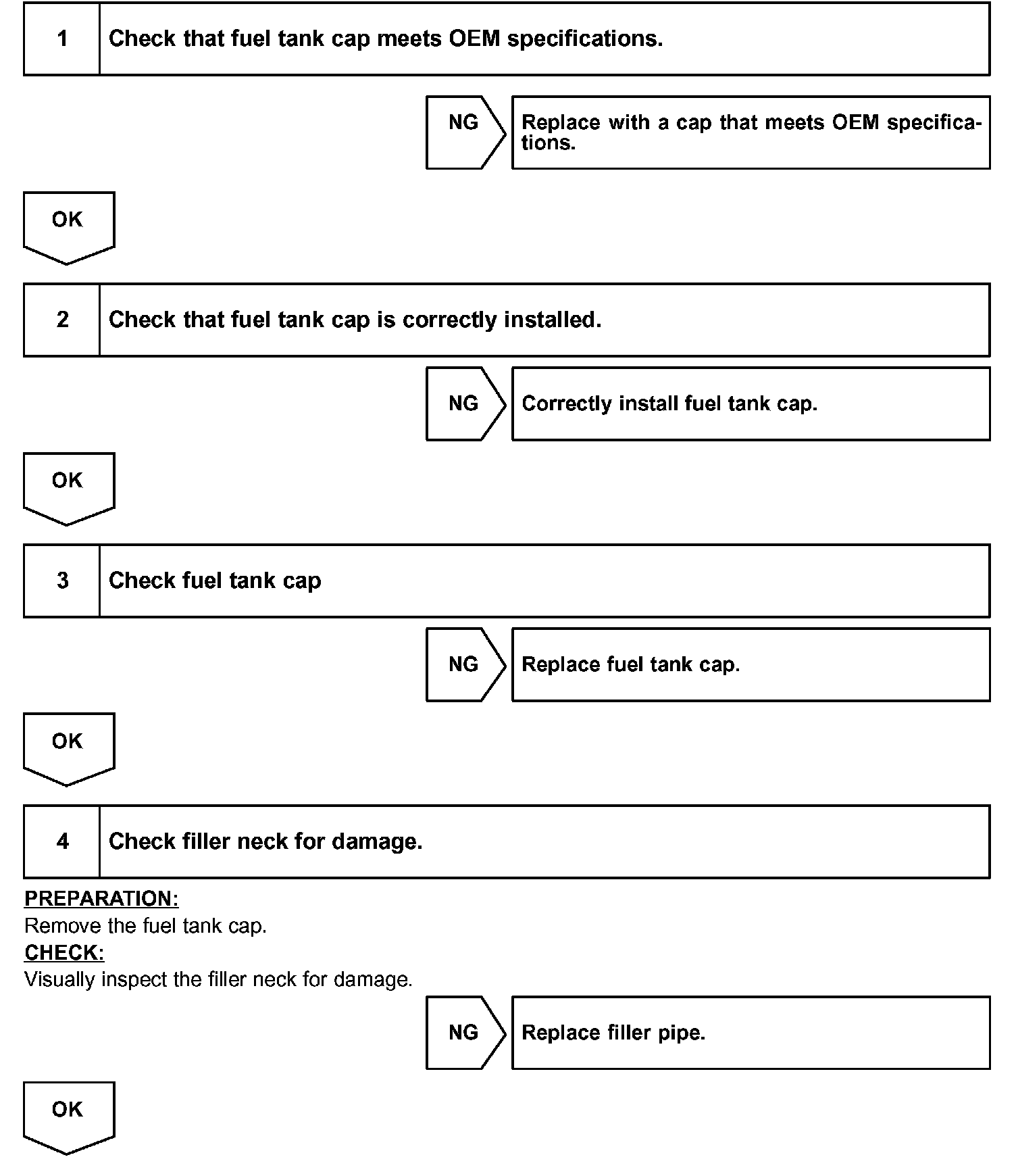

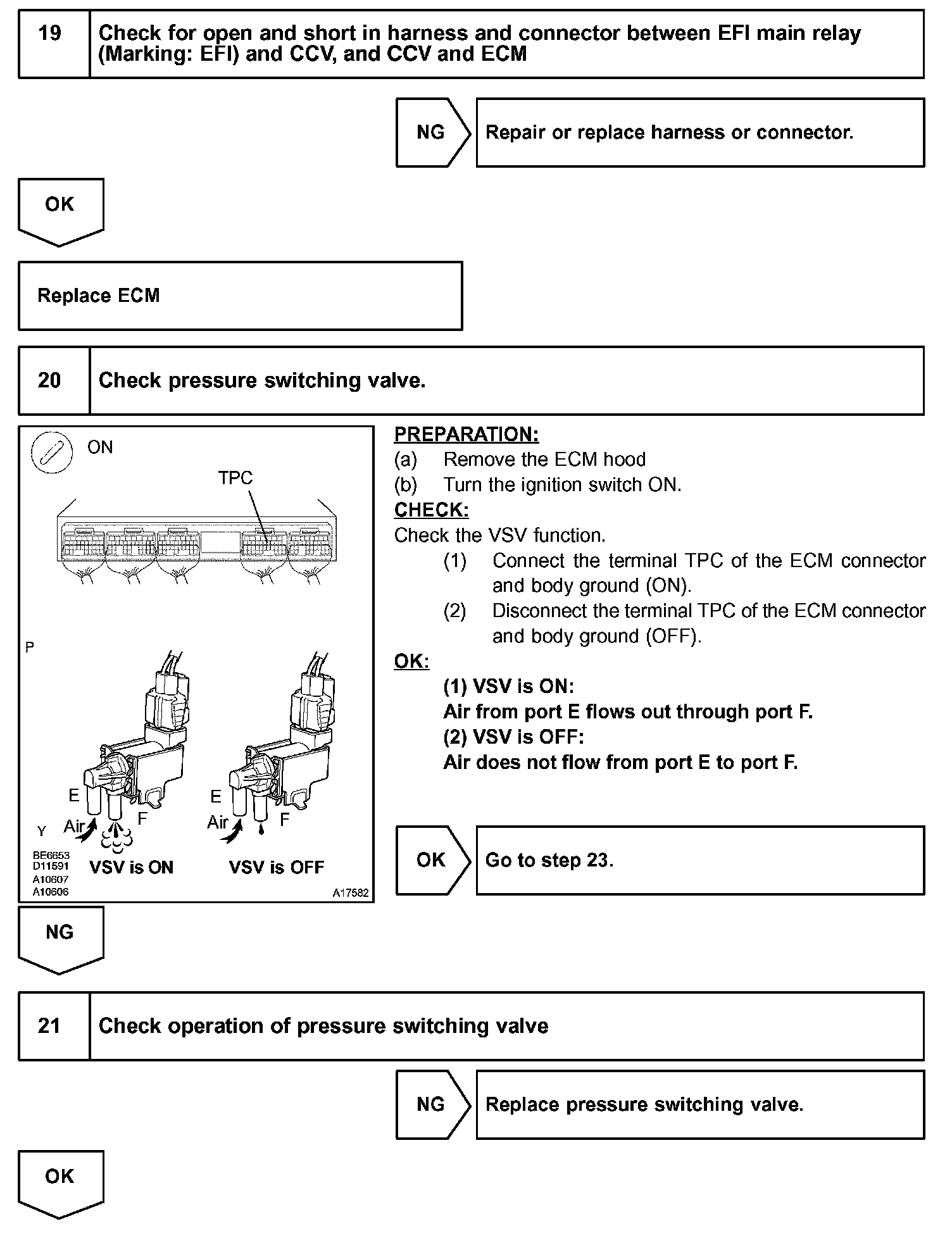

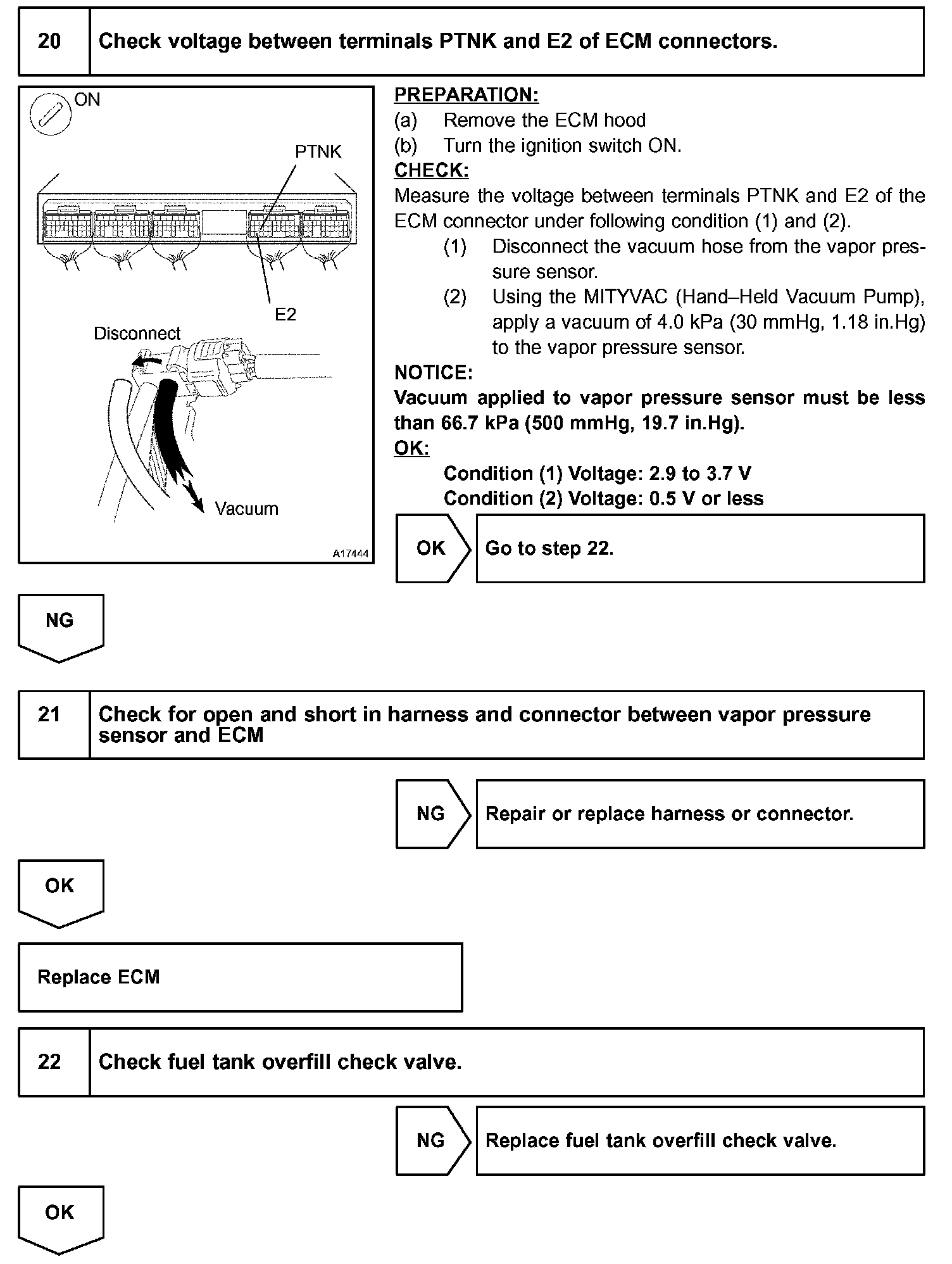

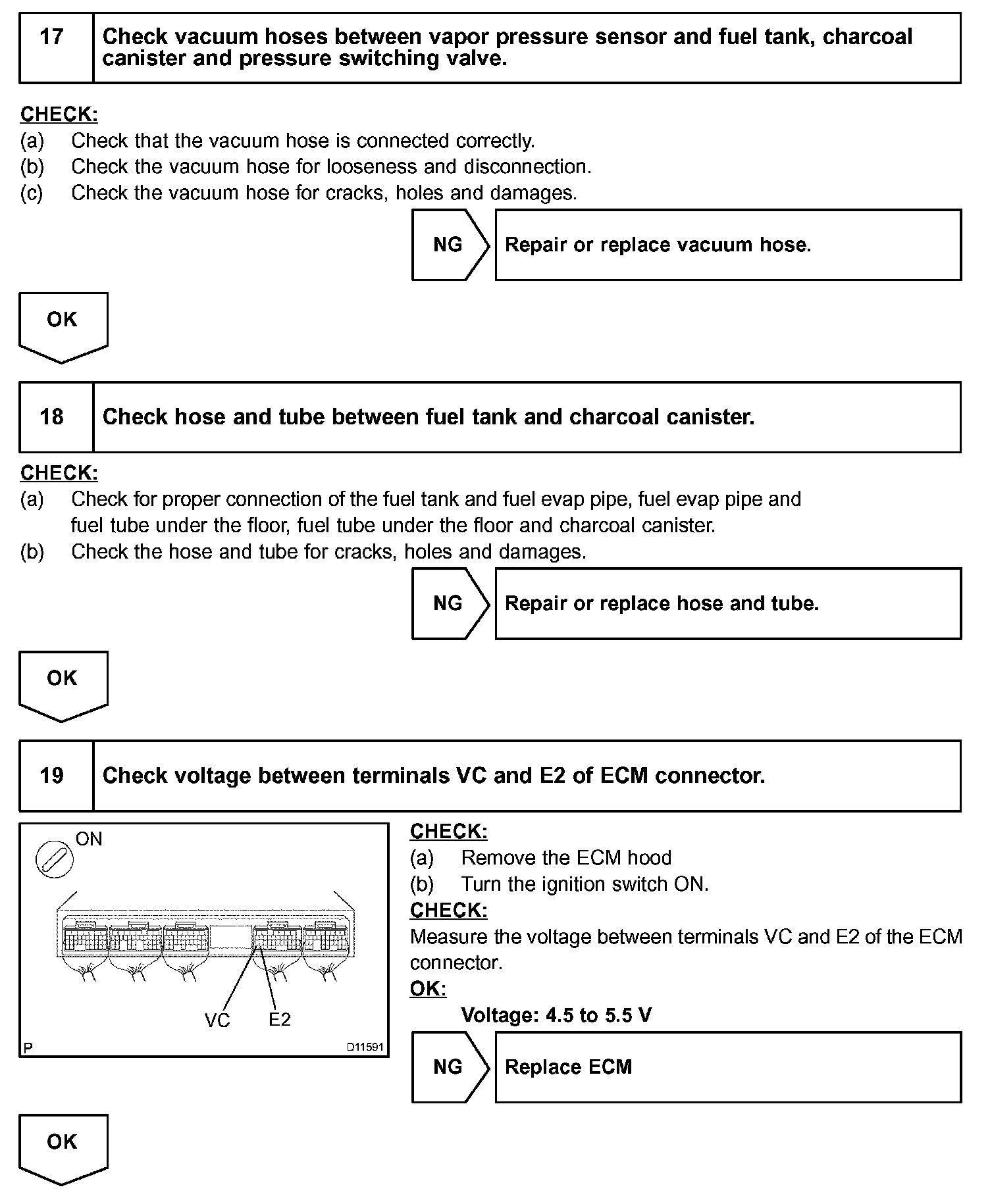

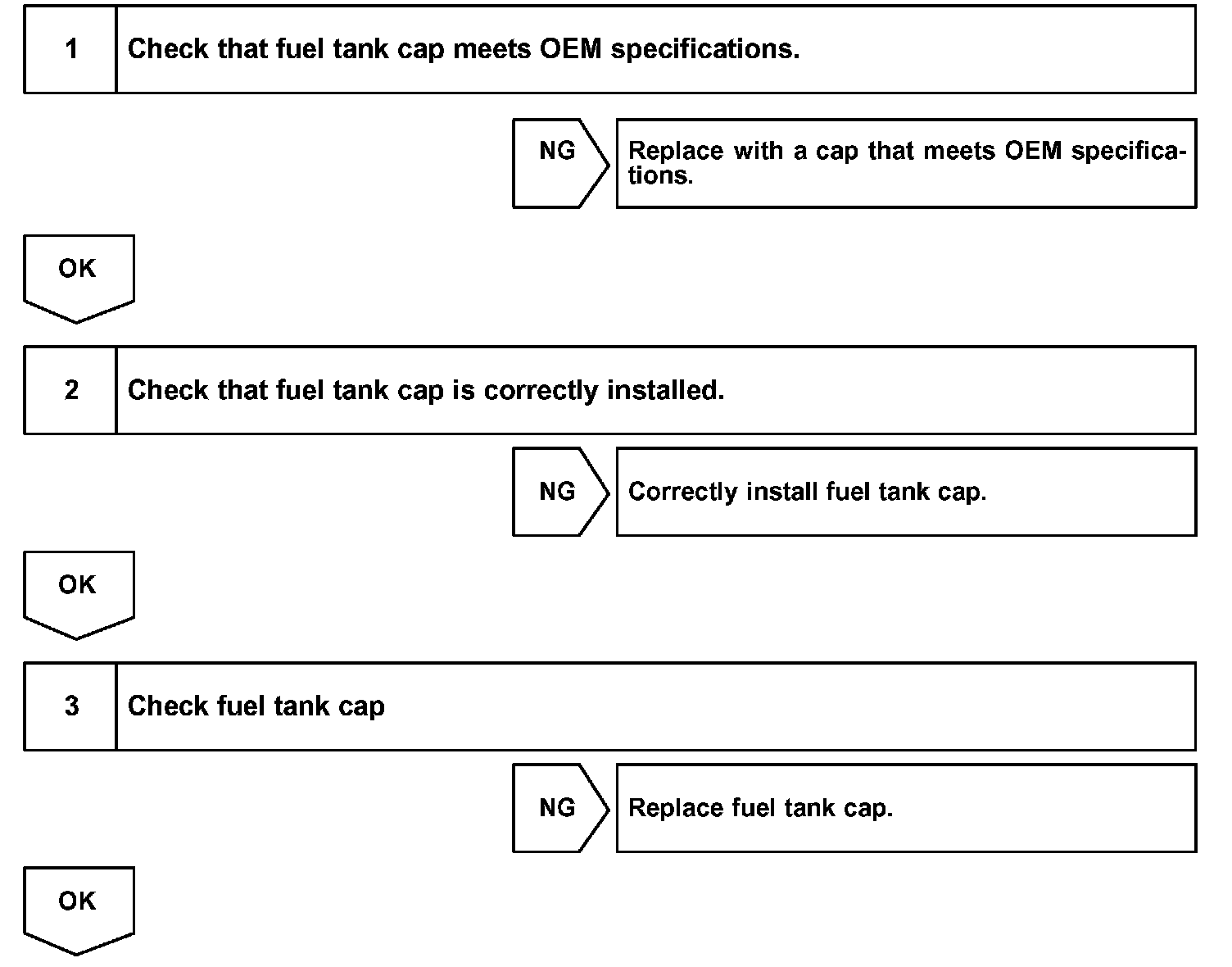

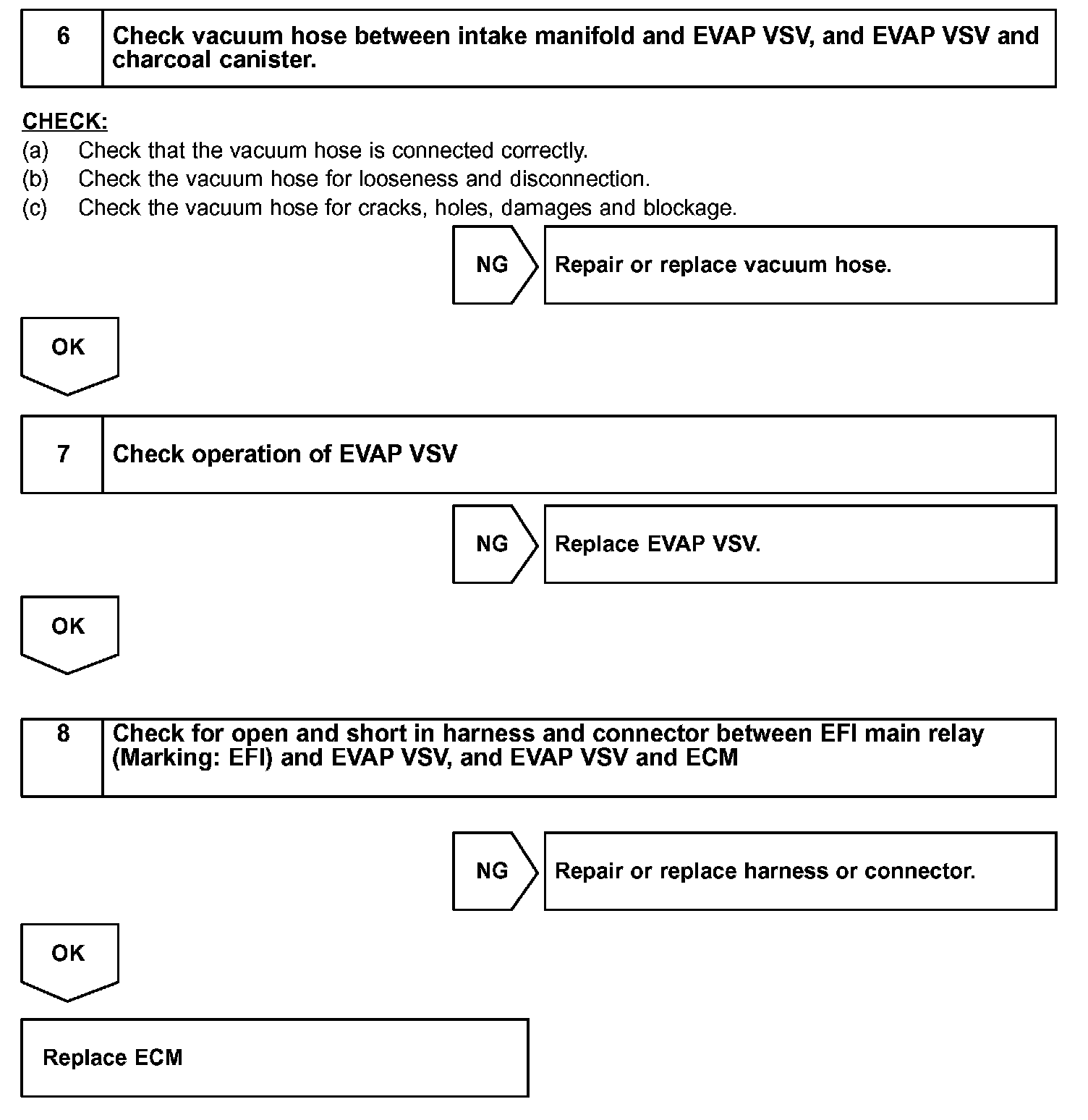

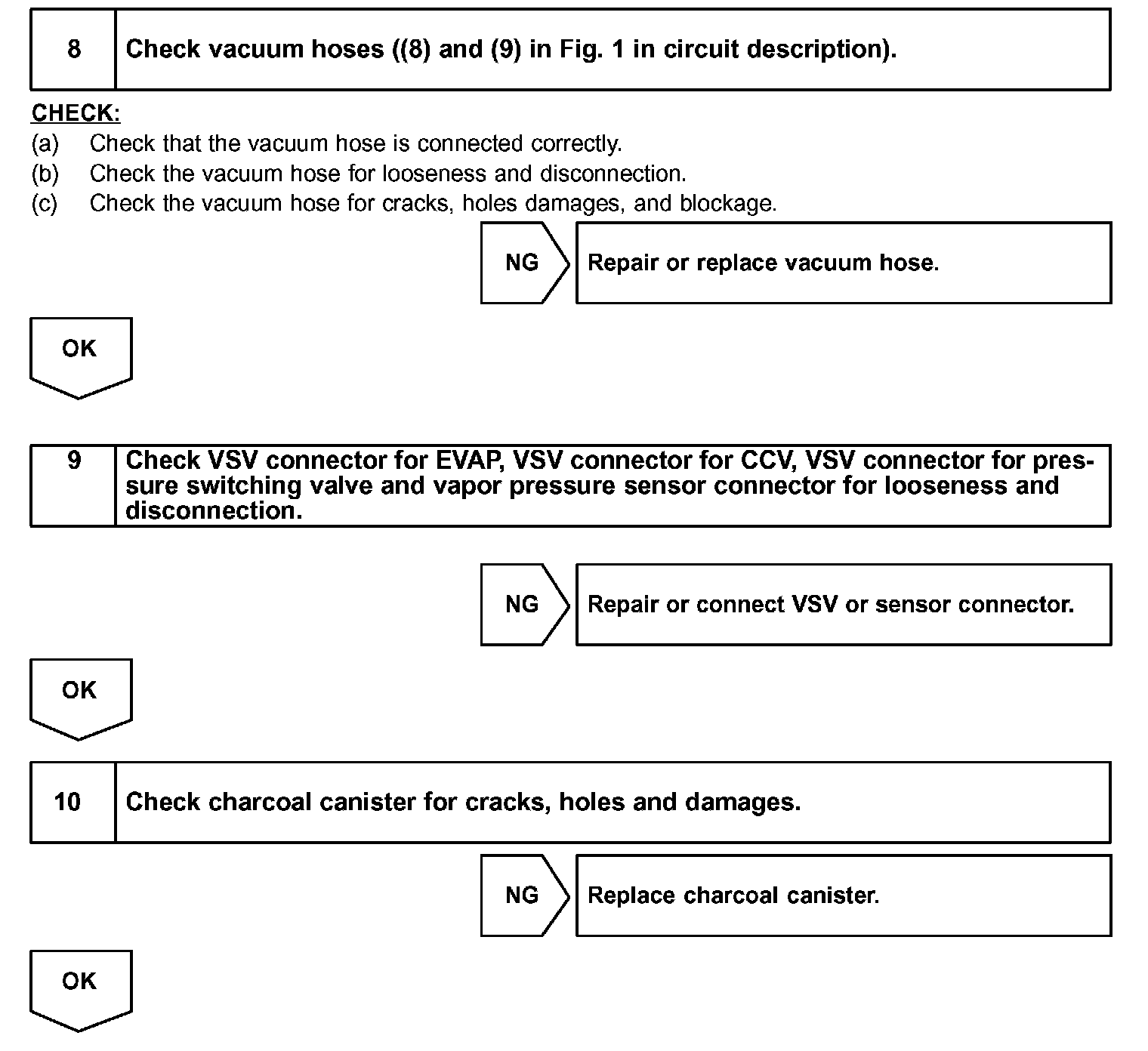

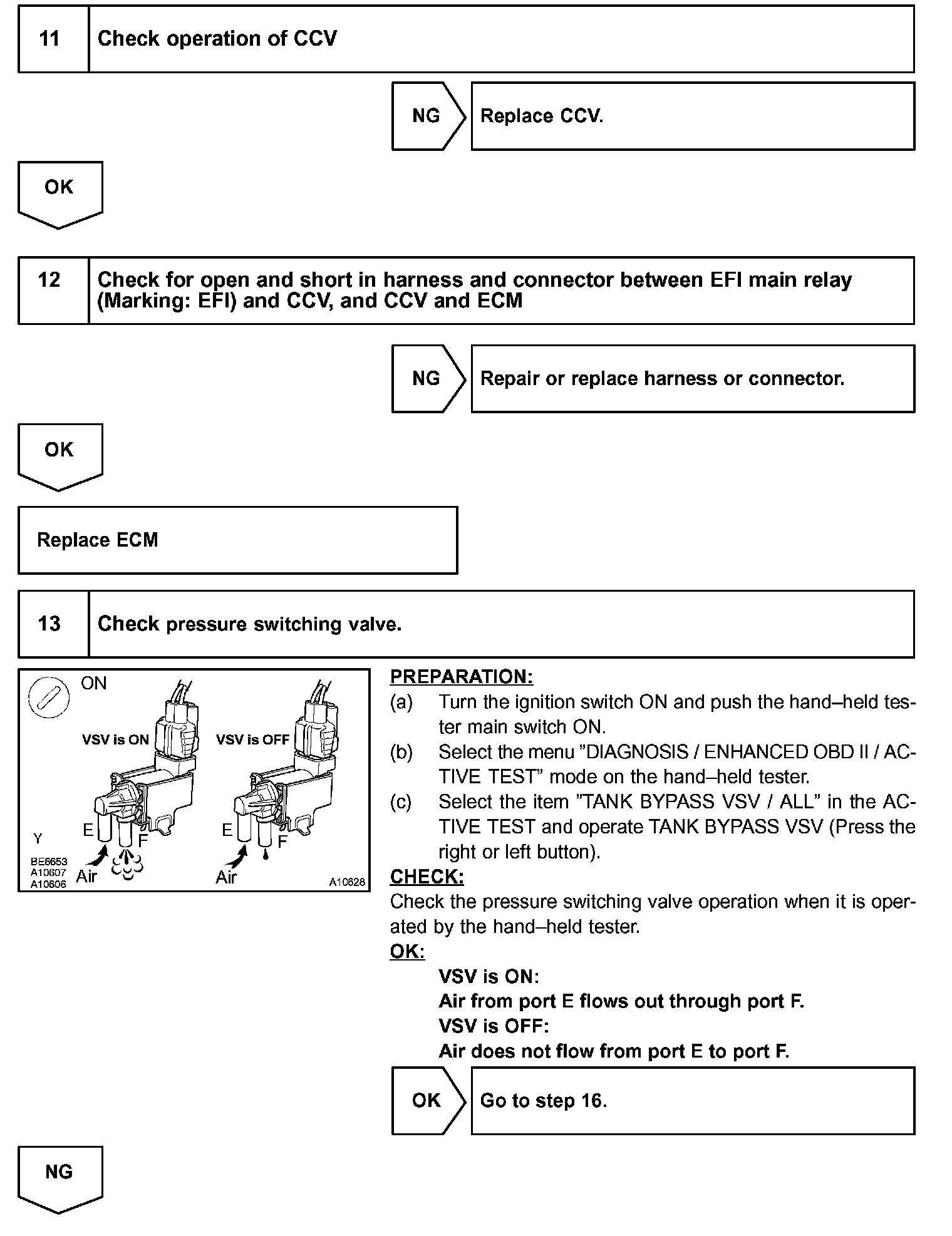

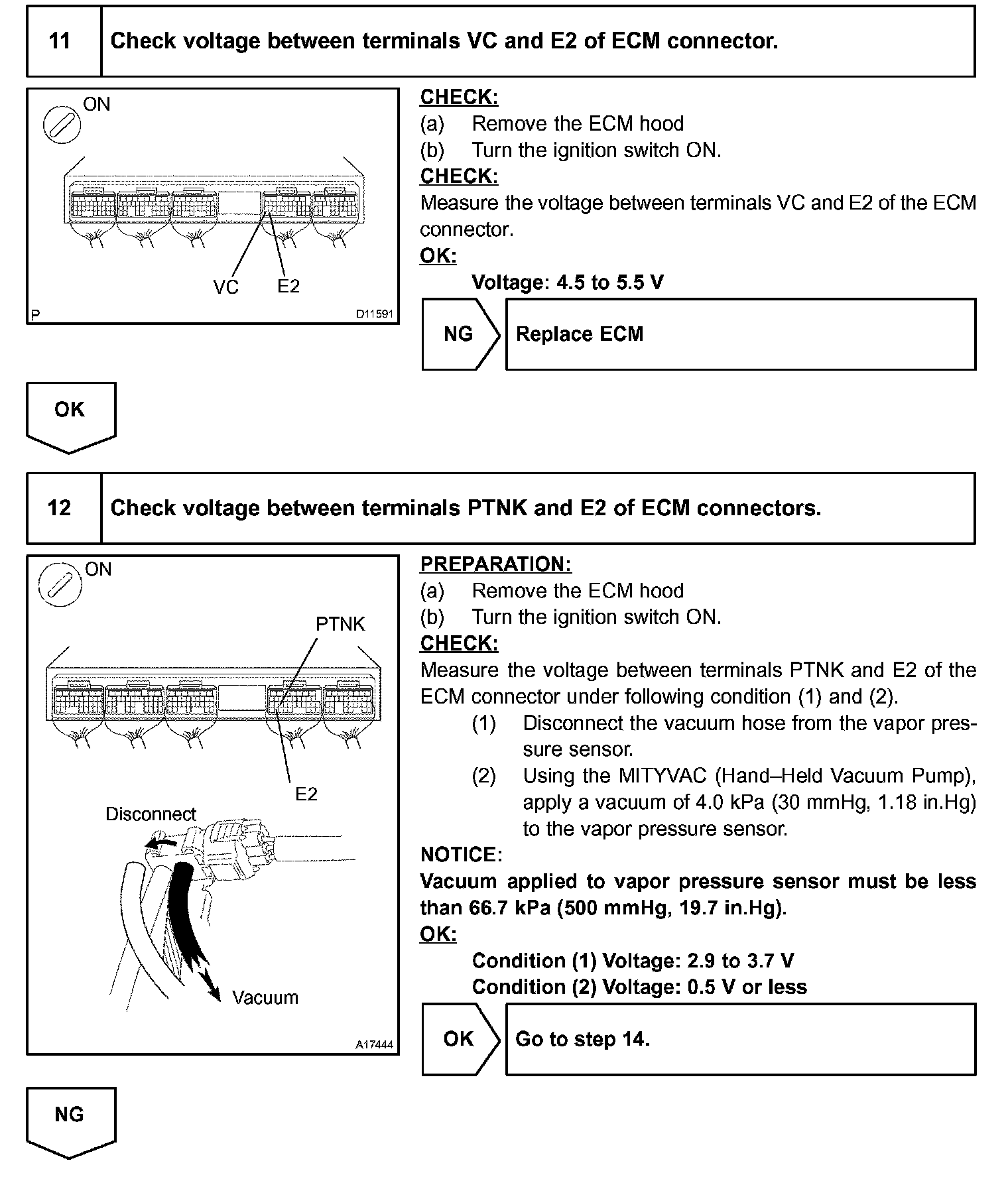

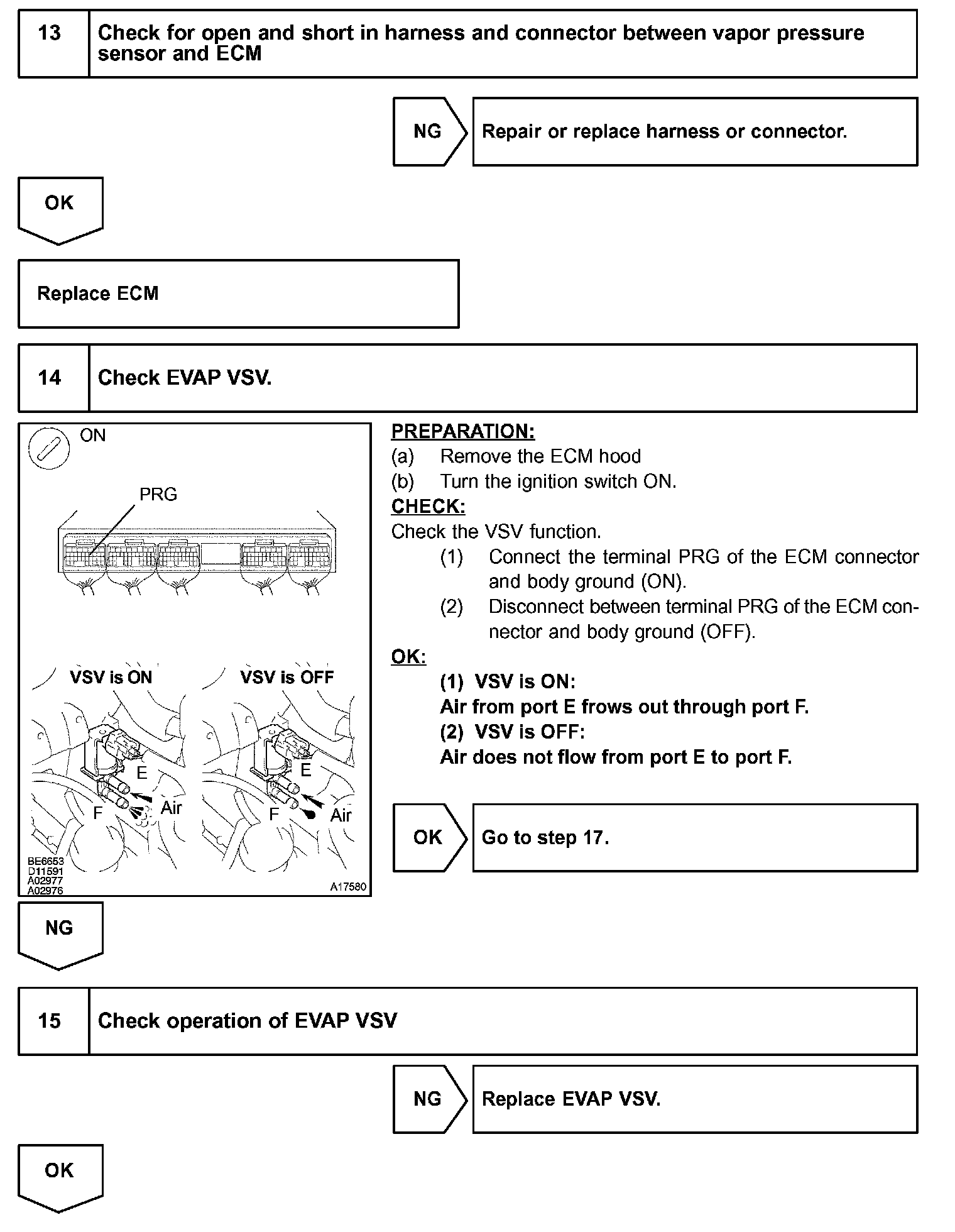

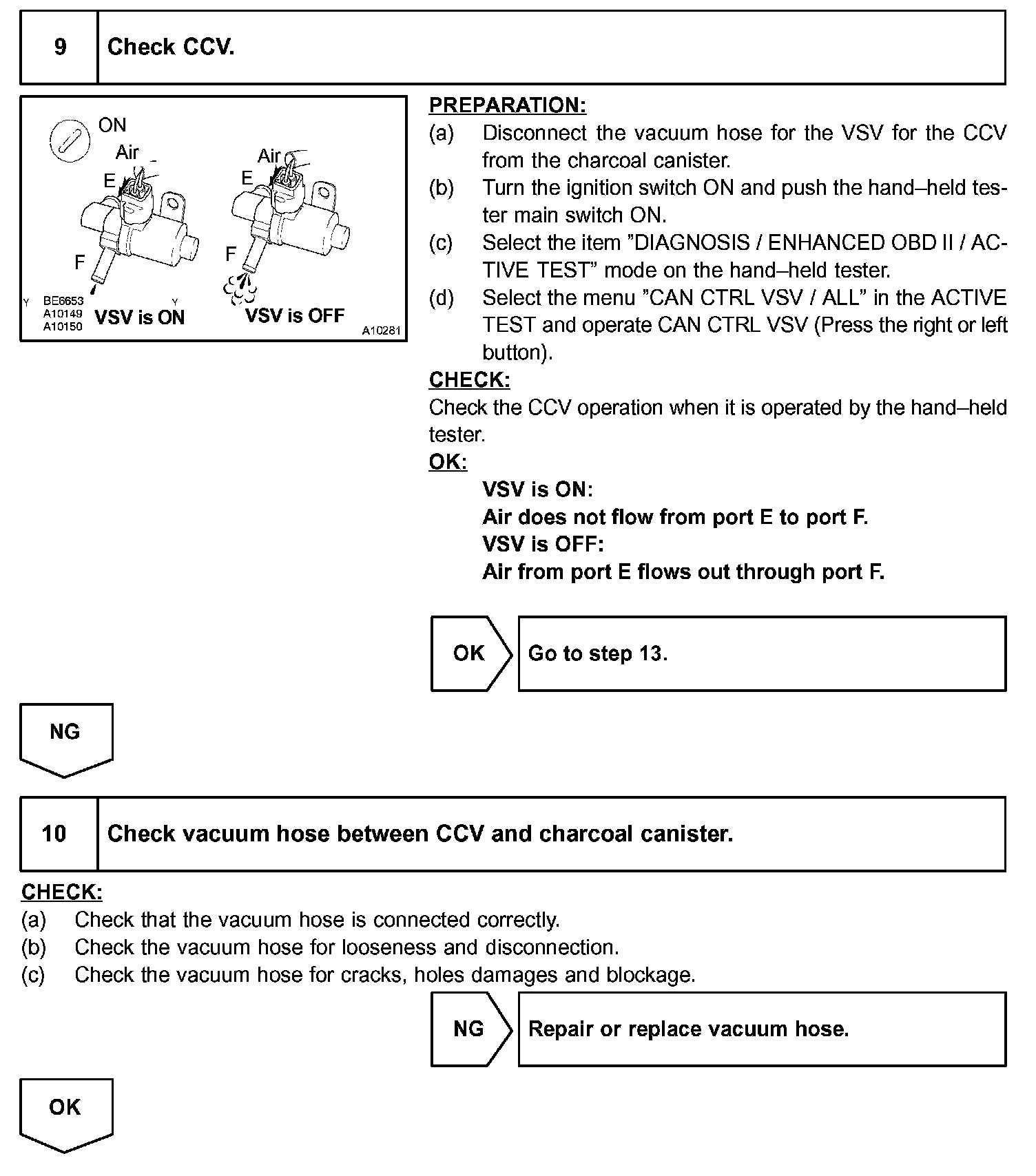

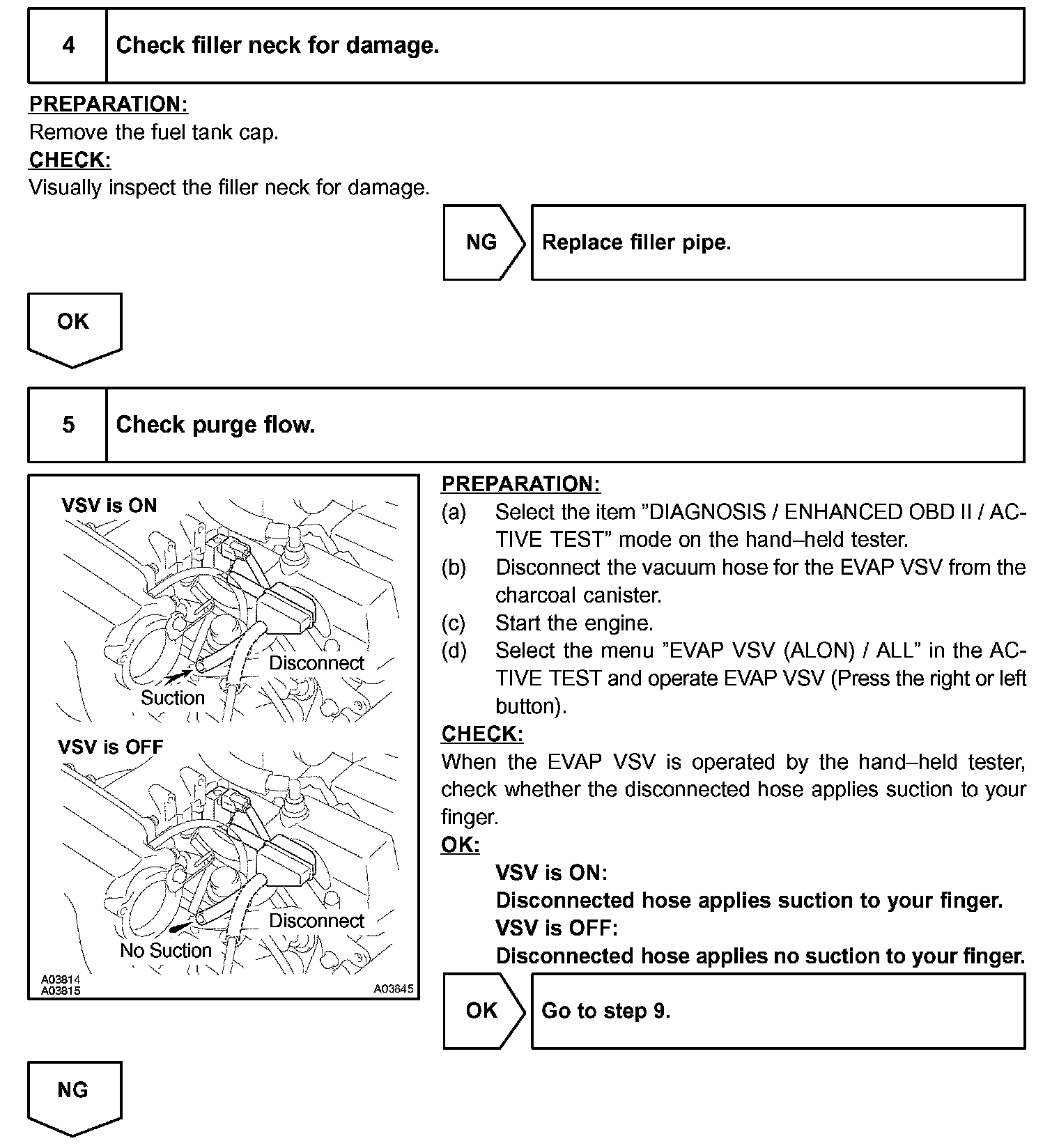

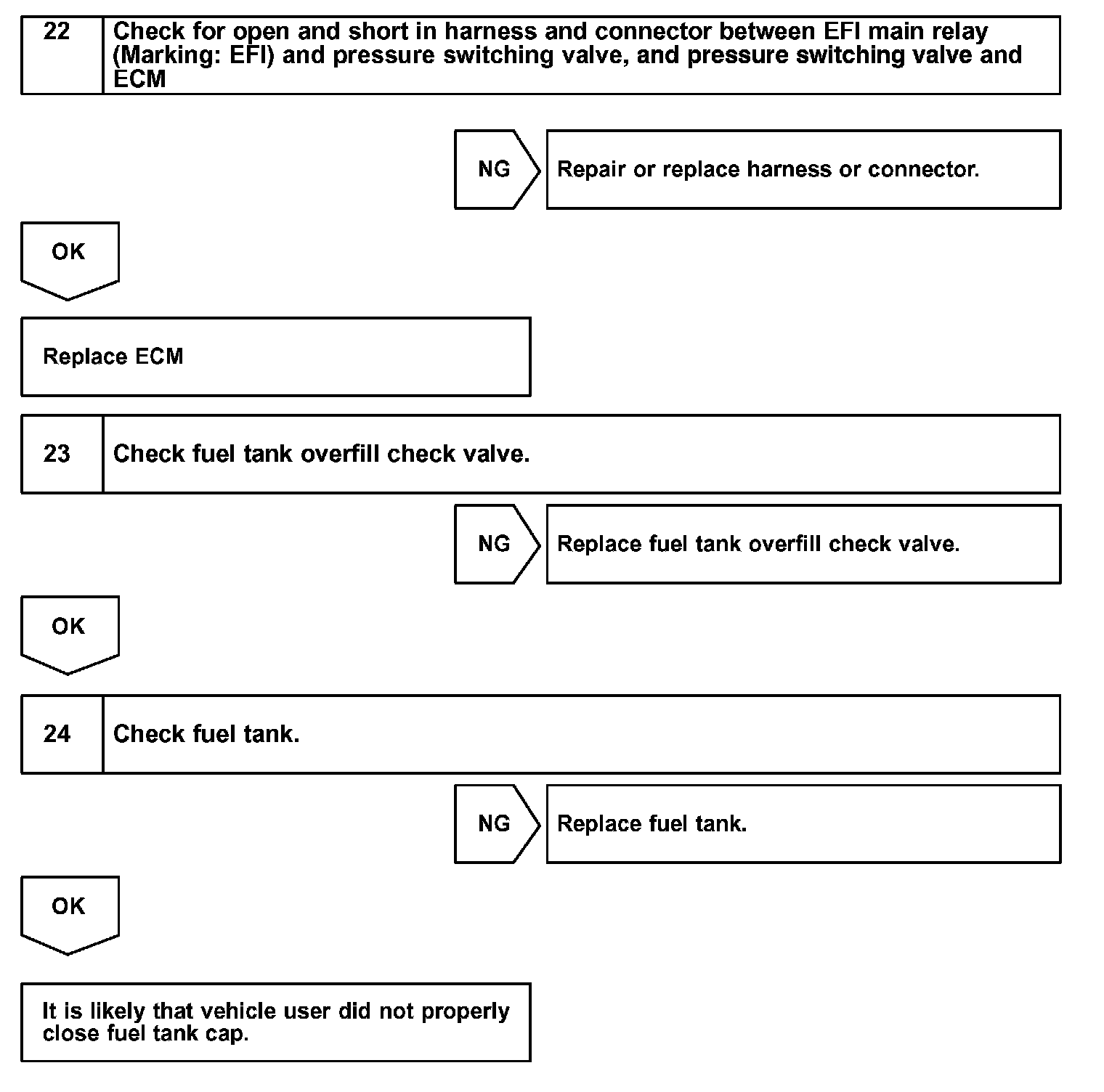

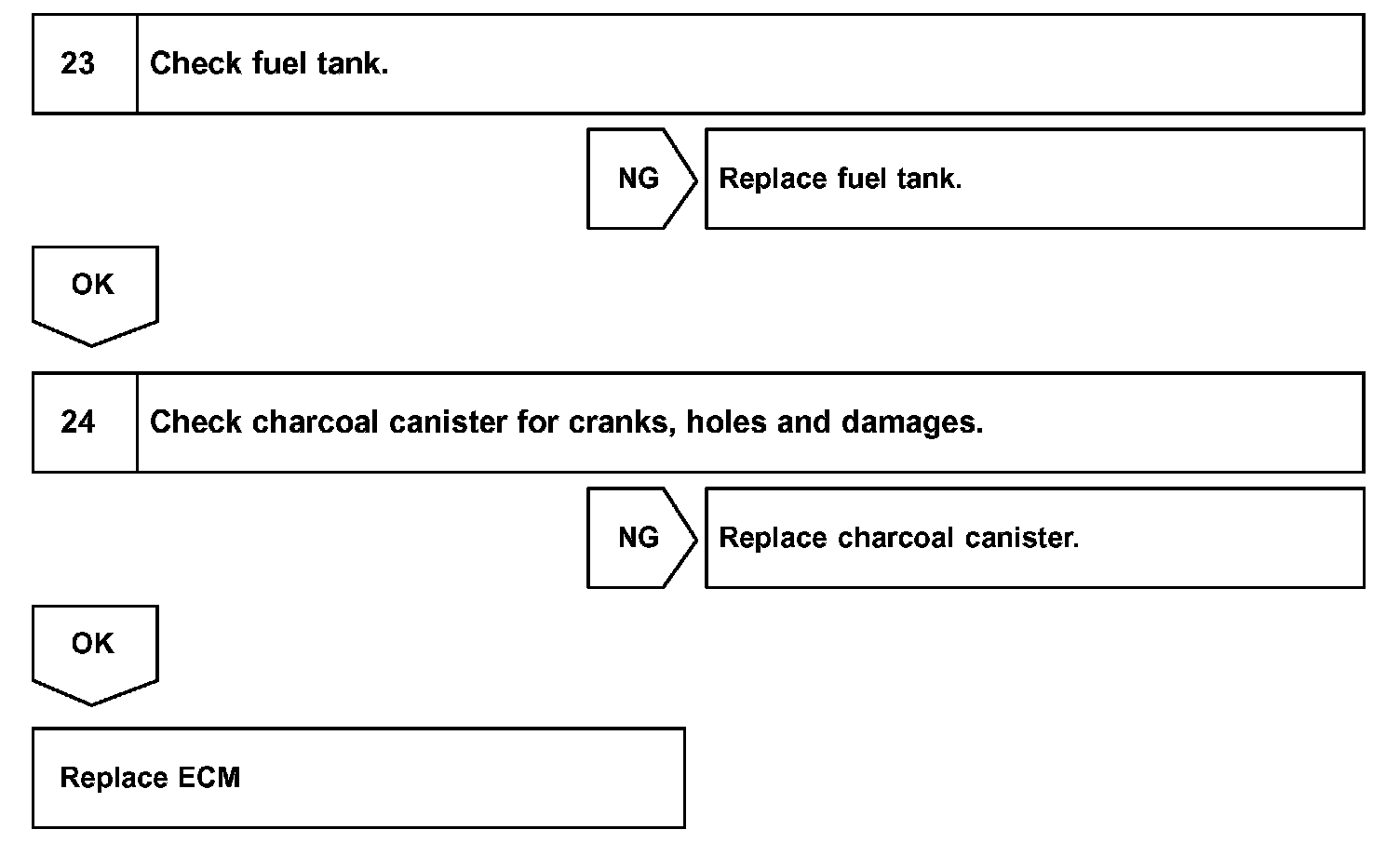

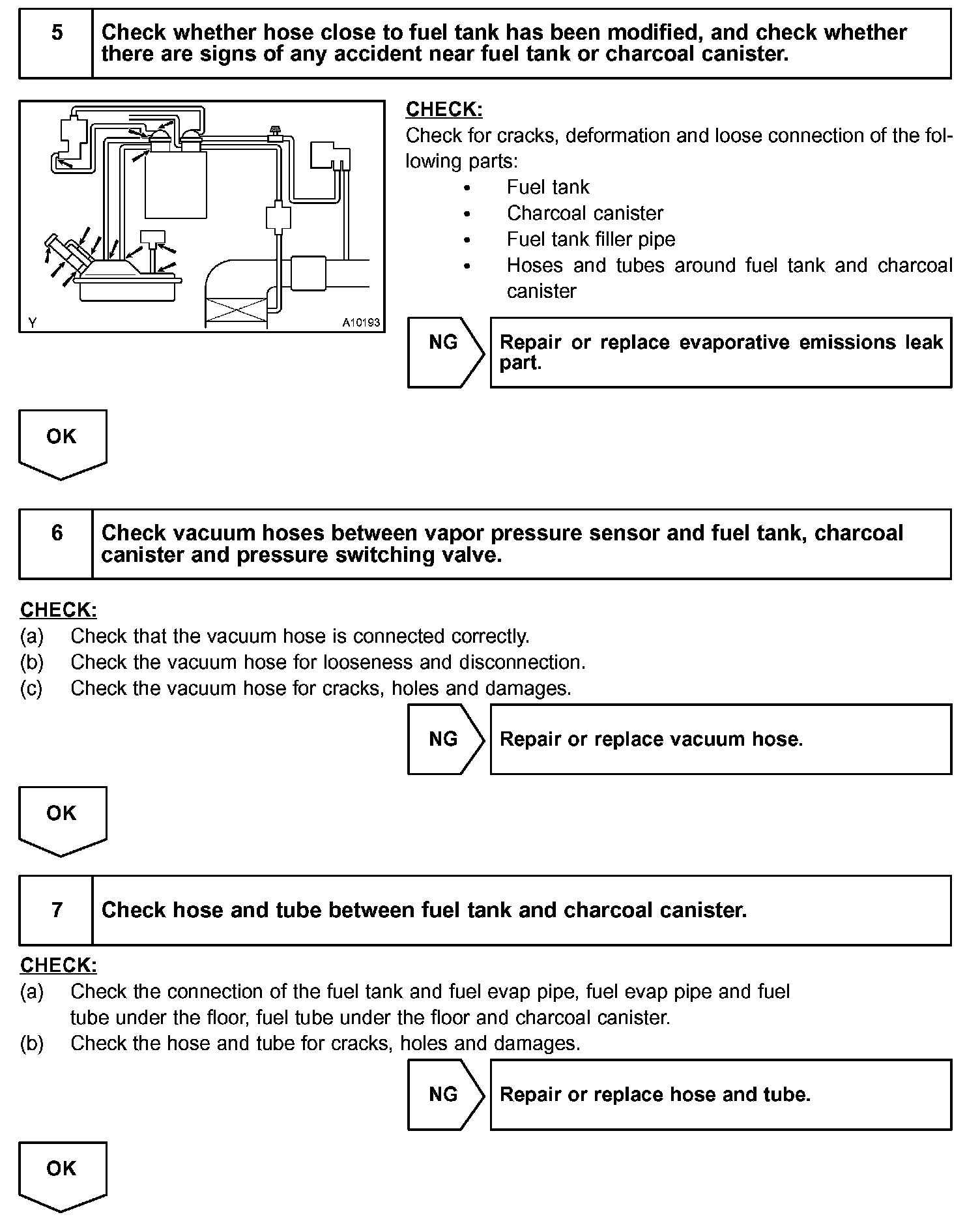

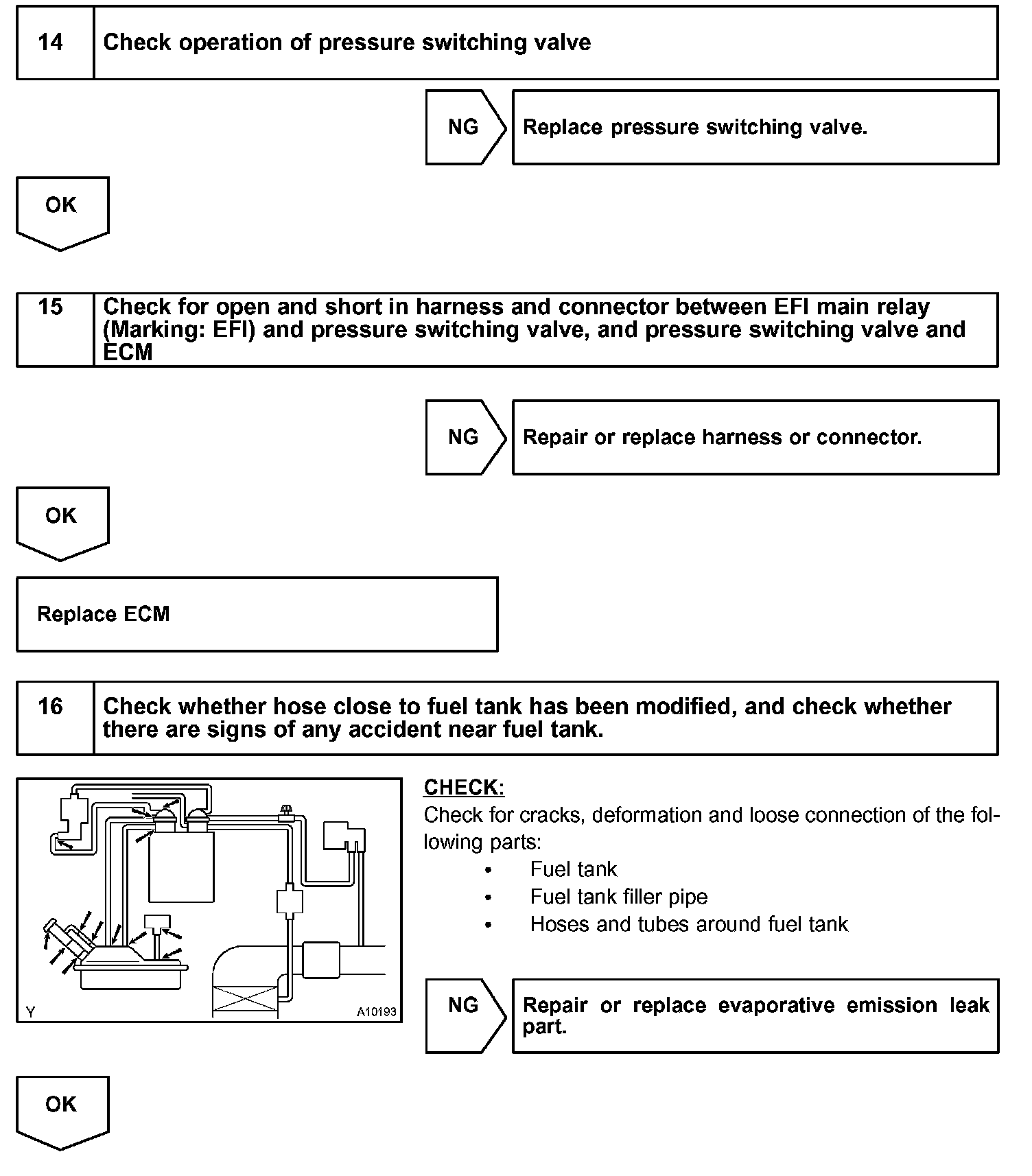

INSPECTION PROCEDURE

HINT:
- If DTC P0441 (Purge Flow), P0446 (CCV) or pressure switching valve or P0451 (Evaporative Pressure Sensor) is output with DTC P0442, P0455 or P0456, first troubleshoot DTC P0441, P0446 or P0451. If no malfunction is detected, troubleshoot DTC P0442, P0455 or P0456 next.
- Read freeze frame data using the hand-held tester or the OBD II scan tool. Freeze frame data records the engine conditions when a malfunction is detected. When troubleshooting, freeze frame data can help determine if the vehicle was running or stopped, if the engine was warmed up or not, if the air-fuel ratio was lean or rich, as well as other data from the time when a malfunction occurred.
- When the ENGINE RUN TIME in the freeze frame data is less than 200 seconds, carefully check the vapor pressure sensor.
