DTC 61

DTC 61 ECM communication stop

CIRCUIT DESCRIPTION

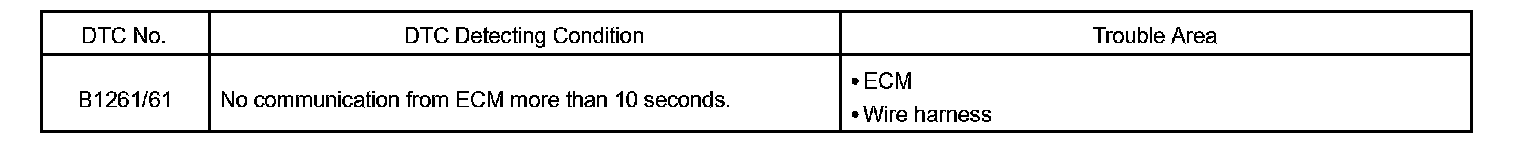

DTC Detecting Condition:

This DTC is output when communication stops between ECM and Body No. 1 ECU.

Wiring Diagram:

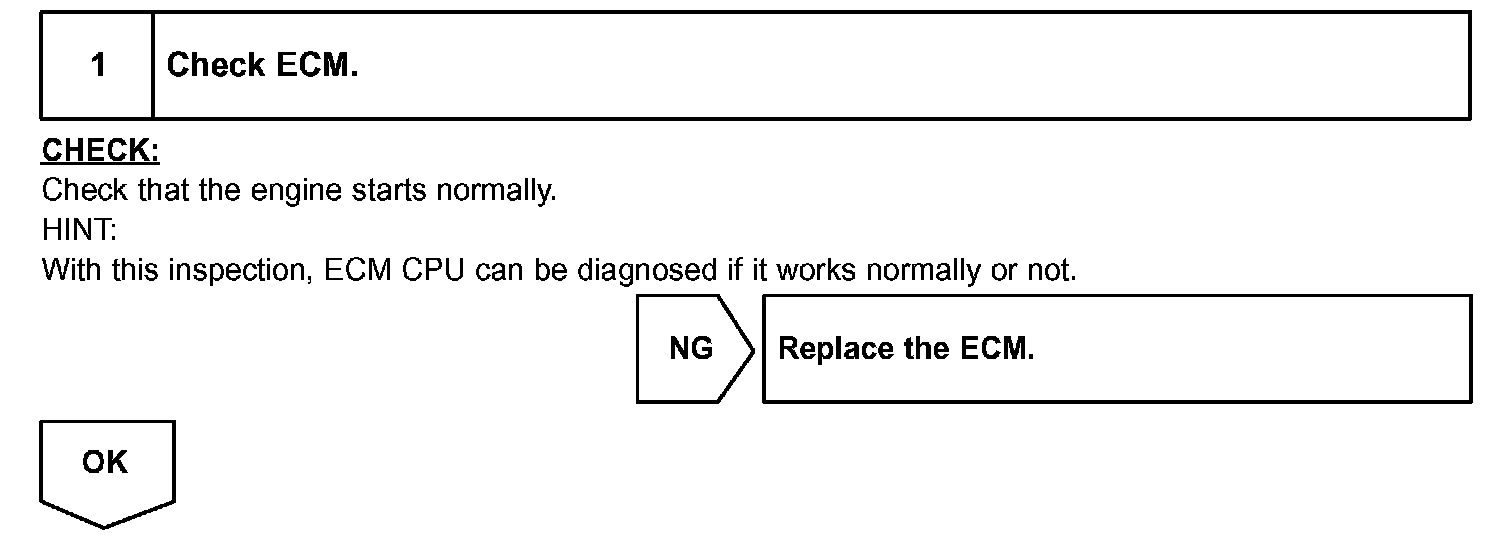

Step 1:

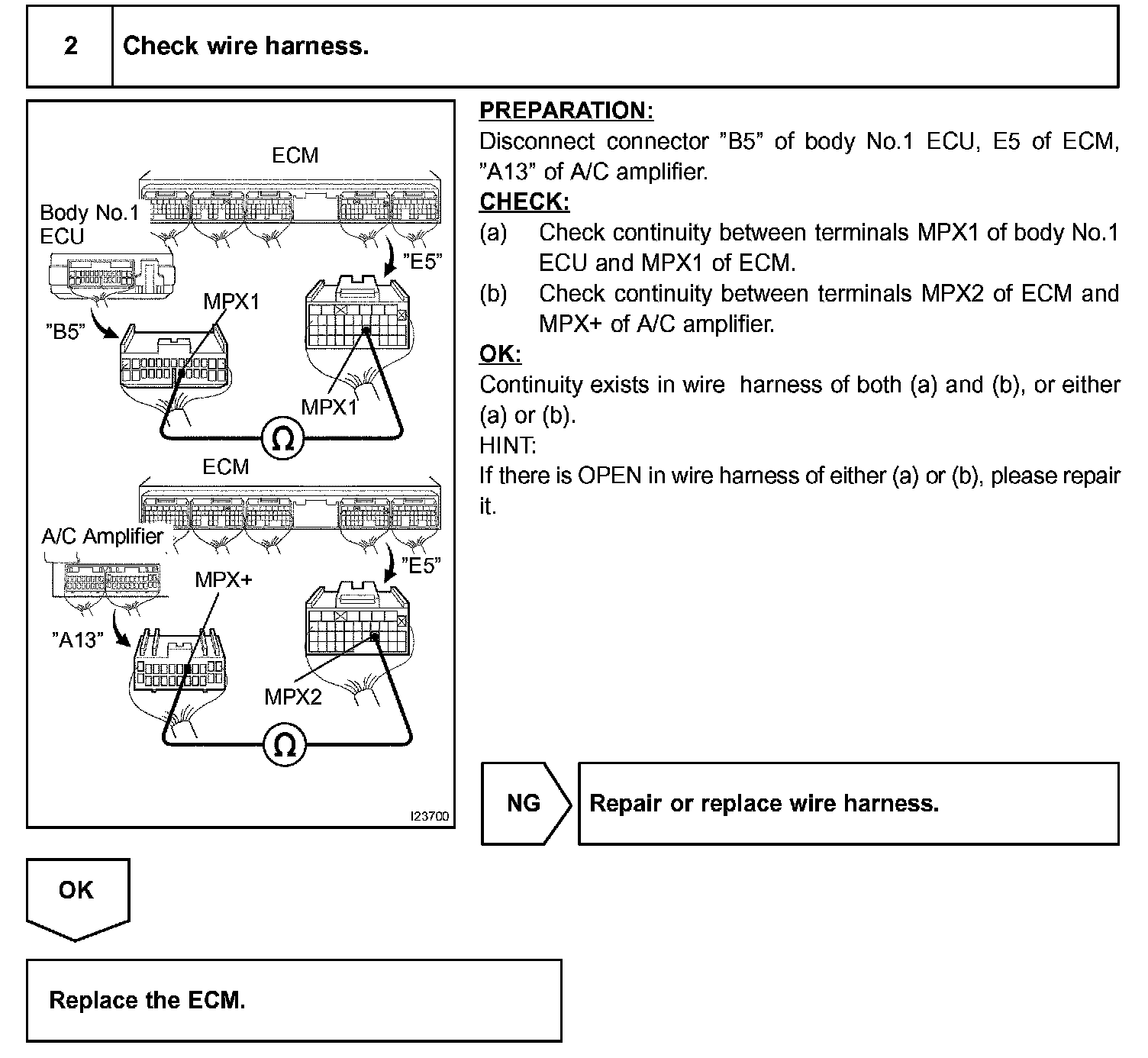

Step 2:

INSPECTION PROCEDURE
