DTC 22

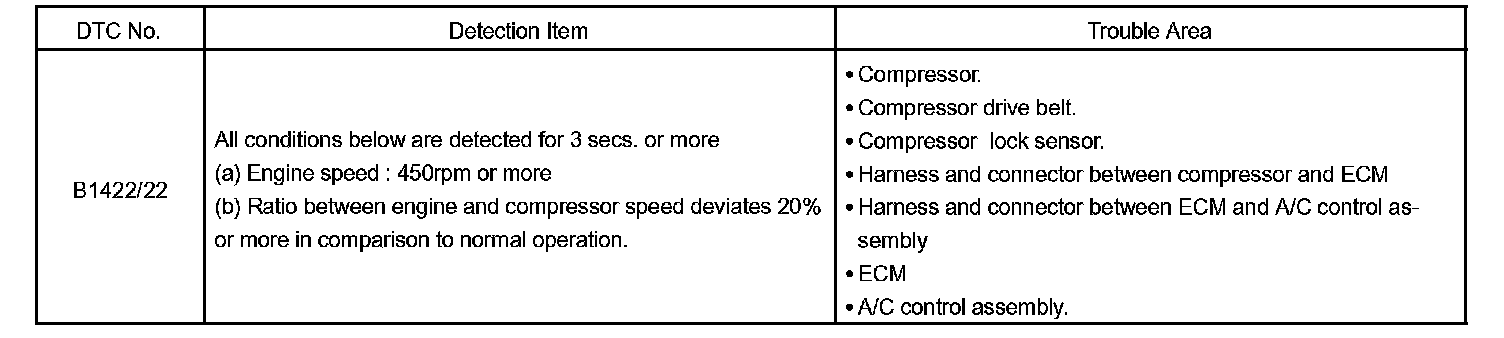

DTC 22 Compressor Lock Sensor Circuit

CIRCUIT DESCRIPTION

Detection Item:

This sensor sends 4 pulses per engine revolution to the ECM.

If the number ratio of the compressor speed divided by the engine speed is smaller than a predetermined value, the ECM turns the compressor OFF. And, the indicator flashes at about 1 second intervals.

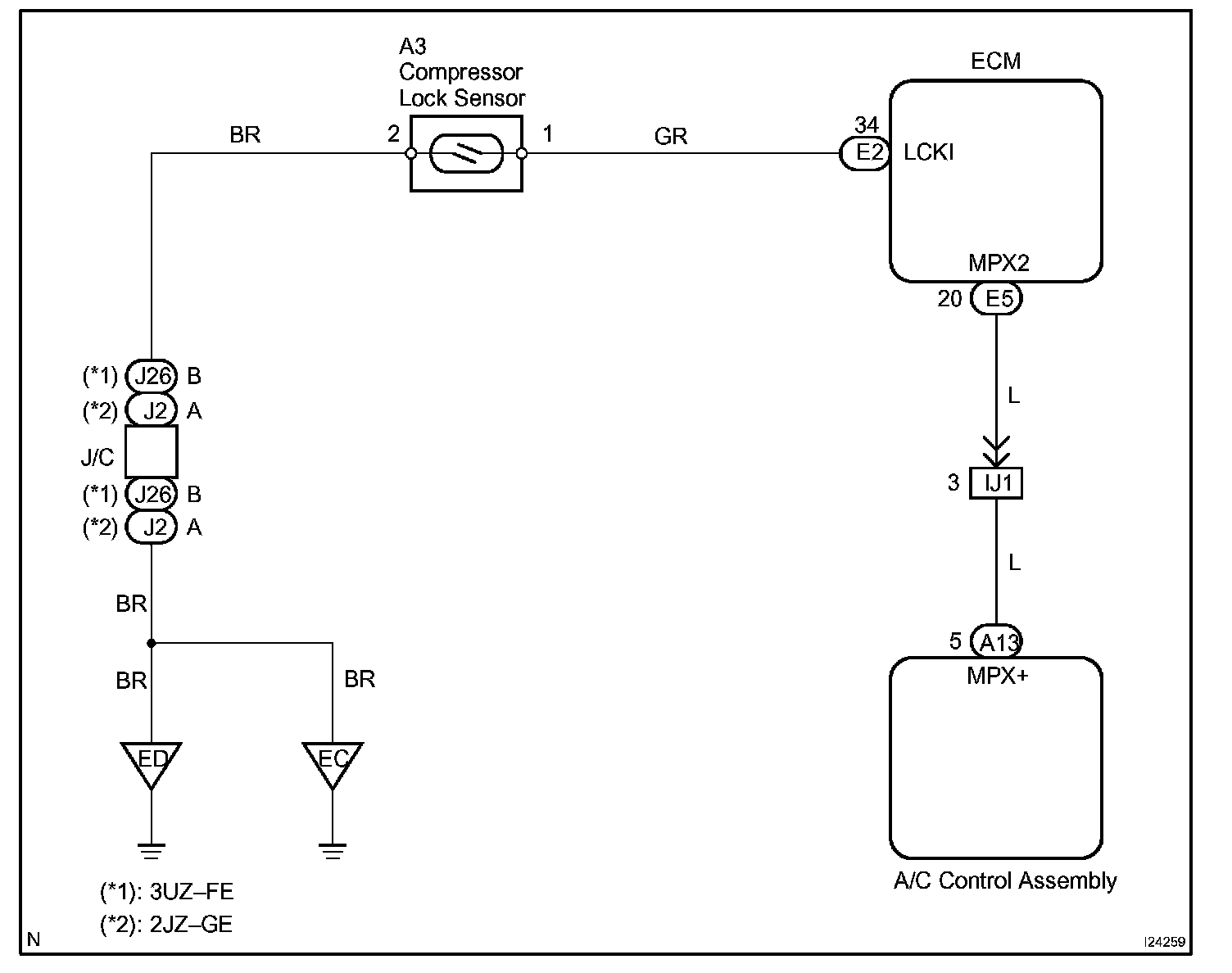

Wiring Diagram:

Step 1 - 3:

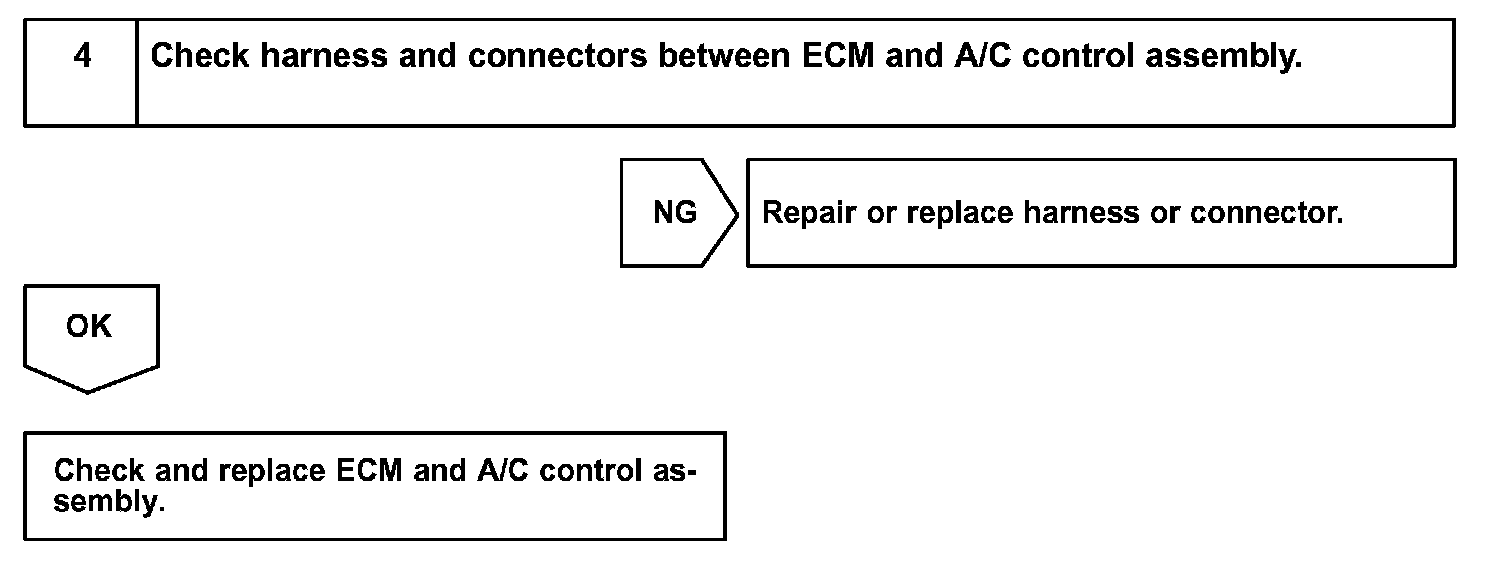

Step 4:

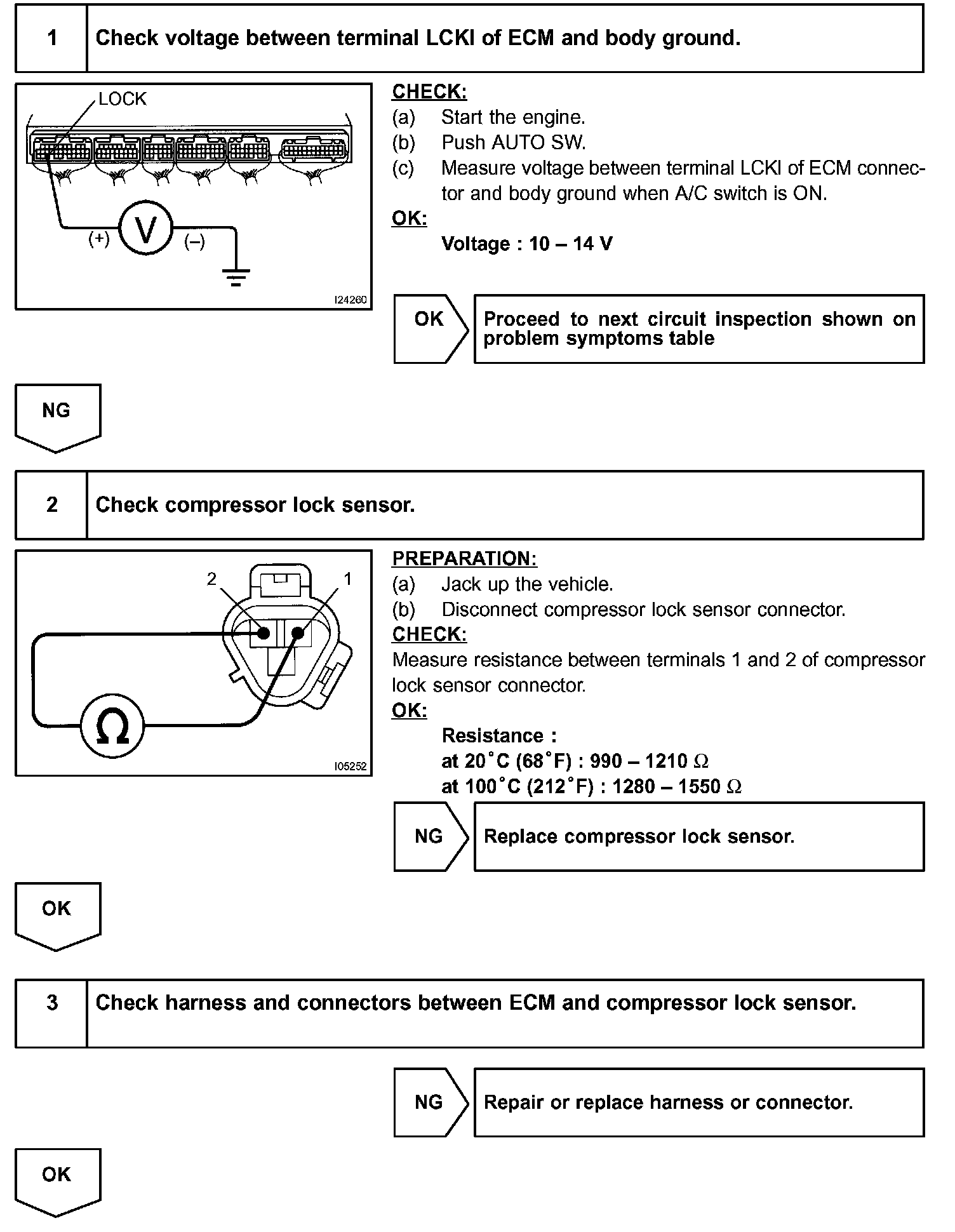

INSPECTION PROCEDURE
