No Communication in Immobilizer system

DTC 99 No Communication In Immobiliser System

CIRCUIT DESCRIPTION

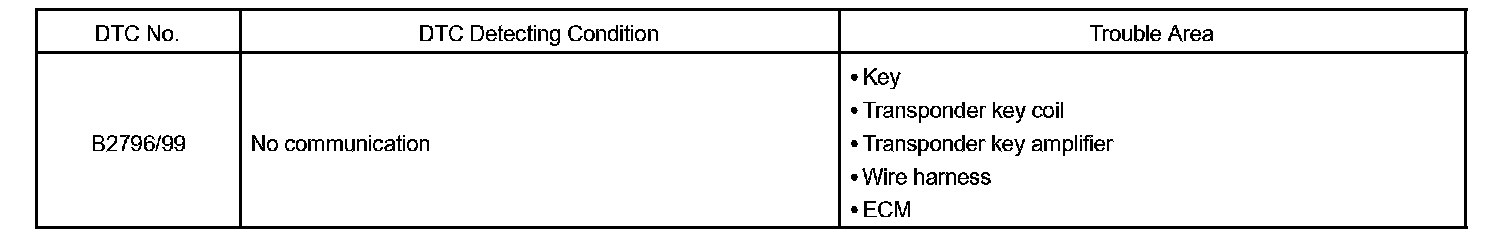

DTC Detecting Condition:

This code is stored in memory when inserting the key that does not have a transponder chip or if communication between the key and ECM is impossible.

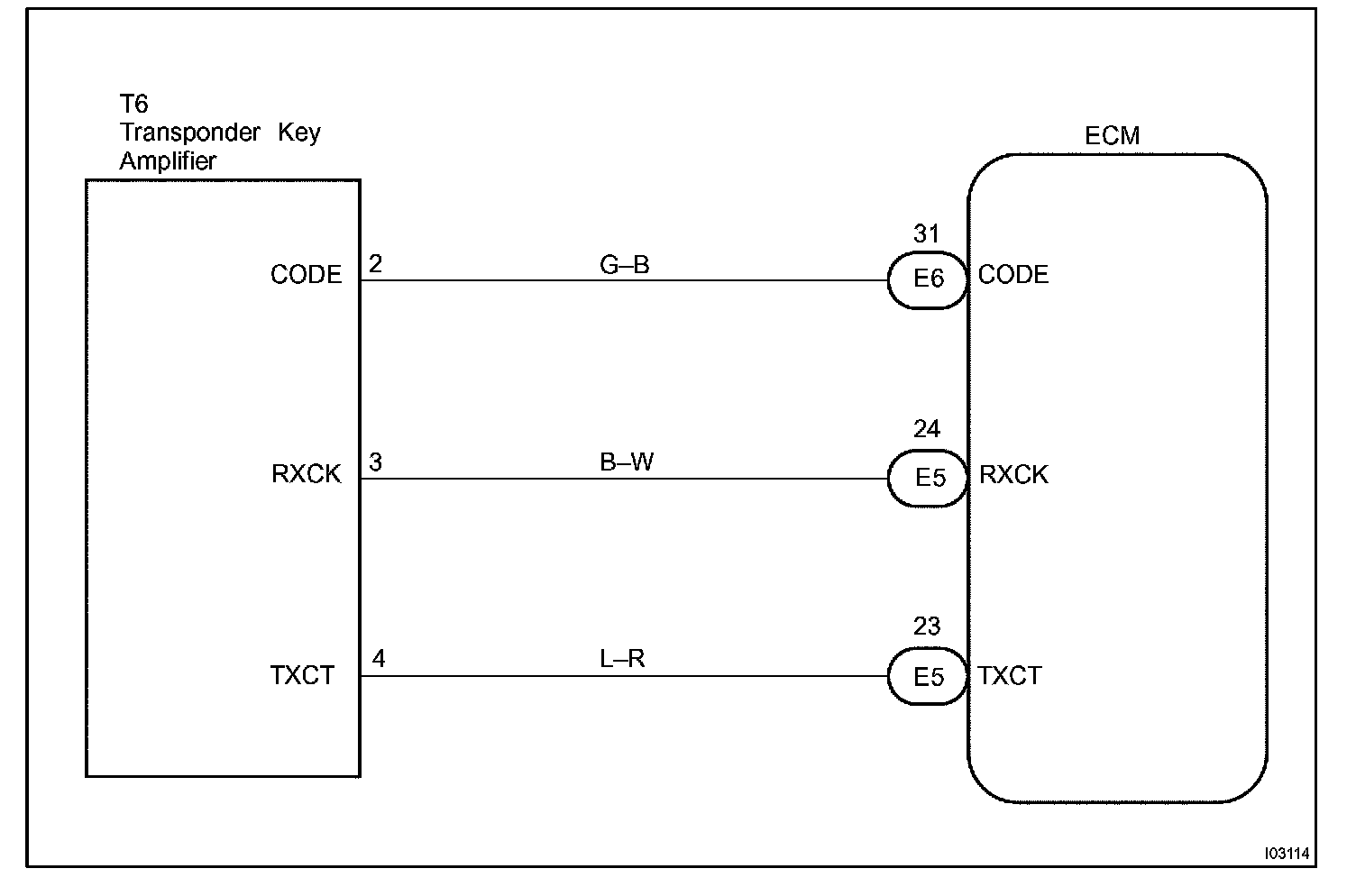

Wiring Diagram:

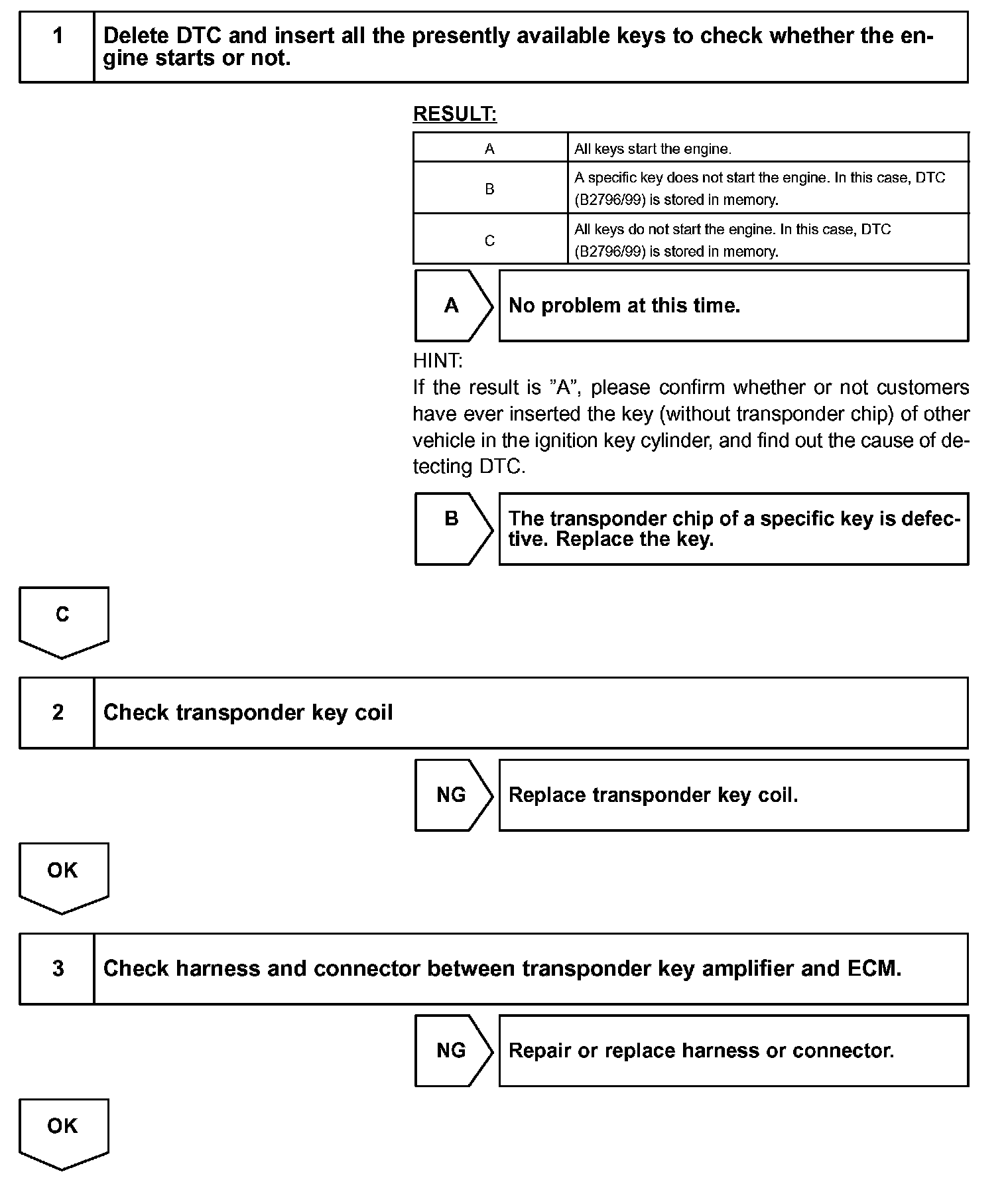

Step 1 - 3:

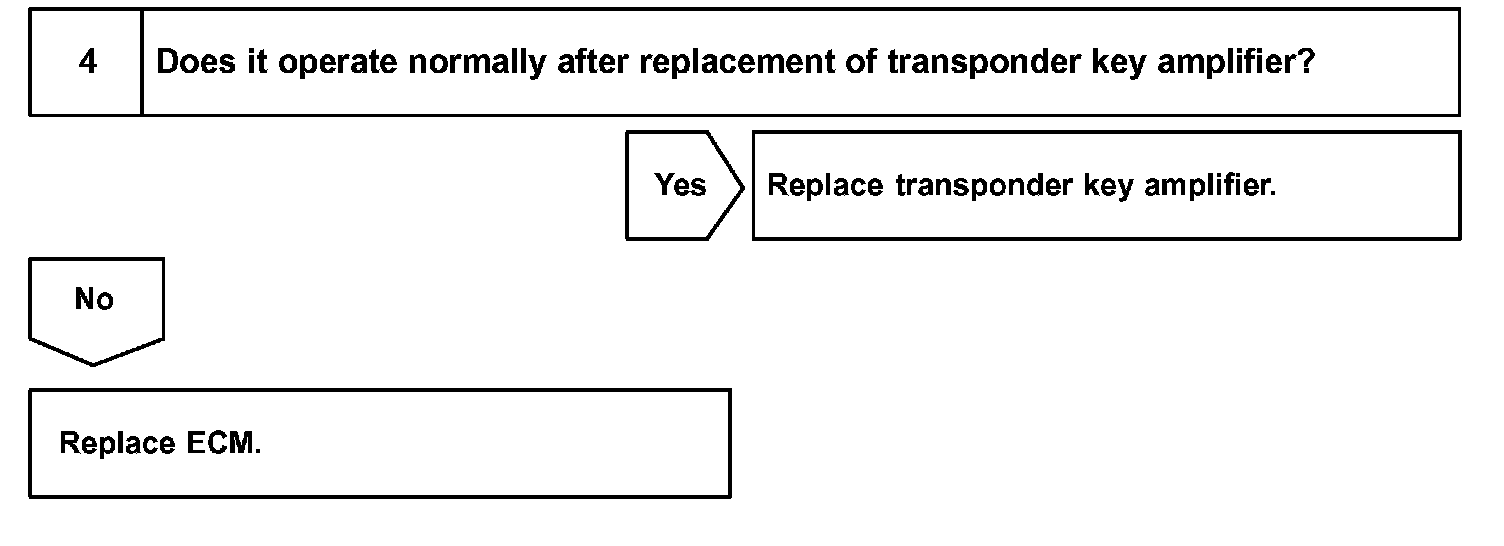

Step 4:

INSPECTION PROCEDURE
