Communication Malfunction No. 1

DTC 99 Communication Malfunction No.1

CIRCUIT DESCRIPTION

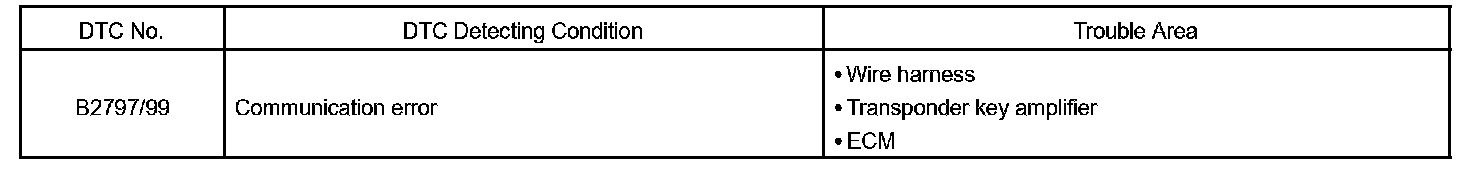

DTC Detecting Condition:

This code is detected when although the communication has been performed normally, an error occurs. (Example. Some noise is included in communication line.)

Wiring Diagram:

Step 1 - 2:

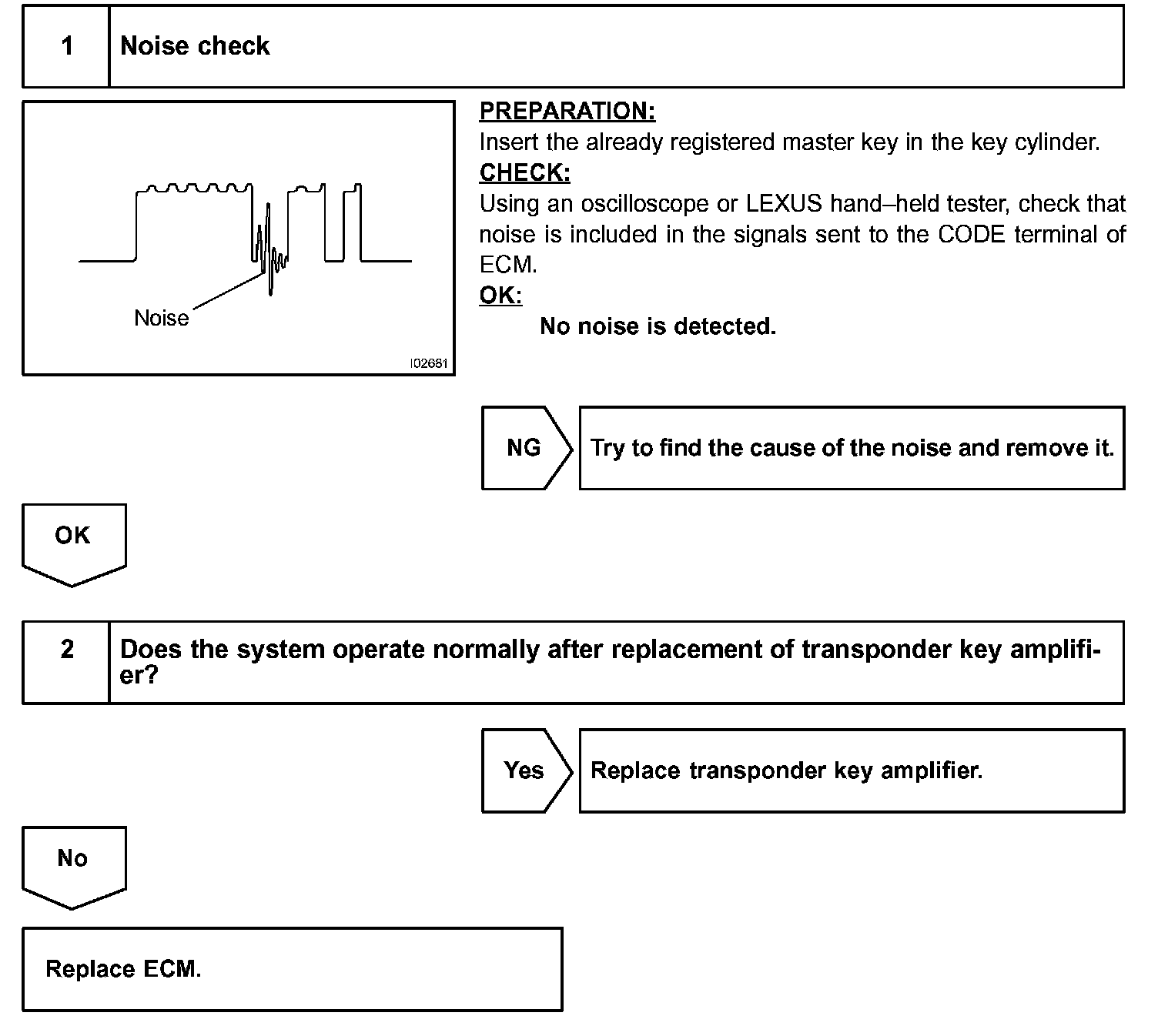

INSPECTION PROCEDURE
