DTC 46

DTC 46 Short in Side Squib LH Circuit (to B+)

CIRCUIT DESCRIPTION

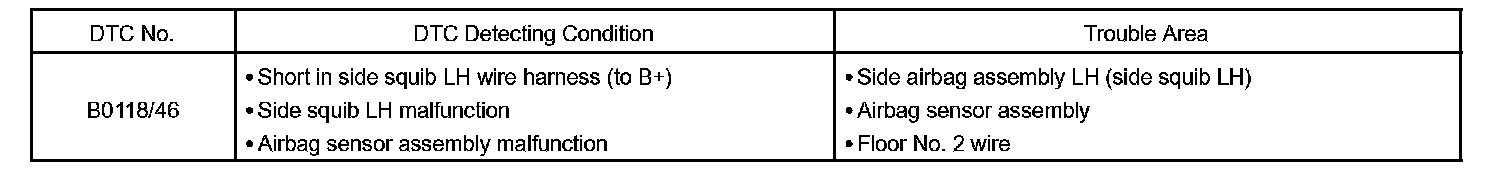

DTC Detecting Condition:

The side squib LH circuit consists of the airbag sensor assembly and the side airbag assembly LH. It causes the SRS to deploy when the SRS deployment conditions are satisfied.

For details of the function of each component, see DESCRIPTION AND OPERATION.

DTC B0118/46 is recorded when a B+ short is detected in the side squib LH circuit.

Wiring Diagram:

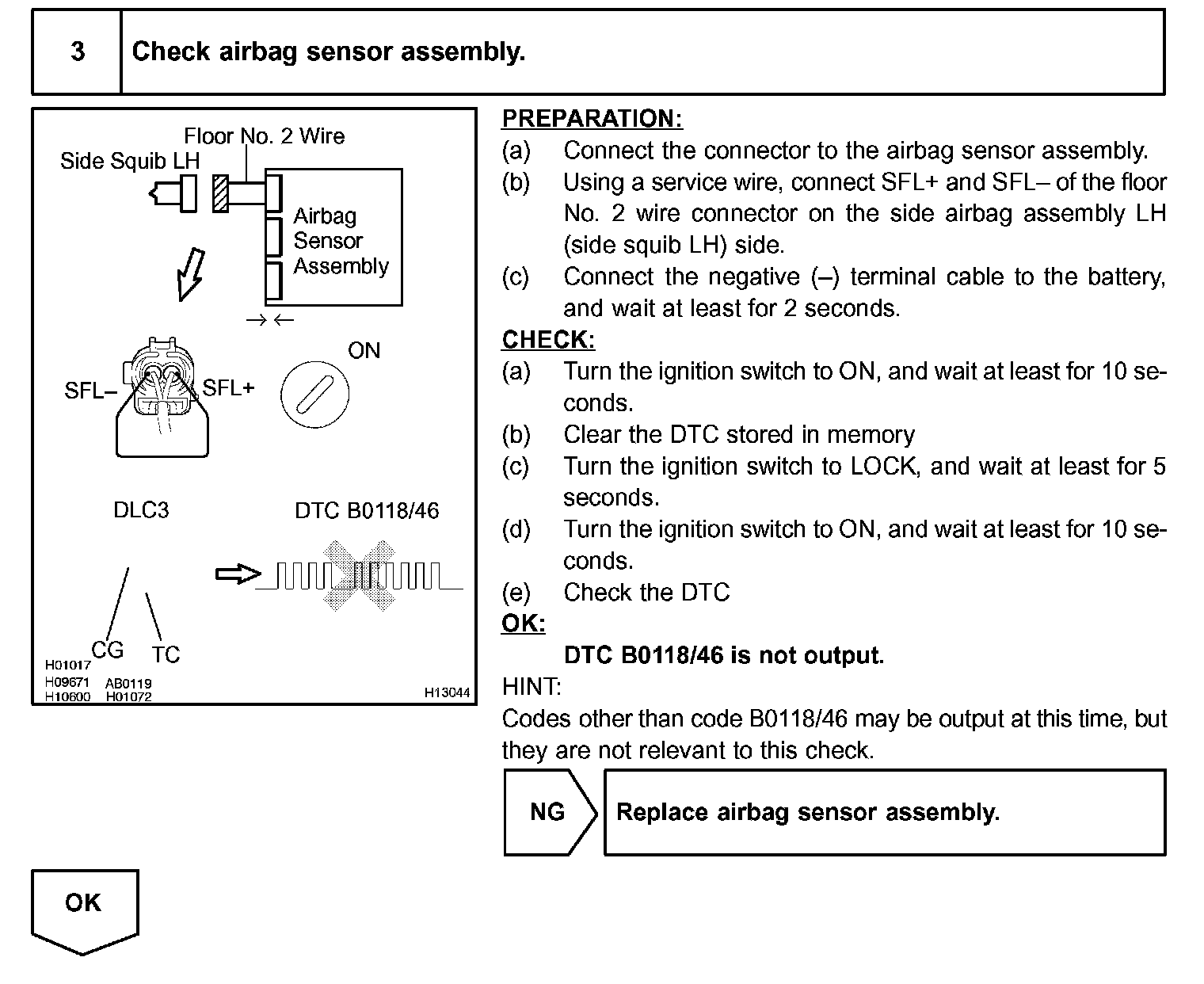

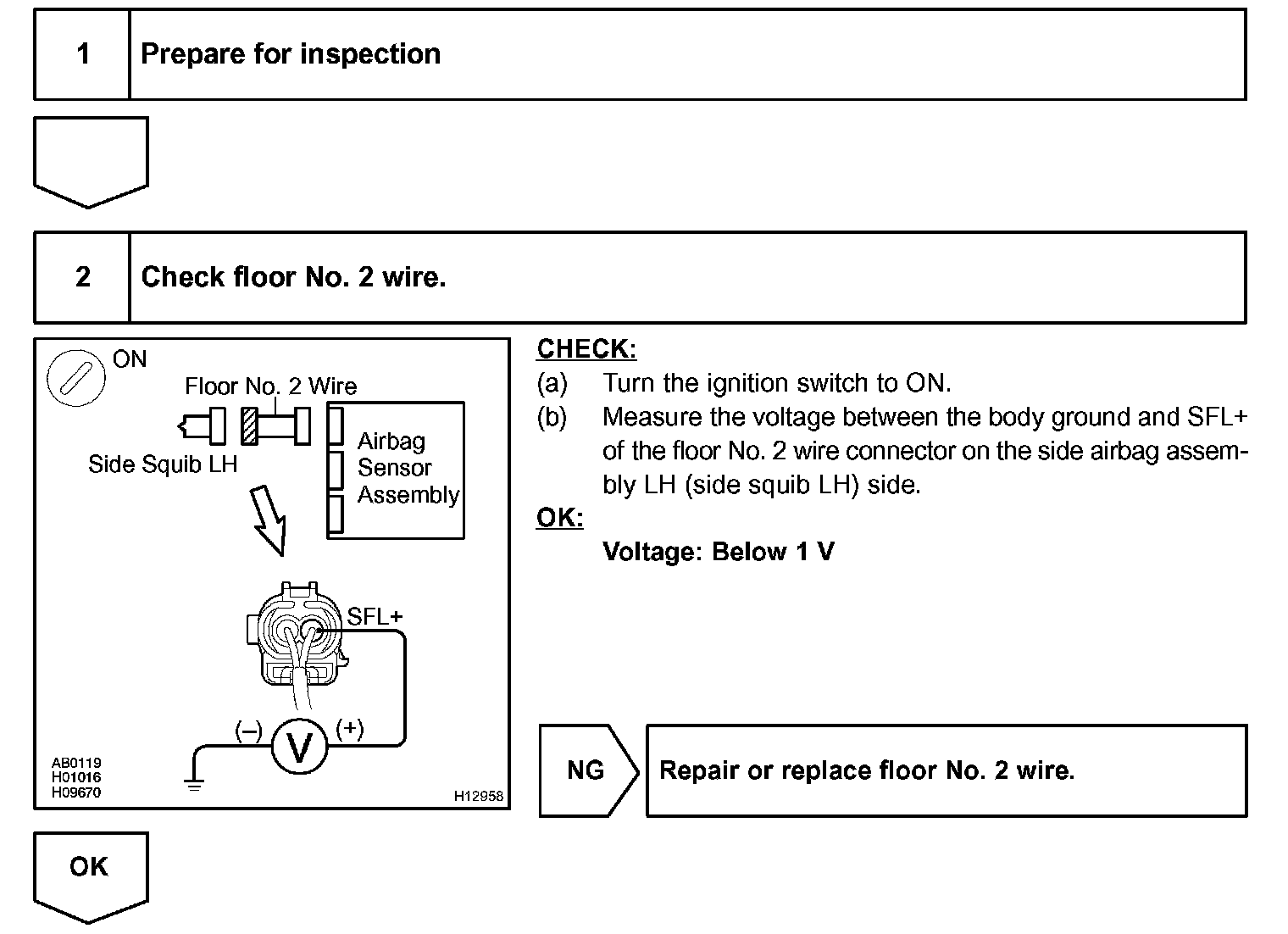

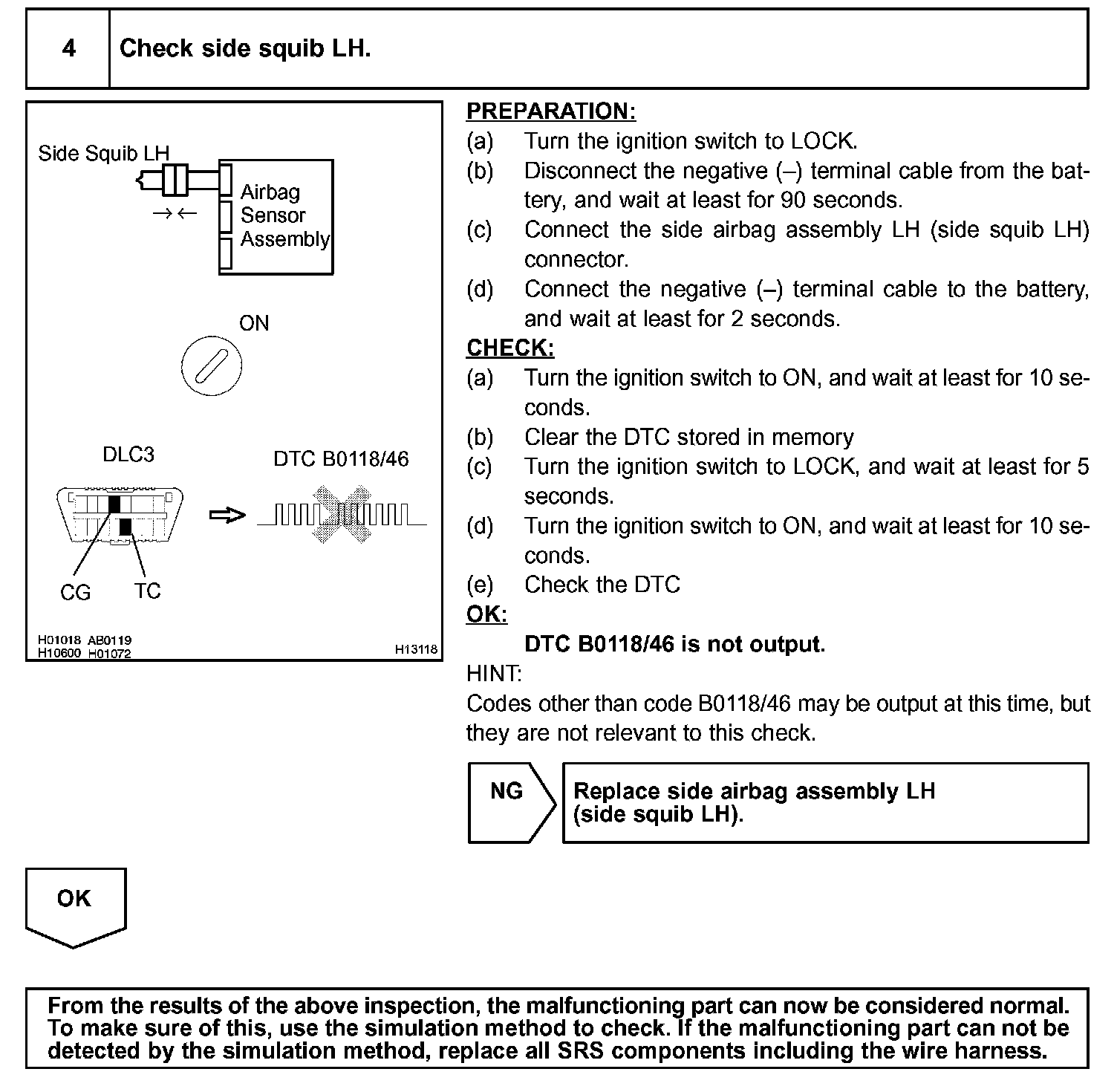

Step 1 - 2:

Step 3:

Step 4:

INSPECTION PROCEDURE
