DTC 45

DTC 45 Short in Side Squib LH Circuit (to Ground)

CIRCUIT DESCRIPTION

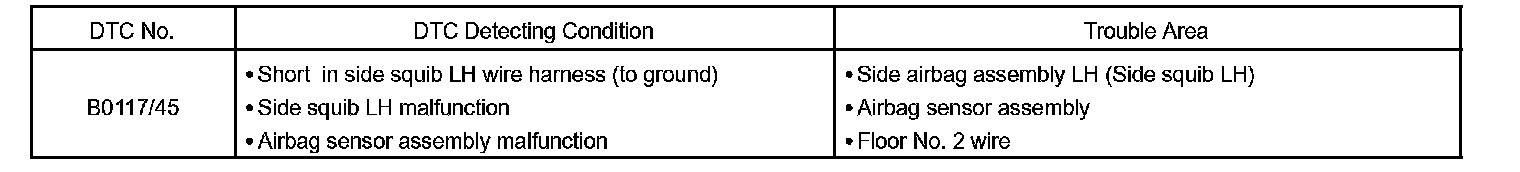

DTC Detecting Condition:

The side squib LH circuit consists of the airbag sensor assembly and the side airbag assembly LH. It causes the SRS to deploy when the SRS deployment conditions are satisfied.

For details of the function of each component, see DESCRIPTION AND OPERATION.

DTC B0117/45 is recorded when ground short is detected in the side squib LH circuit.

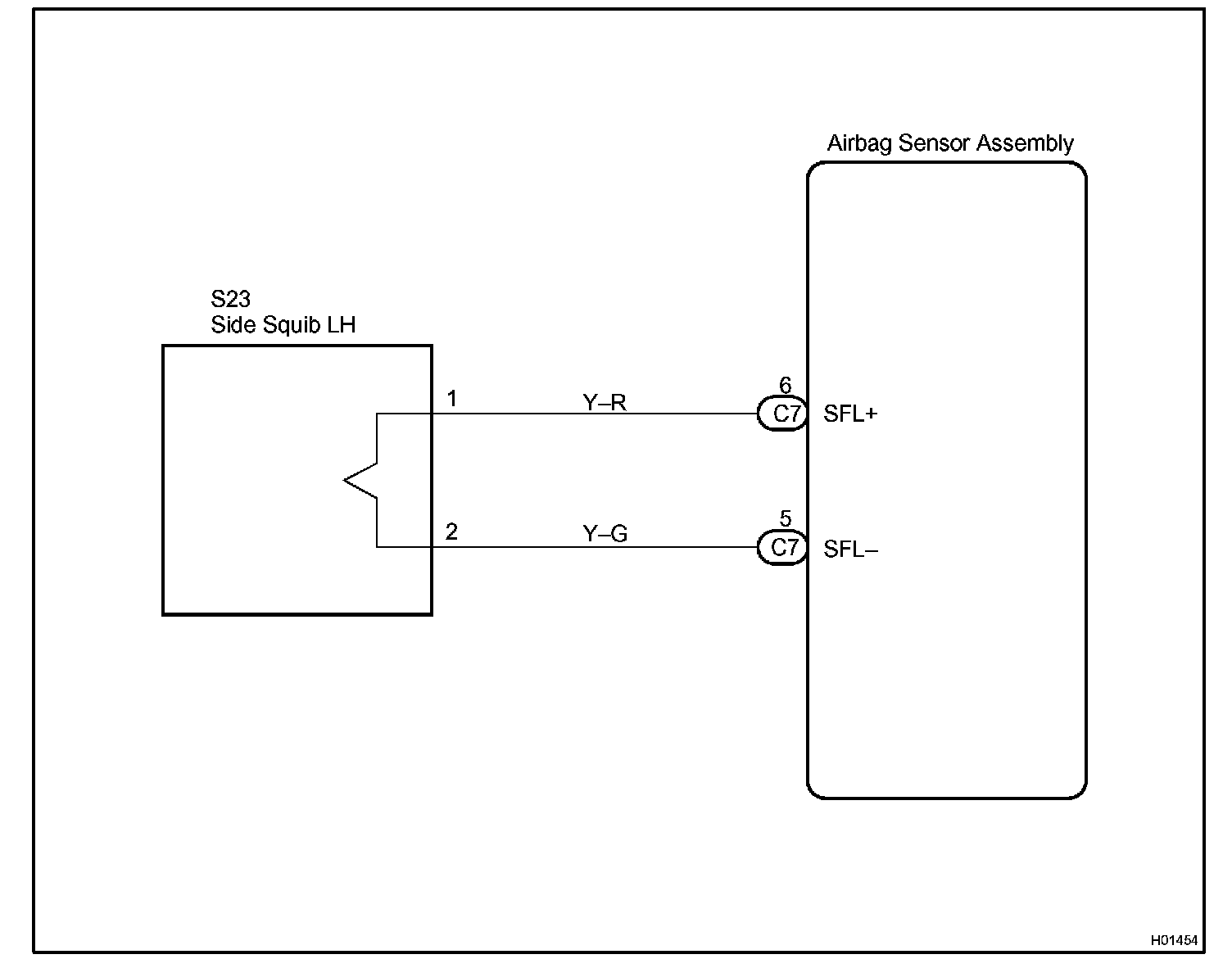

Wiring Diagram:

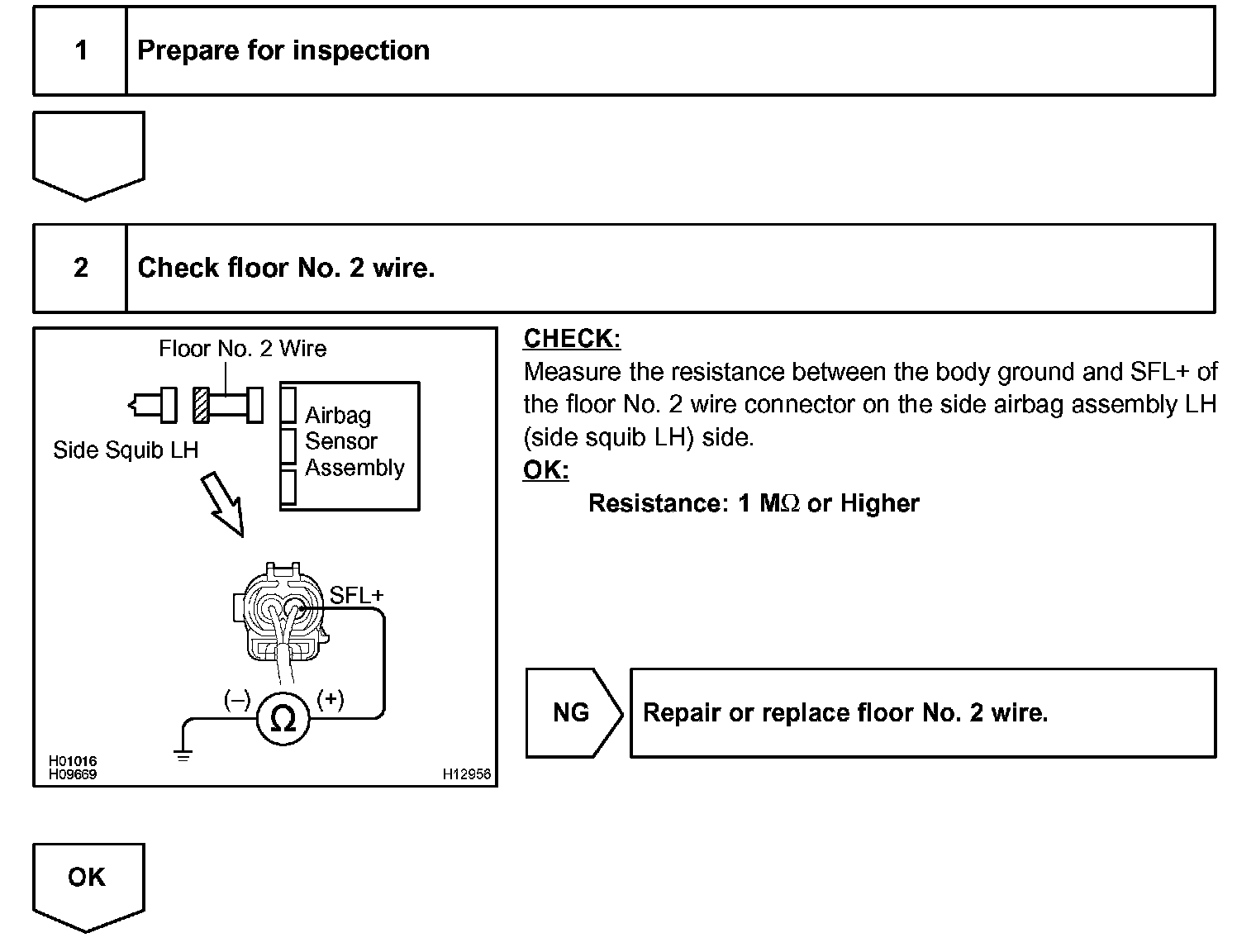

Step 1 - 2:

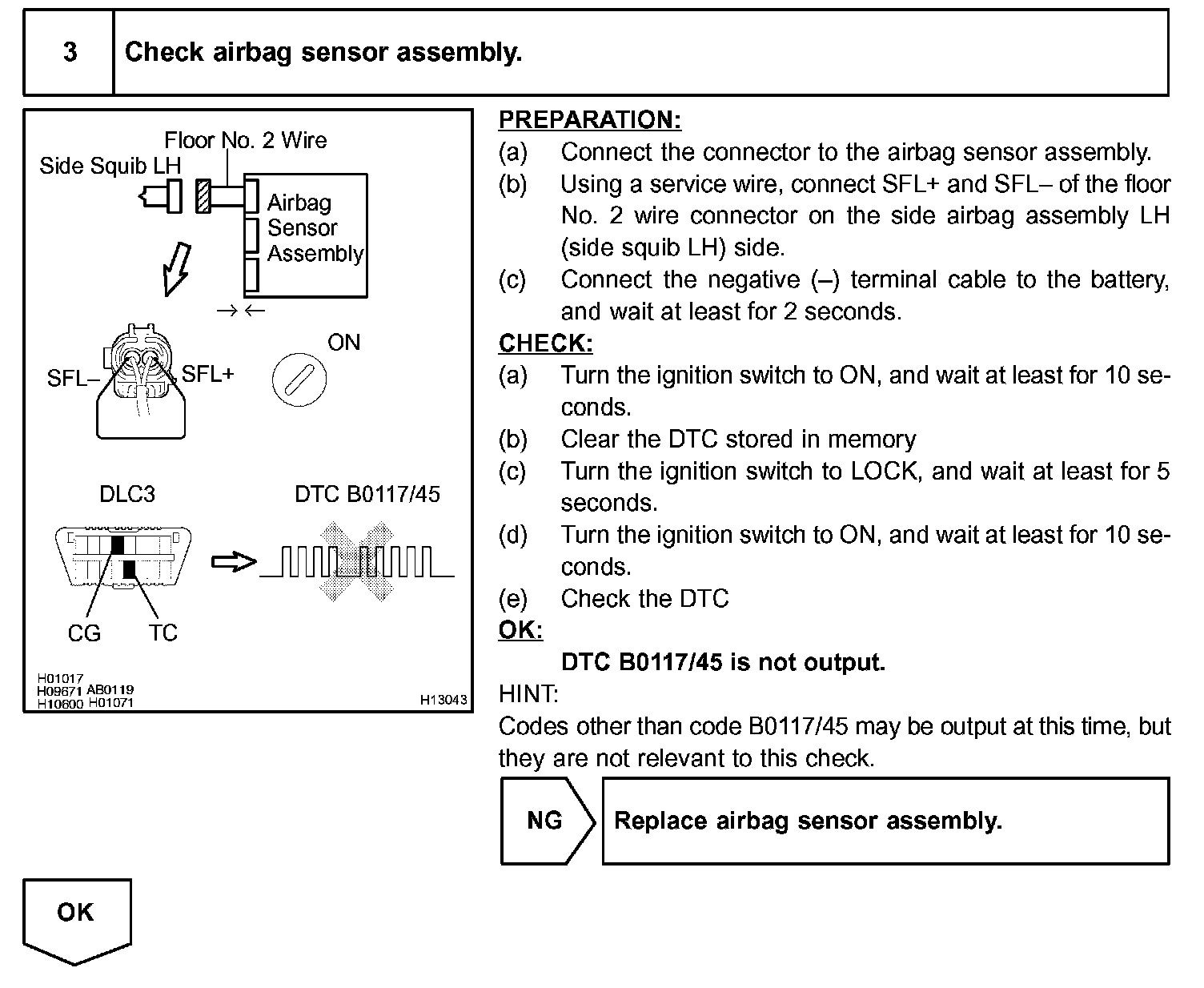

Step 3:

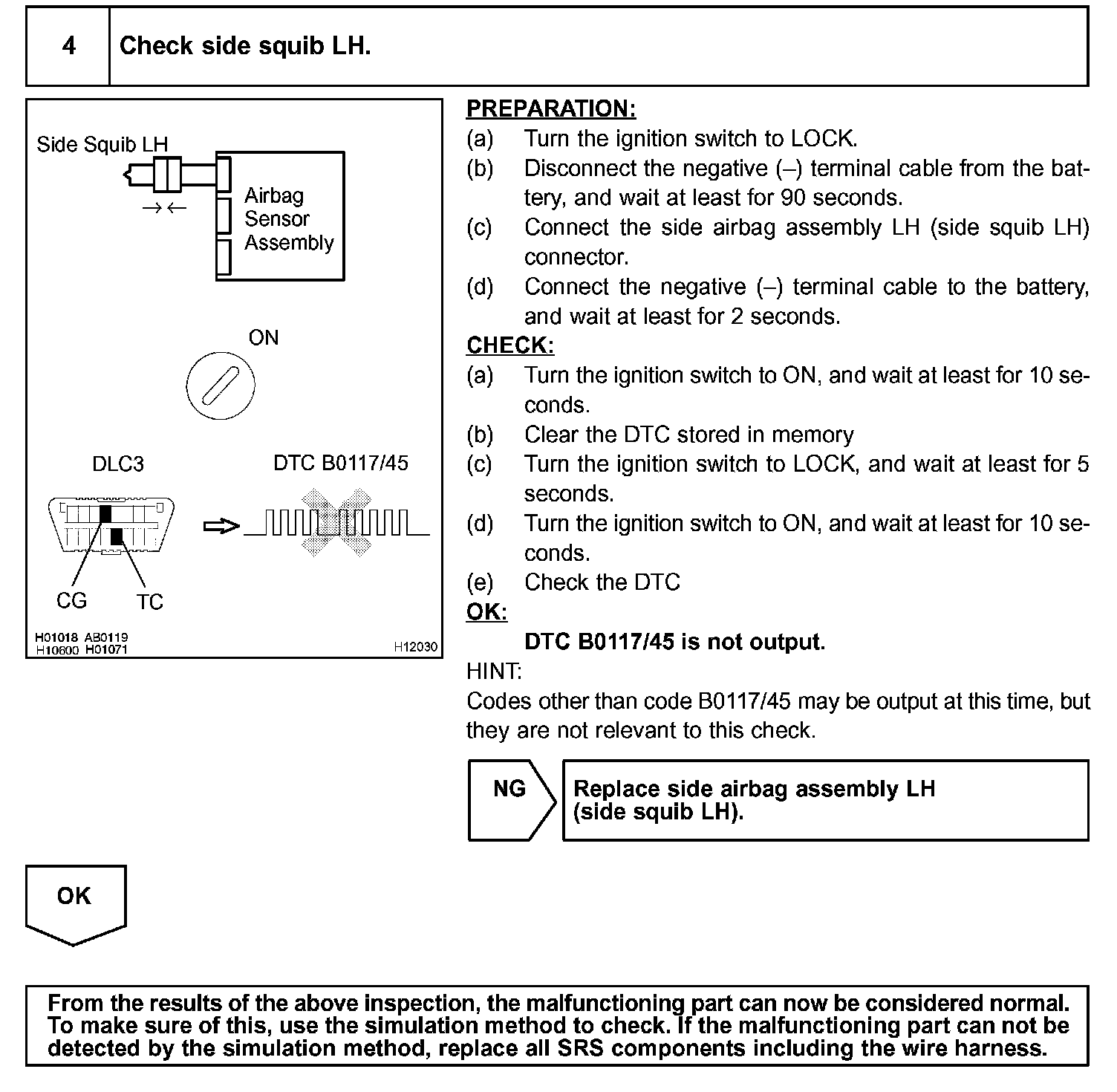

Step 4:

INSPECTION PROCEDURE
