DTC 24

DTC 24 Half Connection in Airbag Sensor Assembly Connector

CIRCUIT DESCRIPTION

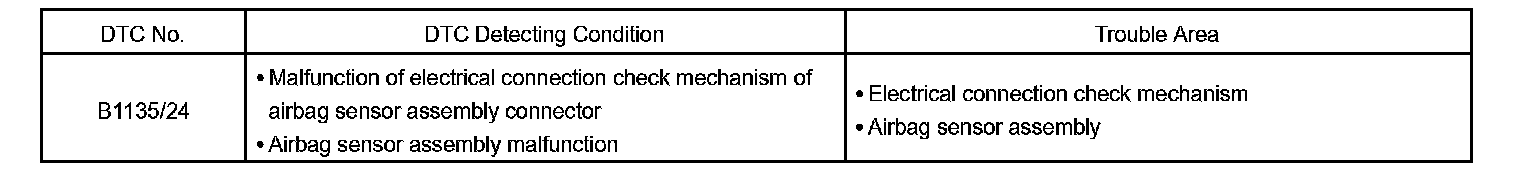

DTC Detecting Condition:

The airbag sensor assembly detects partial connection of connector.

For details of the function of each component, see DESCRIPTION AND OPERATION.

DTC B1135/24 is recorded when the airbag sensor assembly detects an open in the electrical connection check mechanism of the airbag sensor connector or in the airbag sensor circuit.

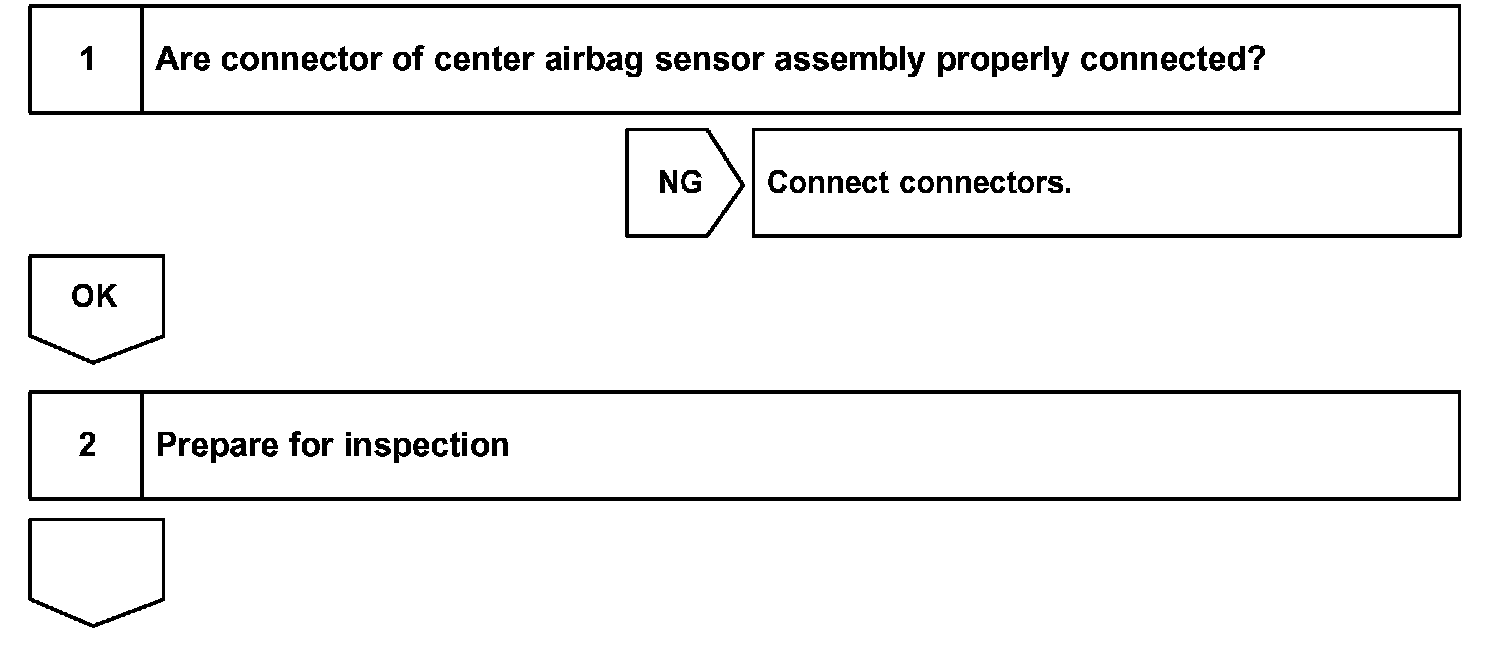

Step 1 - 2:

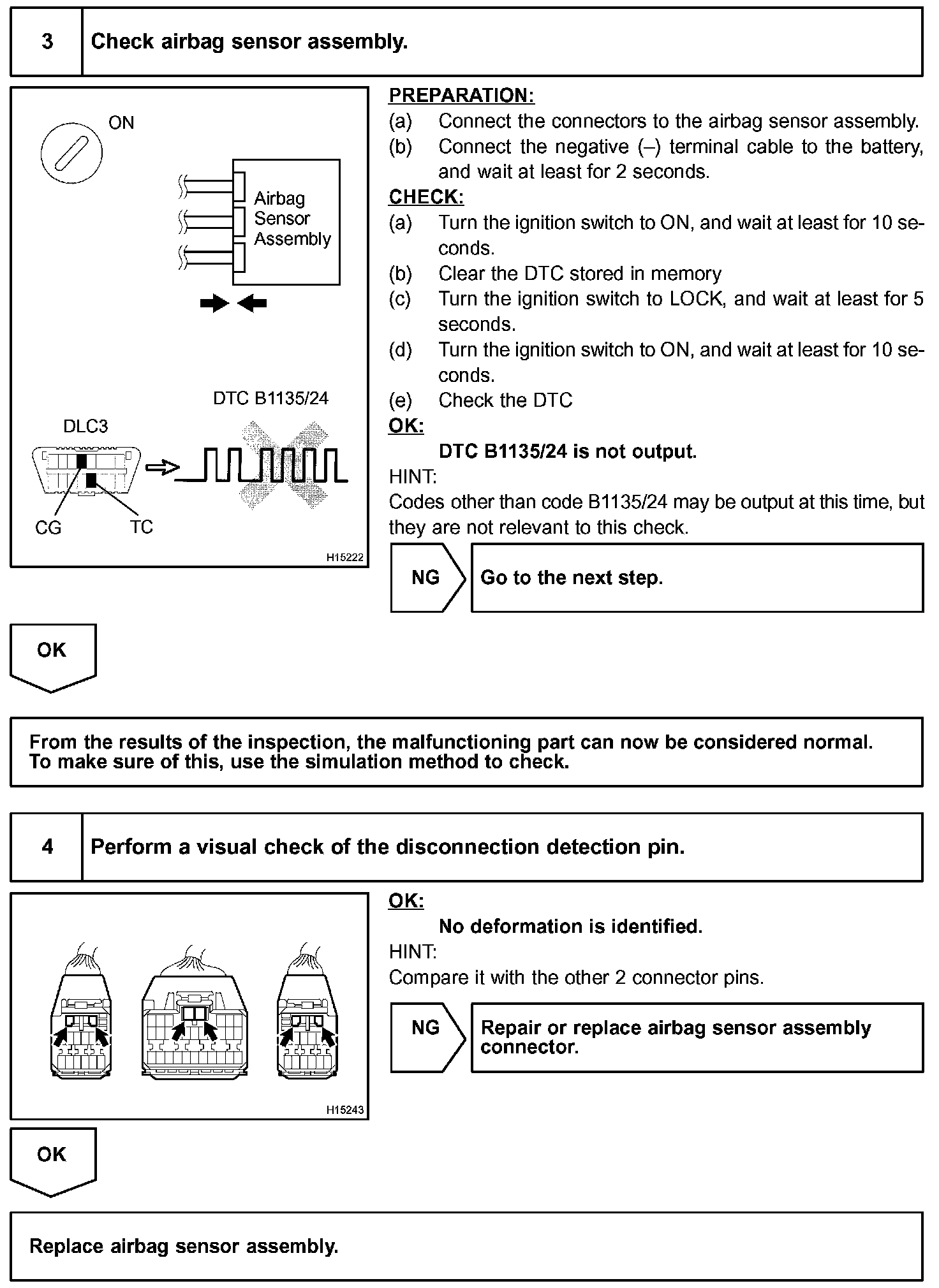

Step 3 - 4:

INSPECTION PROCEDURE
