DTC 16

DTC 16 Front Airbag Sensor LH Malfunction

CIRCUIT DESCRIPTION

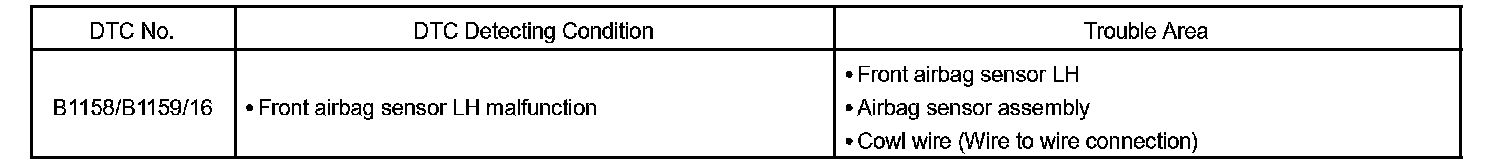

DTC Detecting Condition:

The front airbag sensor LH circuit consists of the airbag sensor assembly and front airbag sensor LH.

For details of the function of each component, see DESCRIPTION AND OPERATION.

DTC B1158/B1159/16 is recorded when malfunction is detected in the front airbag sensor LH circuit.

Wiring Diagram:

Step 1 - 3:

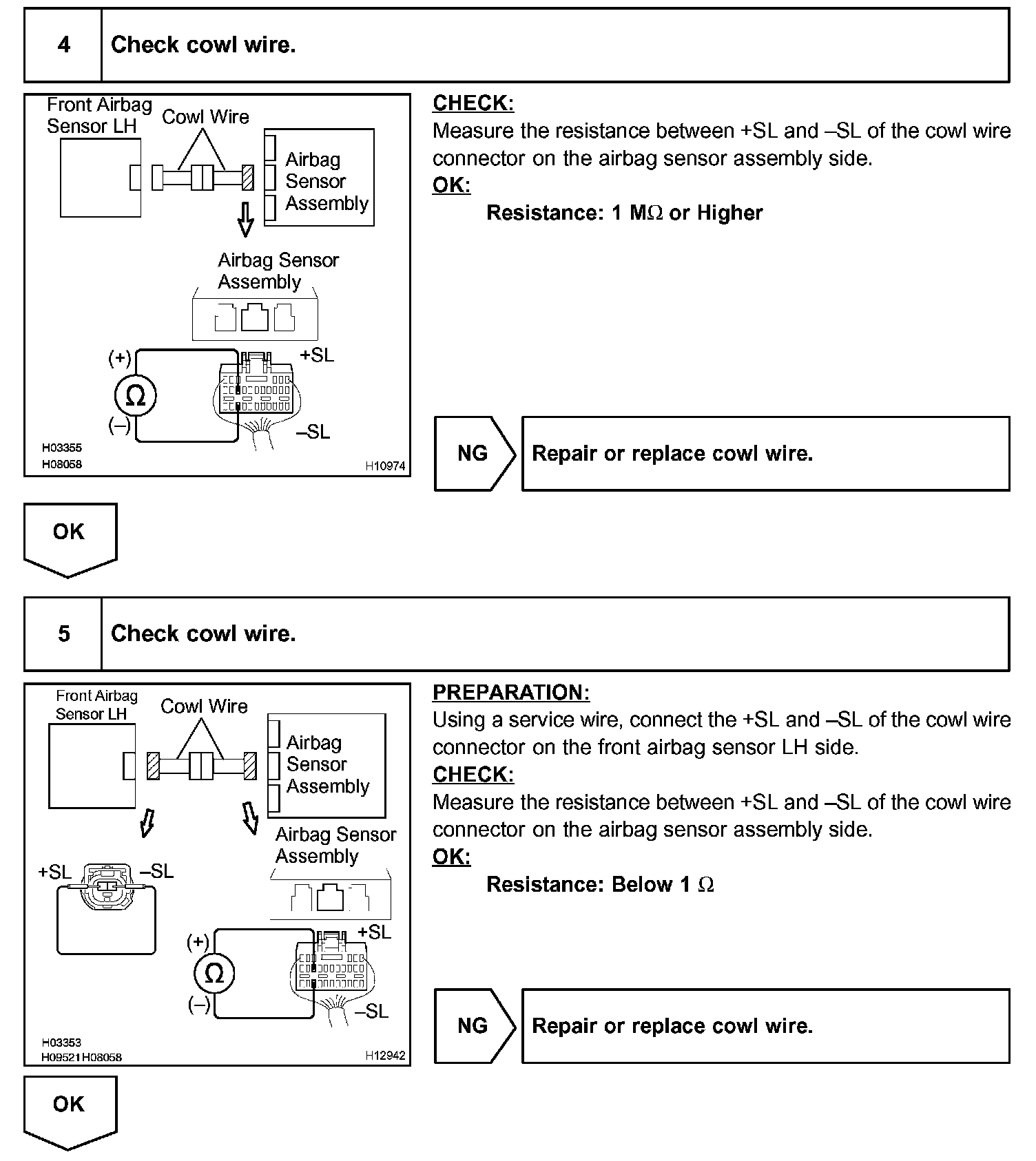

Step 4 - 5:

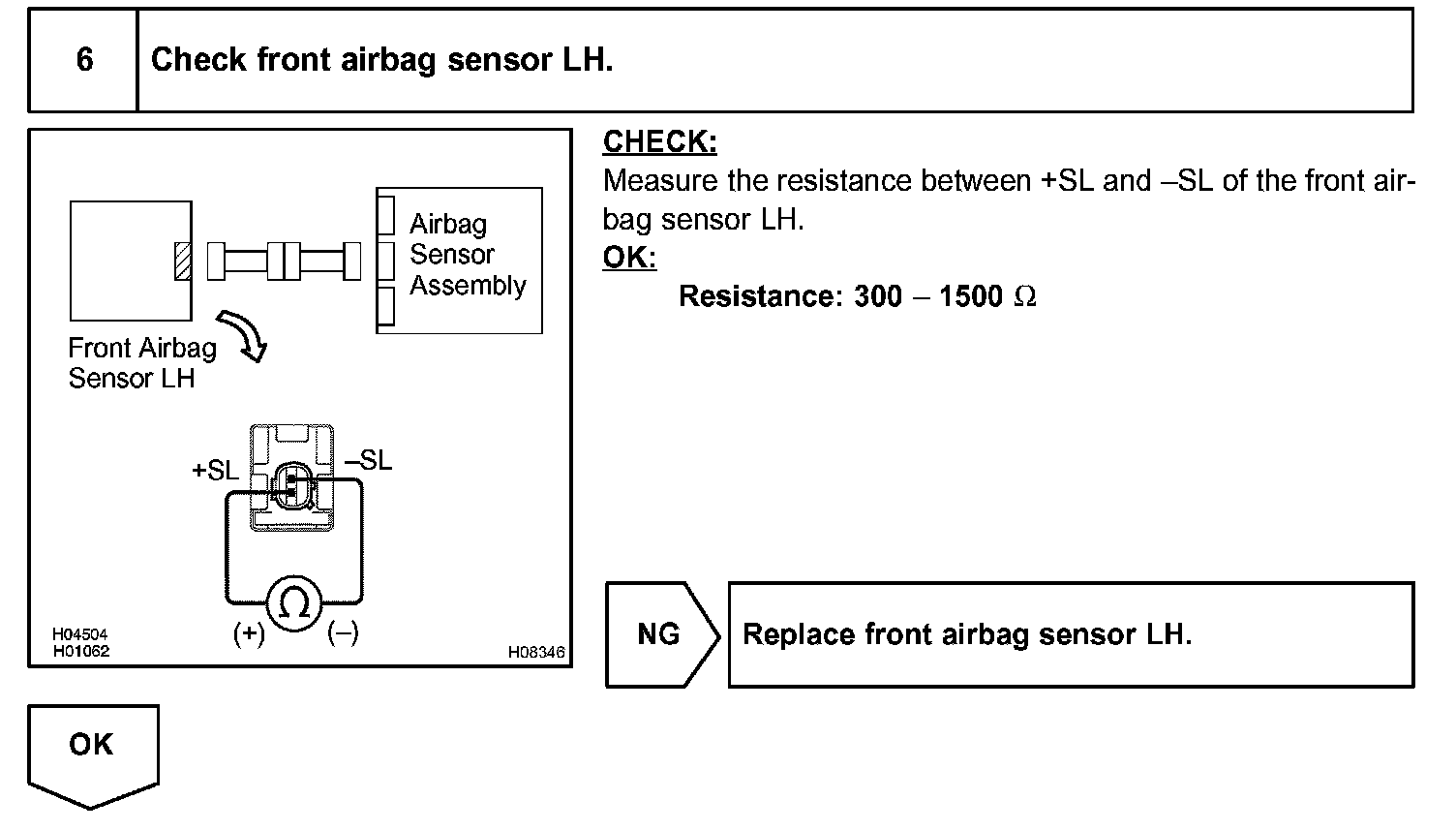

Step 6:

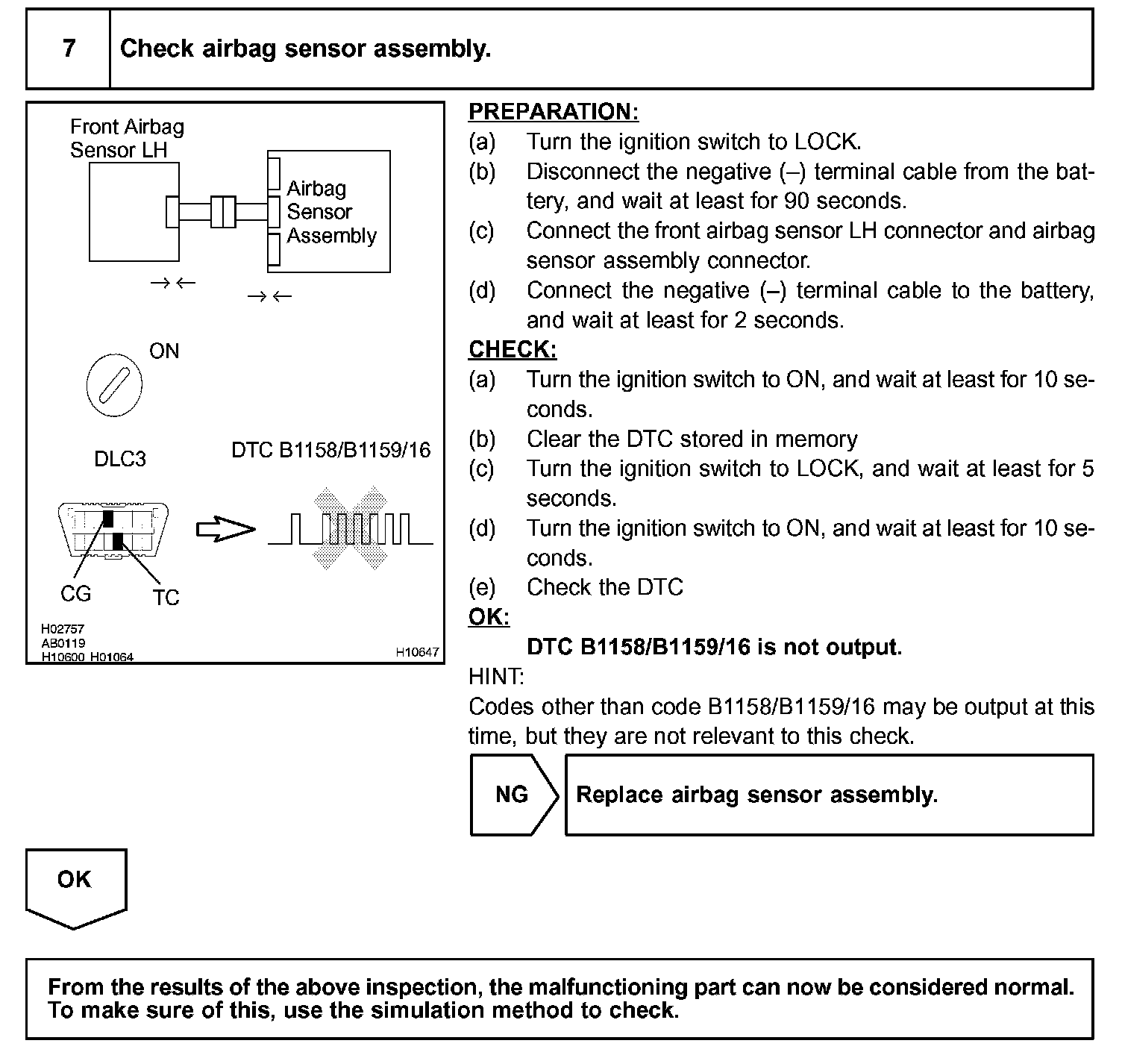

Step 7:

INSPECTION PROCEDURE
