DTC 39
DTC 39
DTC 39 Zero Point Calibration of Deceleration Sensor Undone

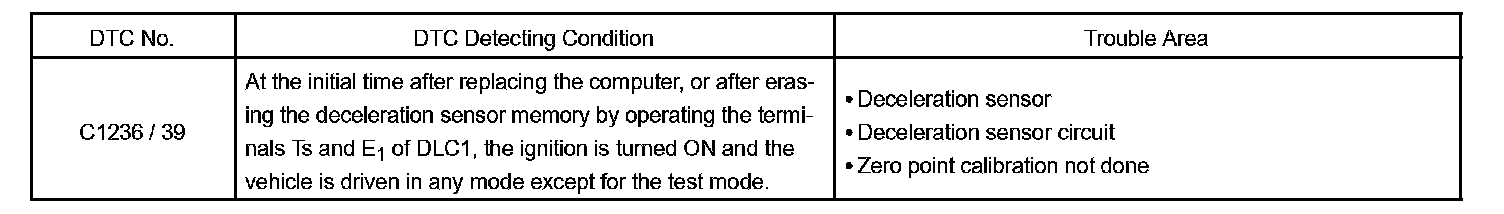

DTC Detecting Condition:
CIRCUIT DESCRIPTION

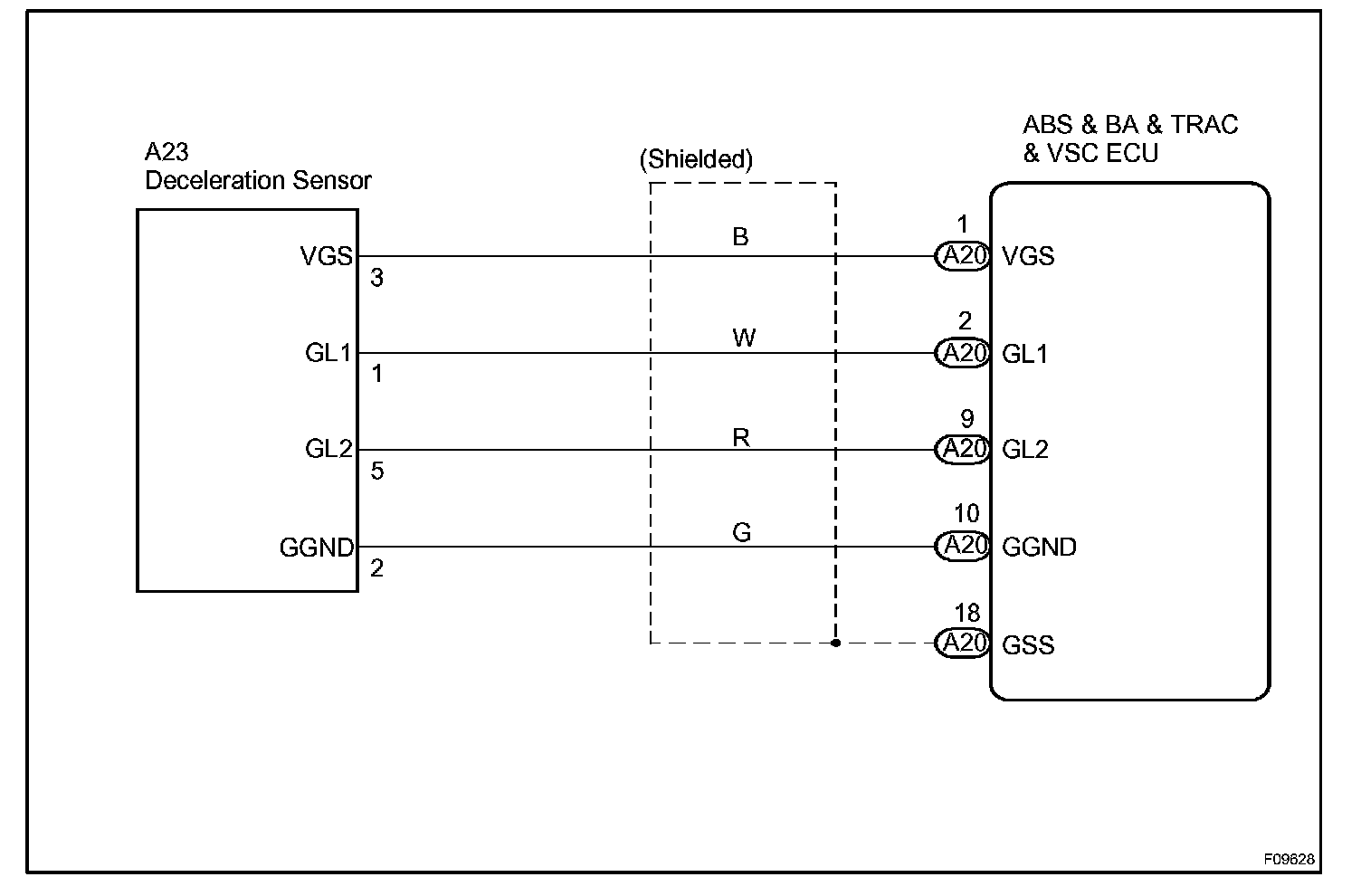

Wiring Diagram:

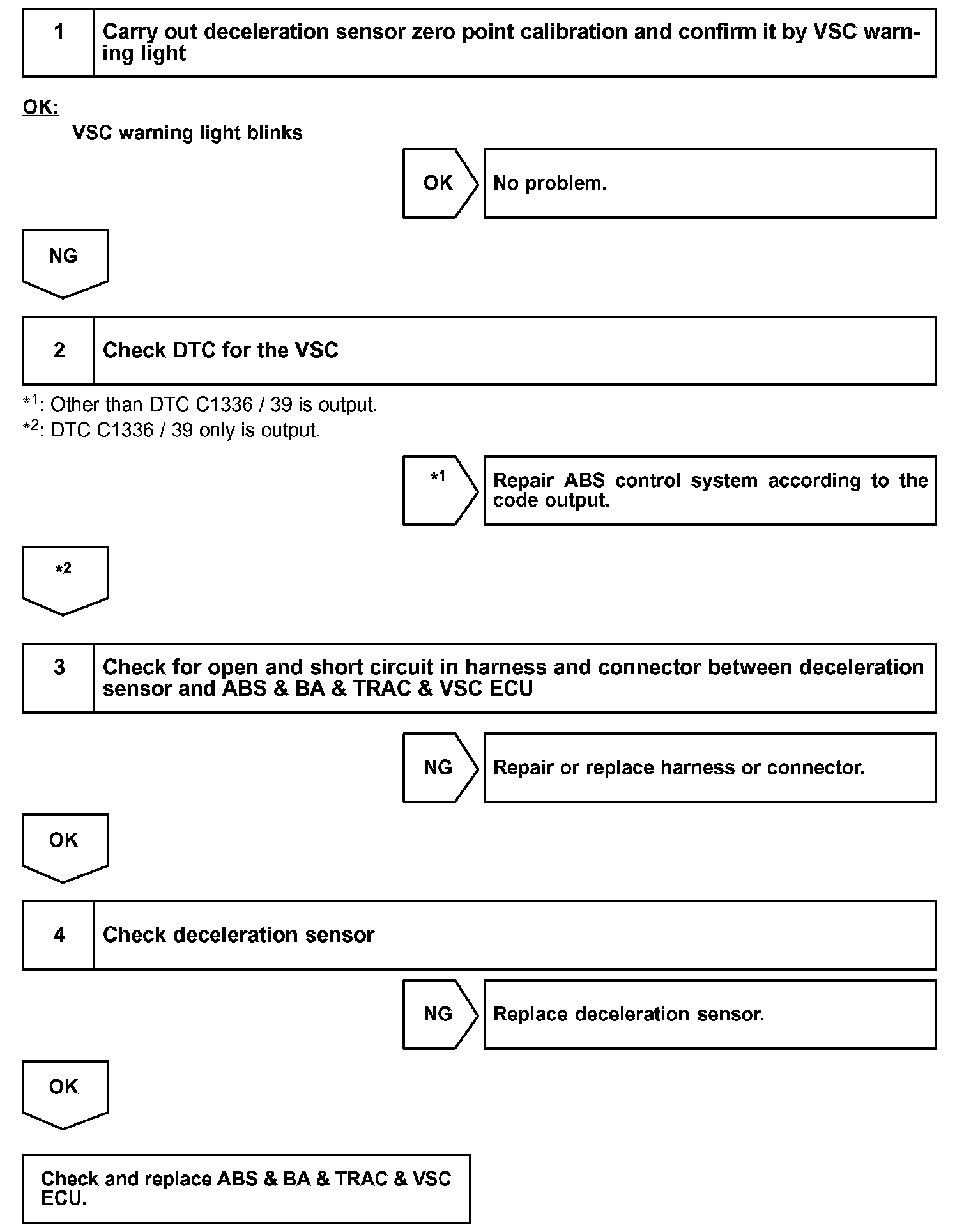

Step 1 - 4:
INSPECTION PROCEDURE
