Restraint Systems

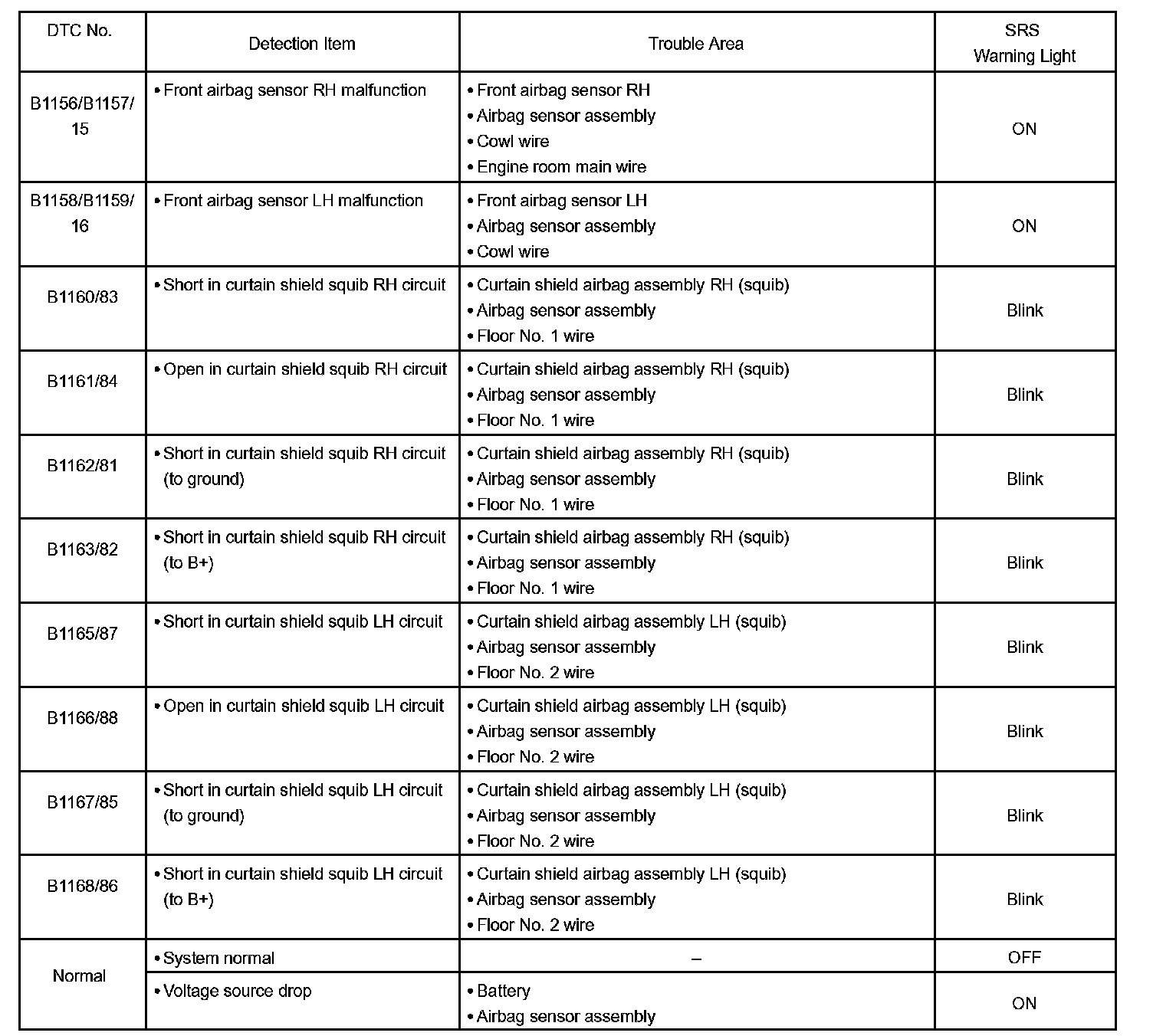

DIAGNOSTIC TROUBLE CODE CHART

B0100/13 - B0116/48:

B0117/45 - B1150/23:

B01156/B1157/15 - Normal:

If a malfunction code is displayed during the DTC check, check the circuit listed for that code in the table (Proceed to the corresponding circuit.).

HINT:
- When the SRS warning light remains lit up and the DTC is the normal code, a voltage source drop is possible. This malfunction is not stored in memory by the airbag sensor assembly and if the power source voltage returns to normal, the SRS warning light will automatically go out.
- When 2 or more codes are indicated, smaller numbered code will be shown first.
- If a code not listed on the chart is displayed, the airbag sensor assembly is at fault.
- In the case of any malfunction concerning any open circuit, ground short, or B+ short due to any squib, another malfunction code may not be detected. In this case, correct the malfunction currently indicated and then perform malfunction diagnosis again. Another malfunction code may then be detected.
