A L L Diagnostic Trouble Codes ( DTC )
>>
Testing and Inspection
>>
C Code Charts
>>
C1210
C1210
DTC C1210 Zero Point Calibration of Yaw Rate Sensor Undone

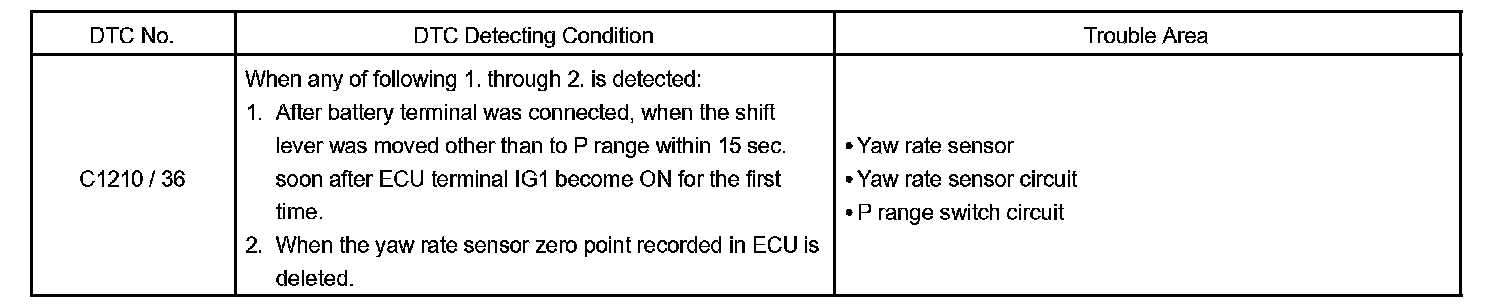

DTC Detecting Condition:
CIRCUIT DESCRIPTION

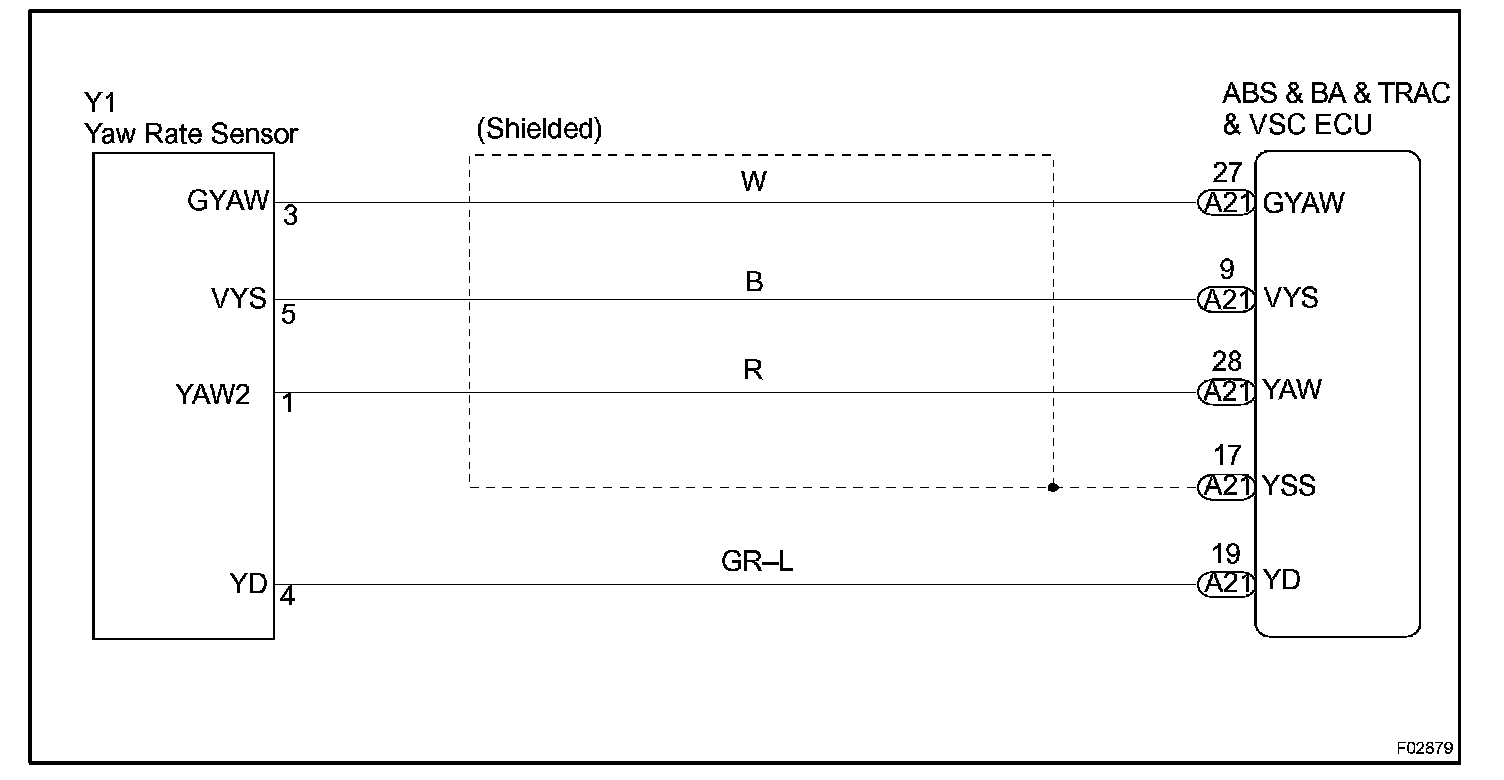

Wiring Diagram:

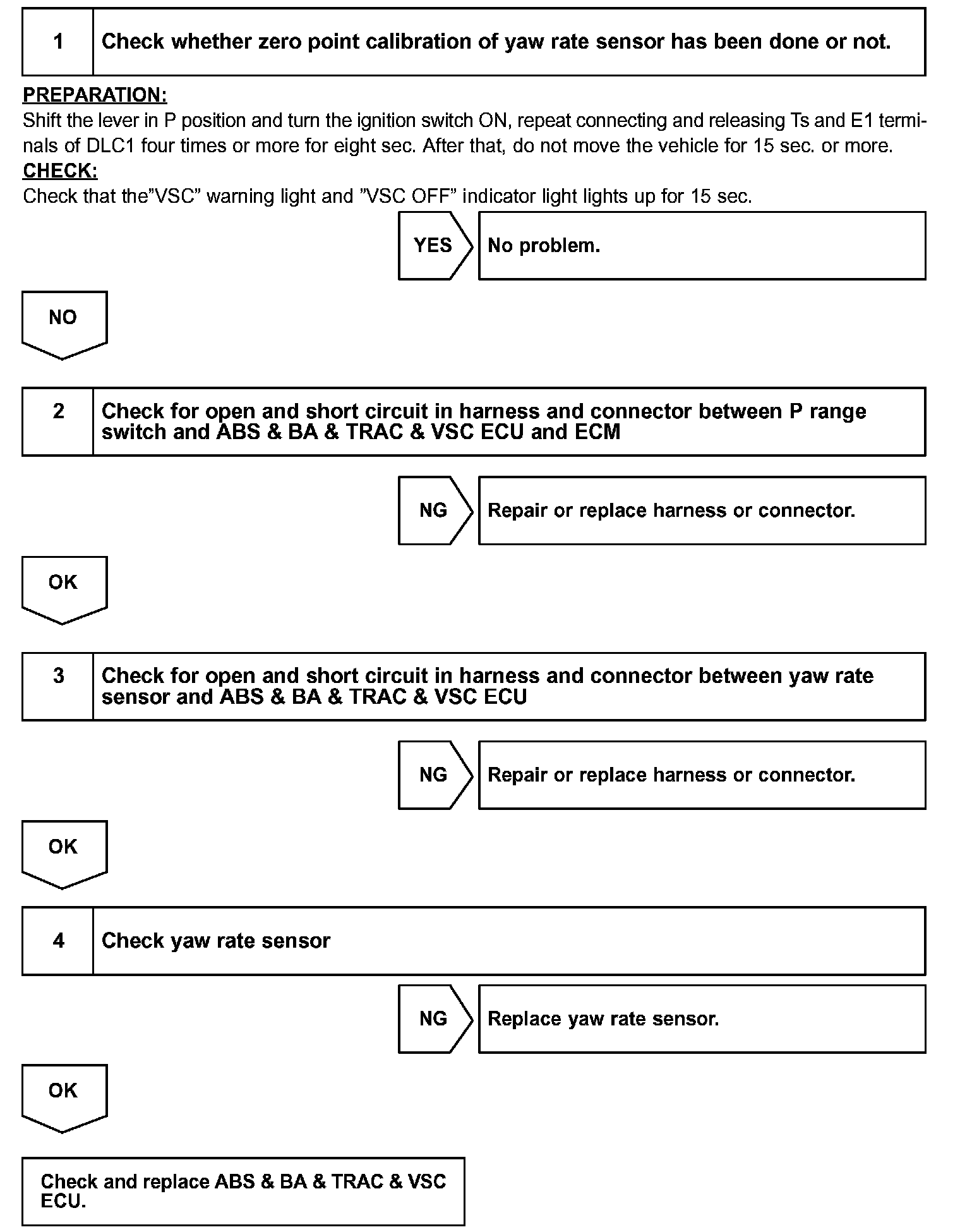

Step 1 - 4:
INSPECTION PROCEDURE
