DTC B1160 Short in Curtain Shield Squib RH Circuit

CIRCUIT DESCRIPTION

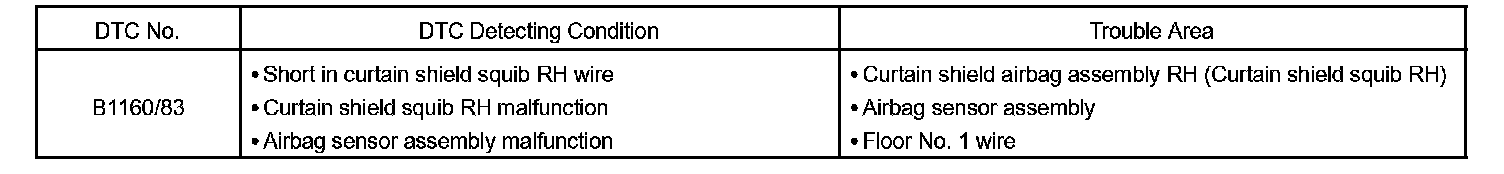

DTC Detecting Condition:

The curtain shield squib RH circuit consists of the airbag sensor assembly and the curtain shield airbag assembly RH.

It causes the SRS to deploy when the SRS deployment conditions are satisfied.

For details of the function of each component, see DESCRIPTION AND OPERATION.

DTC B1160/83 is recorded when a short is detected in the curtain shield squib RH circuit.

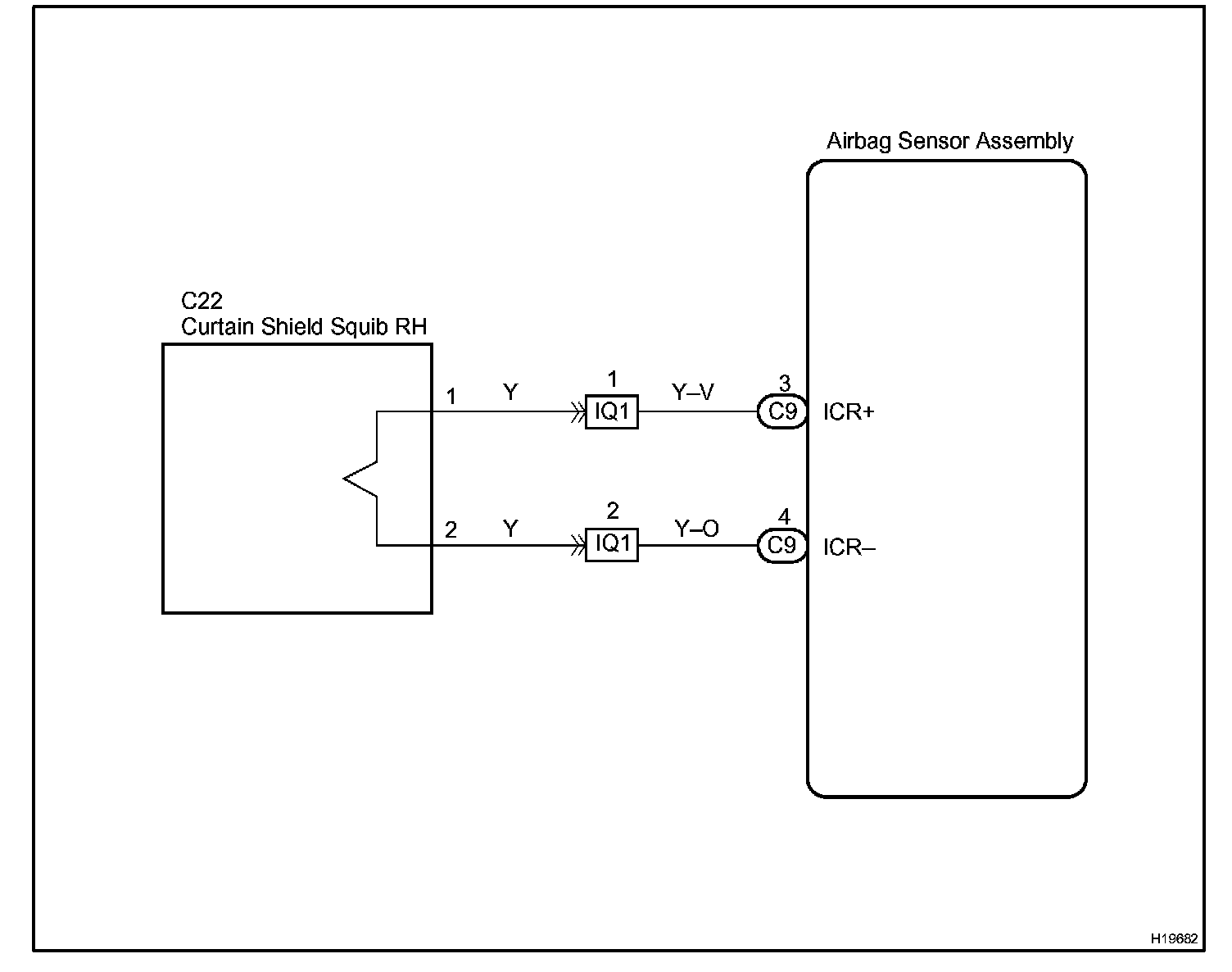

Wiring Diagram:

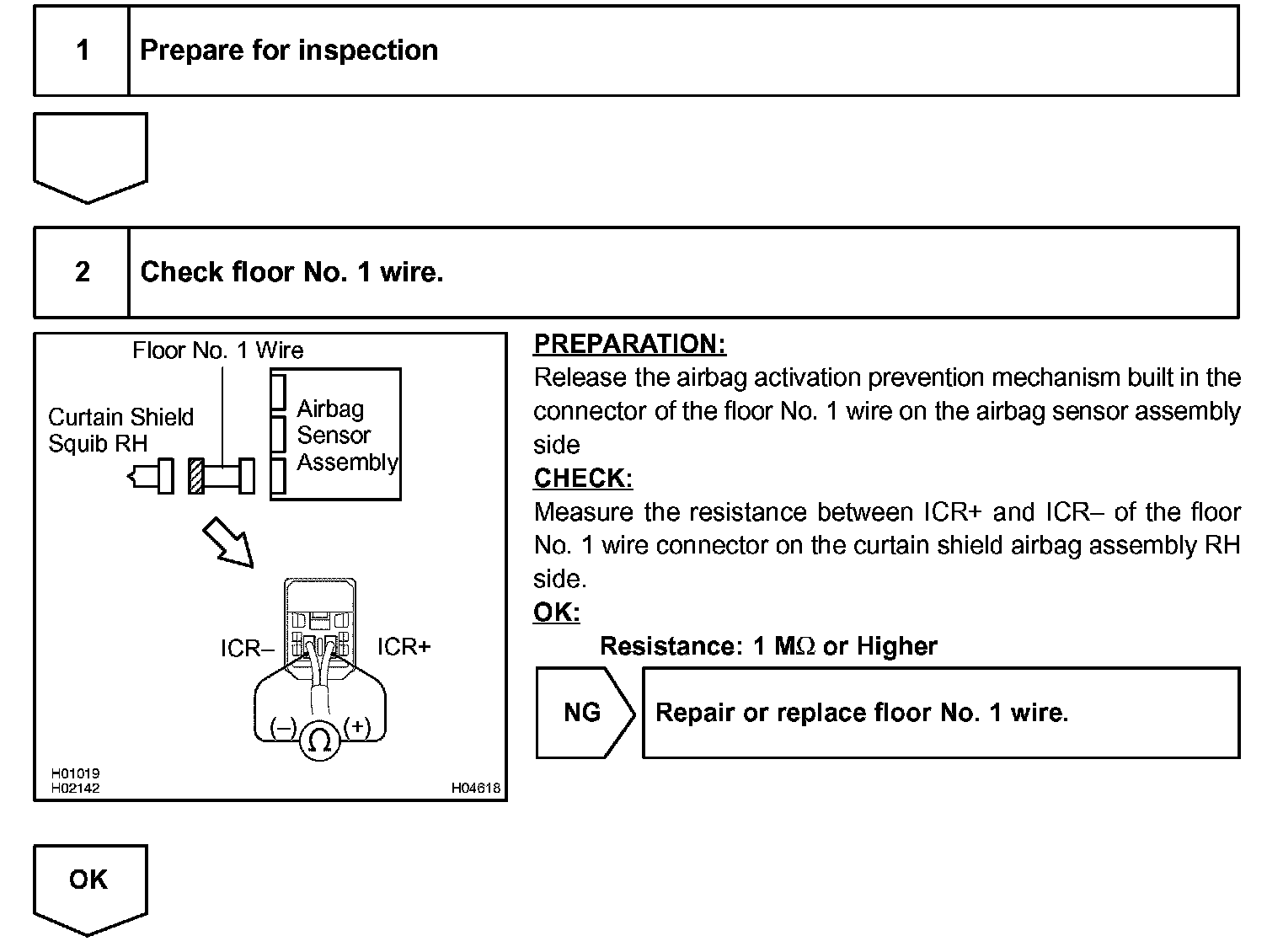

Step 1 - 2:

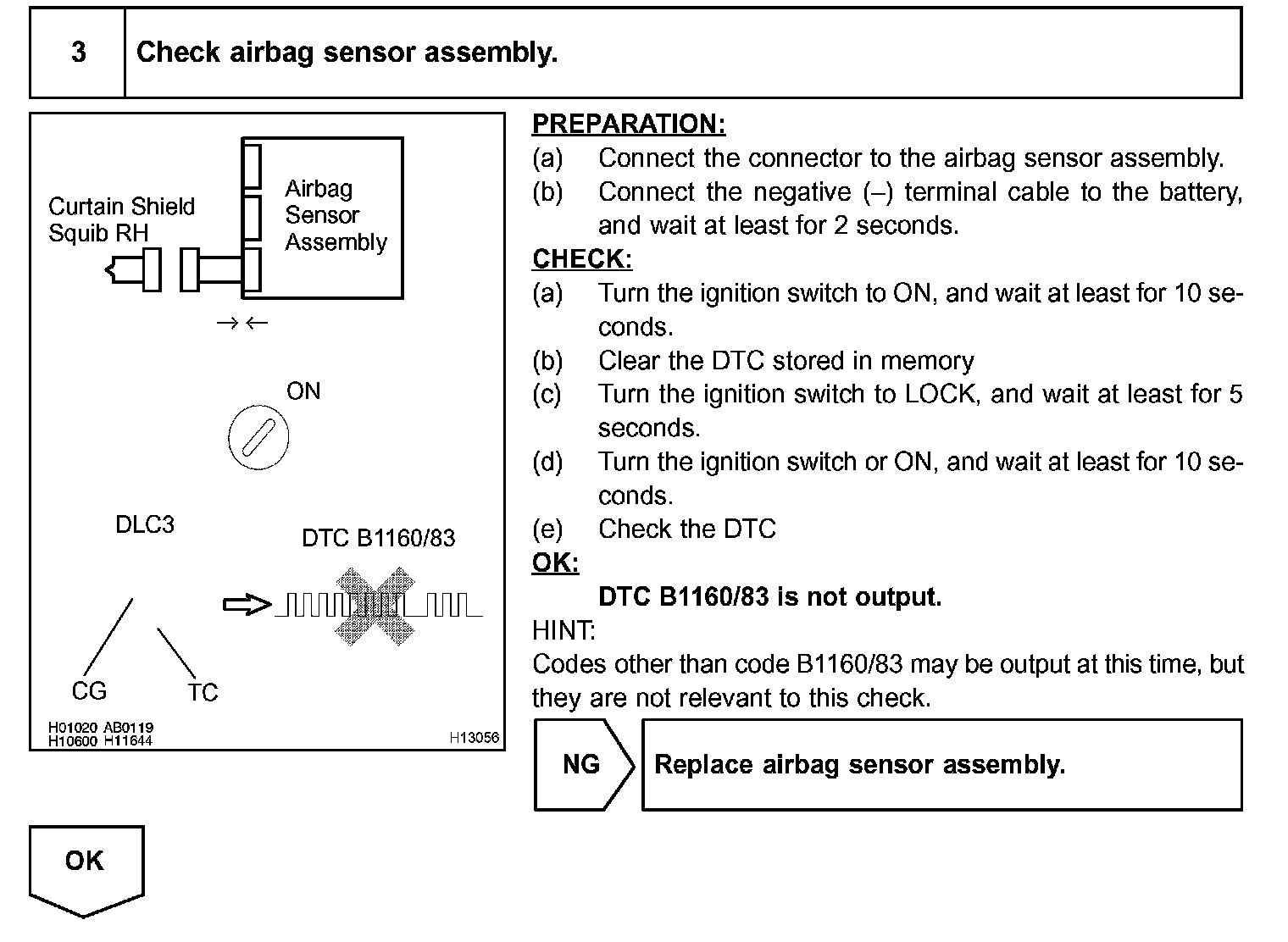

Step 3:

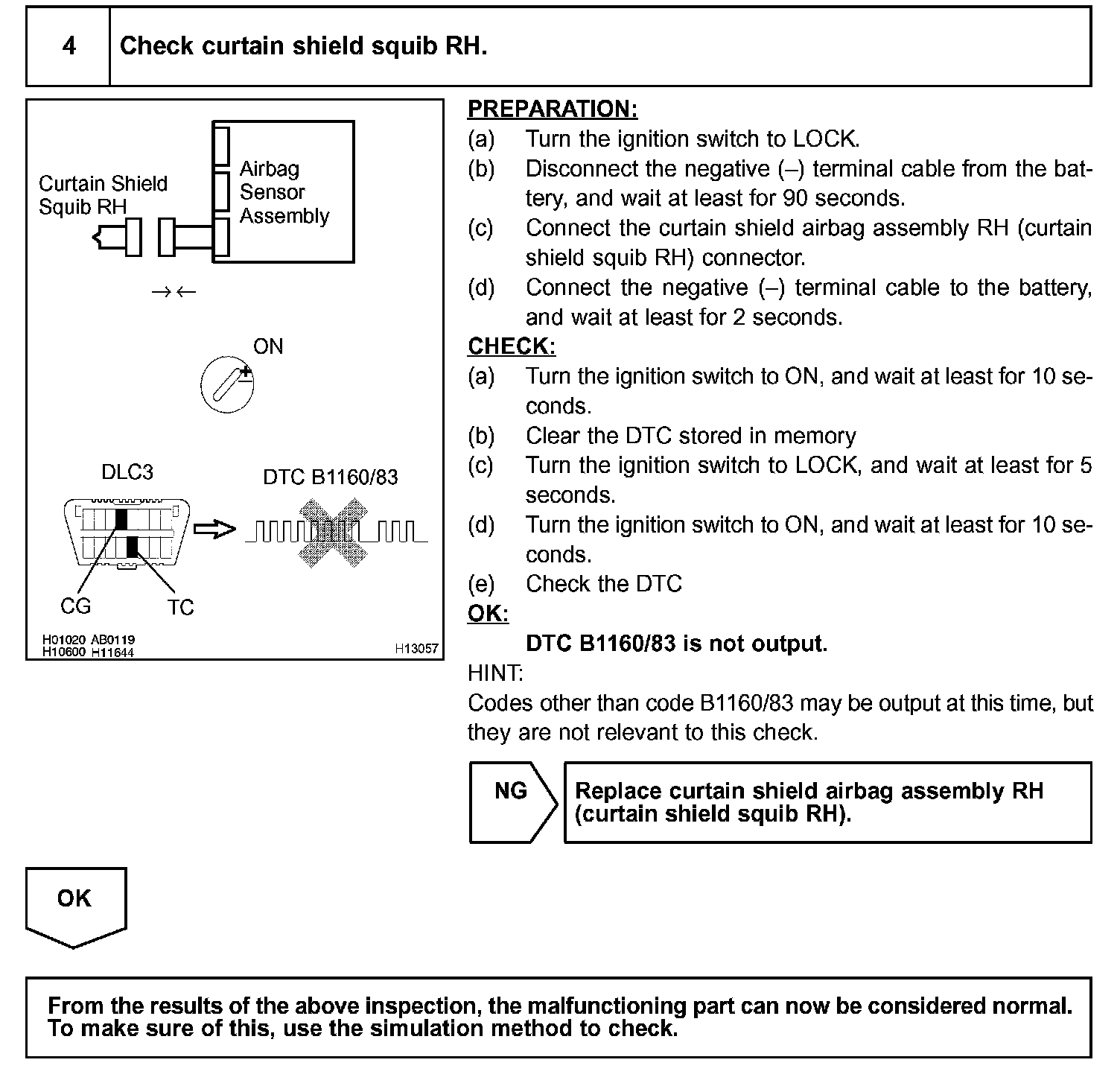

Step 4:

INSPECTION PROCEDURE
