B1157

DTC B1157 Front Airbag Sensor RH Malfunction

CIRCUIT DESCRIPTION

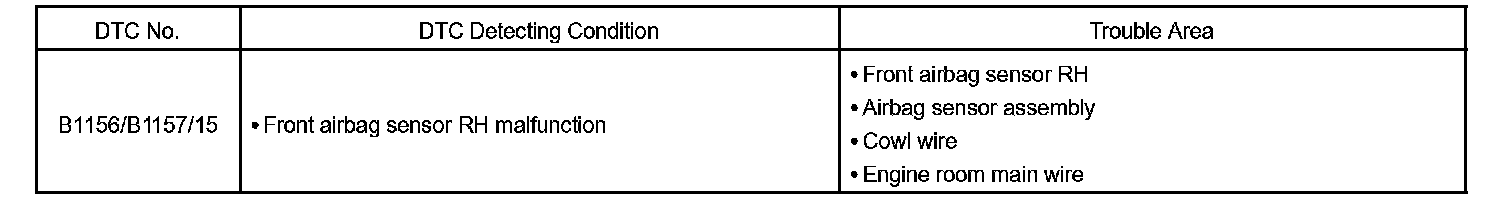

DTC Detecting Condition:

The front airbag sensor RH circuit consists of the airbag sensor assembly and the front airbag sensor RH.

For details of the function of each component, see DESCRIPTION AND OPERATION.

DTC B1156/B1157/15 is recorded when a malfunction is detected in the front airbag sensor RH circuit.

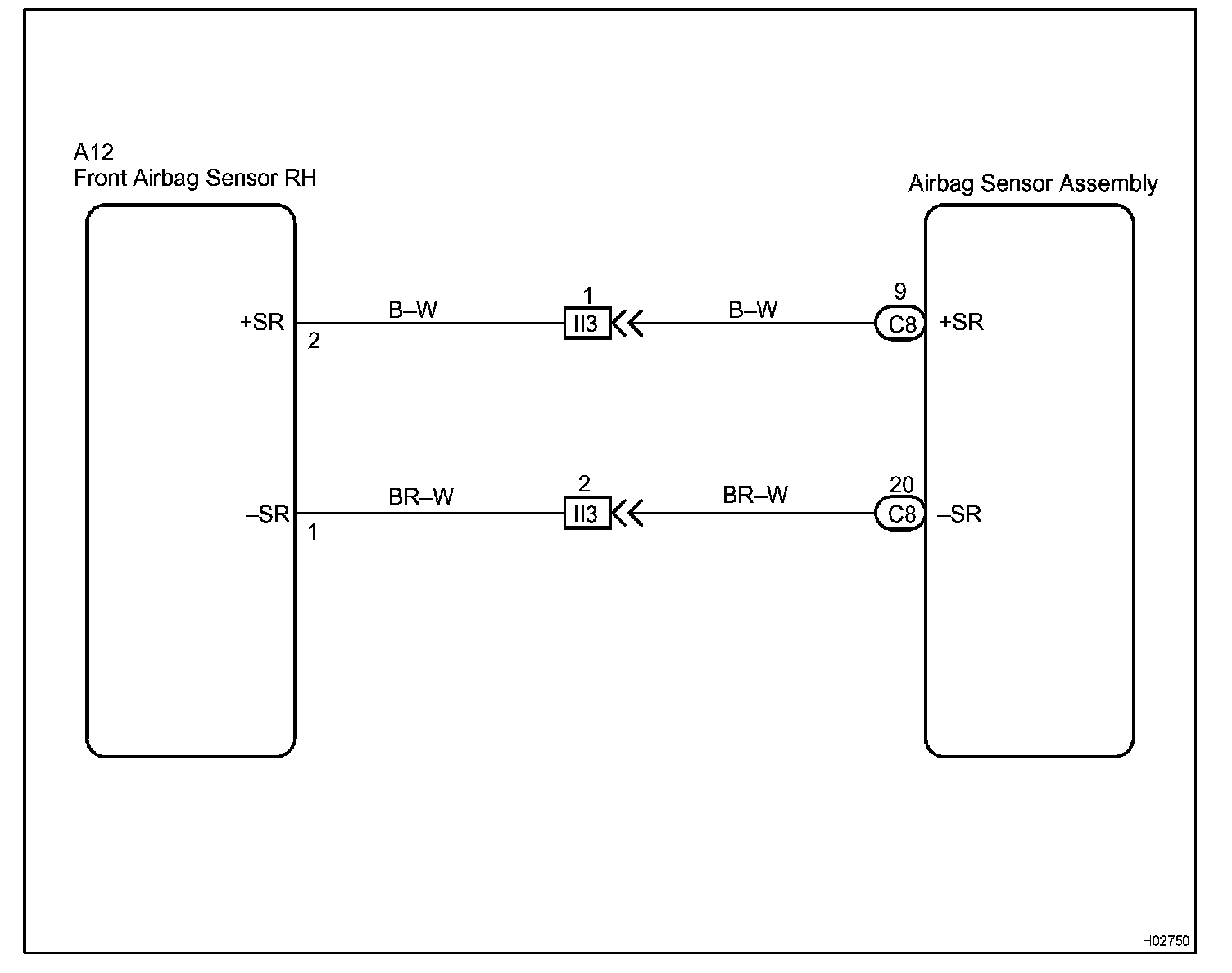

Wiring Diagram:

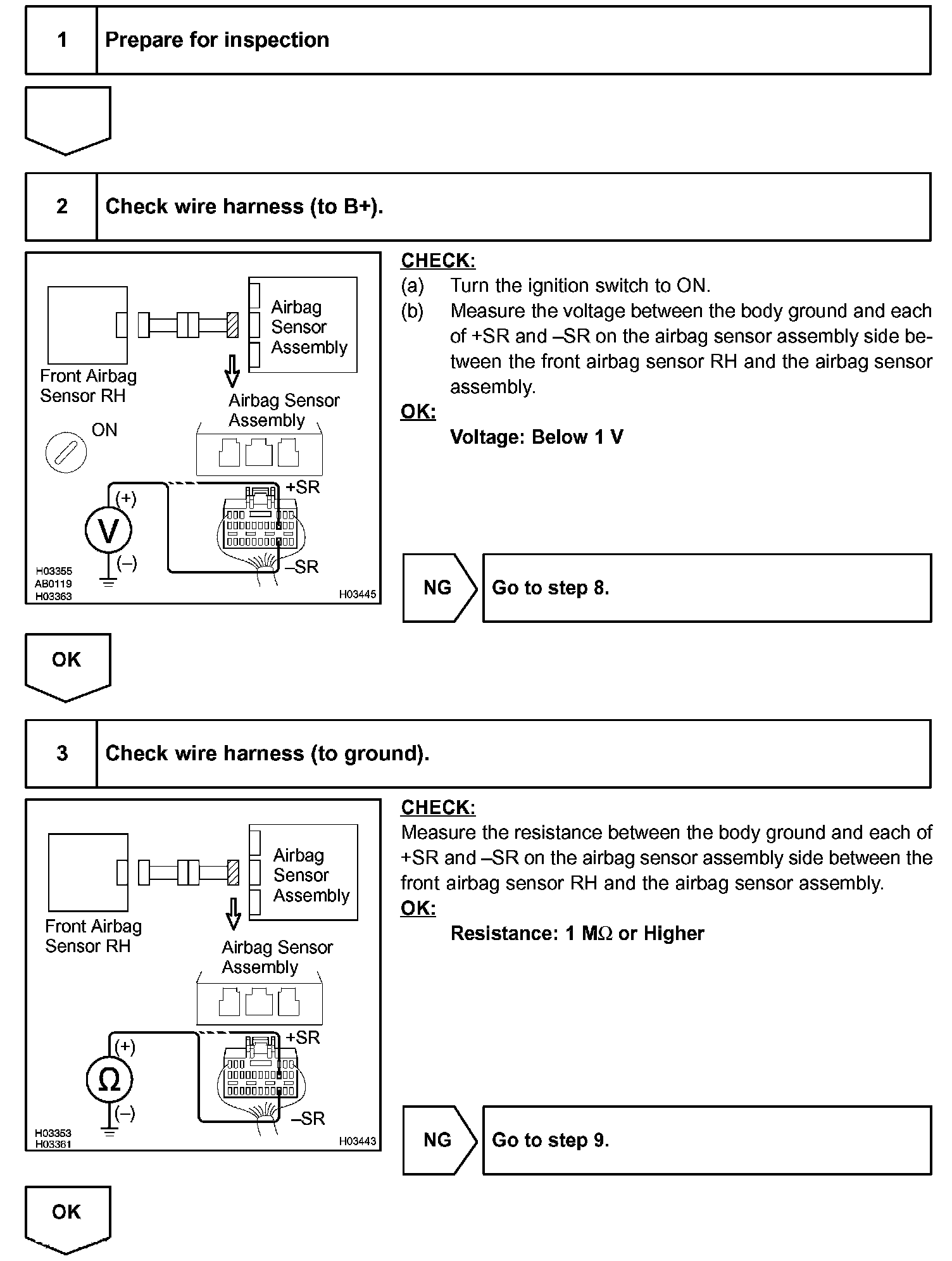

Step 1 - 3:

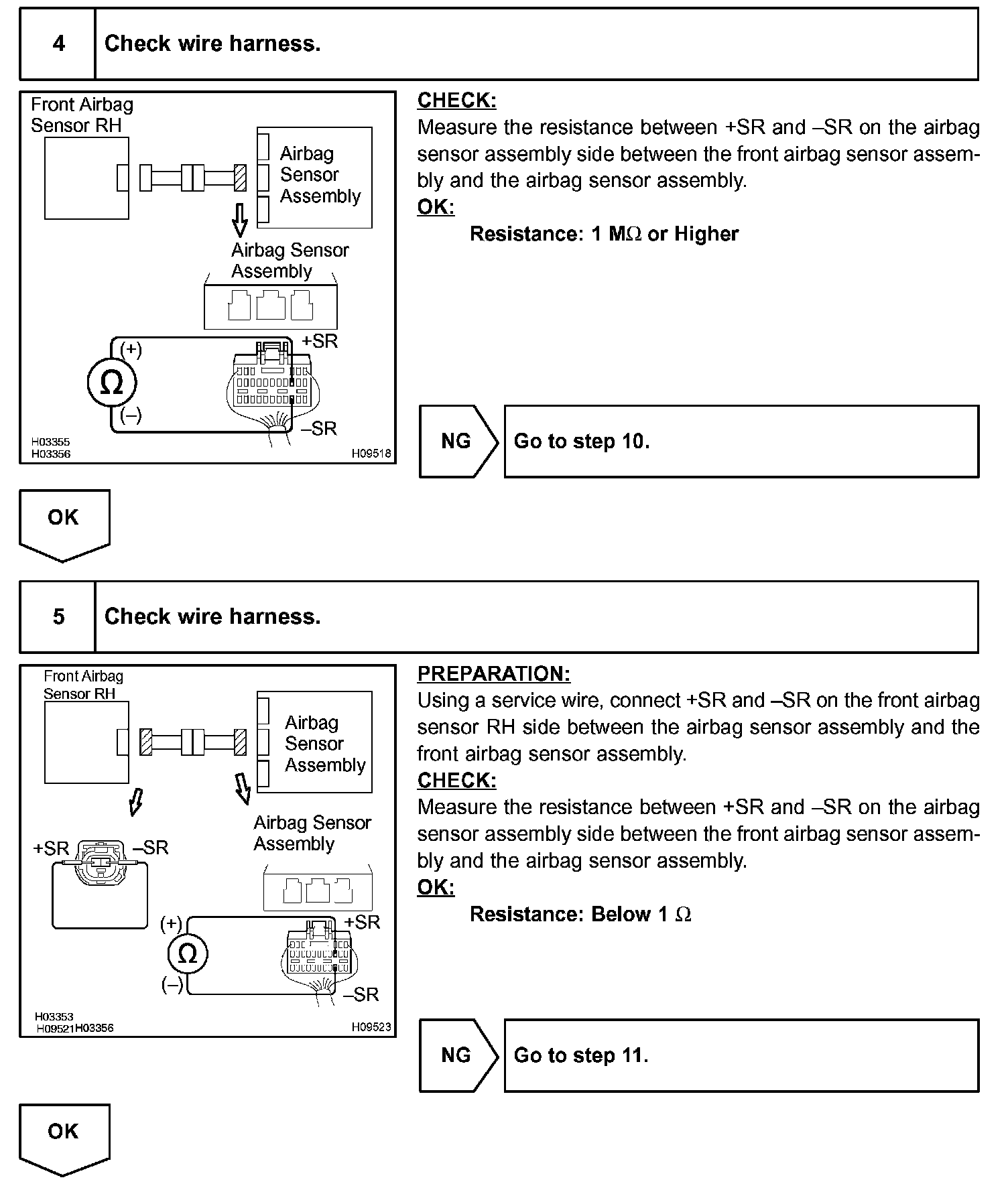

Step 4 - 5:

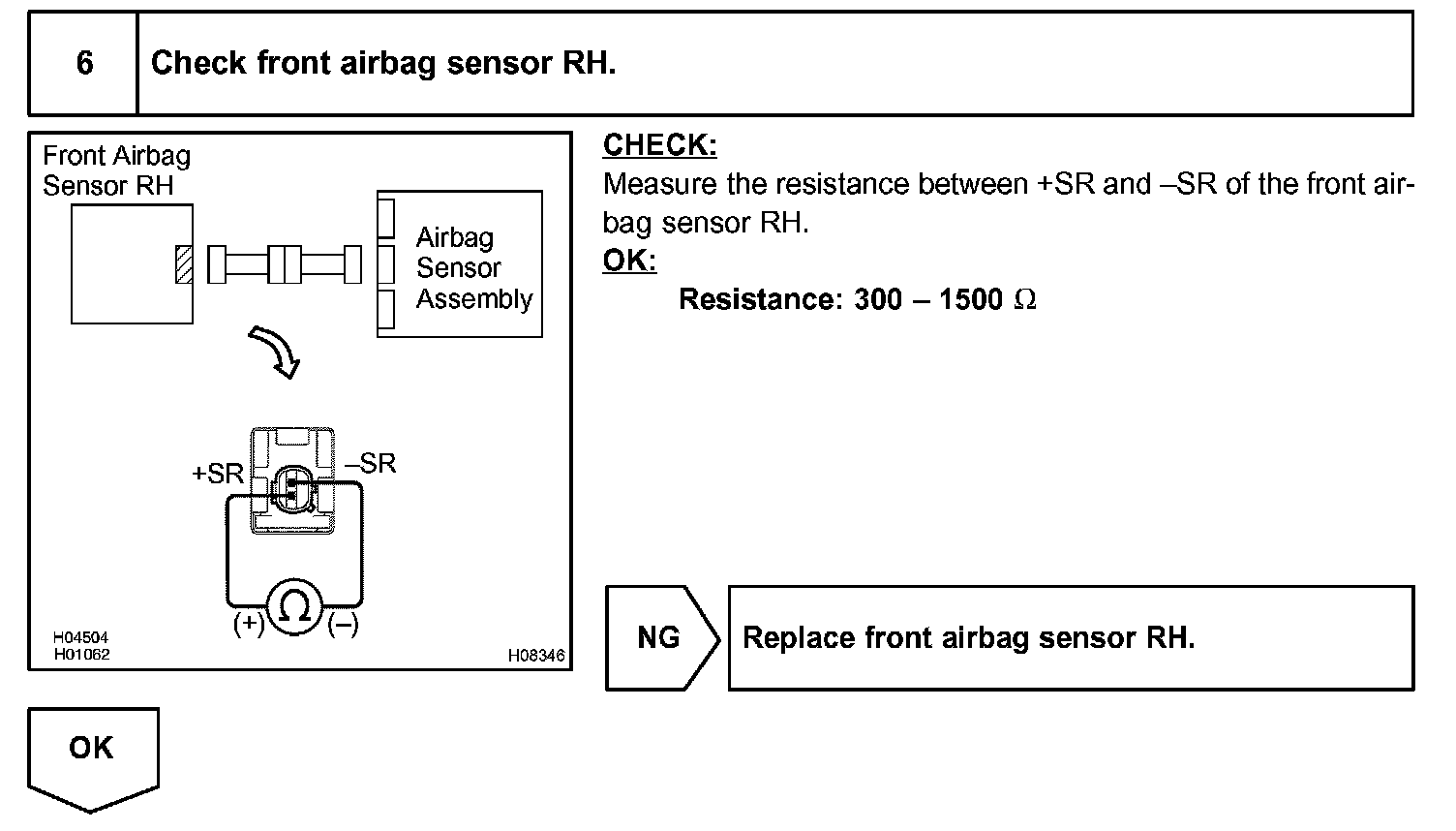

Step 6:

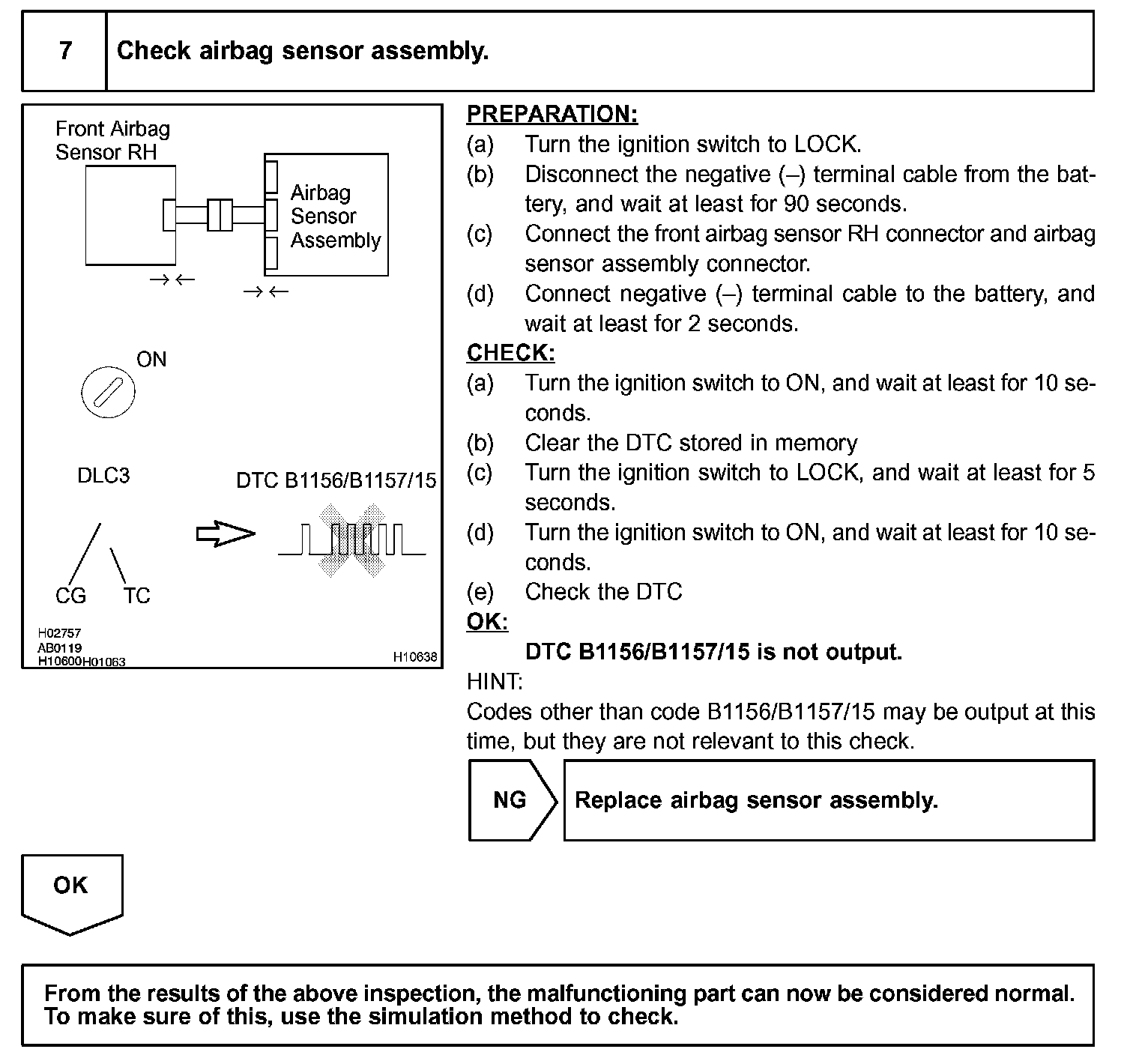

Step 7:

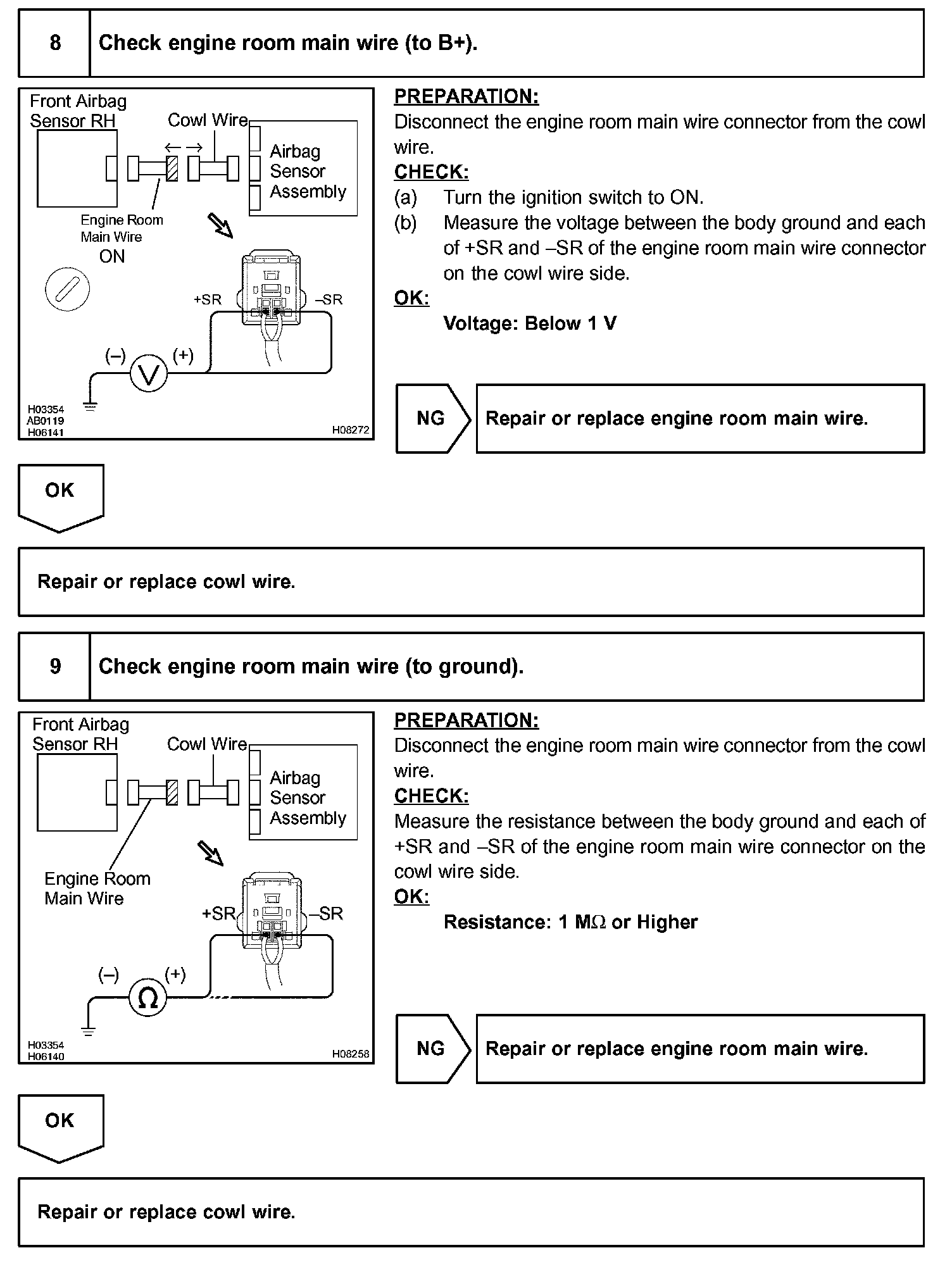

Step 8 - 9:

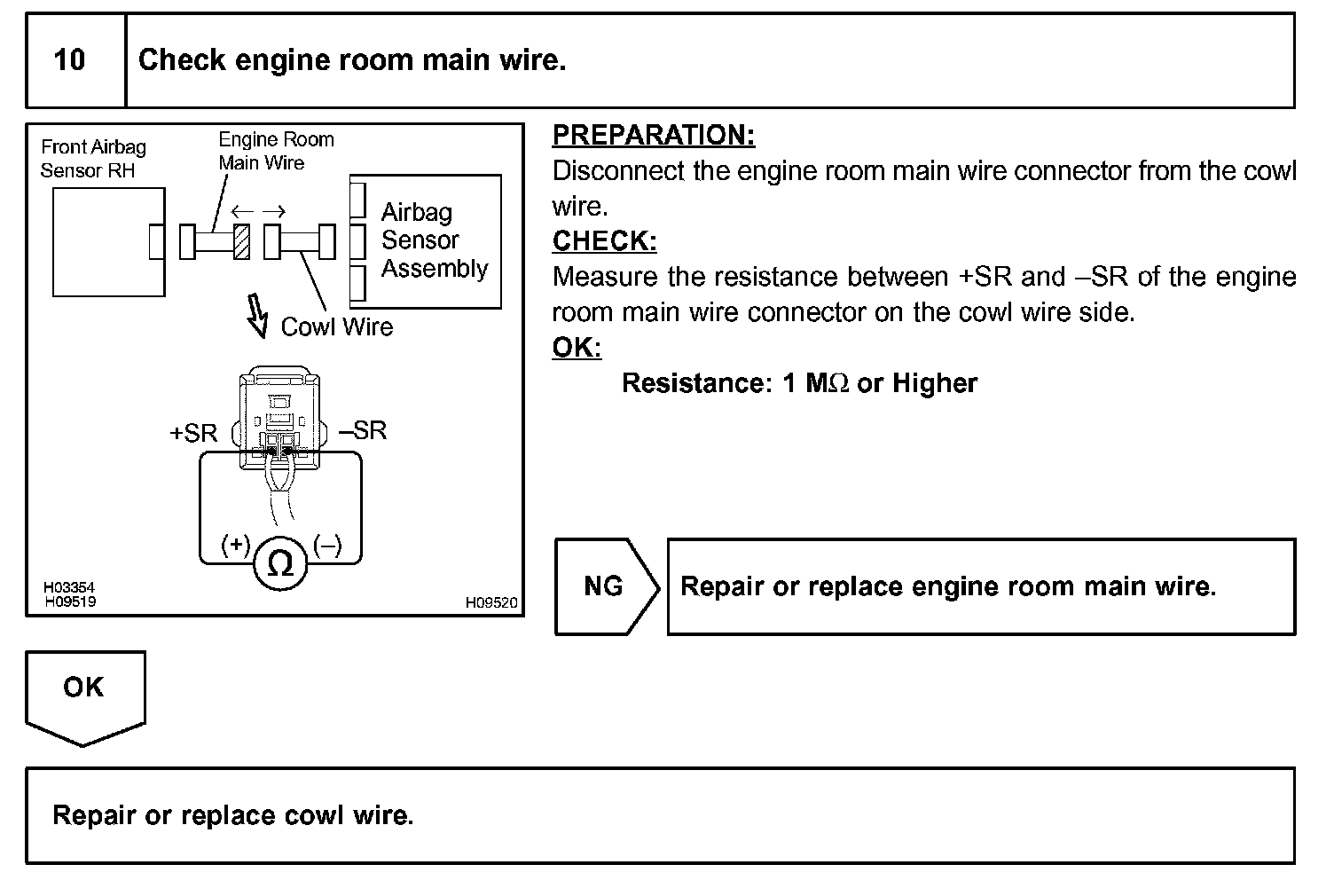

Step 10:

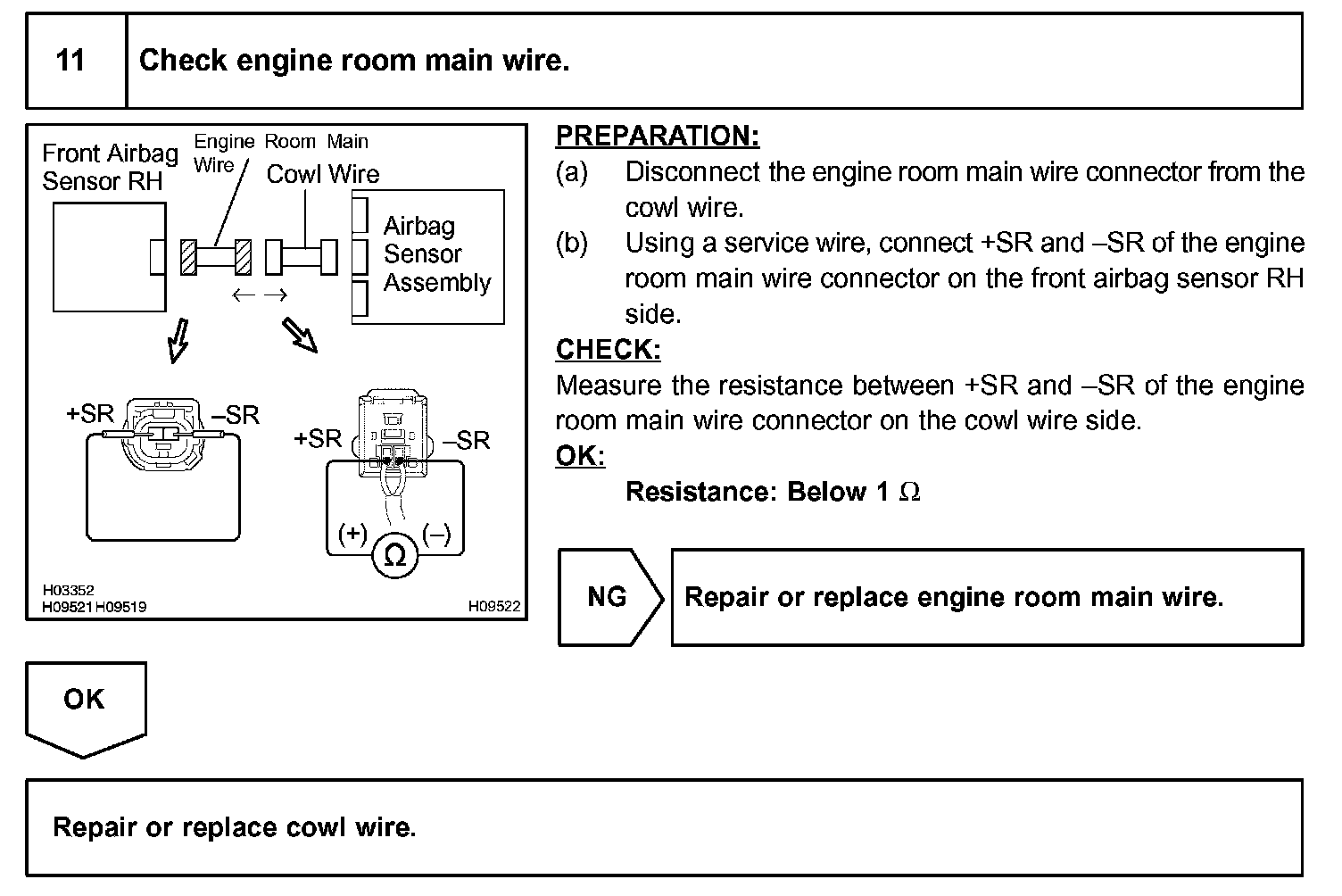

Step 11:

INSPECTION PROCEDURE
