B0135

DTC B0135 Short in P/T Squib LH Circuit

CIRCUIT DESCRIPTION

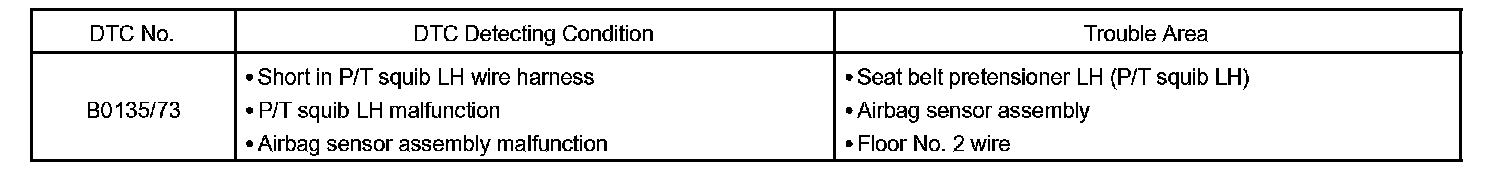

DTC Detecting Condition:

The P/T squib LH circuit consists of the airbag sensor assembly and the seat belt pretensioner LH. It causes the SRS to deploy when the SRS deployment conditions are satisfied.

For details of the function of each component, see DESCRIPTION AND OPERATION.

DTC B0135/73 is recorded when a short is detected in the P/T squib LH circuit.

Wiring Diagram:

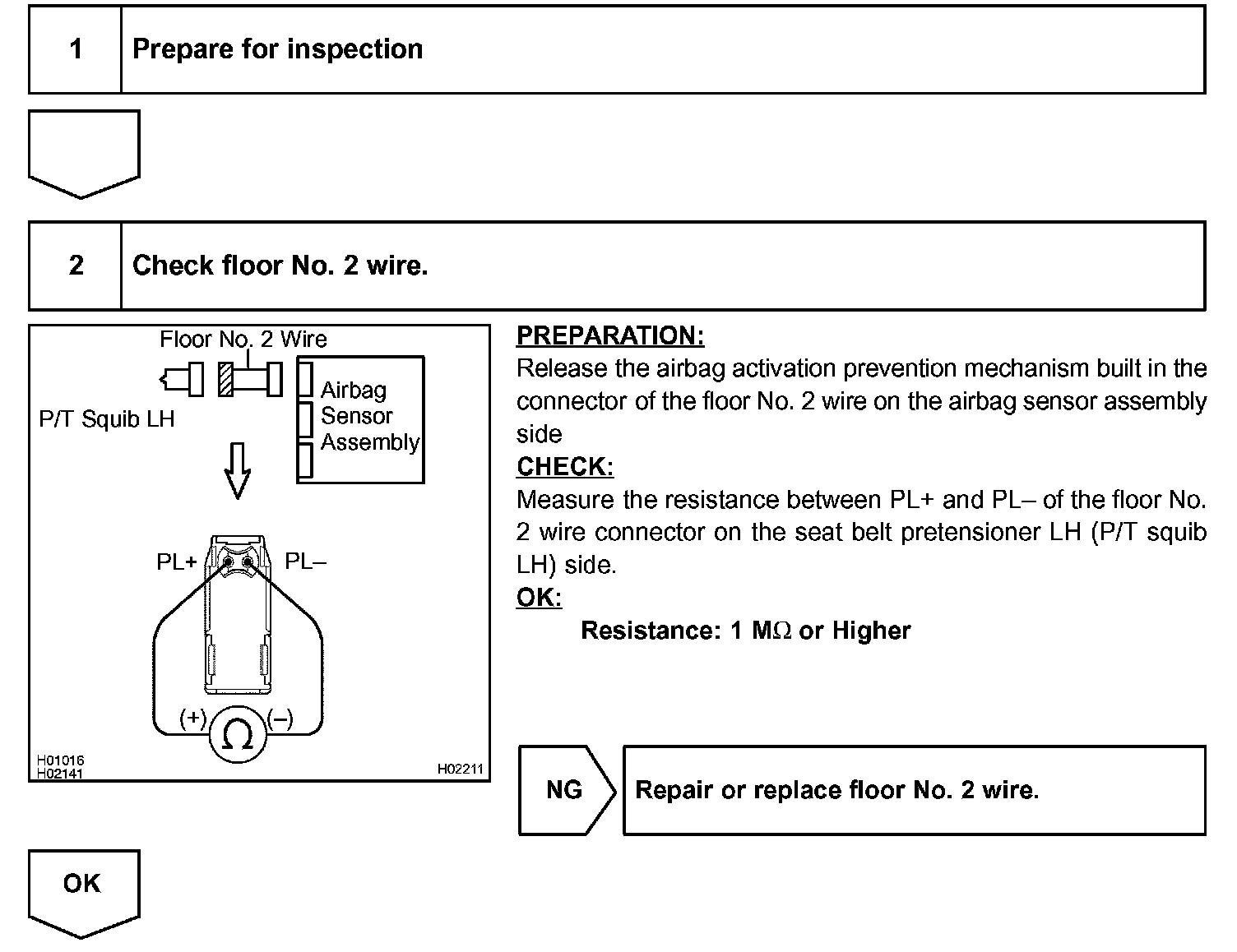

Step 1 - 2:

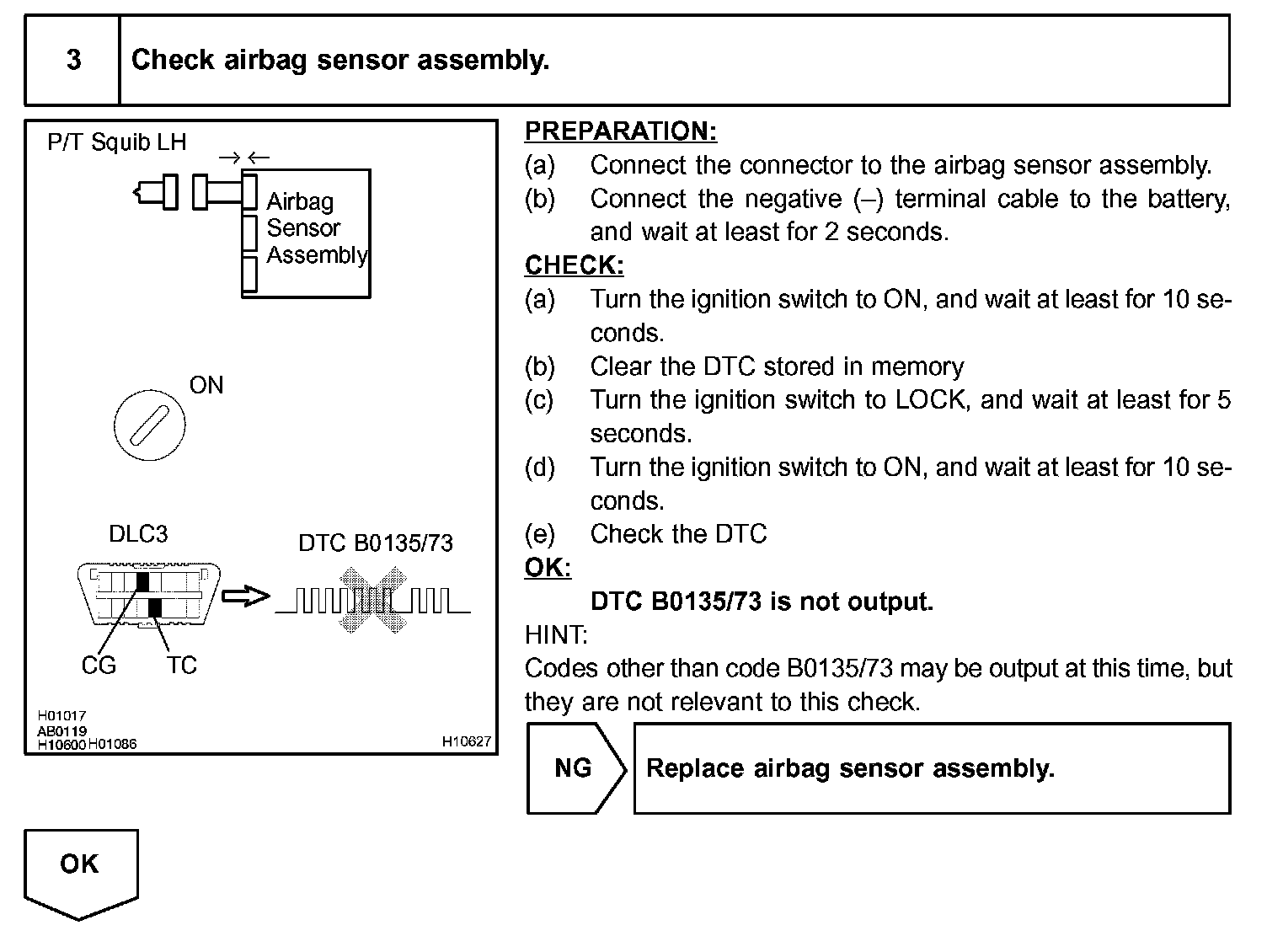

Step 3:

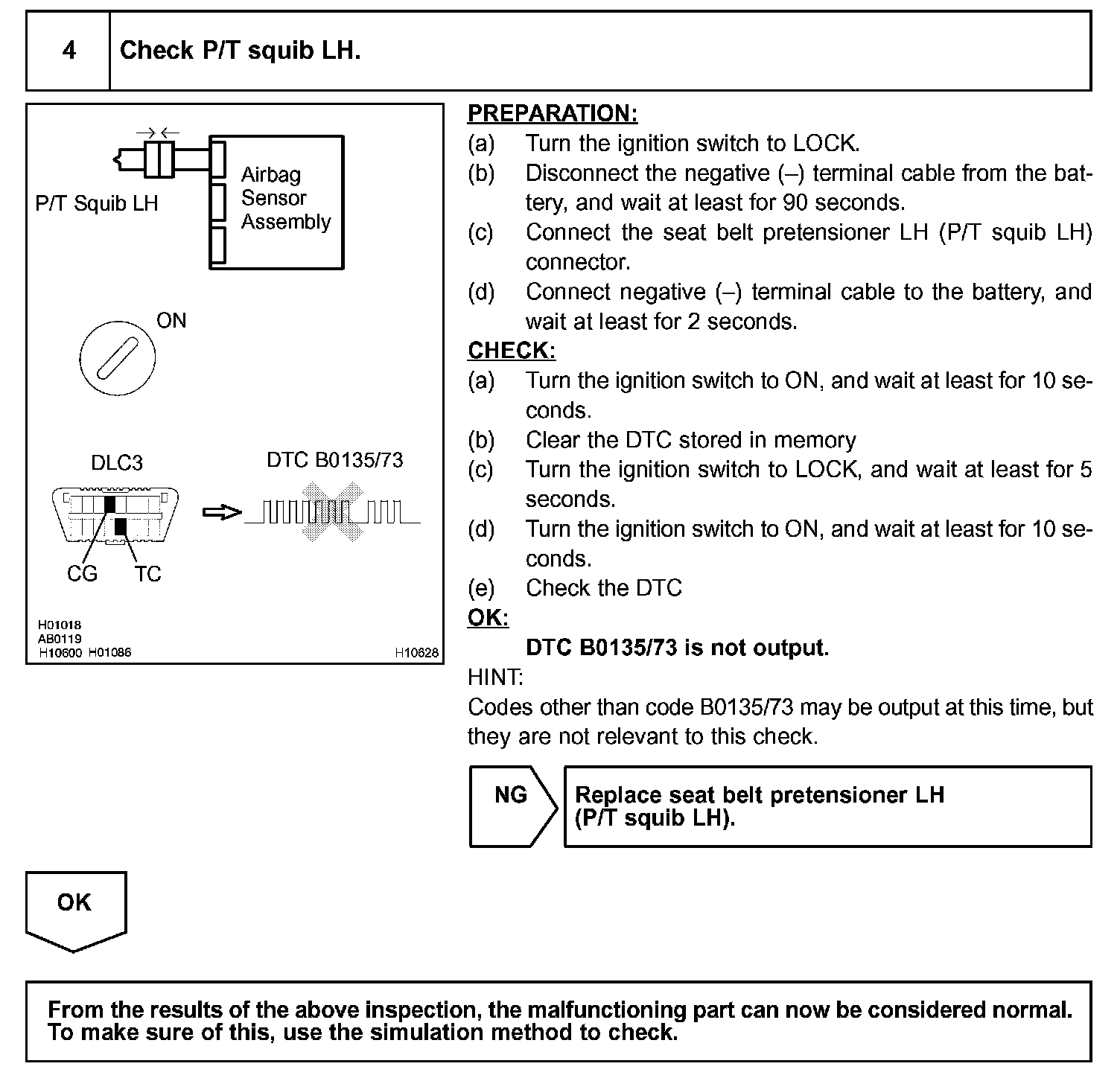

Step 4:

INSPECTION PROCEDURE
