B0121

DTC B0121 Seat Belt Buckle Switch RH Malfunction

CIRCUIT DESCRIPTION

DTC Detecting Condition:

The seat belt buckle switch RH circuit consists of the airbag sensor assembly and the front seat inner belt RH (seat belt buckle switch RH).

For details of the function of each component, see DESCRIPTION AND OPERATION.

DTC B0121/B0122/26 is recorded when a malfunction is detected in the seat belt buckle switch RH circuit.

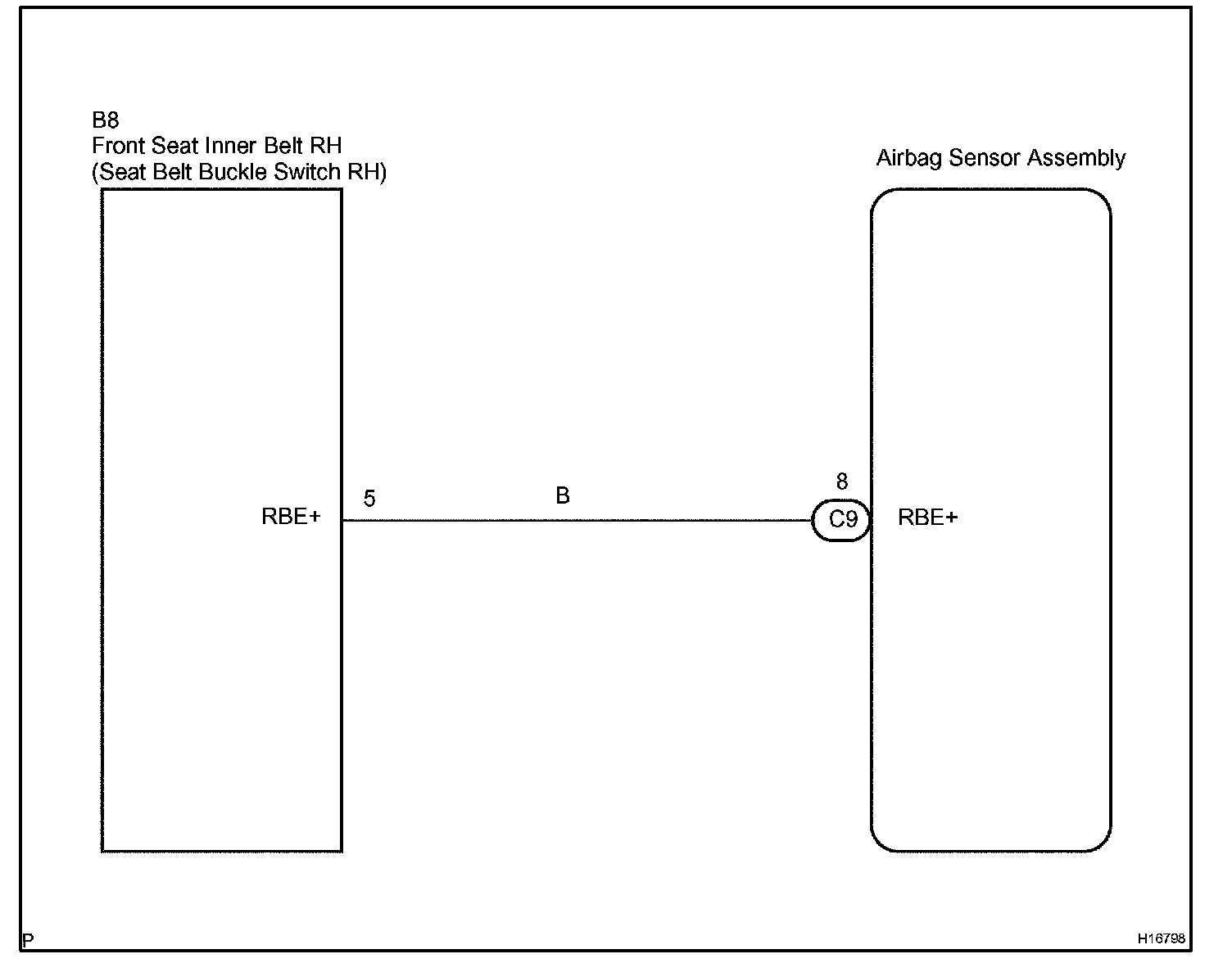

Wiring Diagram:

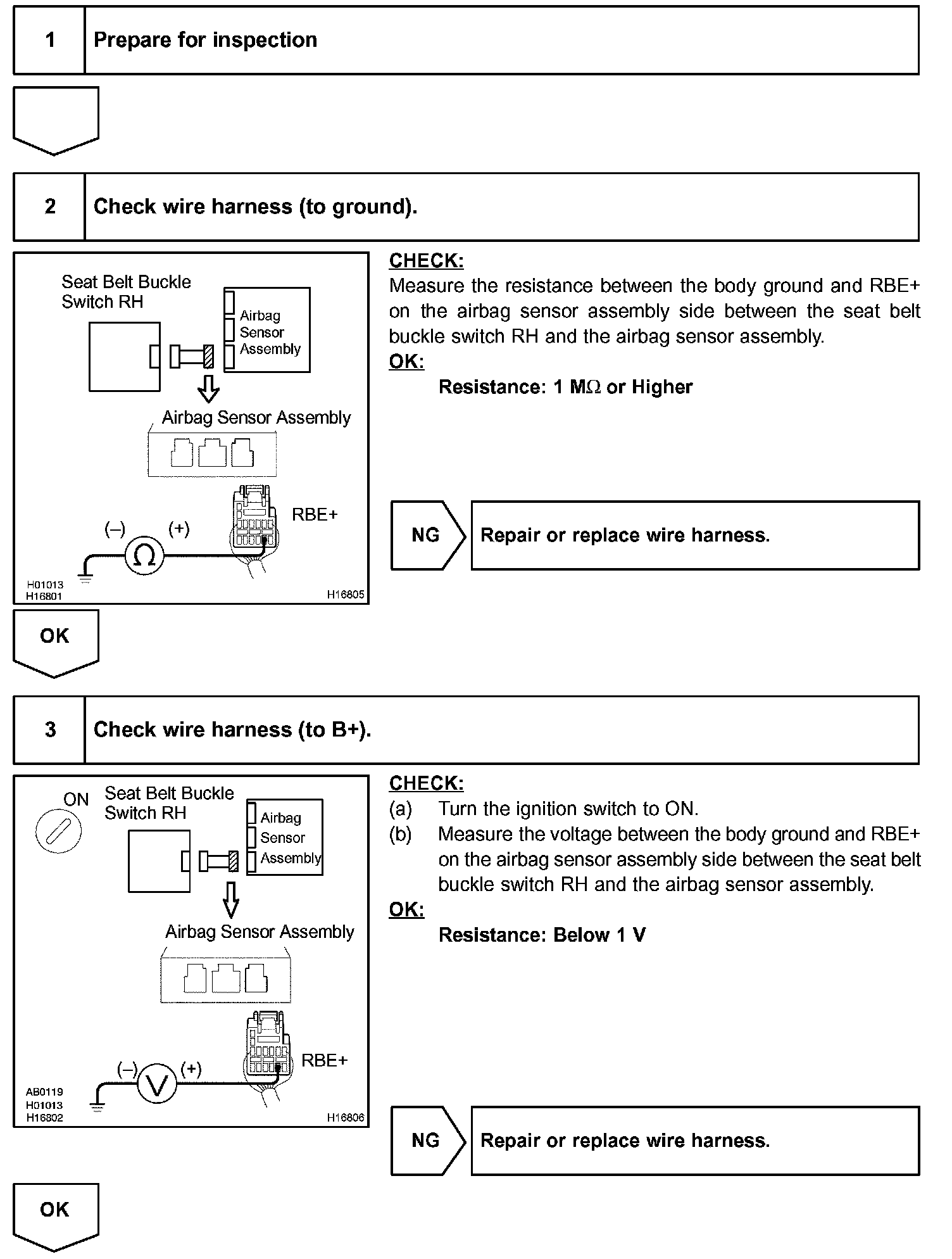

Step 1 - 3:

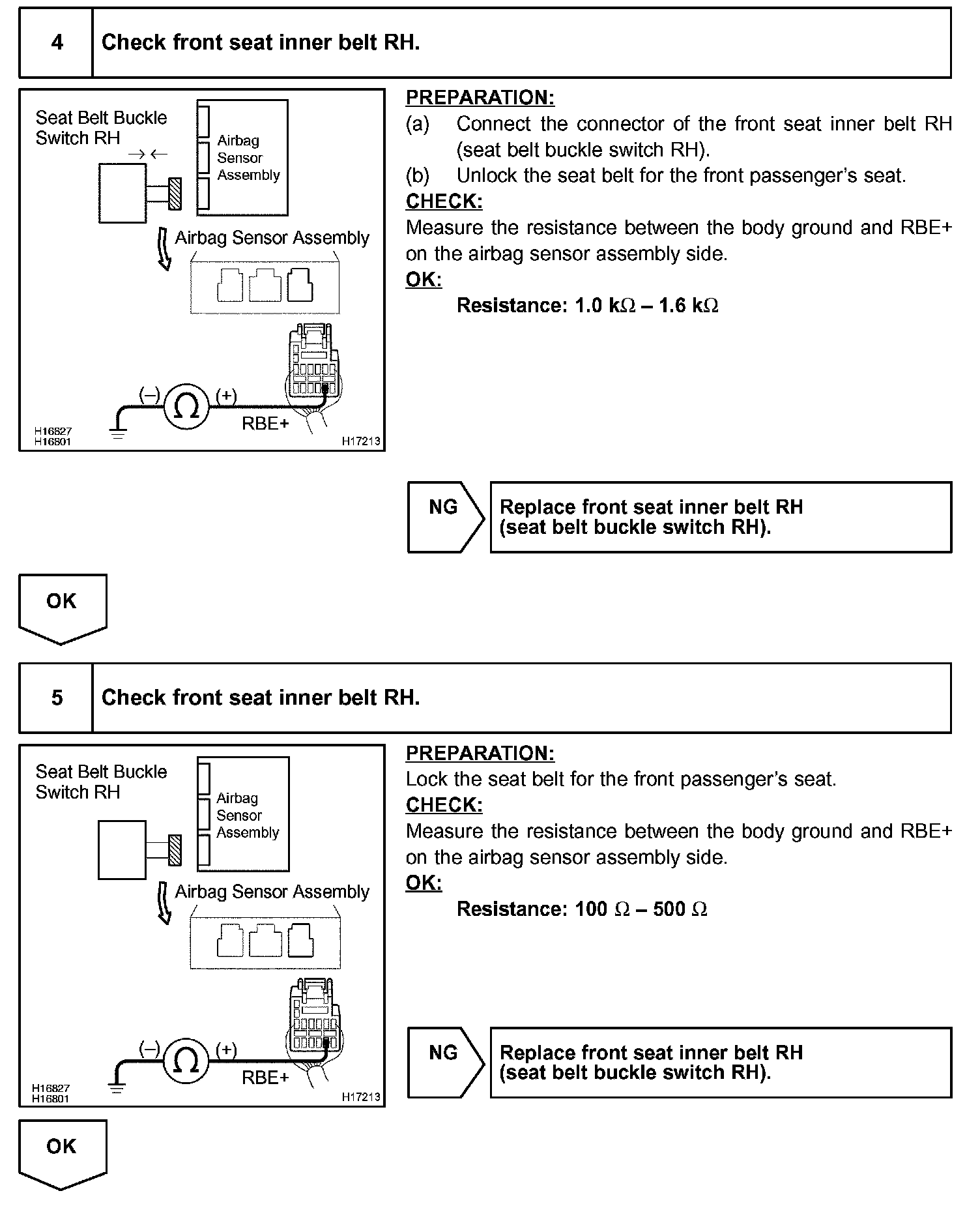

Step 4 - 5:

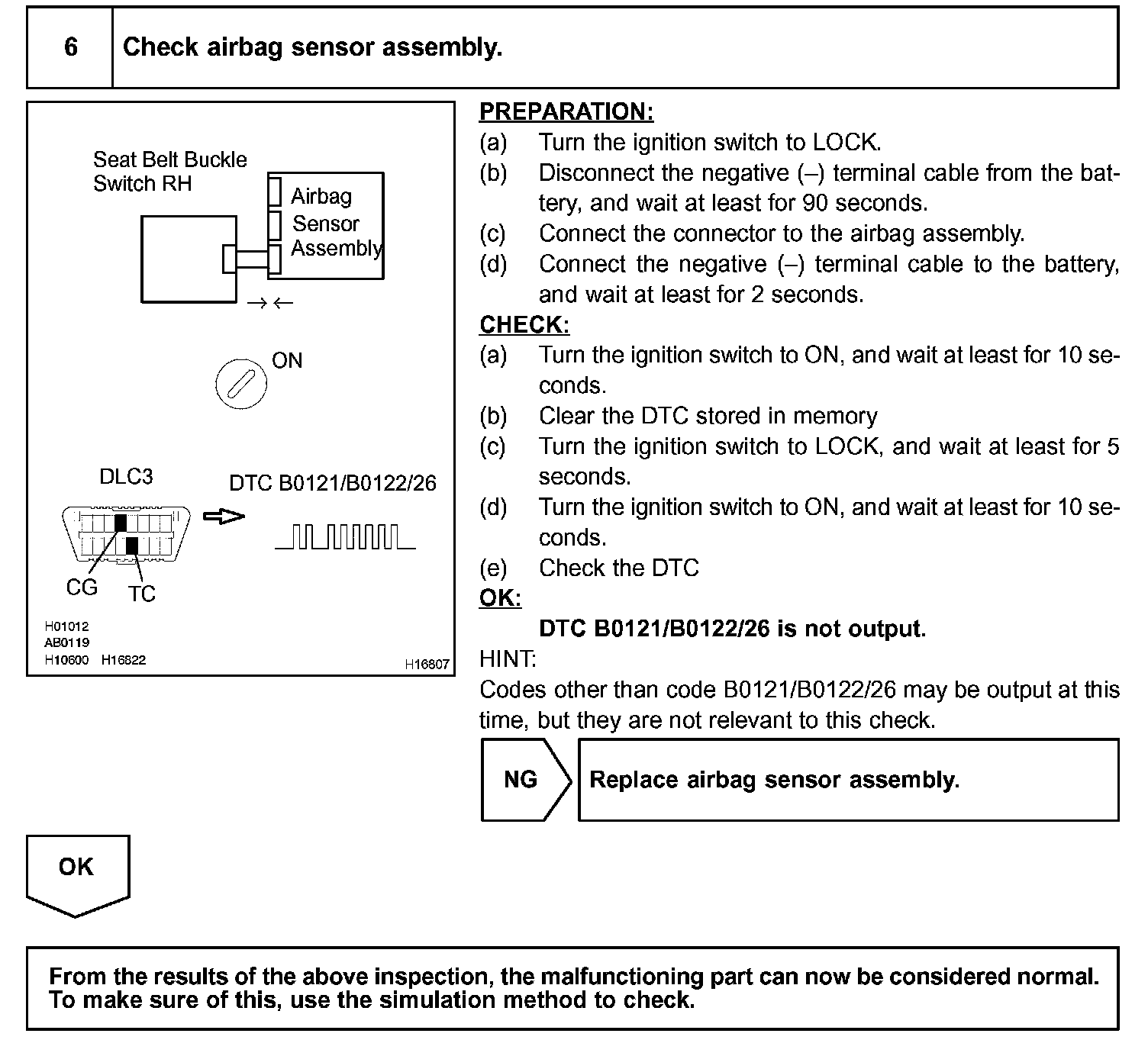

Step 6:

INSPECTION PROCEDURE
