B0106

DTC B0106 Open in P Squib Circuit

CIRCUIT DESCRIPTION

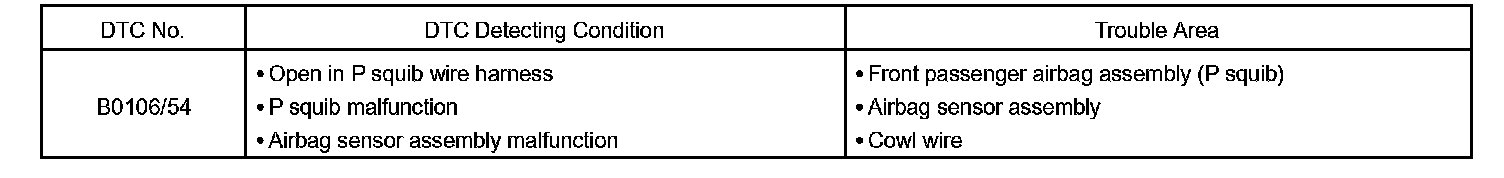

DTC Detecting Condition:

The P squib circuit consists of the airbag sensor assembly and the front passenger airbag assembly. It causes the SRS to deploy when the SRS deployment conditions are satisfied.

For details of the function of each component, see DESCRIPTION AND OPERATION.

DTC B0106/54 is recorded when an open is detected in the P squib circuit.

Wiring Diagram:

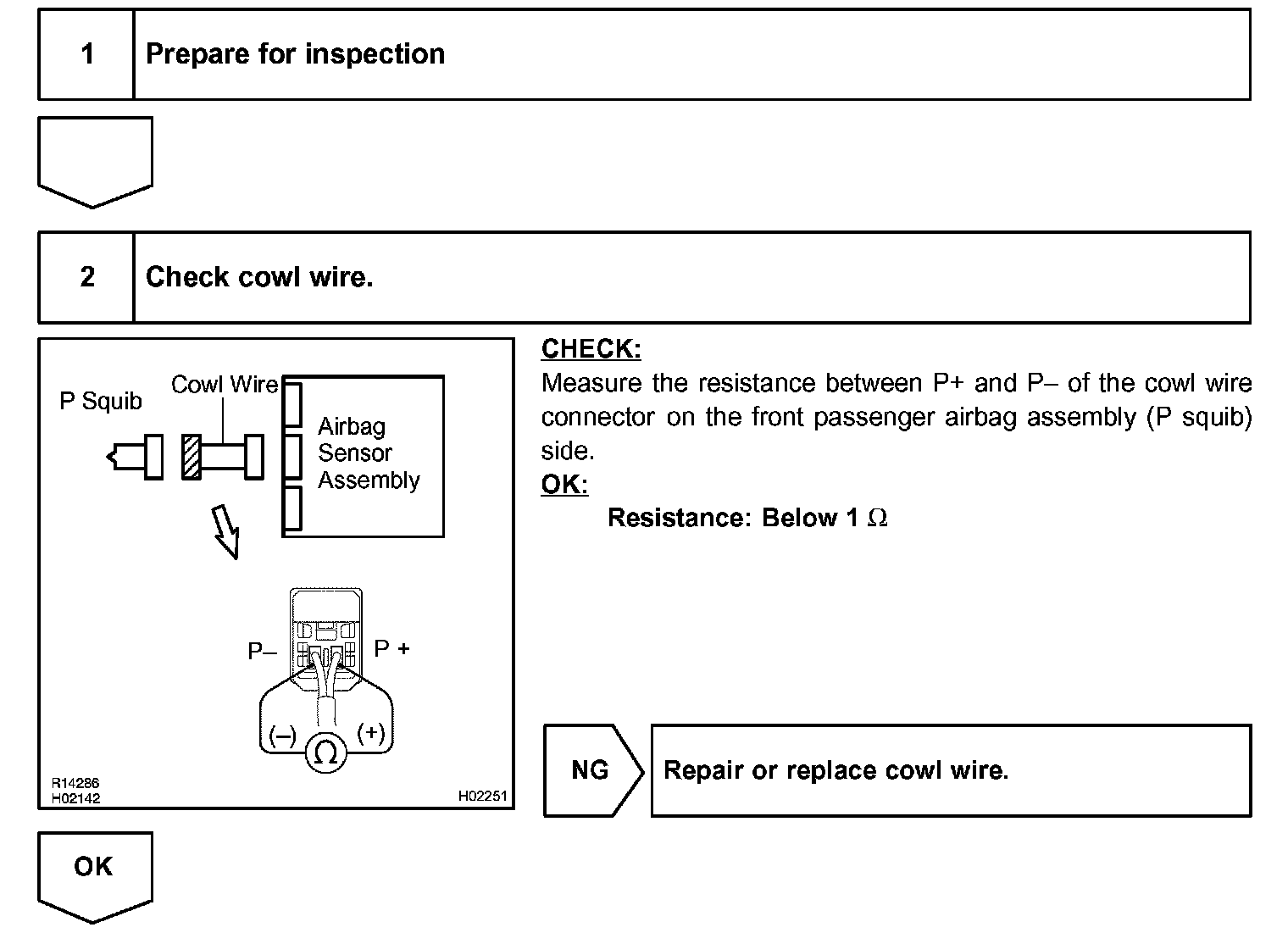

Step 1 - 2:

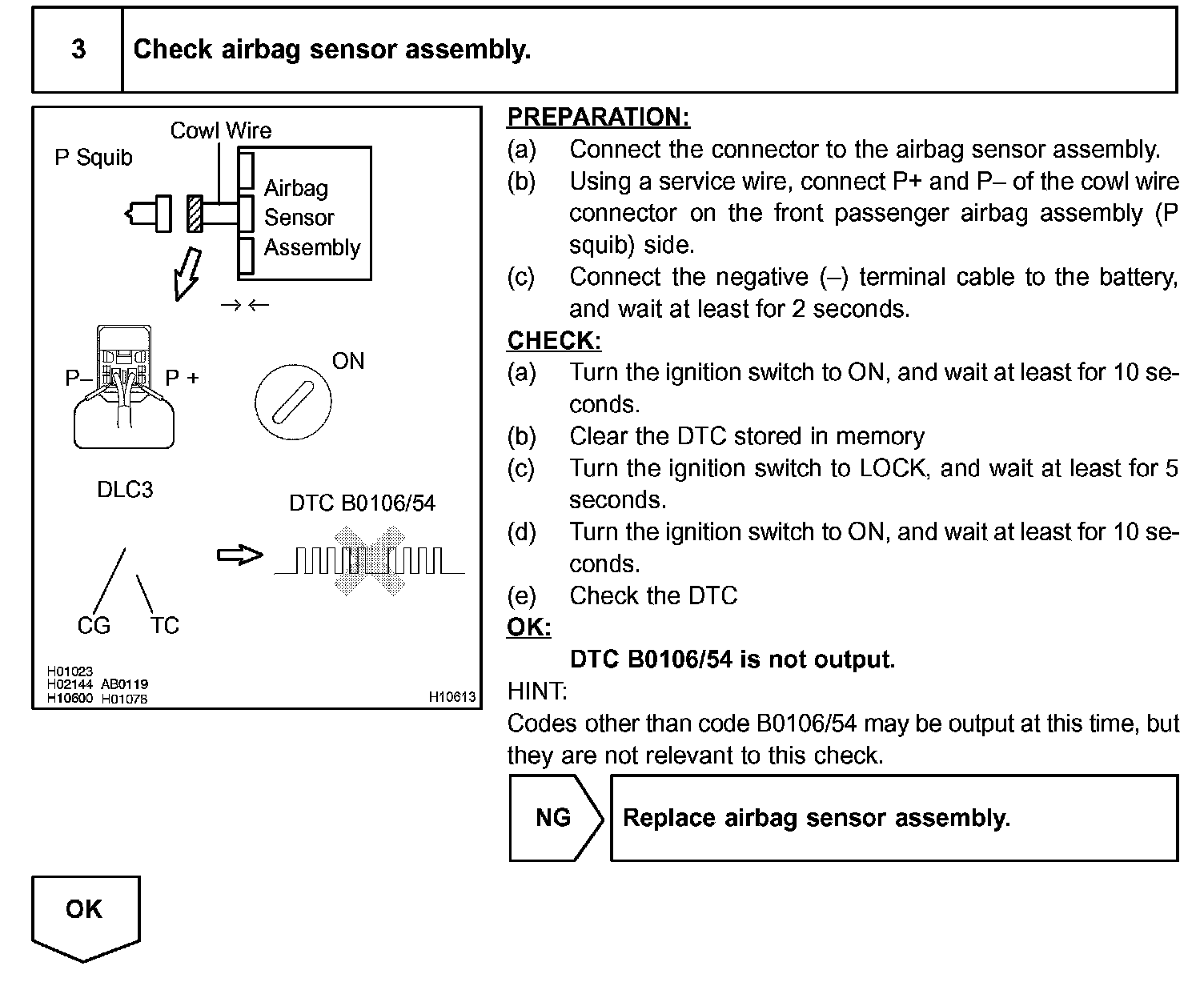

Step 3:

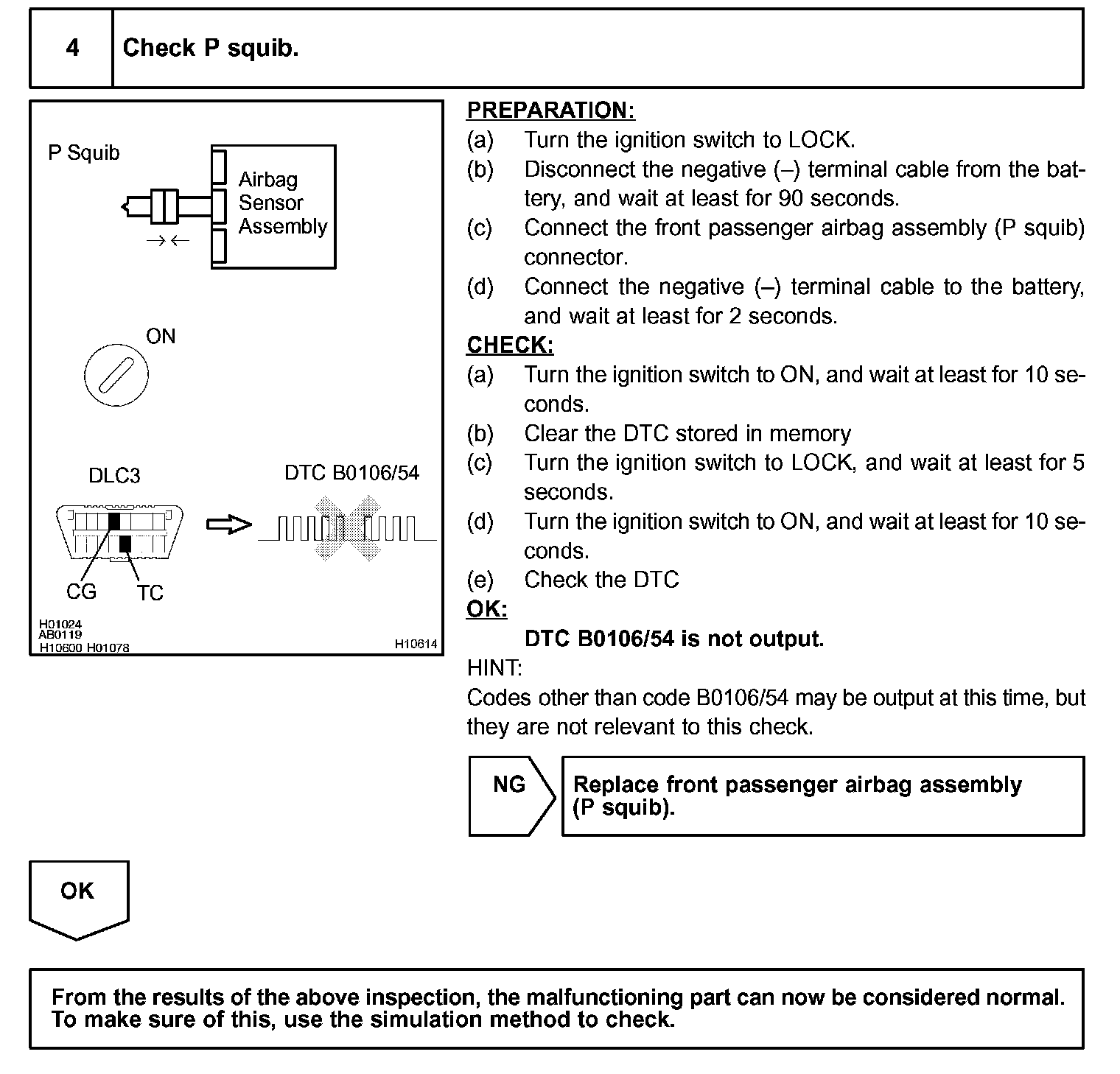

Step 4:

INSPECTION PROCEDURE
