Auxiliary Power Outlet: Service and Repair

POWER POINT SOCKET ASSEMBLY

REPLACEMENT

1. REMOVE CONSOLE PANEL SUB-ASSEMBLY UPPER
2. REMOVE CONSOLE PANEL UPPER REAR
3. REMOVE CONSOLE BOX CARPET
4. REMOVE RR CONSOLE BOX
5. REMOVE POWER POINT SOCKET ASSEMBLY




a. Remove the clamp.

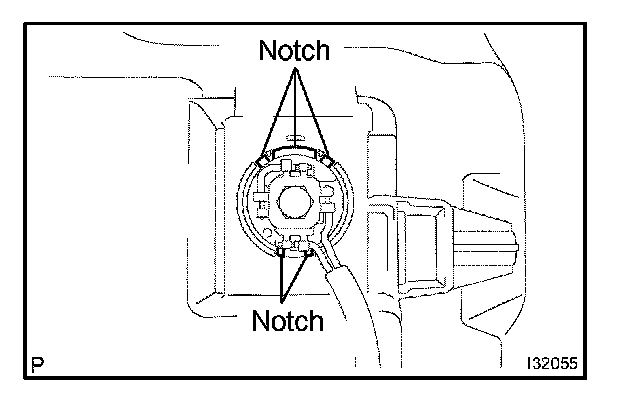

b. Turn the socket in the circumference direction as shown the illustration, disengage the claw between the socket and the power point socket cover, and push out the socket to the room side.




c. Align the socket with the notch on the power point socket cover, remove the power point socket assembly to the room side.

6. INSTALL POWER POINT SOCKET ASSEMBLY

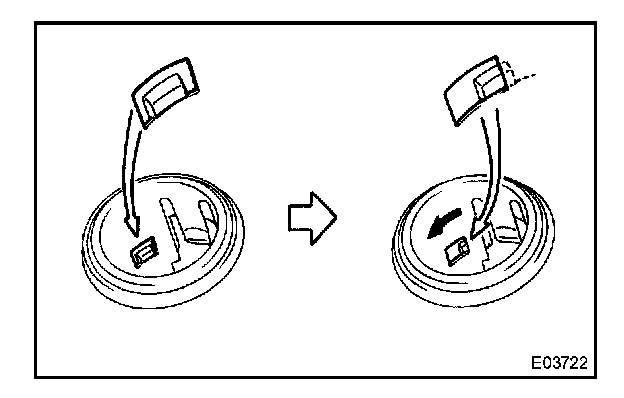

a. Align the socket with the notch on the power point socket cover, push the power point socket assembly into as hard as possible and install it.
