System Specifications

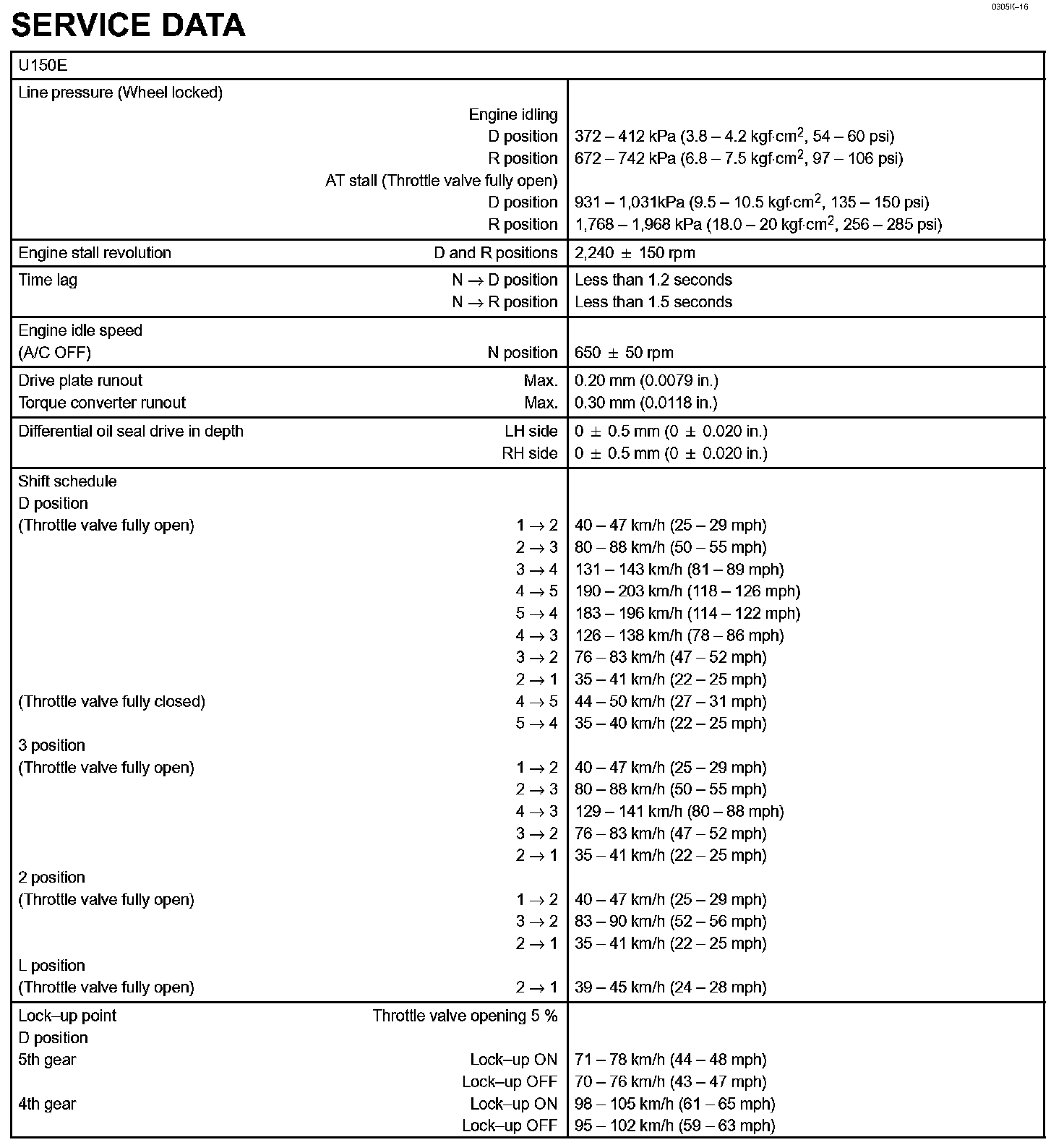

Automatic Transmission / Transaxle - Service Data:

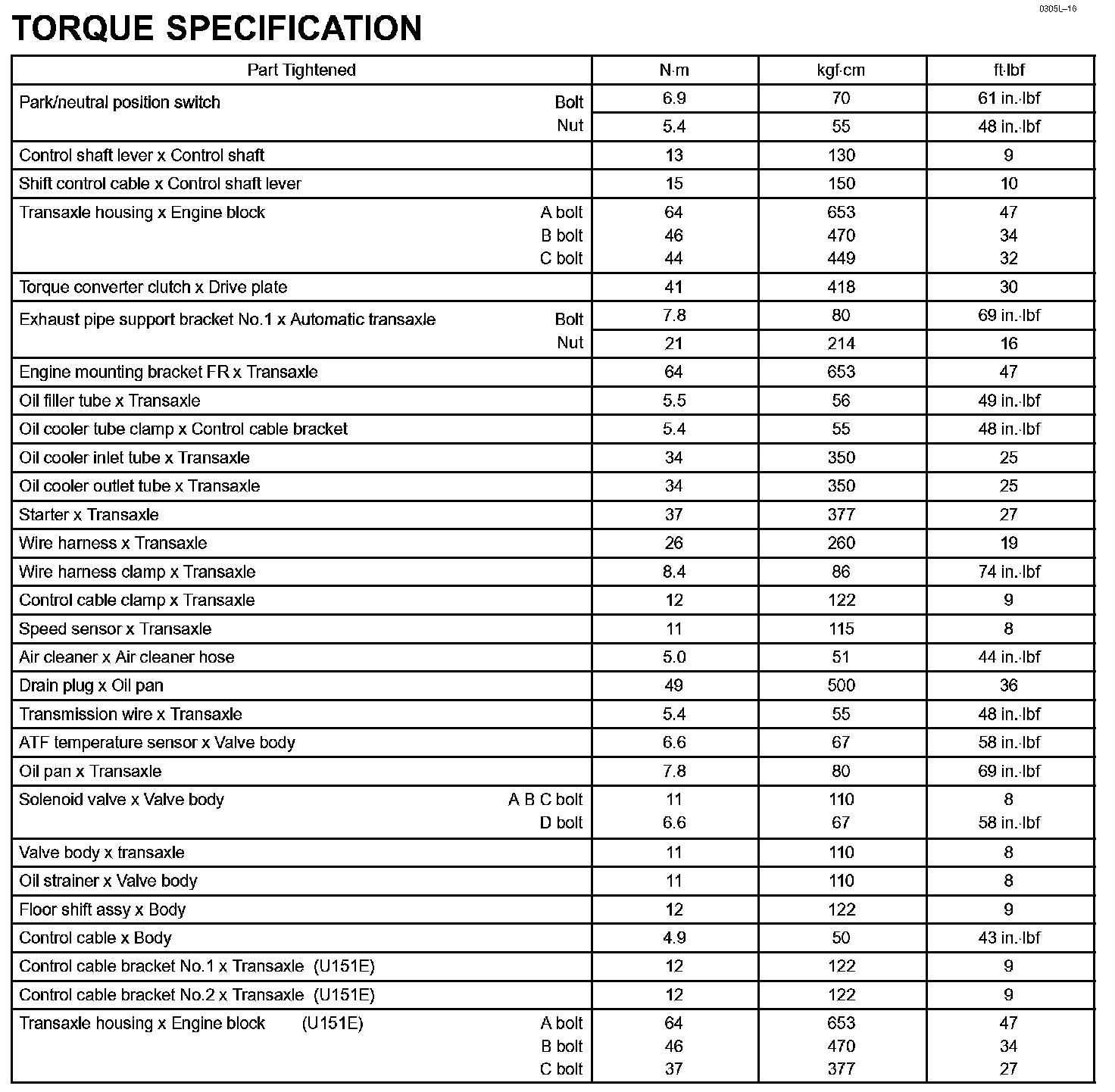

Automatic Transmission / Transaxle - Torque Specification:
