Wiper Switch: Service and Repair
WINDSHIELD WIPER SWITCH ASSEMBLYREPLACEMENT
1. REMOVE STEERING COLUMN COVER
2. REMOVE WINDSHIELD WIPER SWITCH ASSEMBLY
a. Disconnect the connector.

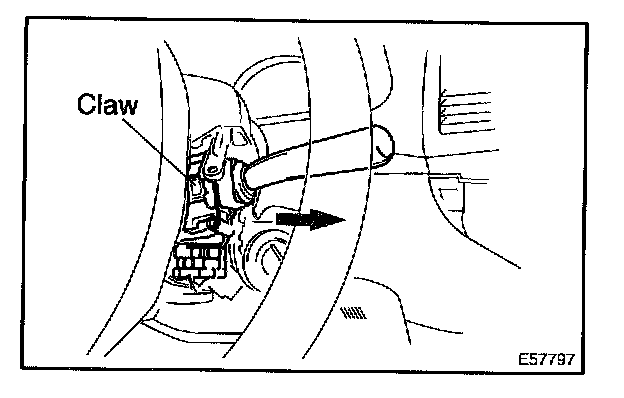

b. Using a screwdriver, release the claw and pull out the windshield wiper switch assembly.
NOTE: Pressing the claw hard breaks the claw.
HINT: Tape the screwdriver tip before use.
