Rear

REPLACEMENT
1. REMOVE REAR SEAT CUSHION ASSEMBLY
2. REMOVE REAR SEAT BACK ASSEMBLY
3. REMOVE ROOF SIDE GARNISH INNER RH

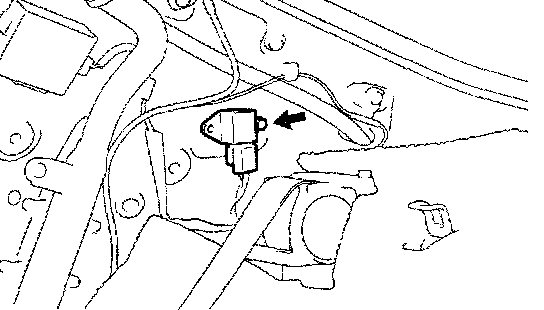

4. REMOVE ACCELERATION SENSOR
a. Disconnect the acceleration sensor connector.
b. Remove the bolt and acceleration sensor from the side pillar RH.
5. INSTALL ACCELERATION SENSOR
a. Install the acceleration sensor with the bolt.
Torque: 7.8 Nm (80 kgf-cm, 69 inch lbs.)
b. Connect the acceleration sensor connector.
