DTC Check/Clear
DTC CHECK/CLEARSUPPLEMENTAL RESTRAINT SYSTEM DTC CHECK (USING HAND-HELD TESTER)
a. Check the DTCs.

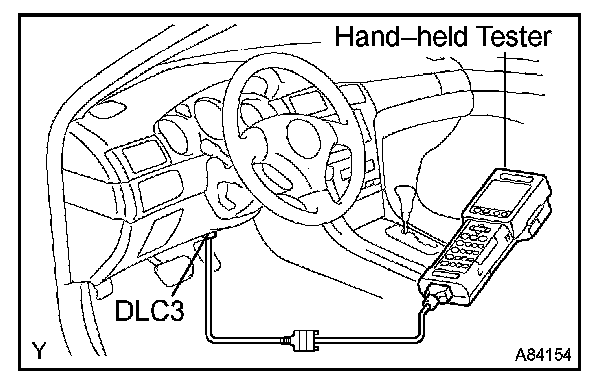

1. Connect the hand-held tester to the DLC3.
2. Turn the ignition switch to the ON position.
3. Check the DTCs by following the prompts on the tester screen.
HINT: Refer to the hand-held tester operator's manual for further details.
b. Clear the DTCs.
1. Connect the hand-held tester to the DLC3.
2. Turn the ignition switch to the ON position.
3. Clear the DTCs by following the prompts on the tester screen.
HINT: Refer to the hand-held tester operator's manual for further details.
OCCUPANT CLASSIFICATION SYSTEM DTC CHECK (USING HAND-HELD TESTER)
HINT:
- When DTC B1650/32 is detected as a result of troubleshooting for supplemental restraint system, perform troubleshooting for the passenger occupant classification system.
- Since the DTCs for the passenger occupant classification system can only be output by the hand-held tester, use the hand-held tester to output the DTCs.
a. Check the DTCs.
1. Connect the hand-held tester to the DLC3.
2. Turn the ignition switch to the ON position.
3. Check the DTCs by following the prompts on the tester screen.
HINT: Refer to the hand-held tester operator's manual for further details.
b. Clear the DTCs.
1. Connect the hand-held tester to the DLC3.
2. Turn the ignition switch to the ON position.
3. Clear the DTCs by following the prompts on the tester screen.
HINT: Refer to the hand-held tester operator's manual for further details.
