Curtain Shield Airbag Assembly LH Replacement

Curtain Shield Air Bag Assy LH:

REPLACEMENT

HINT:
- Replacement procedure of the RH side is the same as that for the LH side.
- Installation is in the reverse order of removal.

1. PRECAUTION
Refer to Air Bag Systems; Service Precautions.
2. DISCONNECT BATTERY NEGATIVE TERMINAL
3. REMOVE ROOF HEADLINING ASSEMBLY
4. REMOVE CURTAIN SHIELD AIR BAG ASSEMBLY LH
a. Disconnect the connector from the curtain shield airbag assembly LH.

NOTE: When handling the airbag connector, take care not to damage the airbag wire harness.

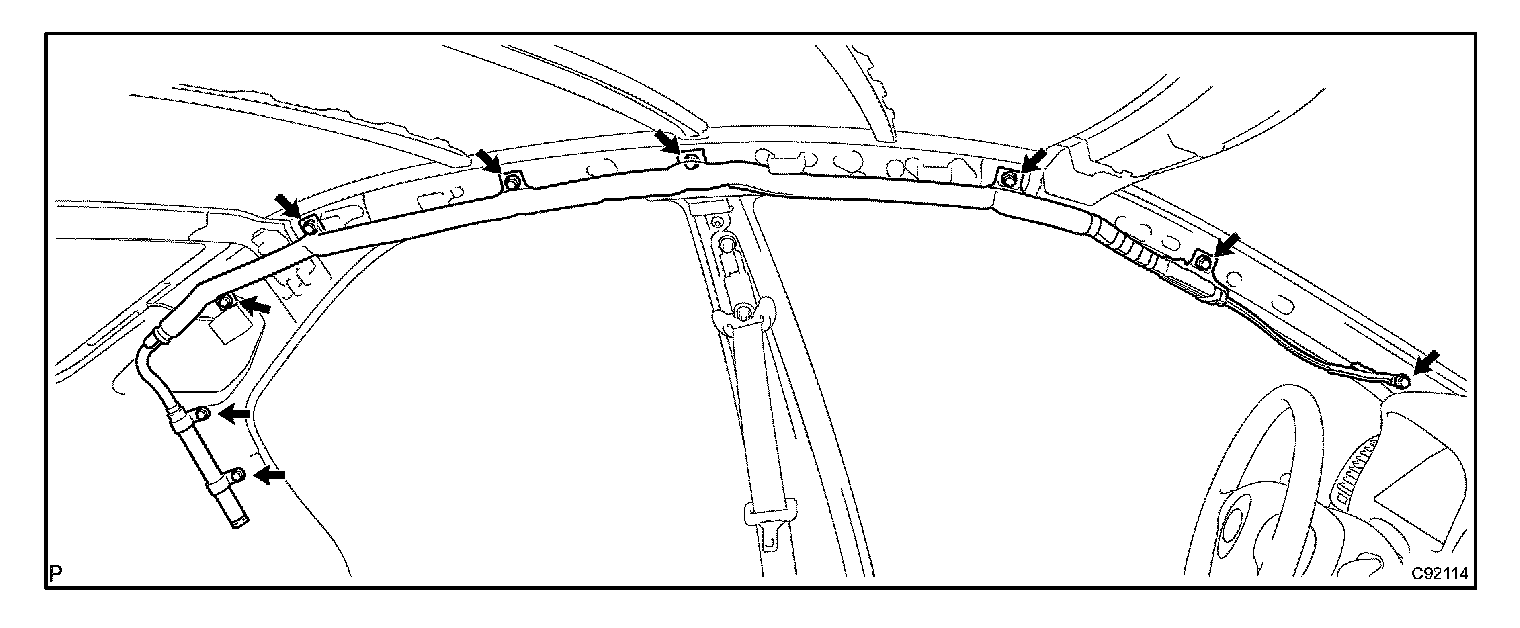

b. Remove the 9 bolts and curtain shield airbag assembly LH.

HINT: Remove the bolts from front side of the vehicle in order.

5. INSTALL CURTAIN SHIELD AIR BAG ASSEMBLY LH
a. Install the curtain shield airbag assembly LH with the 9 bolts.

Torque: 14 N.m (143 kgf.cm, 10 ft.lbf)

HINT: Install the bolts from rear side of the vehicle in order.

b. Connect the connector to the curtain shield airbag assembly LH.

NOTE: When handling the airbag connector, take care not to damage the airbag wire harness.

6. INSPECT CURTAIN SHIELD AIR BAG ASSEMBLY LH
7. INSTALL ROOF HEADLINING ASSEMBLY
8. CONNECT BATTERY NEGATIVE TERMINAL
9. INSPECT SRS WARNING LIGHT
