Intake Air Control Valve Assy No.3

REPLACEMENT

1. DISCONNECT ENGINE WIRE NO. 3 (BATTERY NEGATIVE TERMINAL)
2. REMOVE RADIATOR LOWER AIR DEFLECTOR
3. REMOVE AIR CLEANER INLET ASSY

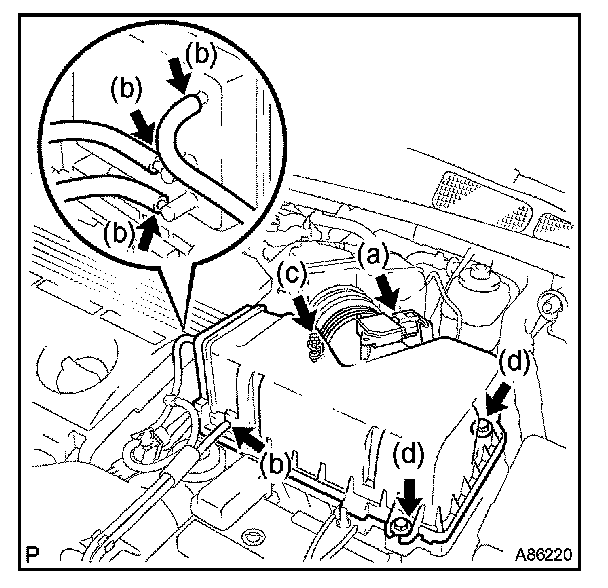

4. REMOVE AIR CLEANER CAP SUB-ASSY




a. Disconnect the mass air flow meter connector.
b. Disconnect the 4 vacuum hoses.
c. Loosen the hose clamp bolt.
d. Loosen the 2 bolts, then remove the air cleaner cap.
e. Remove the air cleaner filter element.

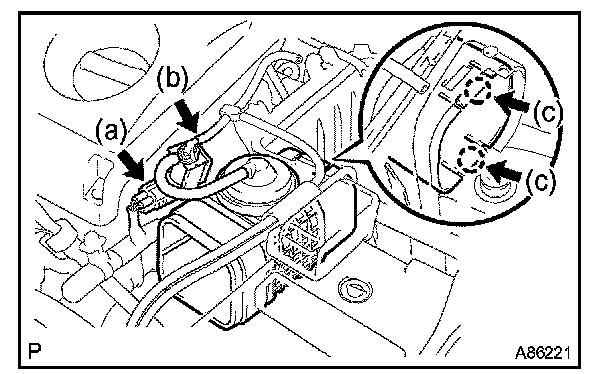

5. REMOVE INTAKE AIR CONTROL VALVE ASSY NO.3




a. Disconnect the VSV connector.
b. Disconnect the vacuum hose.
c. Unfasten the 2 claws, then remove the intake air control valve No. 3.

6. INSTALL INTAKE AIR CONTROL VALVE ASSY NO.3
7. INSTALL AIR CLEANER CAP SUB-ASSY

Torque: 5.0 N.m (51 kgf.cm, 44 in..lbf)

8. INSTALL AIR CLEANER INLET ASSY
9. CHECK CONNECTION OF VACUUM HOSE
10. INSTALL RADIATOR LOWER AIR DEFLECTOR
11. CONNECT ENGINE WIRE NO. 3 (BATTERY NEGATIVE TERMINAL)

Torque: 5.4 N.m (55 kgf.cm, 48 in..lbf)

12. SYSTEM INITIALIZATION
