Check CAN Bus Line (CAN-L) For Short to GND

CHECK CAN BUS LINE (CAN-L) FOR SHORT TO GND

CIRCUIT DESCRIPTION

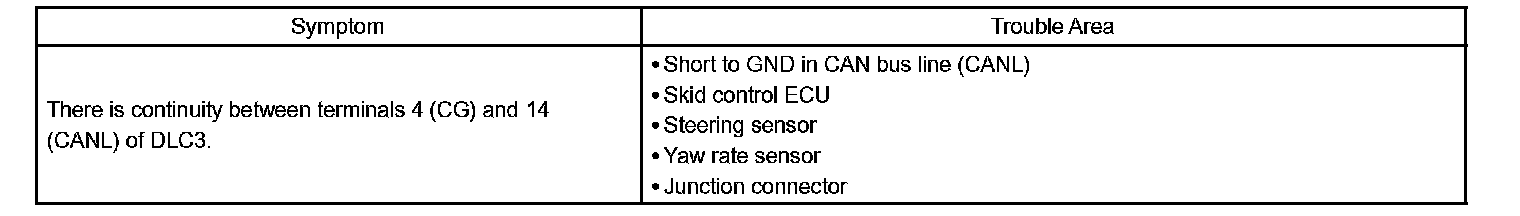

A short to GND is suspected in the CAN bus line when there is continuity between terminals 4 (CG) and 14 (CANL) of the DLC3.

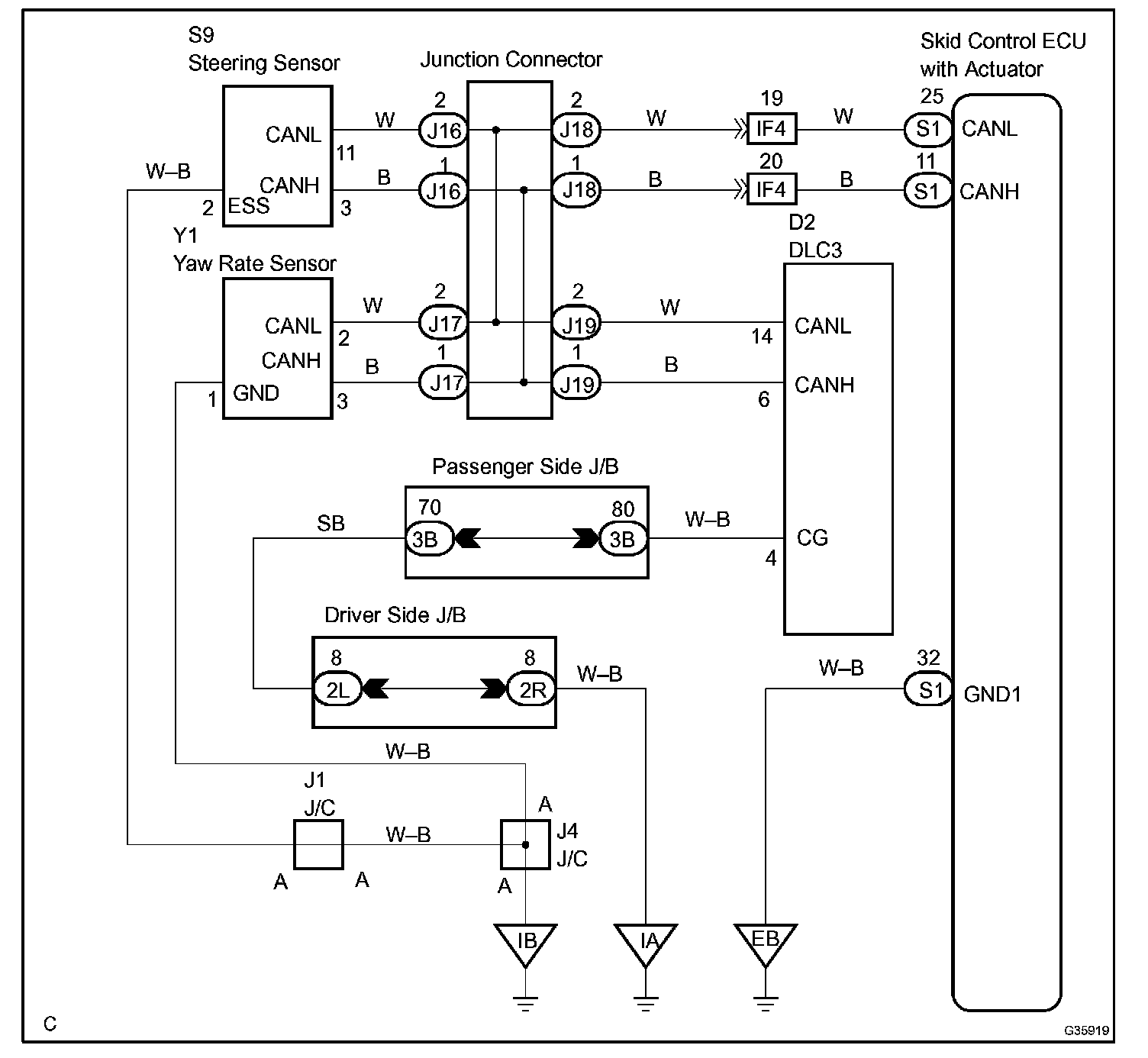

Wiring Diagram:

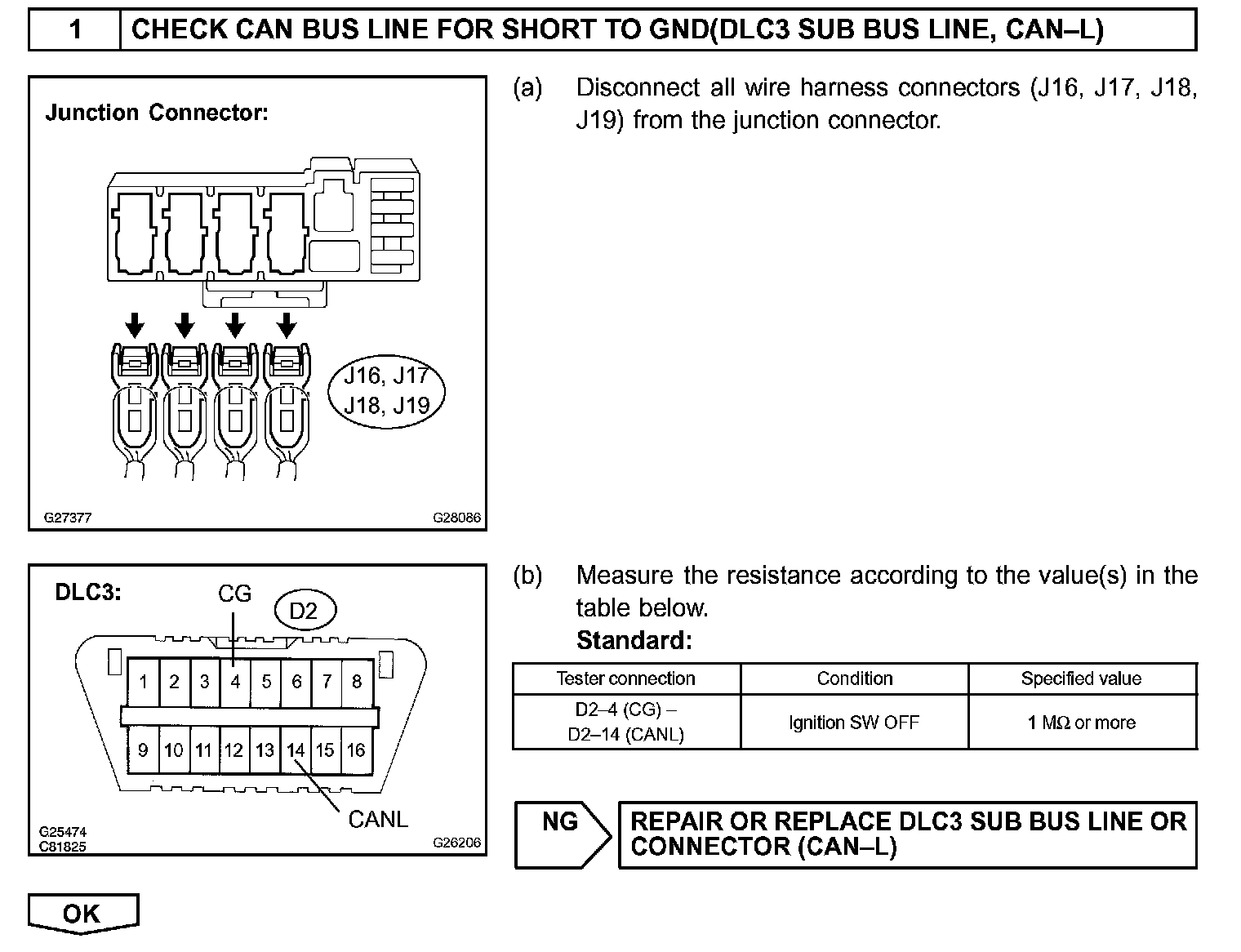

Step 1:

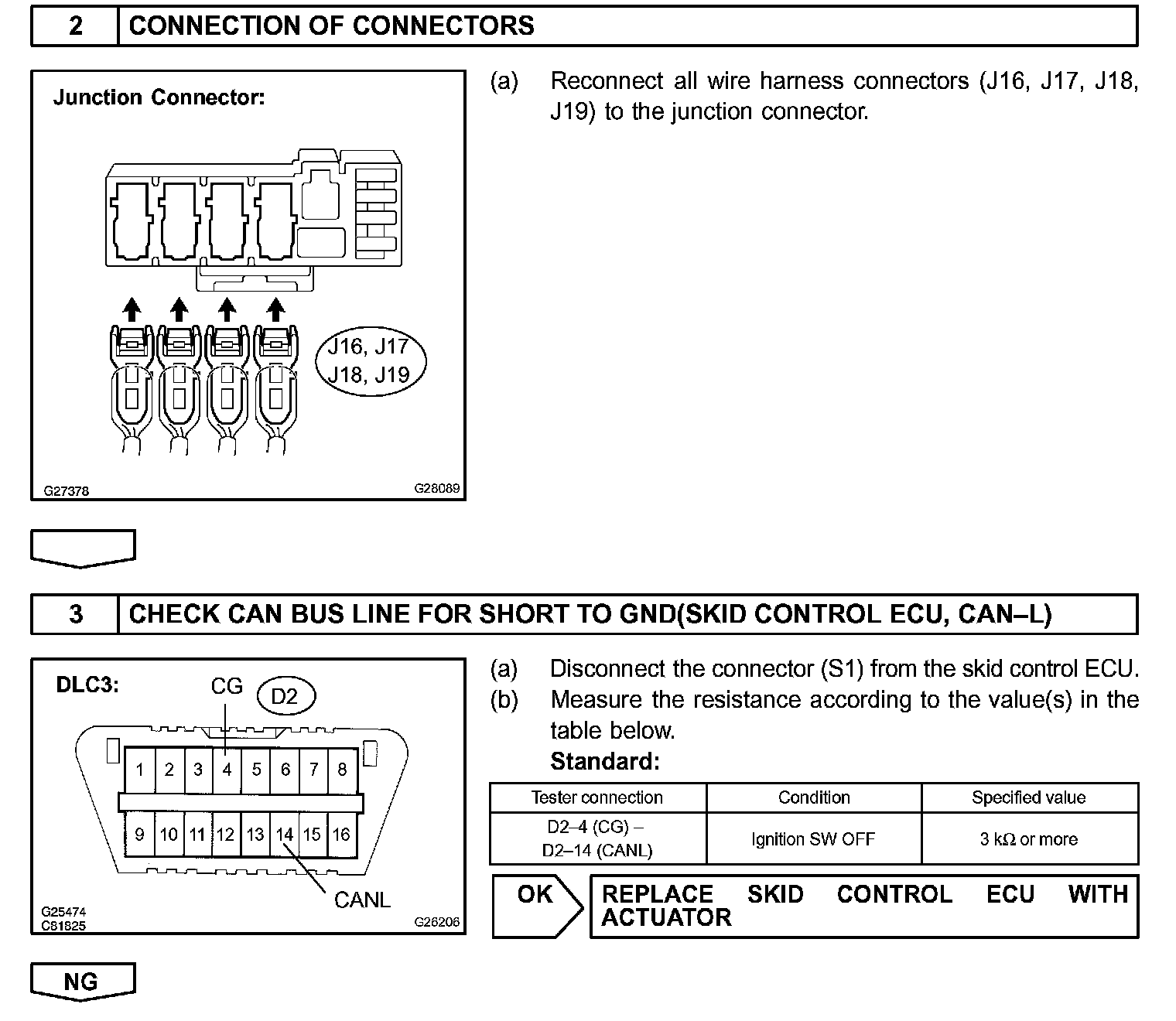

Step 2 - 3:

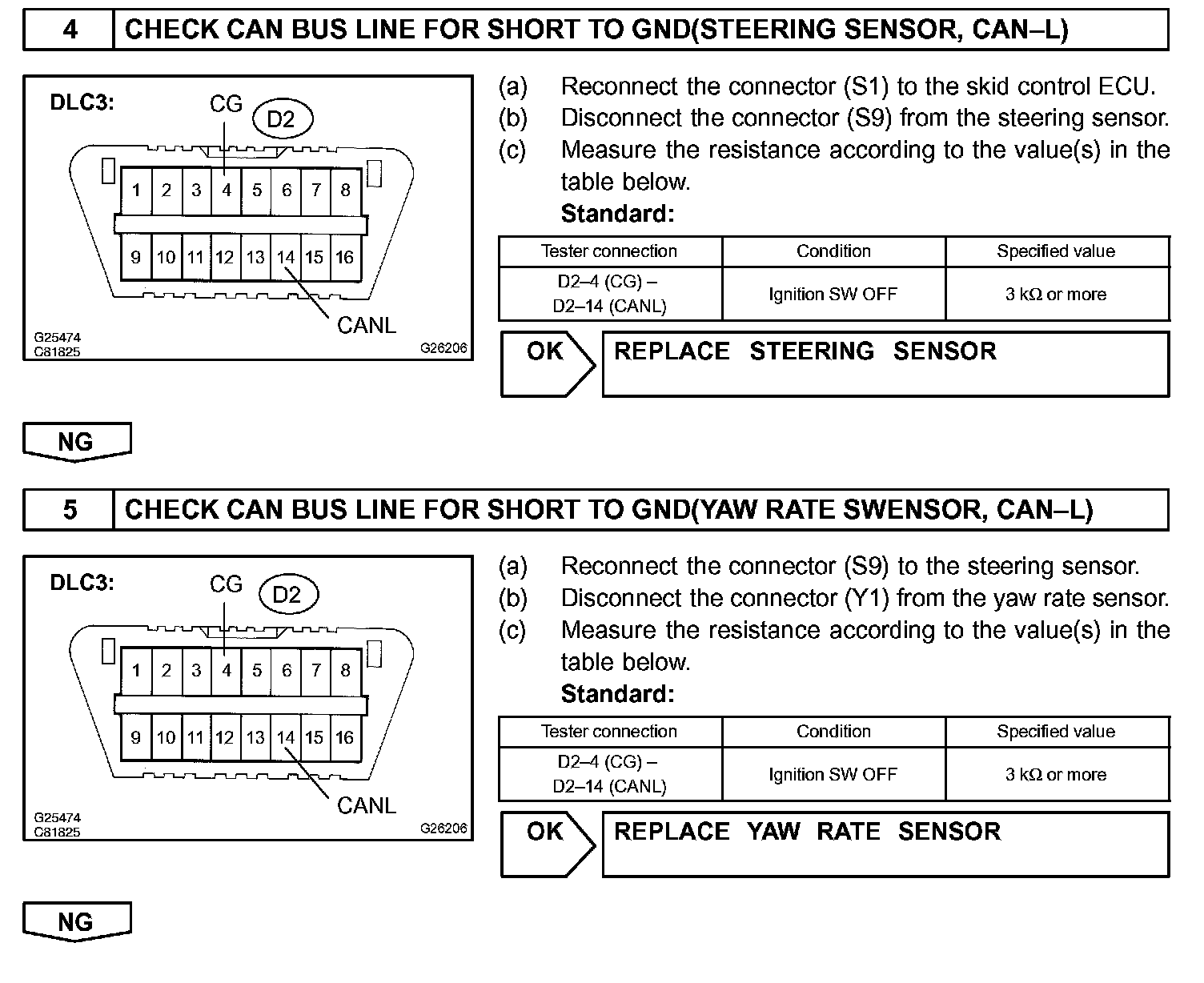

Step 4 - 5:

Step 6:

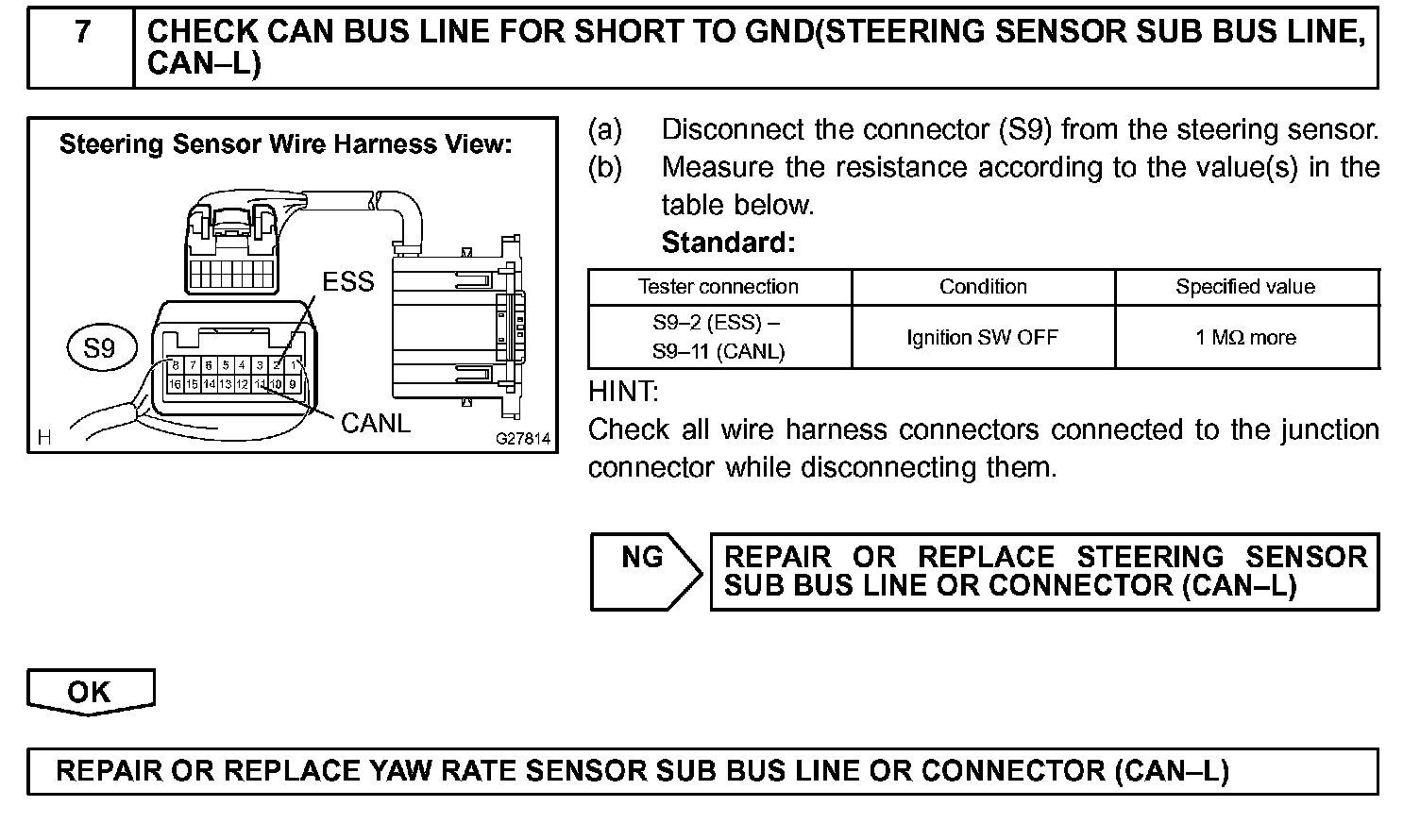

Step 7:

INSPECTION PROCEDURE
