Check CAN Bus Line (CAN-L) For Short to +B

CHECK CAN BUS LINE (CAN-L) FOR SHORT TO +B

CIRCUIT DESCRIPTION

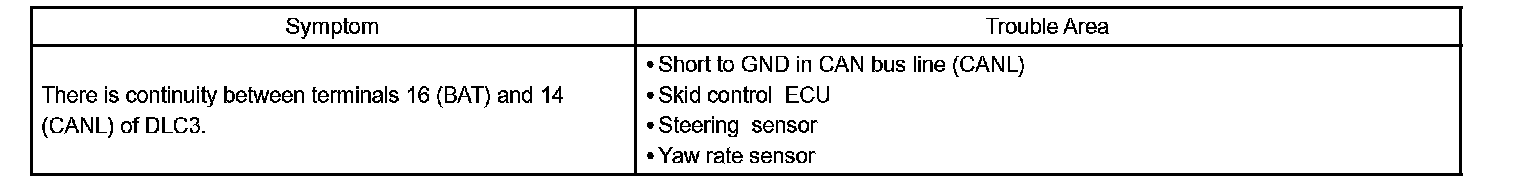

A short to the +B is suspected in the CAN bus line when there is continuity between terminals 16 (BAT) and 14 (CANL) of the DLC3.

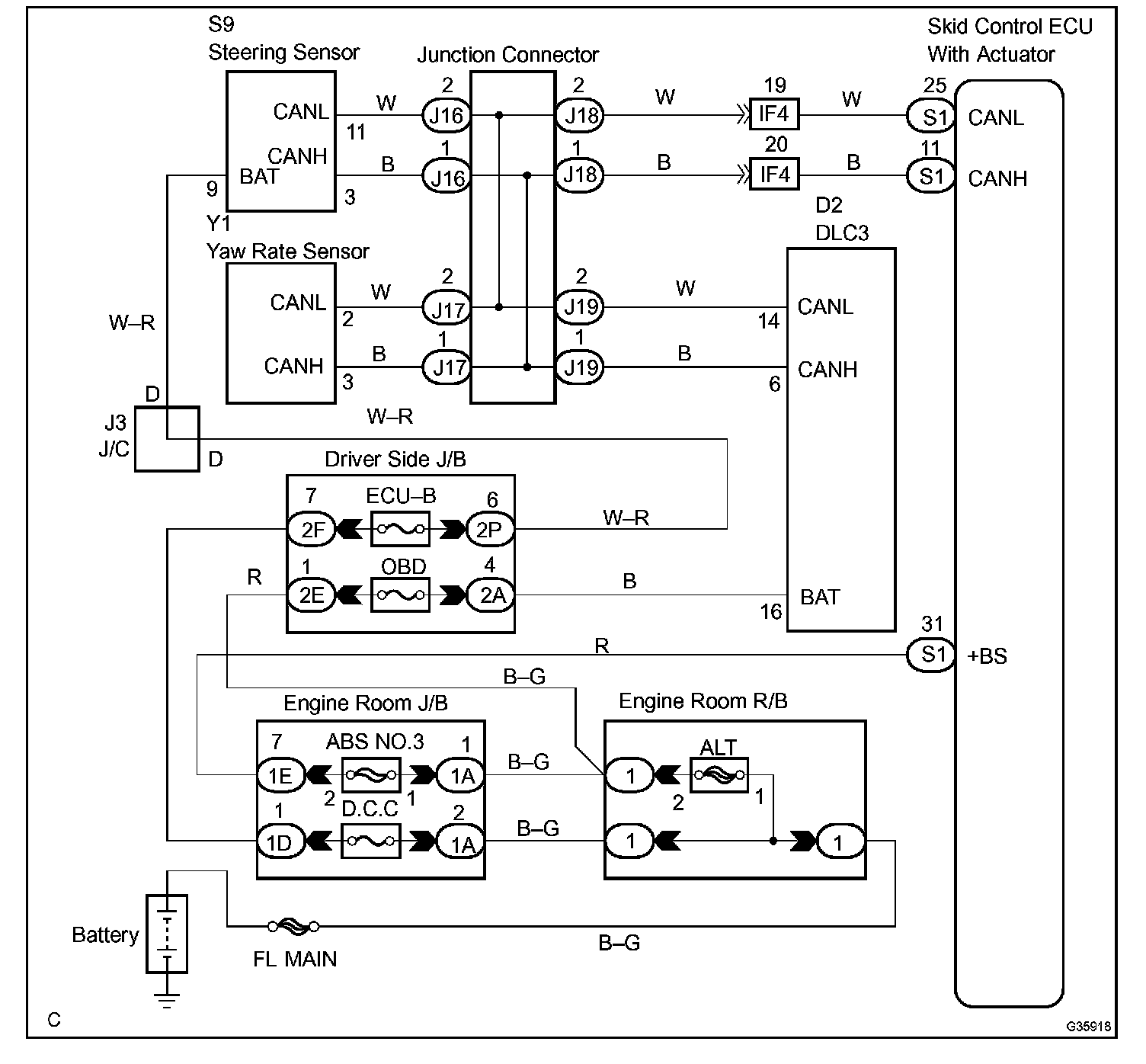

Wiring Diagram:

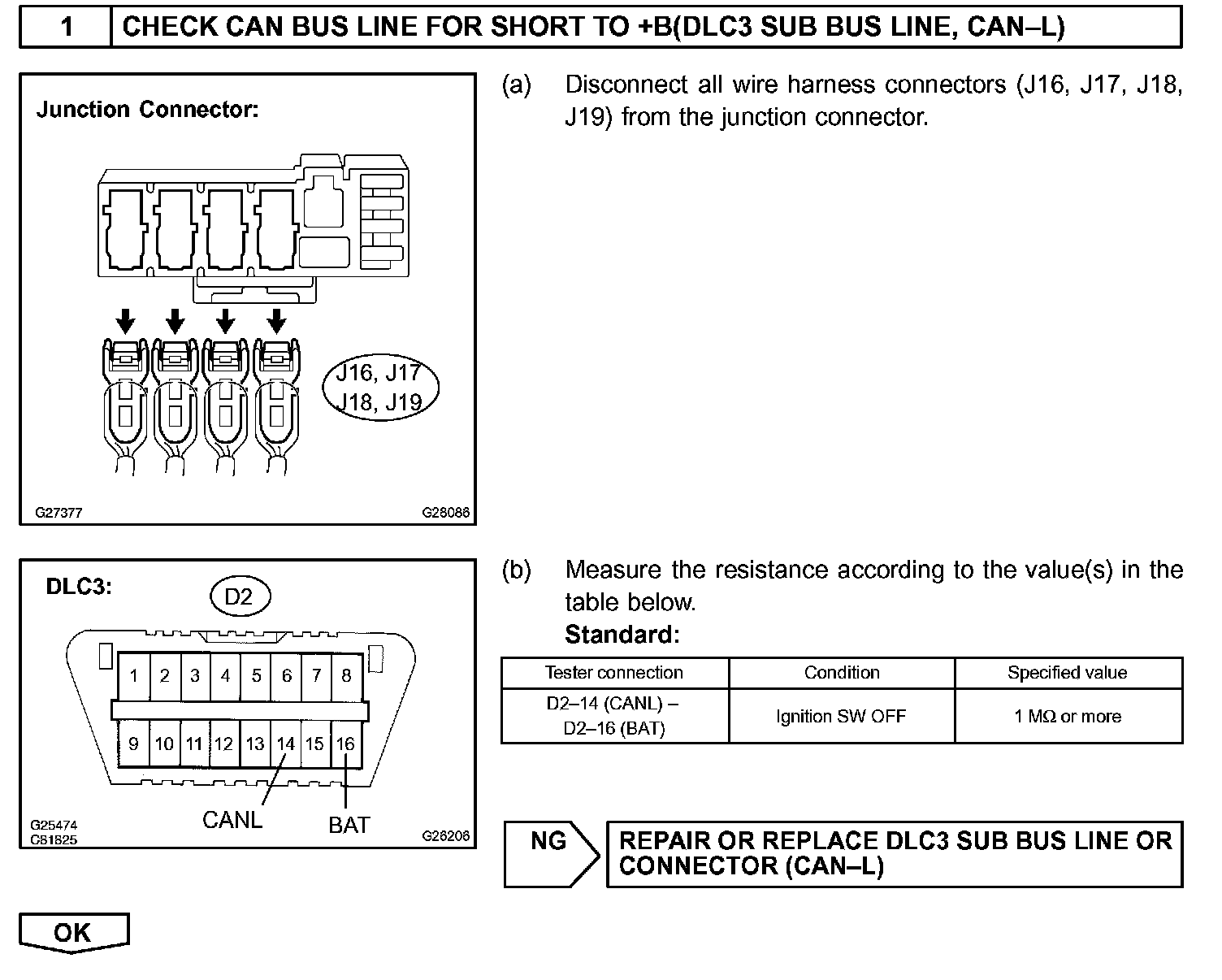

Step 1:

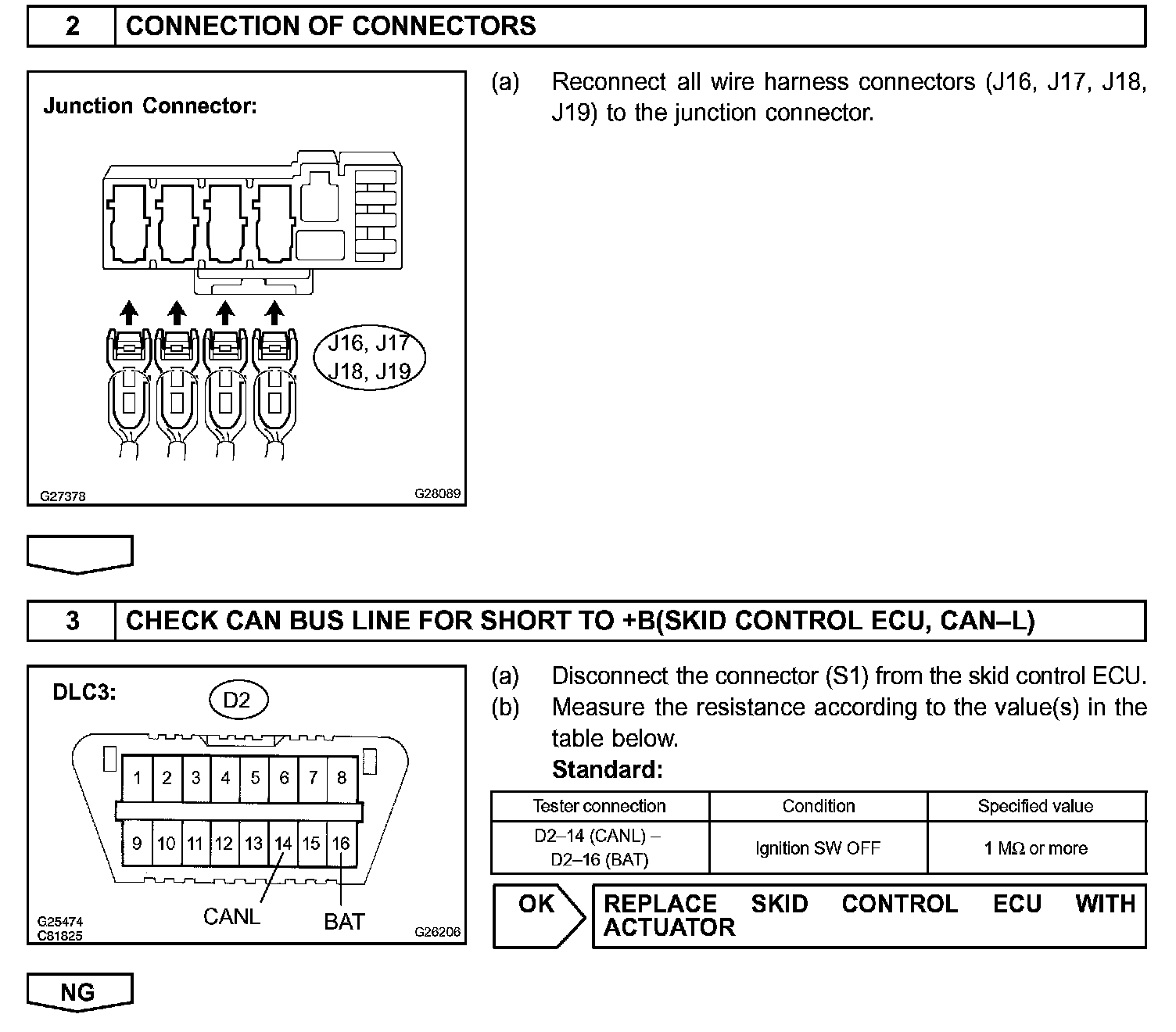

Step 2 - 3:

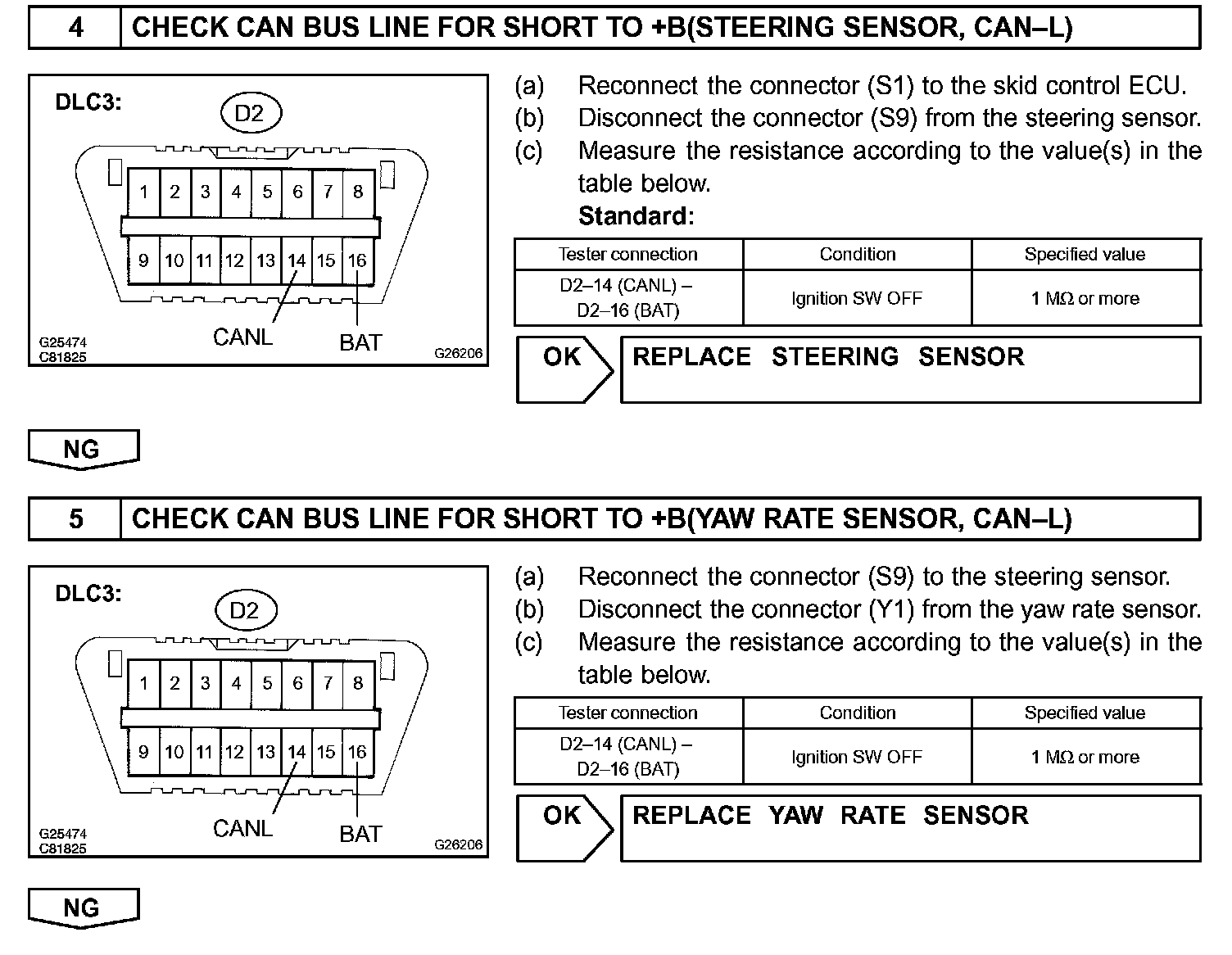

Step 4 - 5:

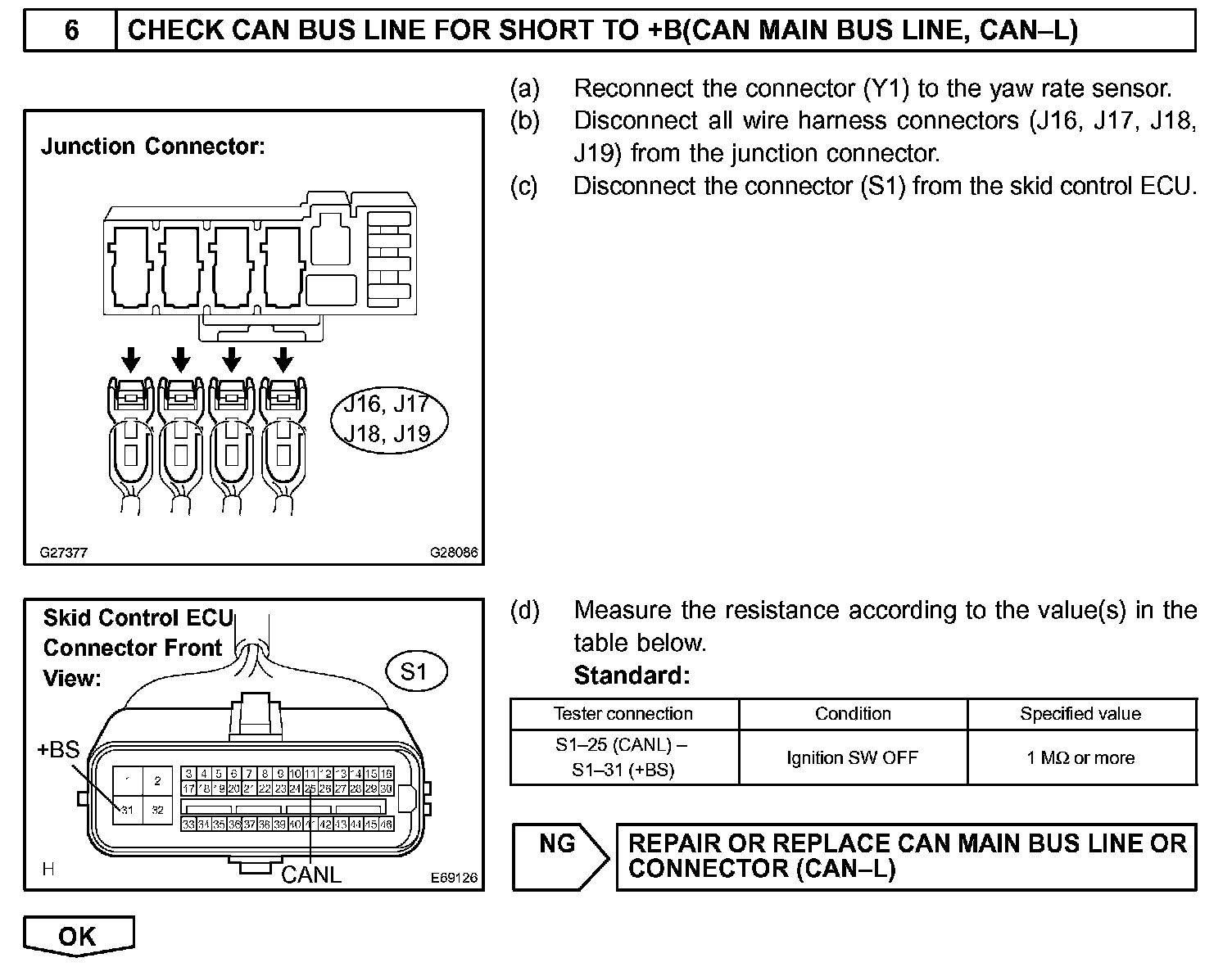

Step 6:

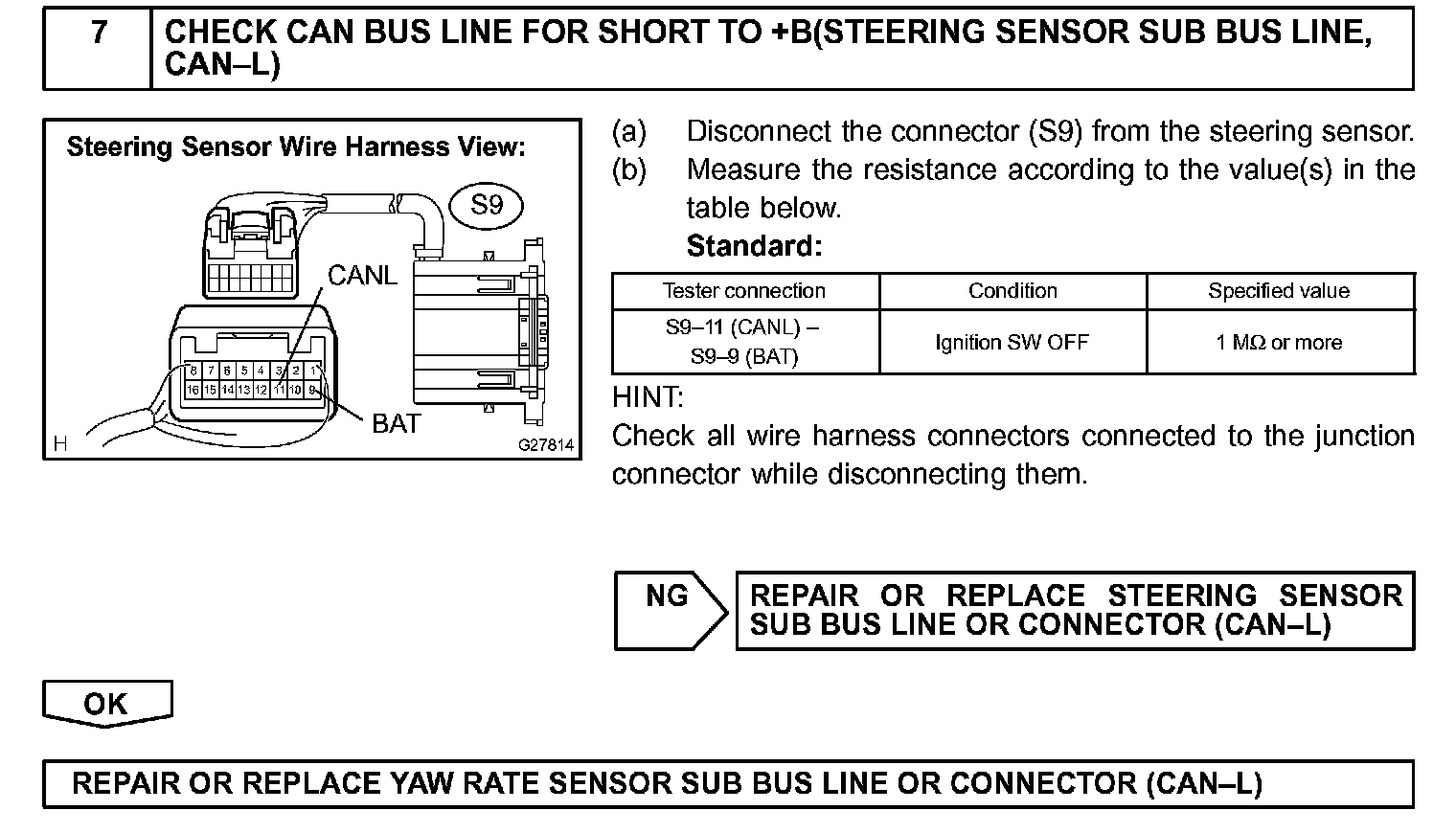

Step 7:

INSPECTION PROCEDURE
