Check CAN Bus Line (CAN-H) For Short to GND

CHECK CAN BUS LINE (CAN-H) FOR SHORT TO GND

CIRCUIT DESCRIPTION

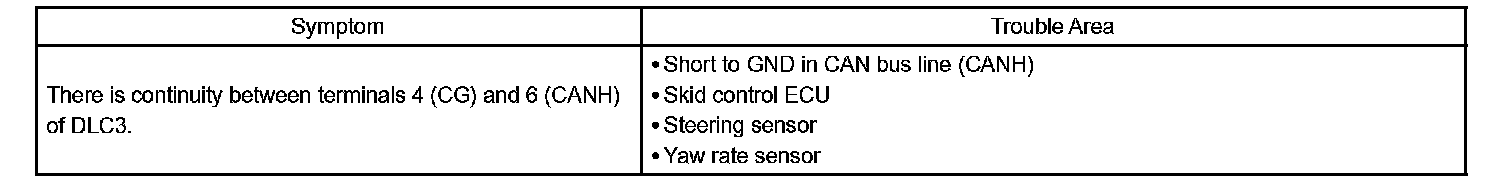

A short to GND is suspected in the CAN bus line when there is continuity between terminals 4 (CG) and 6 (CANH) of the DLC3.

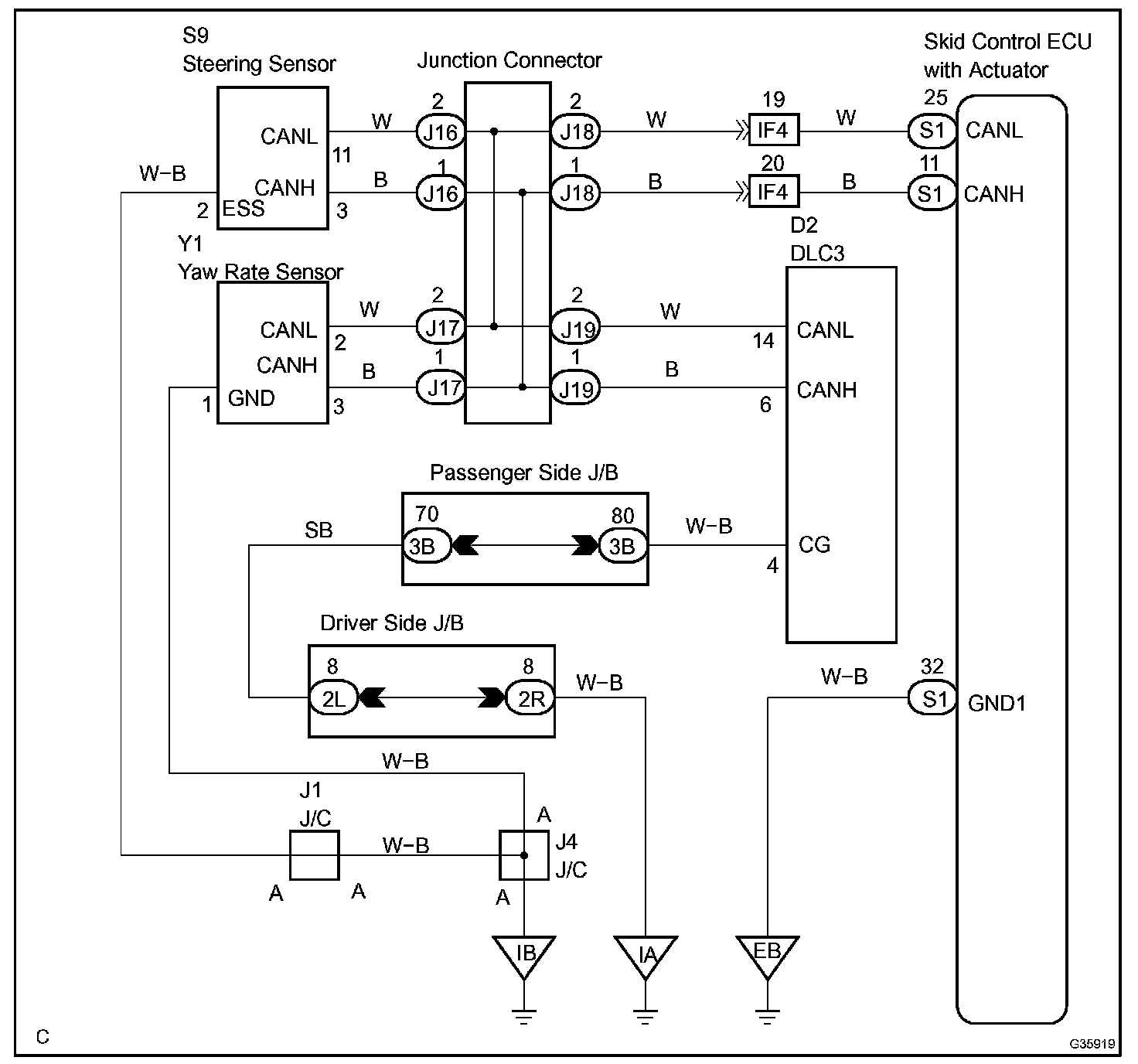

Wiring Diagram:

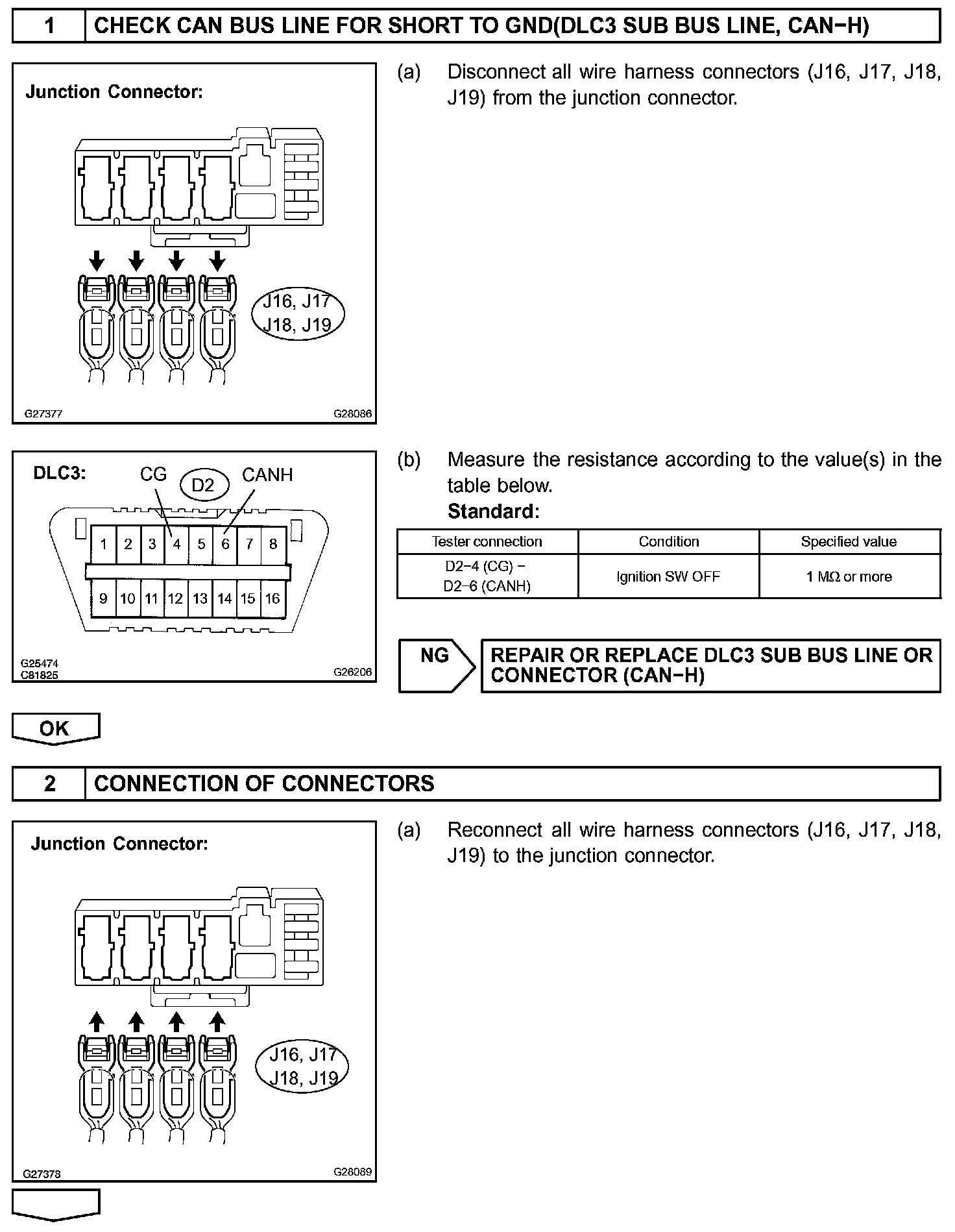

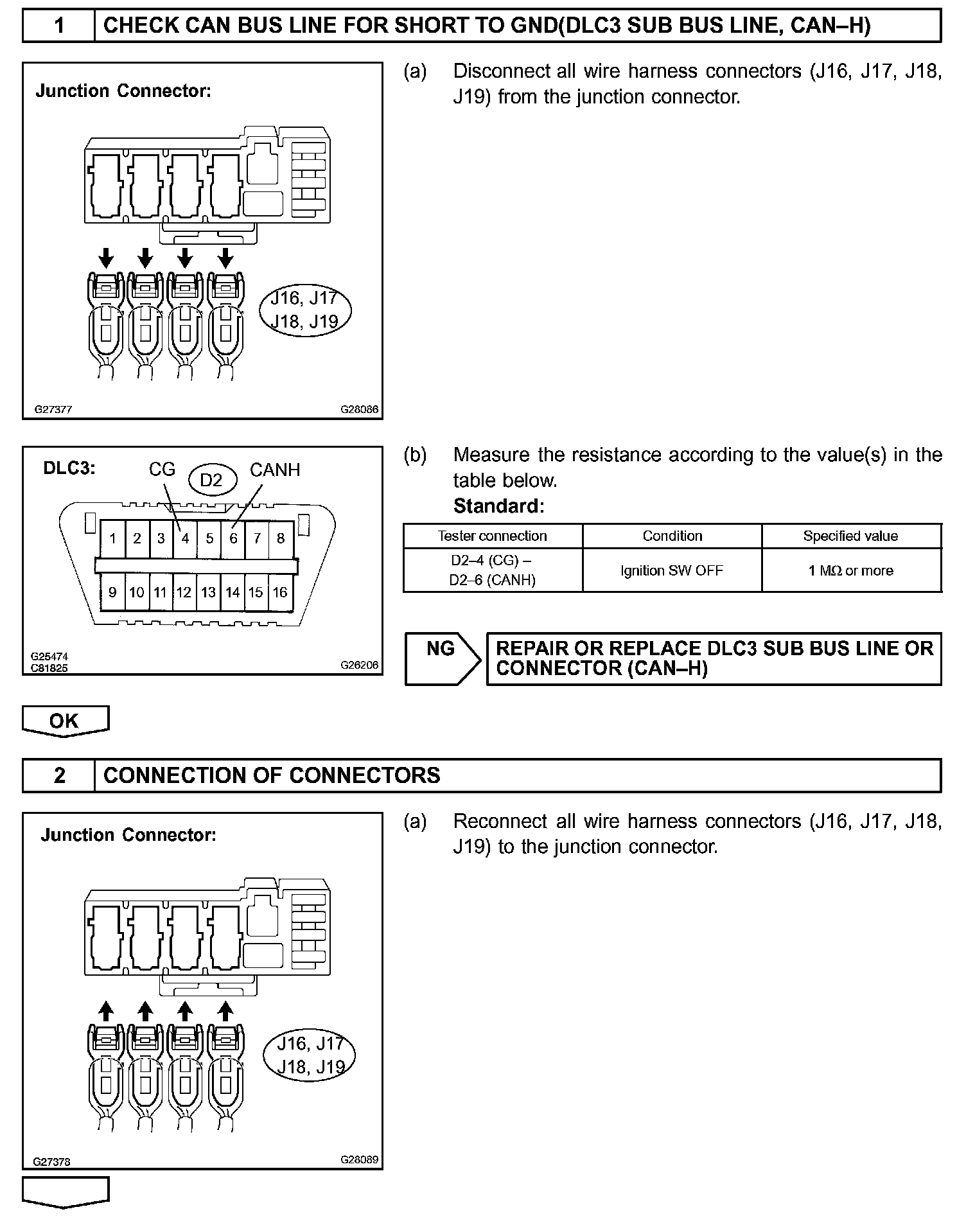

Step 1 - 2:

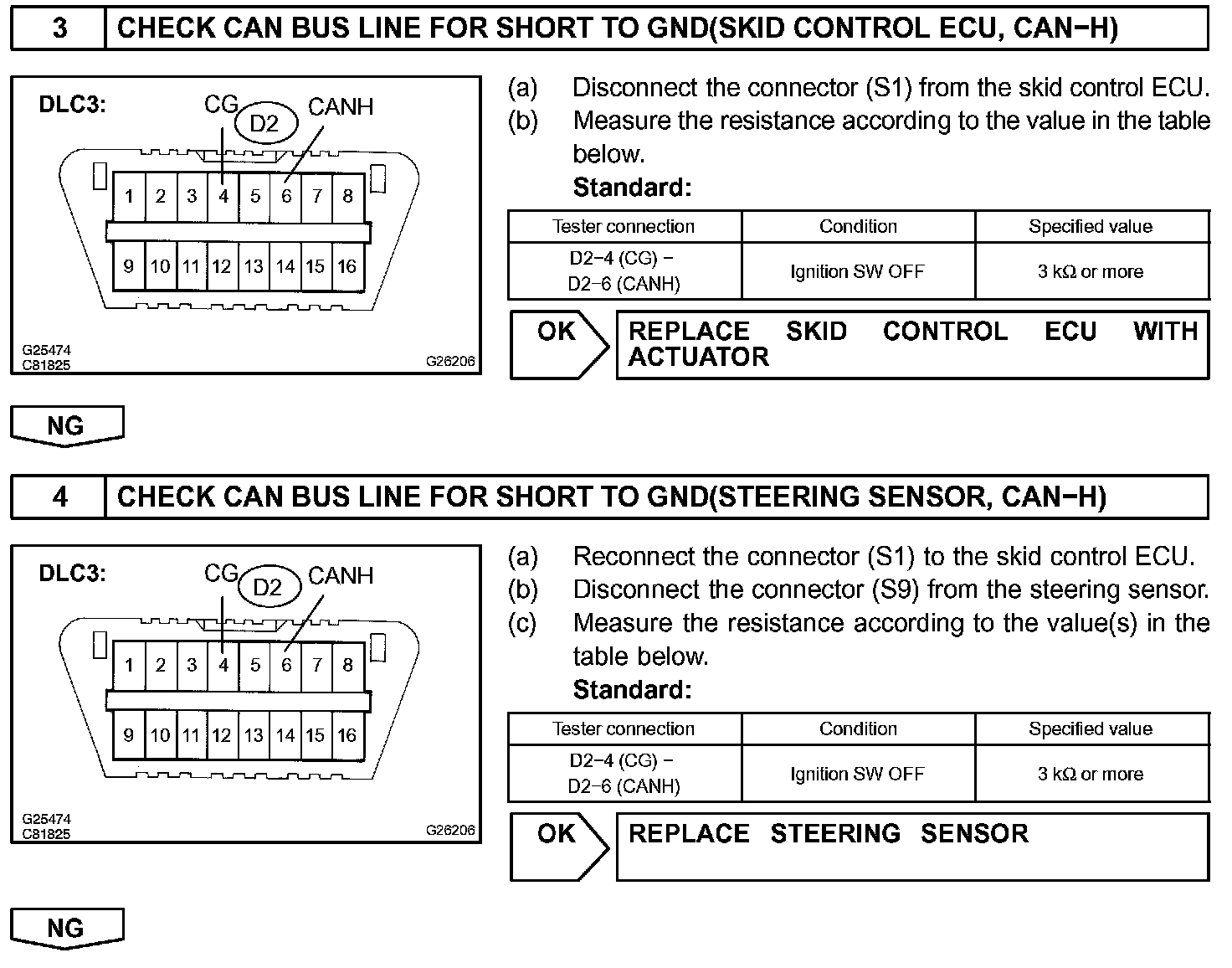

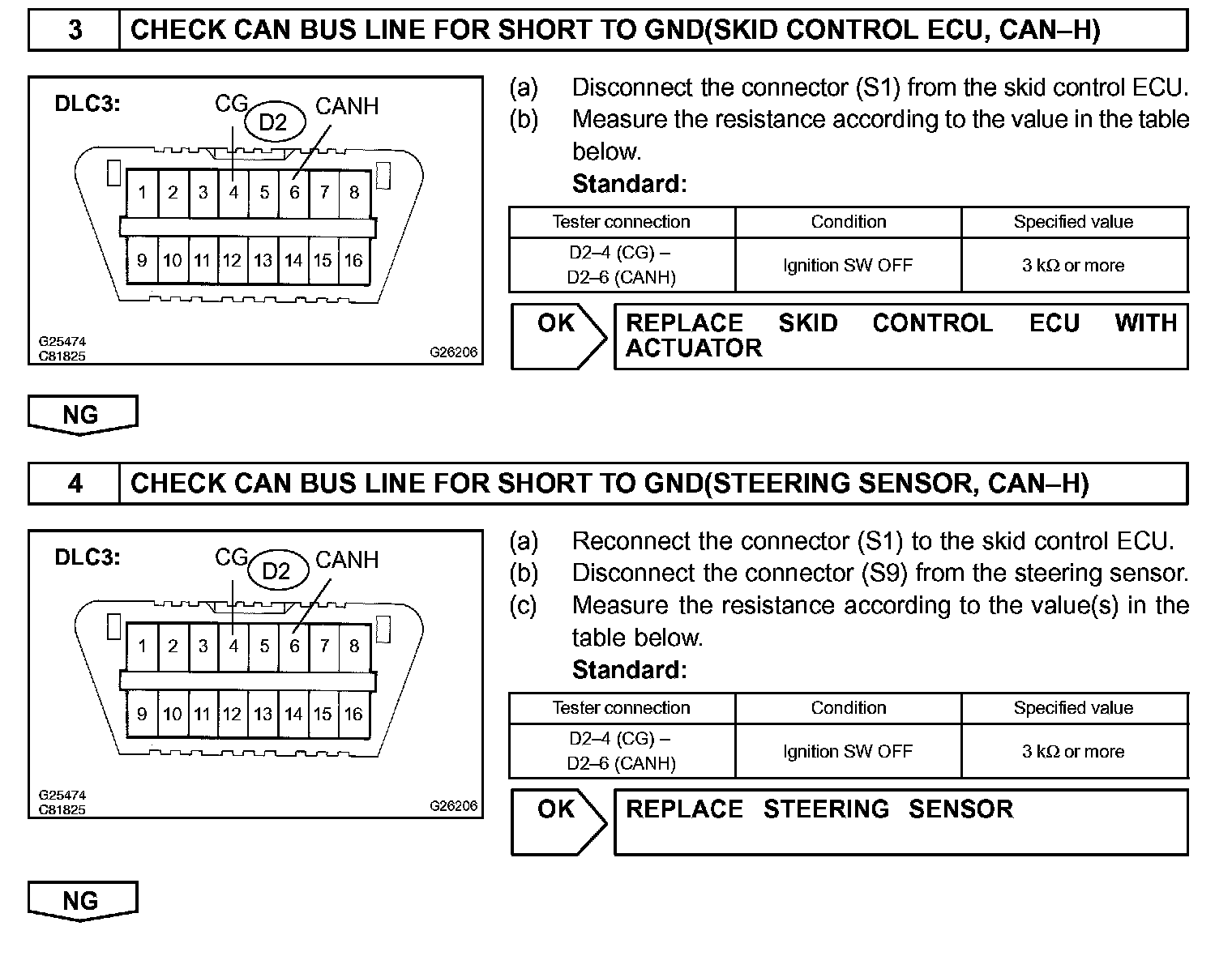

Step 3 - 4:

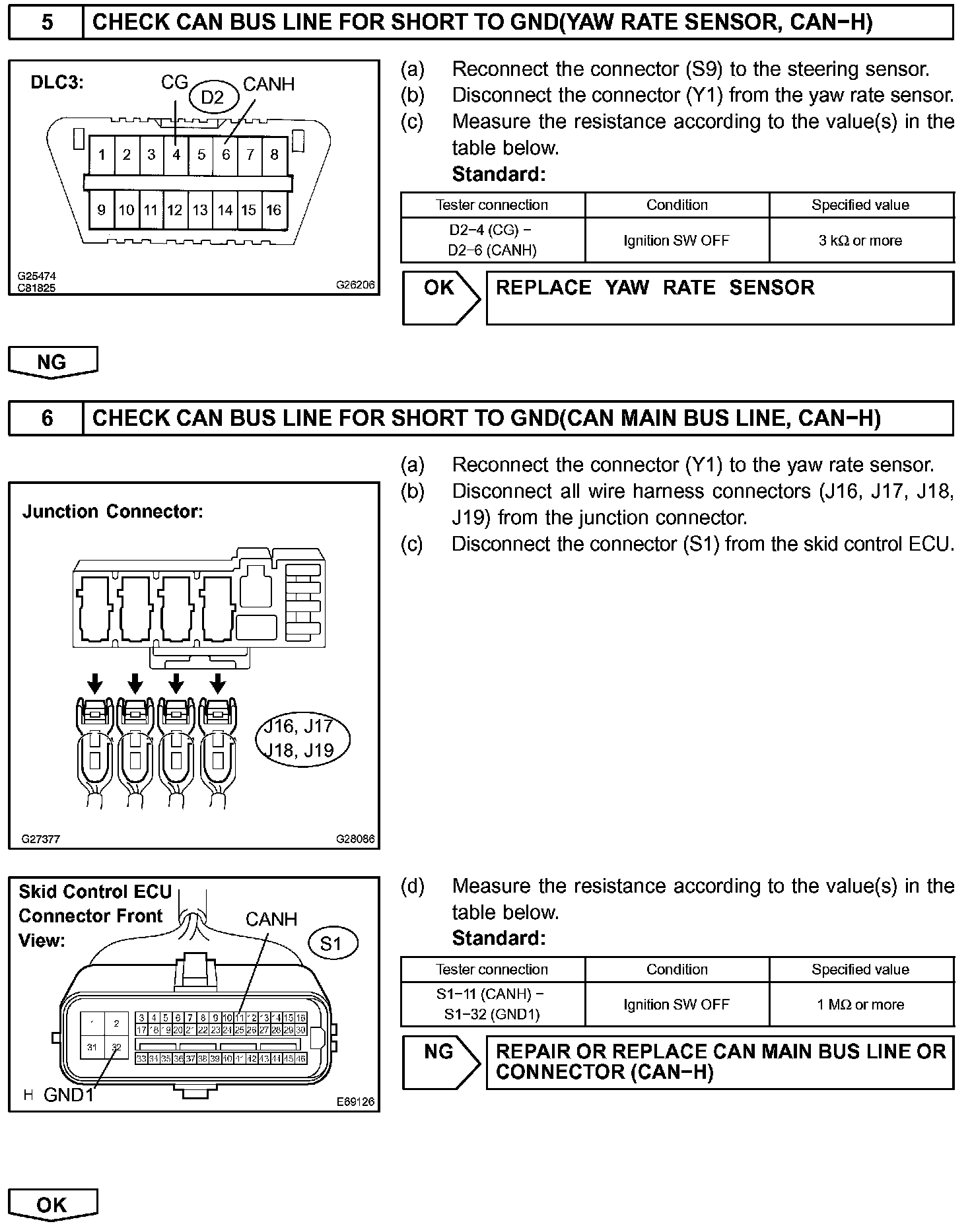

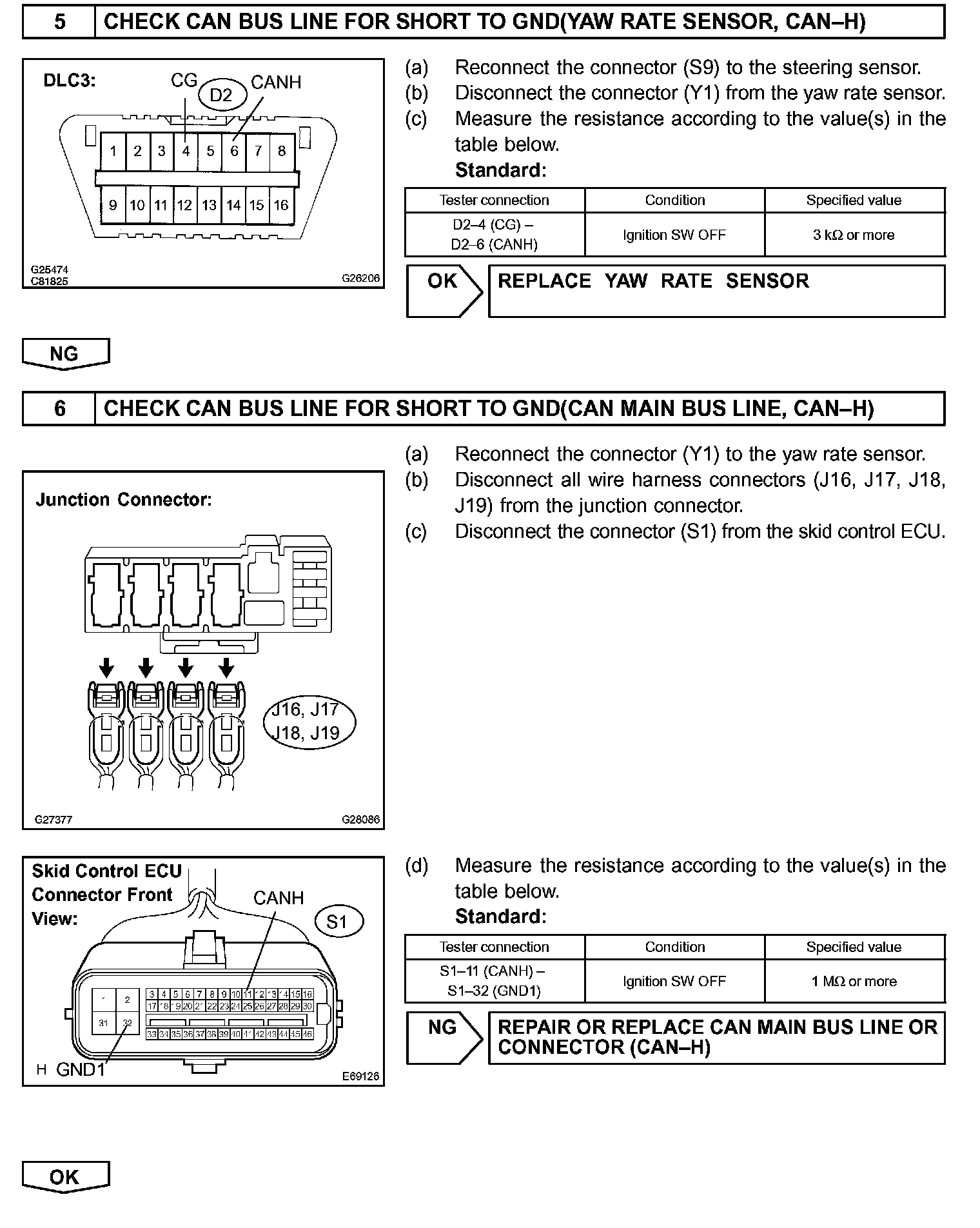

Step 5 - 6:

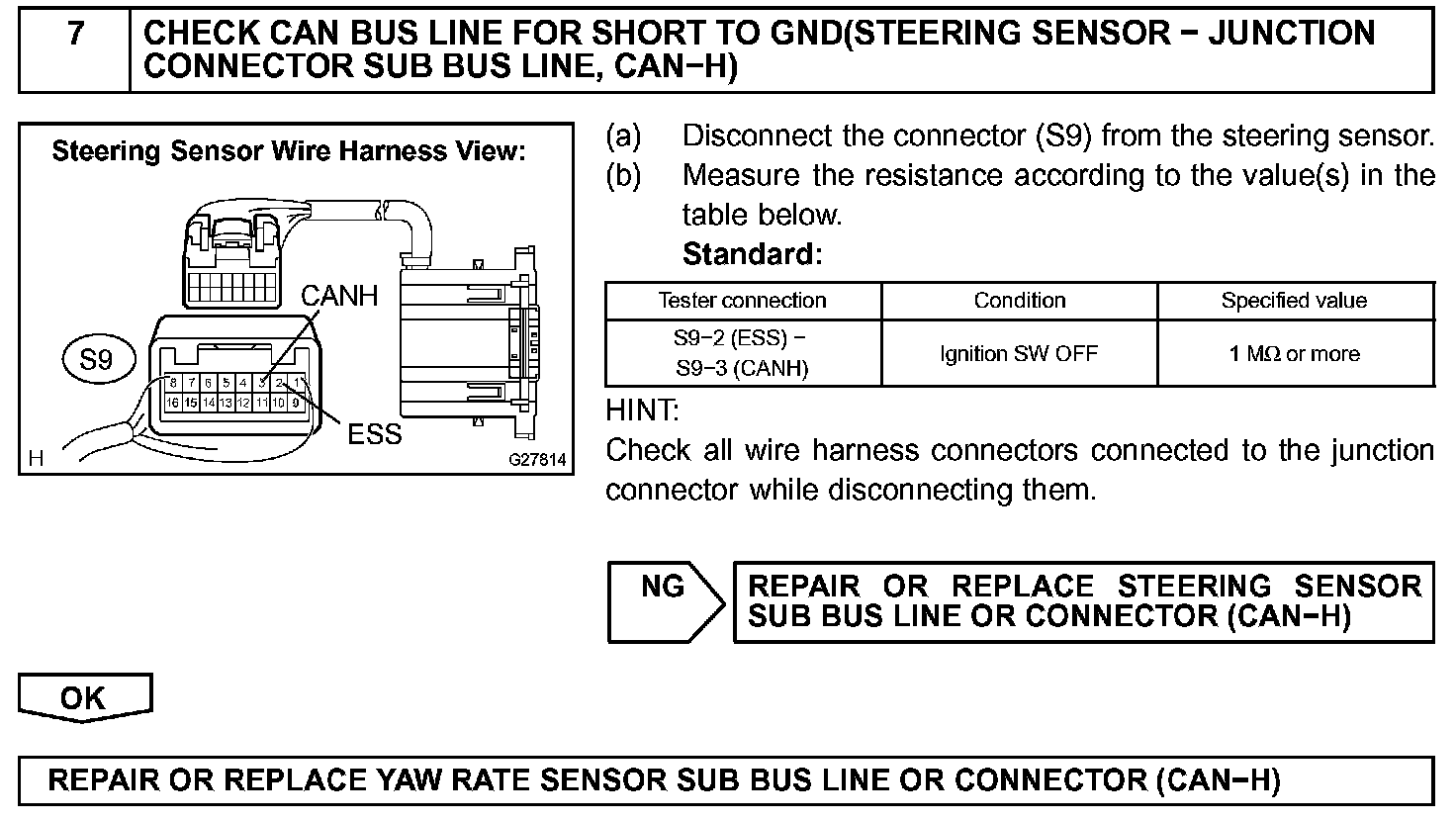

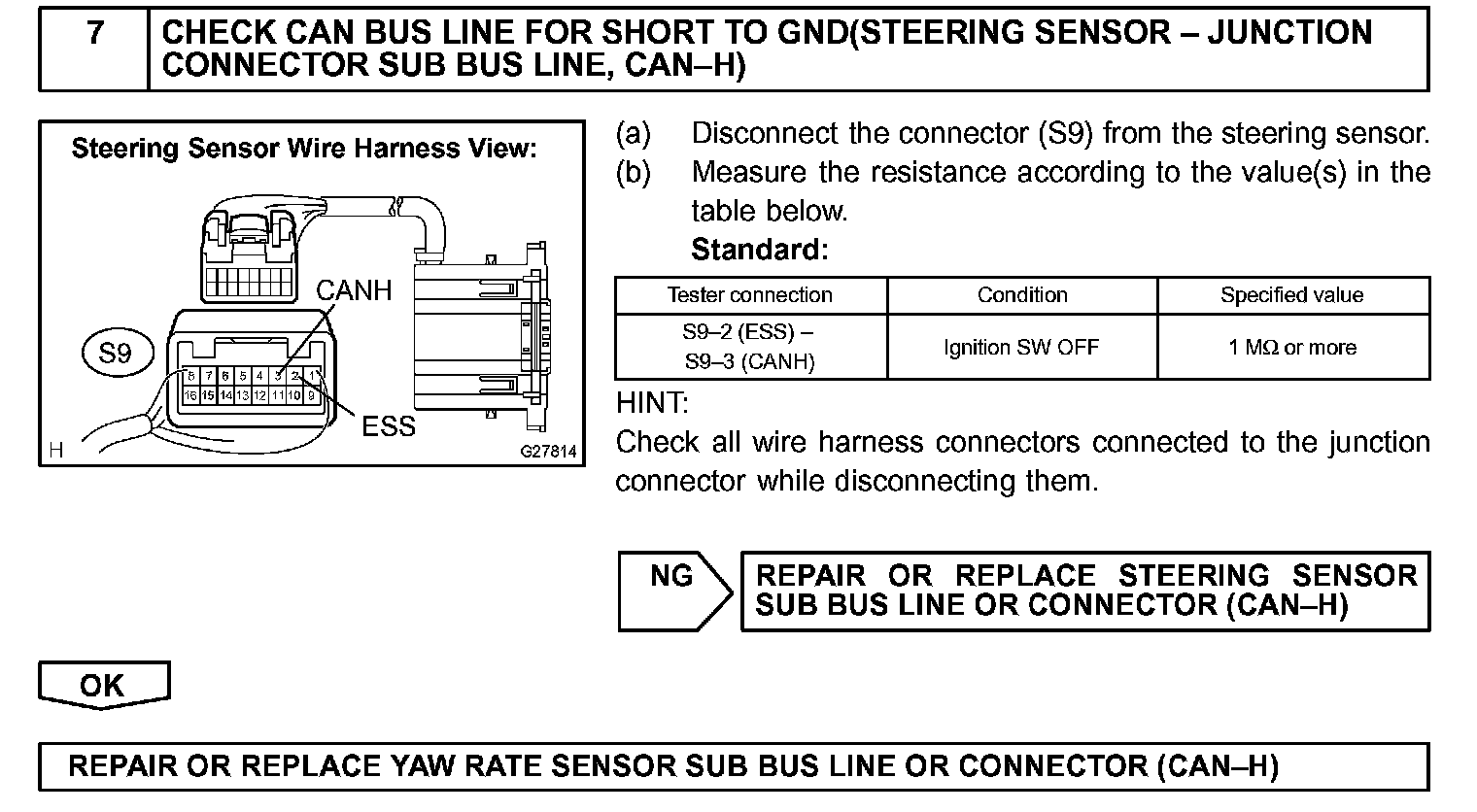

Step 7:

INSPECTION PROCEDURE
