Check CAN Bus Line (CAN-H) For Short to +B

CHECK CAN BUS LINE (CAN-H) FOR SHORT TO +B

CIRCUIT DESCRIPTION




A short to +B is suspected in the CAN bus line when there is continuity between terminals 16 (BAT) and 6 (CANH) of the DLC3.

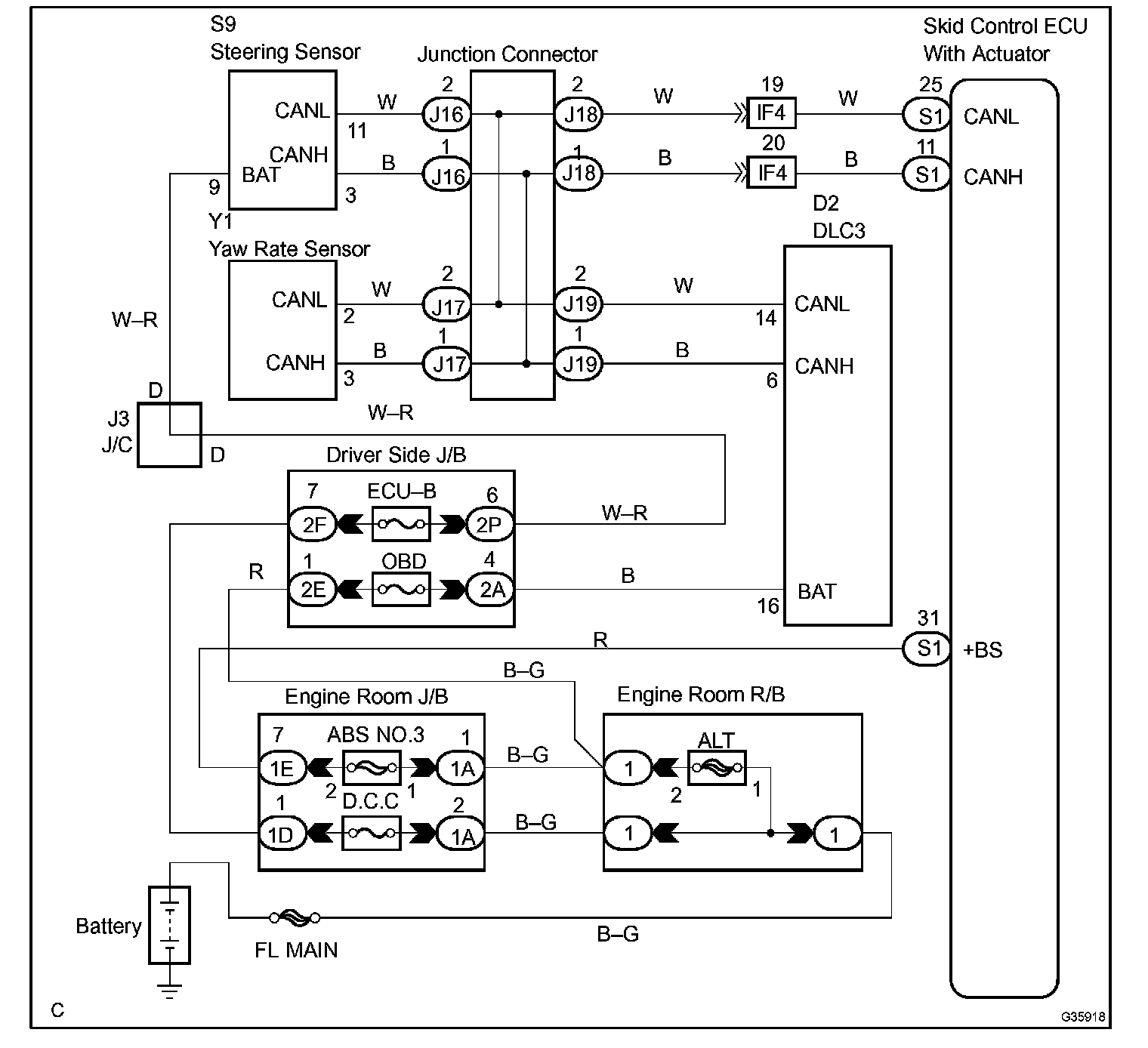

Wiring Diagram:

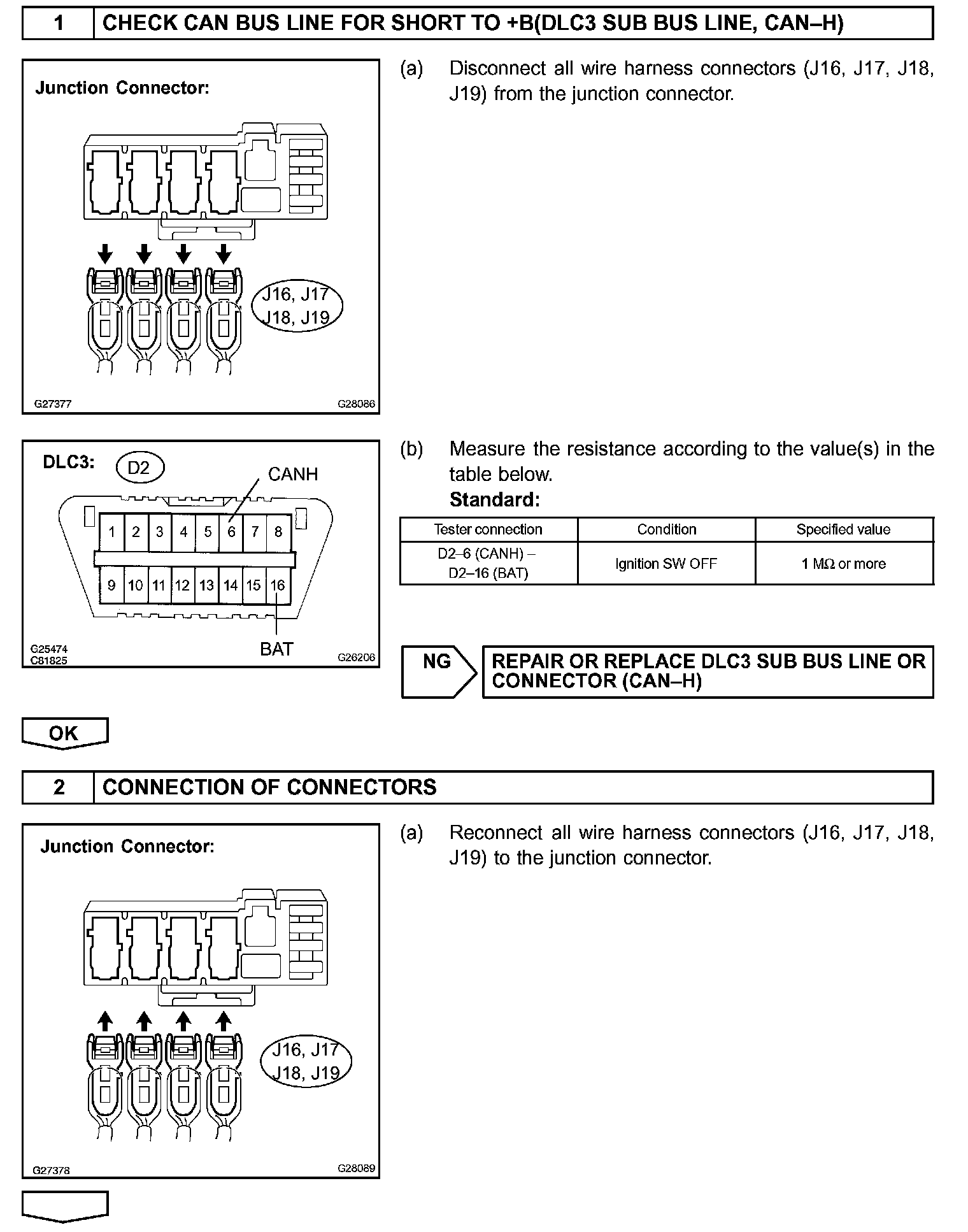

Step 1 - 2:

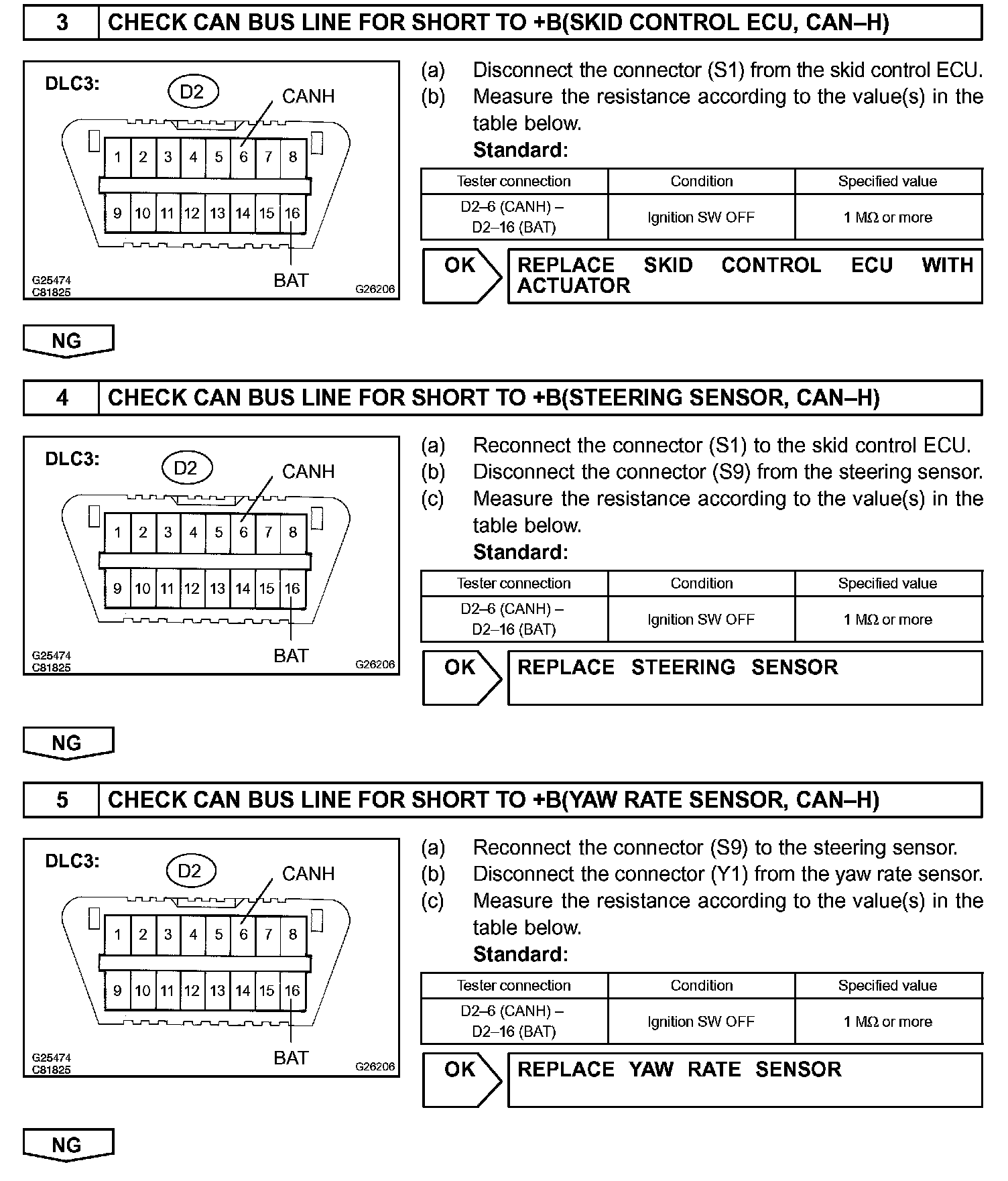

Step 3 - 5:

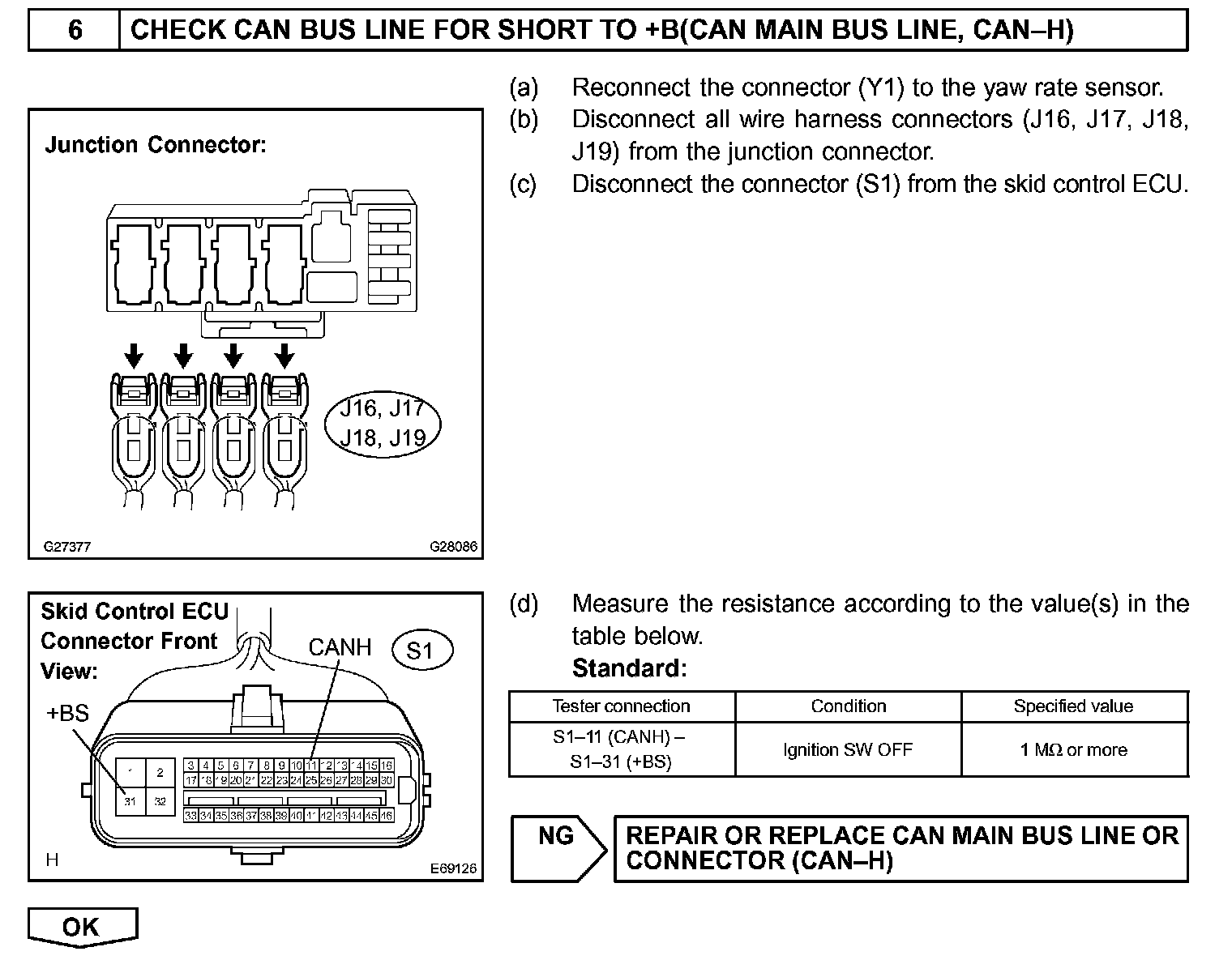

Step 6:

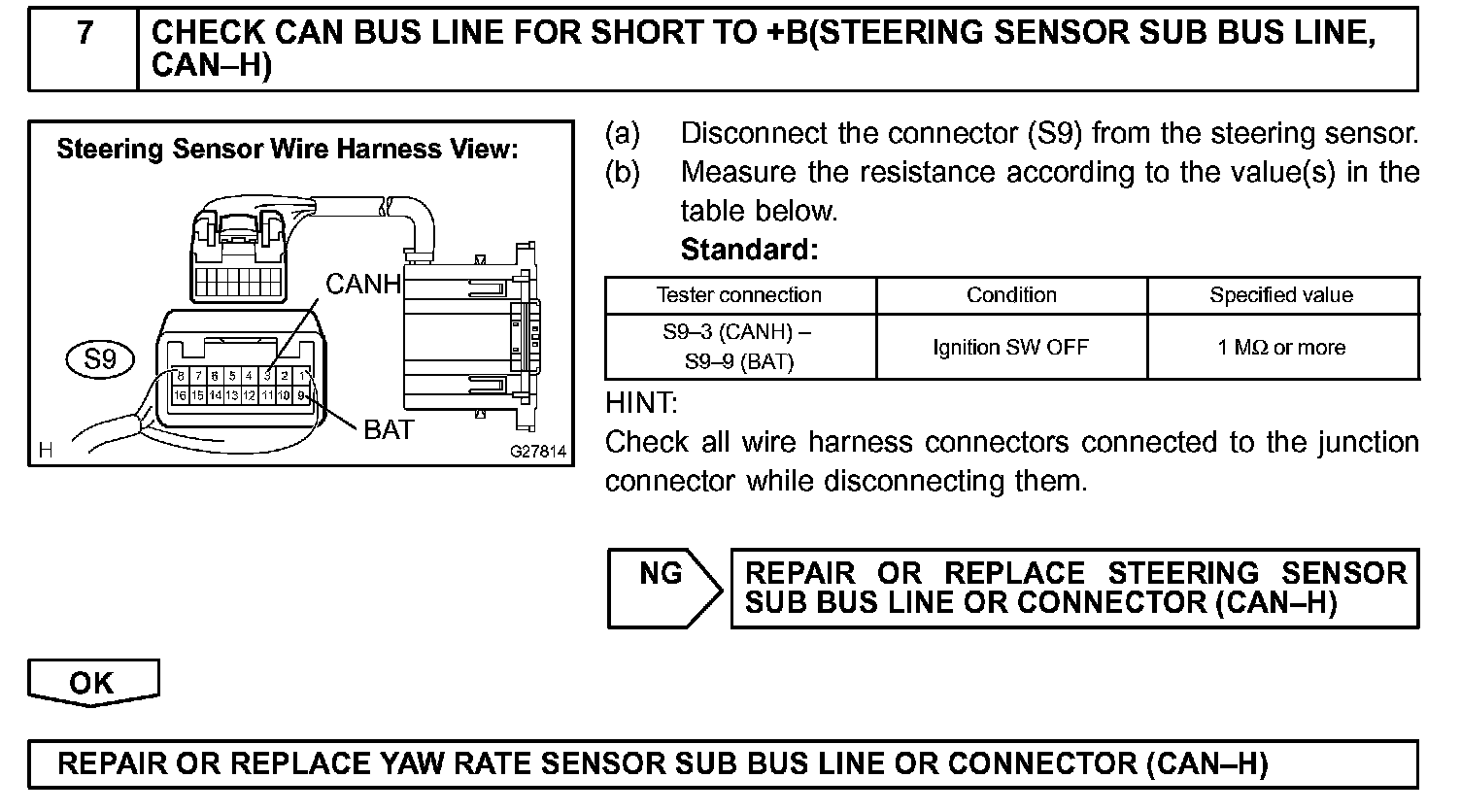

Step 7:

INSPECTION PROCEDURE
