Multiple Junction Connector: Locations

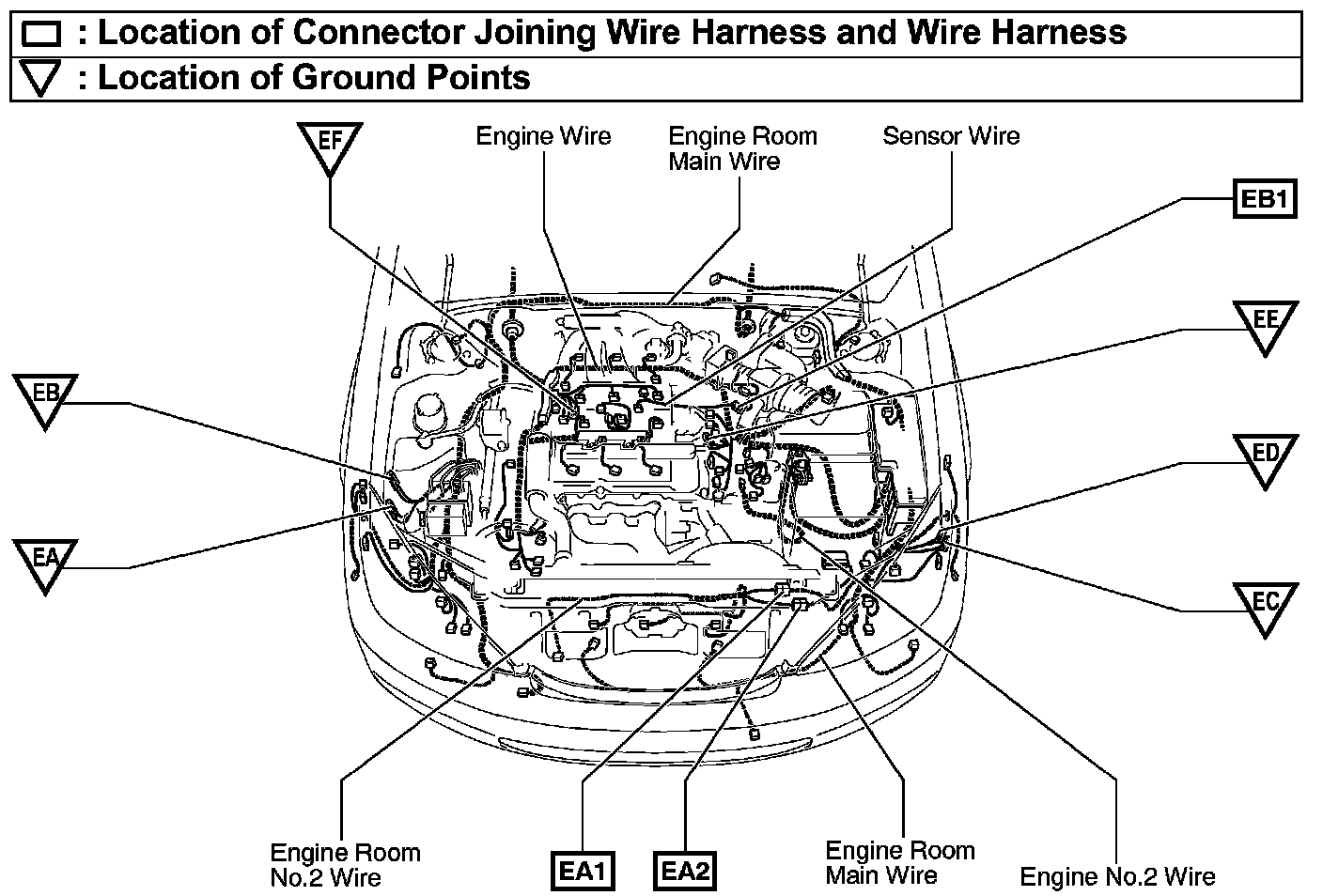

EA1 - EB1, EA - EF:

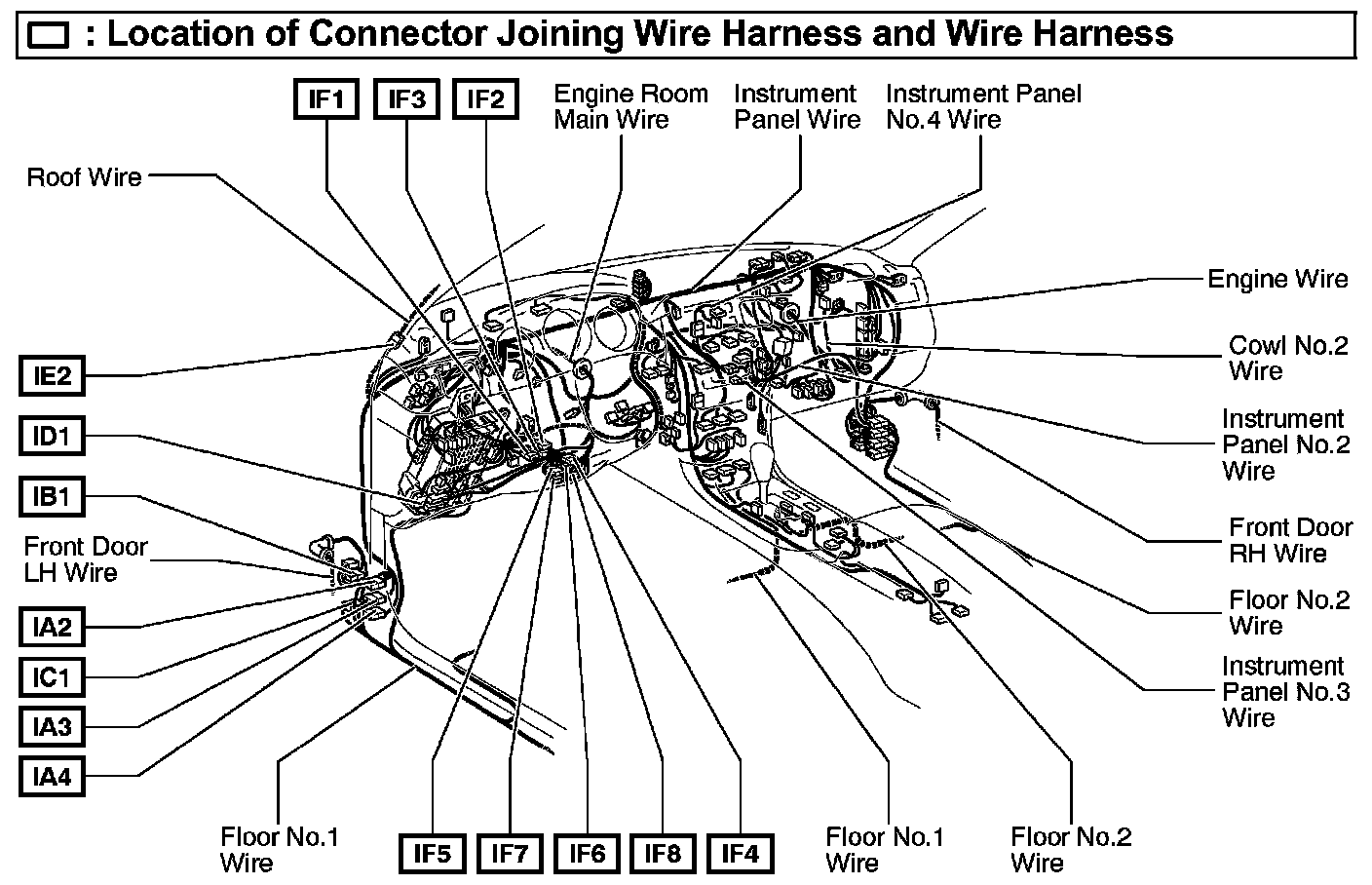

IA2 - IF8:

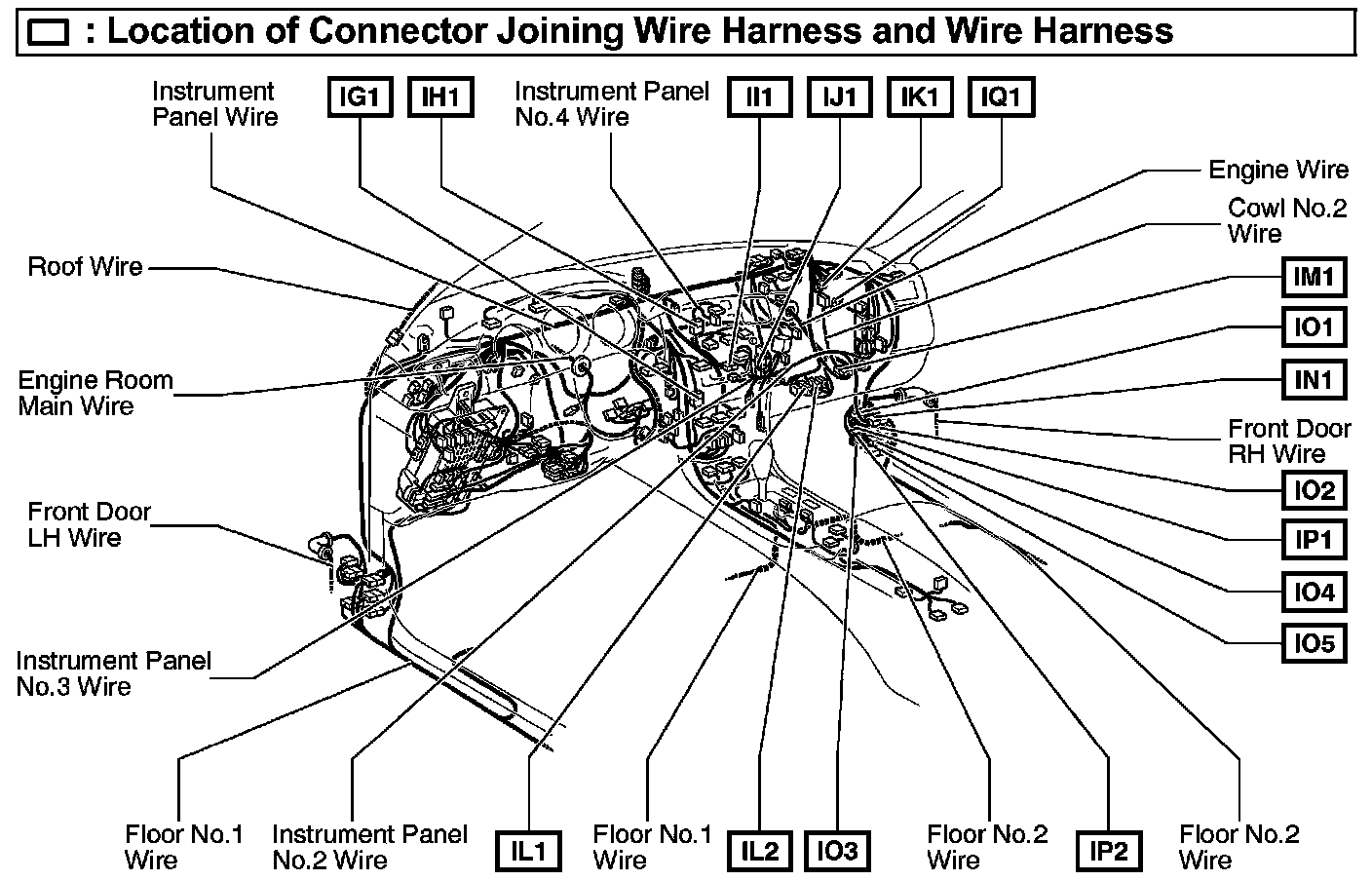

IG1 - IQ1:

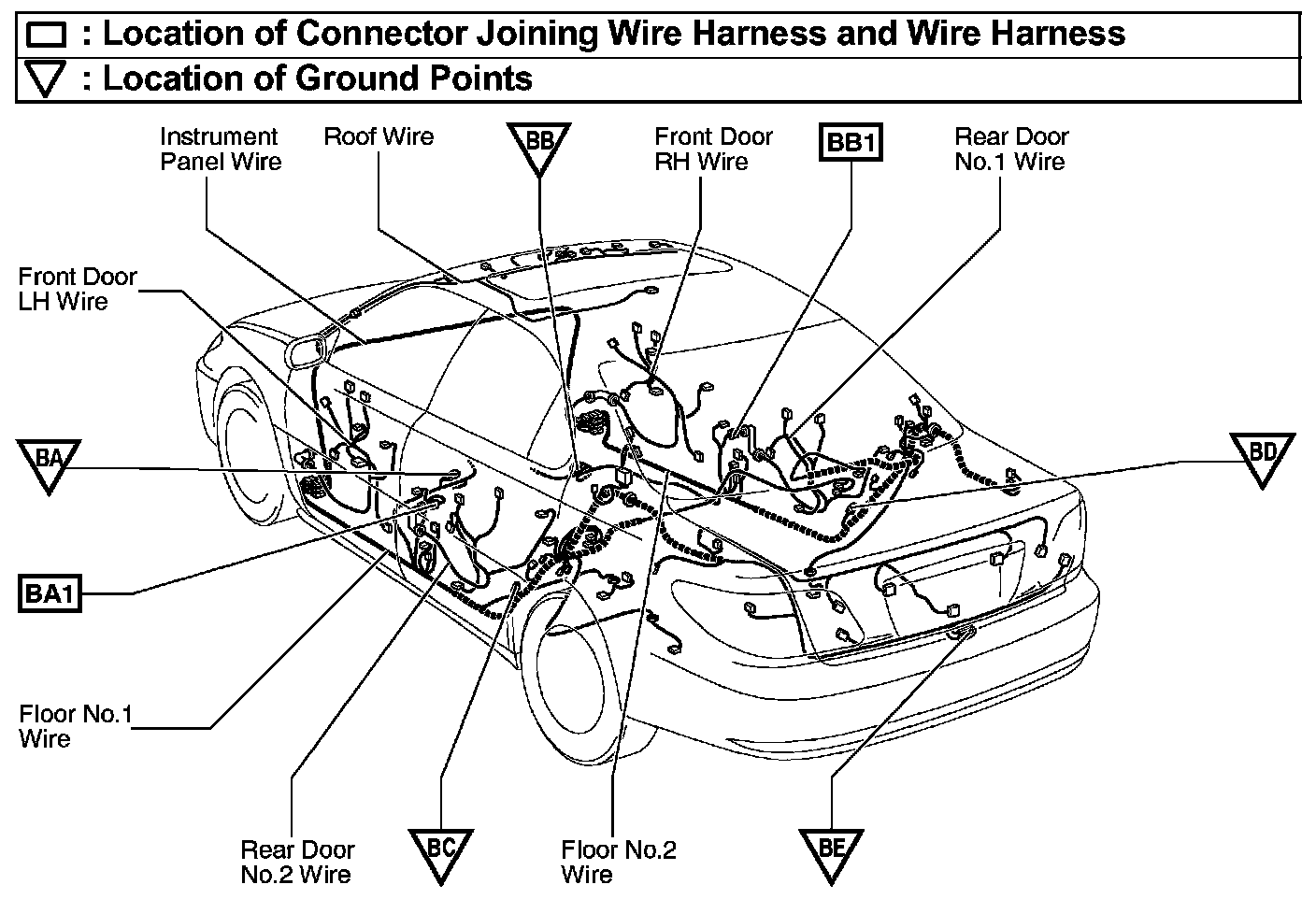

BA1 - BB2, BA - BE:

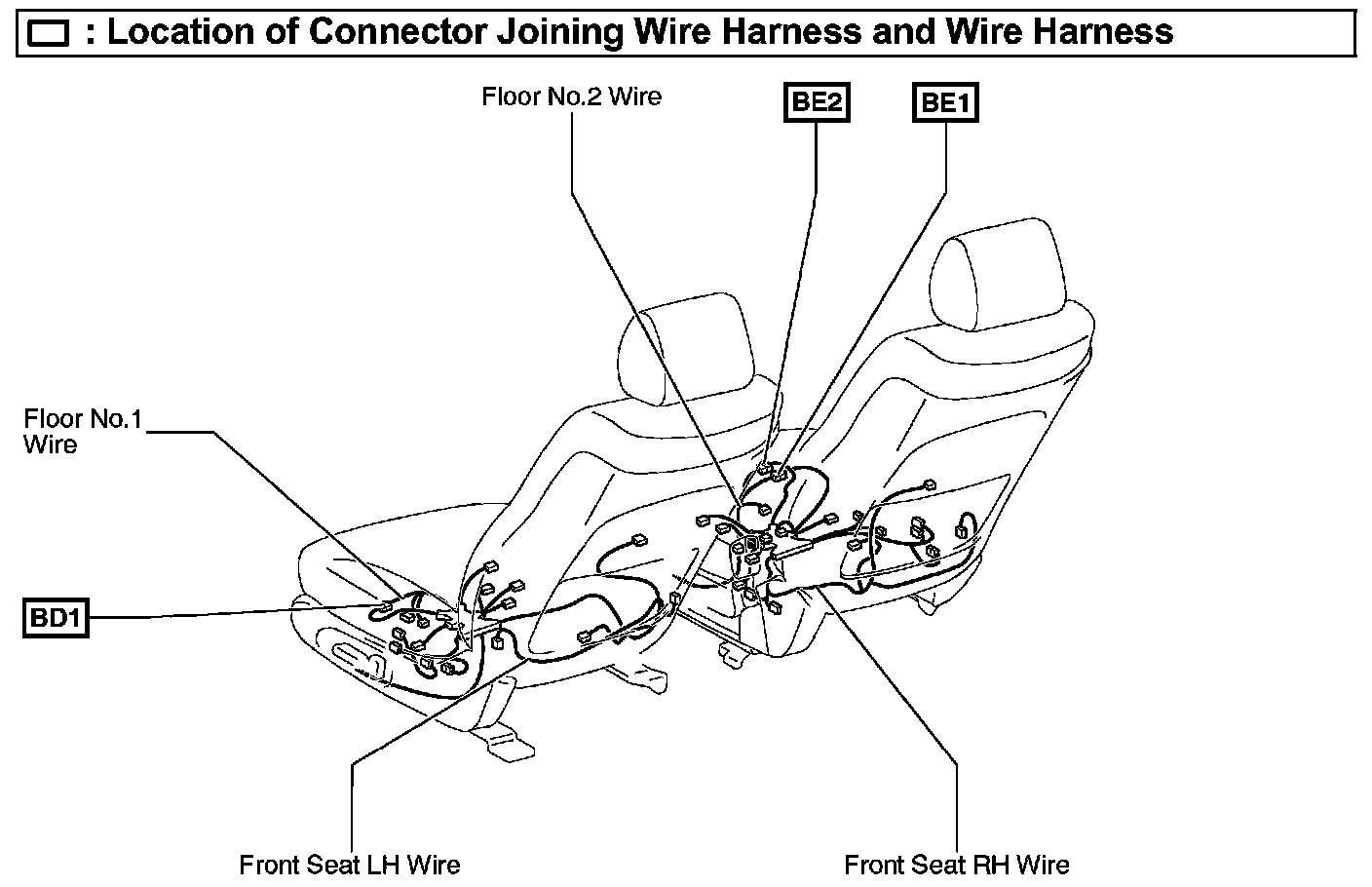

BD1 - BE2:
